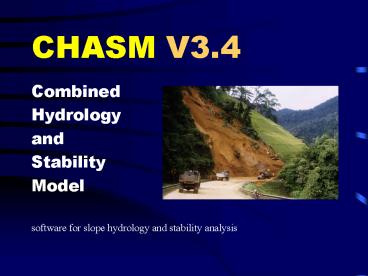

CHASM V3.4

• Combined
• Hydrology
• and
• Stability
• Model
• software for slope hydrology and stability
  analysis

2
CHASM contact information

• Malcolm Anderson
• Bristol Innovations Software Sales Limited
• Phone [phone]
• Fax [phone]
• Email chasm-env_at_bristol.ac.uk
• Website www.chasm.info
• Address 3rd floor
• Saint Bartholomews
• Lewins Mead
• Bristol BS1 2NH
• UK

3
This demo

• introduces the basic concepts behind the design
  of CHASM software
• provides examples of screen shots from the
  WINDOWS version of CHASM
• and gives an example application of CHASM
  WINDOWS version

4
CHASM software

• CHASM is an integrated slope hydrology/slope
  stability software package that aids the
  assessment of slope stability conditions.

5
CHASM Capabilities

• An integrated slope hydrology/slope stability
  software implemented in both WINDOWS and UNIX
• Unsaturated and saturated slope hydrology
  modelled using a finite difference formulation
  directly coupled to slope stability analysis
• fully dynamic slope hydrology implemented for 3D
  convergent, divergent or rectilinear slope
  geometries

6
CHASM Capabilitiescontinued.

• Allows direct input of storm hydrographs (hourly
  intensities) or design rainfall
• Incorporation of upslope recharge
• Incorporation of vegetation cover effects for
  both slope hydrology and slope stability
• Specification of multiple soil strata and
  associated properties
• WINDOWS slope draw facility that is user defined

7
CHASM

• A GUIDED TOUR THROUGH THE WINDOWS

8
CHASM for WINDOWS selected screen shots
9

• WINDOWS BASED DEFINITION OF PROFILE

10
Stability Analysis
11
2D Hydrology
12
3D Hydrology
13
Rainfall
14
Soil properties
15
Vegetation
16
Canopy Modelling
17
Static Analysis
18
Output from CHASM (from 2D hydrology example)
19
Effect of slope plan curvature on the FOS during
a 110yr Hong Kong design storm (24 hrs at
15mm/hr)
20
Graphical representation of hydrological
Conditions
21
Minimum Factor of Safety for each Hour of
Simulation
22
APPLICATIONSinclude directly linking design
rainfall to factor of safety
23
CHASM Applicationsexamples

• Assessing the role of surface cover on slope
  stability
• Establishing the controls on stability afforded
  by differing slope plan curvatures
• Through the full dynamic linkages of the model
  relating design rainfall to factor of safety
• Probabilistic analyses
• Implementation through a GIS environment to
  provide wide area stability assessment for
  prioritization of remedial works

24
CHASM literature

• Includes
• Proceedings Institution of Civil Engineers -
  Impact of vegetation on slope stability in a
  humid tropical environment, 1995 (awarded
  Trevithick Premium by the ICE)
• Transport Research Laboratory - Hydrological
  design manual for slope stability in the tropics,
  Overseas Road Note, 14, 1997
• ..Visit the website www.chasm.info for more
