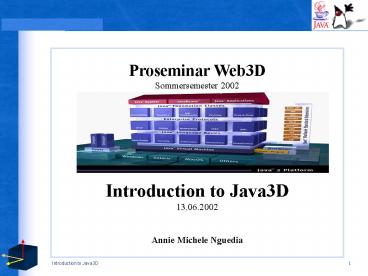

Proseminar Web3D Sommersemester
2002 Introduction to Java3D 13.06.2002 Anni
e Michele Nguedia
2
Overview(1)

• I - General 3D Modelling concepts
• II - Definition of a SceneGraph
• - SceneGraph superstructure
• - SceneGraph nodes
• - Node Component
• - Scenegraph references
• III - Important classes to develop a Java3D
• - Java3D API
• - SceneGraph Classes

3
Overview(2)

• IV - Recipe for writing a Java 3D program
• V - Tranformations in Java3D
• - Rotation, translation, scaling
• VI - Key Java 3D features
• VII - Summary
• VIII - References

4
Java 3D an approach

• Java 3D is a set of classes for writing
  three-dimensional graphics applications and 3D
  applets.
• It is primarily for application
  developer(programmer).
• It enables authors to build shapes and control
  animation and interaction.
• It also enables detailed control over rendering,
  input devices, the viewing model, and lots more.
• API implementation was recently released by Sun
  Microsystems.

5
General 3D Modelling Concepts

• A Java 3D virtual universe is created from a
  SceneGraph.
• The most common relationship in a SceneGraph is a
  parent child relation
• (as in VRML)

6

• General 3D Modelling concepts
• II - Definition of a SceneGraph
• - SceneGraph superstructure
• - SceneGraph nodes
• - Node Component
• - Scenegraph references
• III - Important classes to develop a Java3D
• - Java3D API
• - SceneGraph Classes

7
Definition of a SceneGraph (1)

• SceneGraphs are treelike data structures that
  are used to store, organize , and render scene
  information (objects,materials,
  appearances,lights....Etc).
• The data structures of a scene graph consist of
  Nodes.

8
Definition of a SceneGraph (2)

• The most important Nodes that are composed a
  scene graph are a Virtual Universe,a Locale(or
  more) ,Groups, Leaf,NodeComponents and others
  objects .

9
Scene Graph Symbols
10
Together a Locale and a Virtual Universe
compose a SceneGraph superstructure.

• A reference associates a Node
• Component object with a Scene
• Graph Node .

11
Scenegraph nodes

• There are two types of nodes
• - Group the primary role of a Group is to
  act as the parent of the other nodes, specially
  other Group nodes and Leaf nodes.
• - Leaf leaf nodes specify the shape, sound,
  and behavior of a scene graph object.

12
Group nodes subclasses
BranchGroup
OrderedGroup
SharedGroup
Group
Switch
TransformGroup
Primitive
13
Leaf nodes Subclasses
Background
Behavior
Bounding Leaf
Clip
Fog
Leaf
Light
Link
Morph
Shape3D
Sound
Soundscape
Viewplatfom
14
The Node Component

• The Java3D Node Component class is used to
  specify a variety of node properties such as
  geometry,appeareance ,texture, transparency,and
  coloring.
• The classes of Node Component are
  Appeareance,AuralAttributes,Coloring Attributes
  ,DepthComponent Geometry,ImageComponent,....

15

• General 3D Modelling concepts
• Definition of a SceneGraph
• - SceneGraph superstructure
• - SceneGraph nodes
• - Node Component
• - Scenegraph references
• III - Important classes to develop a Java3D
• - Java3D API
• - SceneGraph Classes

16
Java3D API
The API has core classes and utility classes

• Core Classes
• javax.media.j3d package
• lowest level classes required for Java3D
  programming

• Utility Classes
• com.sun.j3d.utils package
• convenient and powerful additions to the core

17
Important Classes

• Virtual Universe und Locale Class
• are derived respectively from Universe and
  Locale Object in a scene Graph.
• SceneGraph Object Class
• is the base class for nearly every object
  that appears in a Java3D scene Graph.This
  abstract class contains node and node component
  objects.
• Scene Graph Viewing Object Classes
• included five classes that are used in the
  viewing parameters of scene graphs
  (Canvas3D,Screen3D,View,PhysicalBody,PhysicalEnvir
  onment).
• Simple Universe utility class
• is used by the Java3D developers to
  create a Java3D program without dealing with
  Viewing object Classes.

18
Simple recipe for writing a Java3D program

• Using the SimpleUniverse class in Java 3D program
  reduces the time and effort needed to create the
  view branch Graph.
• The basic outline of Java 3D program development
  consists of seven steps
• 1- Create a Canvas3D object
• 2- Create a VirtualUniverse object
• 3- Create a Locale object, attaching it to
  the VirtualUniverse object .
• 4- Construct a View object
• 5- Construct content branch graph
• 6- Compile branch graph
• 7- Insert subgraphs into the Locale.
• The steps 1,2,3,4,and 7 create a Simple Universe(
  code for creating a SimpleUniverse
  SimpleUniverse ( ) )

19
HelloJava3D Class

• public class HelloJava3Da extends Applet
• public HelloJava3Da()
• setLayout(new BorderLayout())
• GraphicsConfiguration config
• SimpleUniverse .getPreferredConfiguraton(
  )
• Canvas3D canvas3D new Canvas3D (config)

• add("Center, canvas3D)
• BranchGroup scene createSceneGraph()
• scene.compile()
• // SimpleUniverse is a convenience Uility
  class
• SimpleUniverse SimpleU new
  SimpleUniverse (canvas 3D)
• // This move the ViewPlatform back a bit so
  the
• // objects in the scene can be viewed .
• SimpleU.getViewingPatform().setNominalViewin
  gTransform()
• simpleU.addBranchGraph (scene)
• // end of HelloJava 3Da (constuctor)

1- Create a canvas3D
4- Compile ContentBranchGraph
2- Create a Simpleuniverse
3- Customize Simpleuniverse
5- Insert ContentBranchGraph into the Locale
20
Some terminologies in Java3D

• Become live
• a Branch Graph becomes live as soon as it is
  attached to a scene graph. Each object of the
  Branch Graph are subject to being rendered.
• Compiling
• a BranchGroup converts an object and all its
  ancestors to a more efficient one from the
  rendered.

21

• General 3D Modelling concepts
• Definition of a SceneGraph
• Important classes to develop a Java3D
• Recipe for writing a Java 3D program
• V - Transformations in java 3D
• - Translation
• - Rotation
• - Scaling
• VI - Key Java 3D features
• VII - Summary
• VIII - References

22
Transfomations in Java3D

• The TransformGroup Class is the needed class to
  represent a transformation of a Transfom3D
  object.
• The three basic operations for a transformation
  are
• - Translation moving object from one
  location in space to another .
• - Rotation An object can be rooted around
  any combination of the X,Y,Z axes
  simultaneously.
• - Scalingscaling an object means changing
  ist size .There are two different types of
  scaling uniform and nonuniform.

23
Key Java3D features

• Java 3D scene graphs are considerably more
  difficult than a VRML scene graph,owing to the
  inherent complexity of full-featured programming
  languages such as Java.
• Further than its complexity ,Java3D sceneGraph
  offers excellent features such as
• - Rendering control
• - Scalable Performance
• - Behaviors
• - Generic Input Devices
• - Geometry Compresion
• - Versatile View Model
• - Camera-based View Model

24
Actual future works(1)

• Virtual Reality (VR)application could be
  developped with Java3D
• VR application insert other parameters such as
• - users physical characteristic (height,
  eyeseparation,...)
• - physical environment (number of displays,
  their location , head-tracked-shutter-glass-based
  desktop).

25
Actual future works(2)
Some devices for VR
Advance 3D Model
26
Conclusion

• Java programmers can quickly and easily define
  graphics programs using Java3Ds scene graph
  classes.

27
References

• Getting starting with Java3D API (Dennis J
  Bouvier) The Java3D Tutorial of Sun
• Java website http//java.sun.com/products/javamedi
  a/3D
• http//www.sun.com/desktop/java3d
