Topics for the Session

1

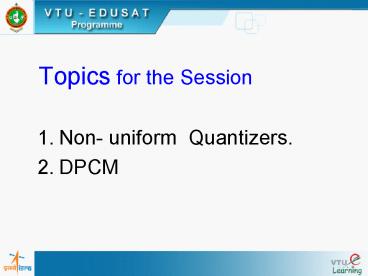

Topics for the Session

• Non- uniform Quantizers.
• DPCM

2
UNIFORM - QUANTIZER

• Variance,
• Features
• Variance is valid only if the input signal does
  not overload Quantizer
• SNR Decreases with a decrease in the input power
  level.

3
ROBUST QUANTIZER
A Quantizer whose SNR remains essentially
constant for a wide range of input power levels.
. Non Uniform Quantizer
4
Non Uniform Quantizer

• Variable Step-Size.
• Smaller amplitude - Smaller Step Size.
• Larger amplitude - Large Step size

5
Non- UniformQuantizer MODEL
Compander Compressor Expander
6
Compressor
7
Expander
8
Quantization Error-1
Transfer Characteristics
Compressor --- C(x) Expander --- C-1(x)
C(x). C-1(x) 1
9
Quantization error-2
Compressor Characteristics ( for large L )

?k Width in the interval Ik
10
Quantization Error-3

• Let fX(x) PDF of X .
• Assumptions
• fX(x) is Symmetric
• fX(x) is approximately constant in each
  interval. ie.. fX(x) fX(yk)

11
Quantization Error-4
fX(x) fX(yk) ?k xk1 - xk for k 0, 1,
L-1. pk Probability of variable X pk P
(xk lt X lt xk1 ) fX(x) ?k fX(yk) ?k
12
Quantization Error-5
Q yk X for xk lt X lt xk1 Variance
sQ2 E ( Q2) E ( X yk )2
13
Carrying out Integration w.r.t x
( ?k2 / 12 ) - Variance of error in the
Interval Ik
?k ? for all k in Uniform Quantizer.
14
Types of Companding

• µ - law ( US, Canada Japan)
• A - law ( Europe)

15
µ-law
?255 reduces noise power in speech 20dB
16
µ-law companding
µ 255 - practical value
17
A-law
18
A-law
Practical value for A 87.5
19
Companding Gain - Gc
Companding gain For µ-law
20
Advantages ofNon Uniform Quantizer

• Reduced Quantization noise
• High average SNR

21
DPCM - Transmitter


22
DPCM - Receiver
