Distributed Synchronization

1

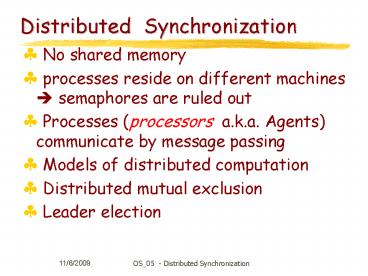

Distributed Synchronization

• No shared memory
• processes reside on different machines ?
  semaphores are ruled out
• Processes (processors a.k.a. Agents)
  communicate by message passing
• Models of distributed computation
• Distributed mutual exclusion
• Leader election

2
Model of distributed computation

• Events
• Sending of messages
• Receiving of messages
• internal interrupt or time-out
• Processes (processors) can wait for events
• process p waits for events by executing
• Wait for A1, A2,
• A1 (sourse parameters)
• code to handle A1
• process q executes send(p, A1 parameters)
• p will eventually perform the code for A1, with
  the unpacked parameters

3
Causality

• No global system state
• cannot be determined by a single observer
• Communication delays
• impossible to synchronize two observers
  (machines) exactly
• Distributed systems are causal (no traveling
  back in time)
• for each processor separately, events are
  totally ordered

4
Simplest causality happens_before

• send always happens_before receive
• two events of the same agent are ordered
• e1 lt e3 e4 lt e7 e7 ?? e5

5
Ordering events

• define the happens_before relation as the
  transitive closure of the two relations
• e1 ltm e2 send ? receive
• e3 ltp e4 e3 ? e4 on processor p
• require
• e1 lth e2 and e2 lth e3 gt e1 lth e3
• in the former example
• e1 lth e8 (msg. processor msg.)
• e2 lth e7 (msg. processor)

6
Ordering by time stamps

• a global partial order can be achieved by a
  topological order of the lth relation
• for ordering events during execution, one needs
  to compute the order on the fly
• This can be done by assigning time-stamps to
  events
• Lamport 78

7
Lamports time-stamp algorithm

• Initially,
• my_TS 0
• On event e,
• if e is the receipt of a message m,
• my_TS max(m.TS, my_TS)
• my_TS
• e.TS my_TS
• if e is the sending of message m
• m.TS my_TS

8
Lamports time-stamps

• timestamps assigned by Lamports algorithm are
  causal
• e1 ltm e3 gt e1.TS lt e3.TS
• e1 ltp e4 gt e1.TS lt e4.TS

9
Causality violations

• the causality relation between two equal
  time-stamps is not clear
• Lamport suggests to determine by processor
• but what about the meaning ?...

10
Vector time-stamps

• try to use a multiple time-stamp
• record time-stamps of all processors
• Vector time-stamps, containing information (TS)
  on all processors
• e1.VT v e2.VT ltgt e1.VTi e2.VTi for
  all i
• e1.VT ltVT e2.VT ltgt e1.VT e2.VT and
• e1.VT ? e2.VT

11
Vector time-stamps
12
A simple algorithm for VT

• Initially,
• my_VT 0,,,0
• On event e,
• if e is the reciept of message m,
• for i 1 to M
• my_VTi max(m.VTi, my_VTi)
• my_VTself
• e.VT my_VT
• if e is the sending of message m,
• m.VT my_VT

13
Comparing vector time-stamps
14
Detecting causality violation
15
In simpler words

• sending and receiving messages are events
• if the sending events of two different messages
  are ordered
• e1 send(m) lth e2 send(m)
• then the violation in the example is
• e4 rec(m) ltp e3 rec(m)

16
Causal Communication

• One could enforce our form of causality
• Block incoming messages and deliver them when
  they fit causally
• Each source of messages enumerates them
  sequentially
• The receiver only delivers a message that fits
  the sequence of messages received from the same
  source
• Assuming no messages are lost
• One method of numbering can be Lamports TSs

17
Causal communication - algorithm

• Initially
• each earliestk is set to the 1k timestamp
• each blockedk is set to
• On the receipt of message m from processor p
  not_earlier(proc_i_vts, proc_j_vts,i)
• delivery_list if msg_vtsi lt
  proc_i_vtsi
• if(blockedp is empty) return TRUE
• earliestp m.timestamp else
• add m to the tail of blockedp return FALSE
• while(there is a k s.t. blockedk is not empty
  and
• for every i1..M except for k and Self
• not_earlier(earliesti,earliestk,i))
• remove the message at the head of blockedk
  -gt delivery_list
• if(blockedk is not empty
• set earliestk to m.timestamp, where m at
  head of blockedk
• else
• increment earliestk by 1k
• Deliver the messages in delivery_list, in causal
  order

18
Delivering messages causally
19
Consistent States

• In order to detect certain failures, the
  systems state has to be examined
• Examining data of different processors at
  different times can generate artifacts
• It is difficult to define simultaneity in a
  distributed system
• The state of the processors is not enough, since
  there might be undelivered messages

20
Consistent States (II)

• A global state can be meaningful (i.e.
  consistent) only if it is reachable
• A a consistent state is one that can actually
  happen through series of legal operations of the
  distributed system
• In other words, if in the state the processor pk
  has received a message from processor pm, then
  the state of processor pm must be such that the
  message has already been sent

21
Consistent States (III)

• Surprisingly, a simple condition can guarantee a
  consistent global state
• For every pair of observations oi , oj , that
  are part of the state, it is not the case that
• oi lth oj
• An immediate implementation of the lth relation
  are vector time-stamps

22
Phantom deadlock
23
Distributed Mutual Exclusion

• The simplest way to ensure mutual exclusion is
  to use a global clock
• Allow the processor that sent the
  earliest-request to enter the critical section
• Processors can use Lamports method to share a
  global clock
• Exactly one of n requests is deterministically
  the earliest
• Requests time-stamps are compared to local TSs

24
Global clock based DME (Ricart Agrawala81)

• Request_CS
• my_TS current_TS
• requesting TRUE
• pending_reply M-1
• for every other processor j,
• send(j, Remote_Request my_timestamp)
• wait until pending_reply is 0
• Release_CS
• requesting FALSE
• for j1 through M
• if deferred_replyj TRUE
• send(j, Reply)
• deferred_replyj FALSE

25
DME (Ricart Agrawala81)

• Main
• wait until a message is received
• Remote_Request(sender request_time)
• if(not requesting or my_timestamp gt
  request_time)
• send(sender, Reply)
• else
• deferred_replysender TRUE
• Reply(sender)
• pending_reply--

26
Global clock based DME

• Deterministic decision, who is later in the queue
  for the CS
• For M processors a minimal number of messages
  needed to enter 2(M-1)
• Protocol uses symmetric information every
  processor receives the same information and can
  compute the decision of all other processors

27
Token based ME

• Unique token circulating among all processors
• A processor possessing the token can enter the
  CS
• Fixed logical structure among processors token
  travels along this structure
• Processors passing the token along a ring, good
  performance if processors have frequent requests
• Fixed order that is not related to the order of
  requests or to number of requesting processors

28
Token based ME on a Tree

• Hierarchical logical structure needs less
  messages delivered during a request for token
• a unique path from any (requesting) processor to
  any other (holding token)
• only one neighbor lies on the path to the token
  holder
• Each processor stores a pointer to its neighbor
  on the path to the token - current_dir
• requests are moved to next neighbors on the path
  and the requests (i.e. return path) are stored in
  a FIFO queue
• released tokens are sent to top of queue
• each processor on the path can deliver token to
  its top of queue

29
Tree-based token ME (Raymond89)

• Nq(neighbor) Add neighbor to requestQ
• Dq() Return the name at head of requestQ
• ismt() True iff requestQ is empty
• Request_CS() Release_CS()
• if not Token_hldr Incs false
• if ismt() if not ismt()
• send(current_dir, REQUEST)
  current_dir Dq()
• Nq(self)
  send(current_dir, TOKEN)
• wait until Token_hldr is true
  Token_hldr false
• Incs true if not ismt()
• send(current_dir, REQUEST)

30
Raymonds algorithm - Main

• while(true)
• REQUEST TOKEN
• if Token_hldr current_dir Dq()
• if Incs if current_dir self
• Nq(sender) Token_hldr true
• else else
• current_dir sender
  send(current_dir, TOKEN)
• send(current_dir, TOKEN) if not
  ismt()
• Token_hldr false
  send(current_dir, REQUEST)
• else
• if ismt()
• send(current_dir, REQUEST)
• Nq(sender)

31
Raymonds algorithm example
32
Raymonds algorithm - features

• low storage required O(d)
• low message passing overhead O(logn) per
  request
• when demand increases, work to pass token
  decreases..
• But token may travel a long distance before
  reaching its destination
• Therefore good only for CS which is seldom
  entered.

33
Path compression token-based ME

• IsRequesting True iff processor is requesting
  token
• Current_dir The current guess of end of waiting
  line
• Next next processor for token (NIL - end of
  waiting line)
• Request_CS() Release_CS()
• IsRequesting true Incs false
• if not Token_hldr IsRequesting false
• send(current_dir, REQUEST self) if next
  ? NIL
• current_dir self Token_hldr
  false
• next NIL send(next, TOKEN)
• wait until Token_hldr is true next
  NIL
• Incs true

34
Path compression (II)

• while(true)
• REQUEST(requester)
• if IsRequesting true
• if next NIL
• next requester
• else
• send(current_dir, REQUEST requester)
• elseif Token_hldr true
• Token_hldr false
• send(requester, TOKEN requester)
• else
• send(current_dir, REQUEST requester)
• current_dir requester
• TOKEN()
• Token_hldr true

35
Path compression (example)
36
Path compression

• Processors submit forward information about the
  requester
• Processors receiving requests point back to the
  last in line
• which is potentially the holder of the token
• The last in line for the token adds the new
  request to the tail
• The last in line itself would add new requesters
  to its tail
• The state of all processors is not necessarily
  consistent (improved efficiency)
• requests are sent to better knowing processors

37
Electing a Leader

• Replicated data schemes use a primary copy (the
  up-to-date by definition)
• Distributed computation might need a
  coordinator, to assign tasks to participating
  processors
• If a leader fails, a new leader has to be
  elected in order to determine the systems state
  and restart computation
• All participants must know who the leader is. In
  synchronization, non token holders only need to
  know that one does not hold the token
• In synchronization, (stability) failure
  treatment can be an additional requirement
• In leader election, it is an integral part of
  the algorithms behavior, if the coordinator
  fails a coordinator has to be elected

38
The Bully algorithm

• General assumptions
• Processors can store their state during failure
  and increase version numbers upon recovery
• Failures halt all processing (no erratic
  behavior)
• Additional assumption
• Messages are delivered within Tm seconds
• Nodes respond to messages within Tp seconds
• This allows a reliable failure detector
• If a processor does not respond to a message
  within T 2 Tm Tp it must have failed
• These are called Synchronous Systems

39
Algorithm requirements

• Nodes have one of four status values
• Down, Election, Reorganization, Normal
• Correctnes assertion 1
• For G, a consistent state, and for any pair of
  nodes pi, pj
• 1. If statusi e Normal, Reorganization and
  statusj e Normal, Reorganization then
  Coordinatori Coordinatorj
• 2. If statusi statusj Normal then
  Definitioni Definitionj
• Recovering from failure, a node sets its status
  to Down. Starting an election process, it changes
  to Election. Finishing an election, nodes go into
  Reorganization. Receiving the new common state gt
  Normal
• If two nodes think that they are in working
  order, they agree on who is the coordinator and
  on the state of the system

40
Algorithm requirements

• Guarantee that the election algorithm makes
  progress, i.e. does not stay in the Election
  status (for example)
• Correctnes assertion 2
• For a consistent state G, eventually (with no
  failures)
• 1. There is a node i s.t. Statei Normal and
  Coordinatori i
• 2. For any other nonfailed node j Statej
  Normal and Coordinatorj i
• The simplest strategy is to assign priorities to
  all processors, so that they know the priorities
  of all others
• Each one just finds out whether higher priority
  nodes are not failed

41
The Bully algorithm - initialization

• Up set of processors known to be in the group
• halted identity of processor that notified of the
  current election
• Coordinator_Timeout() / check if
  coordinator is alive /
• if State Normal or State Reorganization
• send(Coordinator, AreYouUp), timeoutT
• wait until Coordinator sends AYU_answer
  timeoutT
• on timeout
• Election()
• Recovery() Check() / Coordinator checks all
  others /
• State Down if State Normal and
  Coordinator Self
• Election() for every other node j
• send(j, AreYouNormal)
• wait until j sends (AYN_answer
  status), timeoutT
• if (j ? Up and statusFalse) or j
  !? Up
• Election()
• return()

42
The Bully algorithm - election()

• Election()
• highest True
• For every higher-priority processor p
• send(p, AreYouUp)
• wait up to T seconds for (AYU_answer)
  messages
• AYU_answer(sender)
• highest False
• if highest False
• return()
• State Election
• halted Self
• Up
• For every lower-priority processor p
• send(p, Enter_Election)
• wait up to T seconds for (EE_answer) messages
• EE_answer(sender)
• Up Up U sender

43
The Bully algorithm - election() II

• num_answers 0
• Coordinator Self
• State Reorganization
• for each p in Up
• send(p, Set_Coordinator Self)
• wait up to T seconds for (SC_answer) messages
• SC_answer(sender)
• num_answers num_answers 0
• if num_answers lt Up for each p in Up
• Election() send(p, New_State
  Definition)
• return() wait up to T seconds for
  (SC_answer) messages
• NS_answer(sender)
• num_answers
• if num_answers lt Up
• Election()
• return()

44
The Bully algorithm

• The election procedure run by each agent first
  determines whether a better leader exists
• If so, wait for the leader to initiate election
• Otherwise, attempt to establish itself as leader
• Whenever an Enter_Election message is received
  immediate response is needed, even if higher
  priority nodes were all checked because a
  leader may have recovered
• The same is true for receiving a Set_Coordinator
  message. Update coordinator and move to state of
  Reorganization
• Similarly, update the Definition (state of
  system)

45
The Bully algorithm - Control

• Main()
• while(True)
• wait for a message
• case SreYouUp(sender)
• send(sender, AYU_answer)
• case AreYouNormal(sender)
• if State Normal, send(sender, AYN_answer
  True)
• else send(sender, AYN_answer False)
• case Enter_Election(sender)
• State Election
• stop_processing()
• stop the election procedure, if it is
  processing
• halted sender
• send(sender, EE_answer)

46
The Bully algorithm Control (II)

• case Set_Coordinator(sender, newleader)
• if State Election and halted newleader
• Coordinator newleader
• State Reorganization
• send(sender, SC_answer
• case New_State(sender, newdef)
• if Coordinator sender and State
  Reorganization
• Definition newdef
• State Normal

47
The Bully algorithm Example
48
The Bully algorithm

• simple algorithm that makes a strong assumption
• timeouts can accurately detect failed processors
• lost messages or overfull buffers can make the
  bully algorithm elect two leaders
• very long timeouts can make failure detection
  almost certain
• but, make the algorithm run too long
• maybe the leader should be tied up to the group
  that it coordinates, in case timeout gets so long
  that failure is no longer certain

49
Electing a group leader

• Electing a global leader is too difficult, when
  timeouts are not clear or too long
• Tie the coordinator to the group it leads
• All members of a group agree on the group
  number
• Each group number is unique
• The group number is part of the state definition
  of each node
• Only members of the same group agree on the
  identity of the coordinator

50
Electing a group leader - correctness

• Correctness assertion 3
• For G, a consistent state and any pair of nodes
  pi and pj the following two conditions hold
• If Statusi ? Normal, reorganization, Statusj ?
  Normal, reorganization, and Groupi Groupj,
  then Coordinatori Coordinatorj
• If Statusi Normal, Statusj Normal, and Groupi
  Groupj, then Definitioni Definitionj
• .

51
Electing a group leader liveness

• Let R be a maximal set of nodes that can
  communicate in a consistent state G0. The
  following conditions are eventually true in any
  run, starting at s.t. R remains the maximal set
  of communicating nodes
• Correctness assertion 4
• There is a node pi ? R, such that Statei Normal
  and Coordinatori pi
• For any other non failed node pi ? R, Statej
  Normal and Coordinatorj pi

52
Electing a group leader observations

• Correctness assertion 3 is easy to satisfy. Any
  processor p that wishes to establish itself as a
  leader, forms a unique group number and suggests
  to some group of processor to join the group with
  itself as Coordinator
• Group identifier is unique ? assertion 3.1 is
  fullfilled
• If participants accept the Definition that p
  circulates together with the new group
  identifier, assertion 3.2 is satisfied
• The hard assertions to satisfy is 4
• Run an election algorithm that insures that each
  node in the group has the same Coordinator in
  finite time
• For more than one Coordinator, the Bully
  Algorithm may make Coordinators compete for
  participants and not enable progress

53
The Invitation Algorithm

• Groups need to coalesce into larger groups
• Coordinators search periodically for other
  groups
• The coordinators found are kept in a set
  Others
• Each Coordinator detecting another group, tries
  to merge it with its own
• To avoid deadlock it delays for a time between
  detecting and acting
• unlike the Bully algorithm, timeout does not
  mean much
• Not hearing from your coordinator ? form your
  own group and proceed
• Group IDs are unique composed of a nodes ID
  and a running number

54
The Invitation Algorithm Check for groups

• Check()
• if State Normal and Coordinator Self
• Others
• for every other node p,
• send (p, AreYouCoordinator)
• wait up to T seconds for (AYC_answer)
  messages
• AYC_answer(sender is_coordinator)
• if is_coordinator True
• Others Others U sender
• if Others
• return()
• wait for a time inversely proportional to your
  priority
• Merge(Others)

55
The Invitation Algorithm suspected failure

• Timeout()
• if Coordinator Self
• return()
• send(Coordinator, AreYouThere group)
• wait for AYT_answer, timeout is T
• on timeout,
• is_coordinator False
• AYT_answer(sender is_coordinator)
• if is_coordinator False
• Recovery()
• Recovery()
• State Election
• stop_processing()
• Counter group Self Counter
• Coordinator Self
• Up
• State Reorganization

56
The Invitation Algorithm Merge groups

• Merge(Coordinator_set)
• if Coordinator Self and State Normal
• State Election
• stop_processing()
• Counter Group Self Counter
• Coordinator Self
• UpSet Up
• Up
• for each p in Coordinator_set,
• send(p, Invitation Self, Group)
• for each p in UpSet,
• send(p, Invitation Self, Group)
• wait for T seconds
• State Reorganization
• num_answer 0
• for each p in Up
• send(p, Ready Group, Definition)
• wait up to T seconds for Ready_answer messages
• Ready_answer(sender ingroup, new_group)

57
The Invitation Algorithm Invite Merging

• Invitation()
• while True
• wait for Invitation (new_coordinator
  new_group)
• if State Normal
• stop_processing()
• old_coordinator Coordinator
• UpSet Up
• State Election
• Coordinator new_coordinator
• Group new_group
• if old_coordinator Self
• for each p in UpSet
• send(p, Invitation Coordinator, Group)
• send(Coordinator, Accept Group)
• wait up to T seconds for an Accept_answer(sender
  accepted) message
• on Timeout,
• accepted False
• if accepted is False invoke Recovery()
• State Reorganization

58
The Invitation Algorithm Main

• Main()
• while True
• wait for a message
• Ready(sender new_group, new_description)
• if Group new_group and State Reorganization
• Description new_description
• State Normal
• send(Coordinator, Ready_answer True, Group)
• else
• send(sender, Ready_answer False)
• AreYouCoordinator(sender)
• if State Normal and Coordinator Self
• send(sender, AYC_answer True)
• else
• send(sender, AYC_answer False)

59
The Invitation Algorithm Main

• Main()
• while True
• wait for a message
• ..
• AreYouThere(sender old_group)
• if Group old_group and Coordinator Self and
  sender in Up
• send(sender, AYT_answer True)
• else
• send(sender, AYT_answer False)
• Accept(sender new_group)
• if State Election and Coordinator Self and
  Group new_group
• Up Up U sender
• send(sender, Accept_answer True)
• else
• send(sender, Accept_answer False)

60
The Invitation Algorithm Example
61
Electing a leader

• Imposing a strong logical structure on the
  system (synchronous) enables an efficient
  algorithm the Bully algorithm
• Lacking such a structure (asynchronous) needs a
  slower algorithm (merging groups) the
  Invitation algorithm
• Bounded response time is at the basis of the
  (synchronous) Bully algorithm
• The Invitation algorithm works correctly in the
  presence of timing failures (i.e. practical)
• Stating the correctness of asynchronous
  algorithms is much more complex
• Every processor agrees on a value in a
  synchronous system
• Only a group of processors needs to agree on
  group membership and on a value, in an
  asynchronous system
• Consistency is relative to the group,
  uncommunicating processors can be ignored
• The Invitation algorithm uses sequence numbers,
  instead of global knowledge
