Title: PSTN Network Hierarchy


1

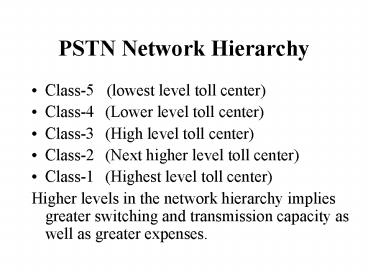

PSTN Network Hierarchy
  • Class-5 (lowest level toll center)
  • Class-4 (Lower level toll center)
  • Class-3 (High level toll center)
  • Class-2 (Next higher level toll center)
  • Class-1 (Highest level toll center)
  • Higher levels in the network hierarchy implies
    greater switching and transmission capacity as
    well as greater expenses.

2
PSTN Network Hierarchy
  • Class-5 is the local central office (CO) that
    contains a switch and calls come there.
  • Then, the CO processes the incoming calls.
  • Determines the best path to its destination.
  • When calls cannot be handled directly, then the
    Class-5 turns to Class-4, which then turns to
    Class-3, which then turns to Class-2 ,
  • Which then turns to Class-1.

3
Figure 2-4 Representative Voice Network Heirarchy
4
System Signaling
  • The information that the the telephone system
    must carry about the call itselfin addition to
    carrying the actual voice signals---is known as
    the System Signaling.

5
System Signaling
  • SS deals with 3-things
  • Call setup
  • Call termination
  • Many advanced functions
  • Call waiting Call blocking
  • Call forwarding Caller-ID blocking
  • 3-way calling Number redialing
  • Automatic redialing of missed calls

6
Figure 2-6 Signaling System 7 Protocols and the
OSI Model
7
PBX-Concepts
  • PBX private branch exchange
  • PBX is a switching device that
  • Works as a voice-server or switch.
  • Deals with a so-called PBX-switching matrix.
  • Links the users phones with their destinations.
  • Ensures flexible voice commun-capability.
  • Mini-PBXs find application in the SOHOs.
  • SOHO Small Office Home Office

8
Figure 2-11 PBX Physical Architecture
9
Call Accounting System
  • CAS runs on standalone PCs.
  • Execute directly with the PBX.
  • Execute specially written software.
  • Can track the incoming and outgoing calls.
  • Can spot possible call usages and abuses.

10
Figure 2-14 Call Accounting Systems Installation
11
PBX Trends--in tune with market demands--
  • Better connectivity between phones and PCs.
  • Better connectivity between PBXs and LANs.
  • Better integration of PBX management programs
    with enterprise network management packages.
  • Open PBX-architectures for easier access to PBX
    features and services from a variety of computing
    platforms.

12
Open PBX Architecture
  • PBX is becoming nothing more than a specialized
    communications or voice server.
  • It is now integrating all other servers as part
    of an enterprise network.
  • Enterprise network is an organizations complete
    network.
  • Enterprise network is a kind of corporate network
    that connects various LANs, MANs and WANs
    belonging to the same organization, thereby
    ensuring the benefit of communication with the
    users or applications amongst these networks.

13
Figure 2-17 Open PBX Architecture
14
C T I Computer Telephony Integration
  • Integrates the 2 important productivity network
    devices
  • Desktop computer and telephone.
  • Optimizes the use of telephone and the desktop
    computer by being able to share the information
    and functionality offered by each.

15
CTI Architectures
  • Has 3-Architectures
  • PBX-to-Host Interface
  • Desktop-CTI
  • Client-server CTI
  • Has 3-important Applications
  • API Application Program Interfaces
  • TAPI Telephone API
  • TAPI has been developed jointly by
    Intel/Microsoft.

16
Figure 2-19 CTI Architectures
17
CTI-Appln-Development Tool
  • Developed based on computing platforms and
    operating systems.
  • Based on programming codes.
  • These codes are written in JAVA and C.
  • Graphical code generators allow easy application
    development with a minimum programming background.

18
Figure 2-20 Technology Required to Develop and
Implement CTI Applications
19
Voice Transmission Architectures--in addition to
PSTN--
  • VOIP Voice over IP
  • VOFR Voice over Frame Relay
  • FRADFrame Relay Access Device
  • VOATM Voice over ATM
  • VDMU Voice/Data Multiplexers
  • VDMO Voice/Data Modems
  • VOISDN Voice over ISDN
  • --------------------------------------------------
    ---
  • ATM, FR, ISDN are 3 MAN/WAN technologiesservices
    provided by the CCNs.

20
VOIP Voice Over IP
  • VOIP means
  • Voice over any network using the IP-protocol.
  • Also represents the IP-based voice transmission
    over the Internet.
  • Provides an alternative to the traditional voice
    transmission taking place over the Internet.

21
Figure 2-22 VOIP Transmission Technology and
Topologies
22
Topology!
  • Describes the way a network is set up.
  • Provides a geometric configuration of NW.
  • Gives an impression of the physical layout of the
    network.
  • Common topologies
  • Bus, star, ring---------topologies.
  • Mesh (full-, partial-, cloud-based mesh)
  • Switch, Linear, Tree----topologies.

23
Voice Transmission --over Frame Relay Network--
  • Frame Relay is an MAN/WAN transmission service.
  • Also known as FRAD
  • FRAD Frame Relay Access Device
  • Uses variable length frames.
  • Can accommodate audio/video/data service.
  • Ensures audio prioritization over data traffic.
  • To ensure efficiency, does packetizingbreaking
    bigger packets into smaller packets.
  • Provides point-to-point connection, known as PVC.
  • PVC Permanent Virtual Connection

24
Figure 2-26 Voice Transmission over a Frame
Relay Network
25
Voice Transmission over ATM
  • ATM is an MAN/WAN transmission service.
  • ATM Asynchronous Transfer Mode.
  • Can accommodate audio/video/data service.
  • It is a packet switched services network.
  • Uses fixed-length (53 bytes) packetscalled
    cells.
  • Provides extensive QoS quality of service.
  • Provides same data transmission as SONET
  • OC-1 51.84 Mbps
  • OC-3 155.52. Mbps
  • OC-9 466.56 Mbps
  • OC-12 622.08 Mbps

26
Figure 2-27 Voice Transmission over an ATM
Network
27
Integrated Services Digital NW
  • ISDN Integrated Services Digital Network
  • Is a circuit switched digital service.
  • Is used to build MAN/WAN networks.
  • Transmits audio/video/data simultaneously.
  • Uses ISDN-audio/video/data Modems.
  • 2-Types N-ISDN and B-ISDN

28
Narrowband-ISDN
  • N-ISDN offers 2-Types of Services
  • BRI Basic rate interface (2BD)
  • 2 B-channels at a rate of 64 Kbps.
  • 1 D channel at 16 Kbps.
  • --------------------------------------------------
    --------------------------------------------------
    --------------------------------------------------
    --------------
  • PRI Primary rate interface (23BD)in USA.
  • PRI Primary rate interface (30BD)in Europe.
  • 2 B-channels at a rate of 64 Kbps.
  • 1 D channel at 64 Kbps.

29
Broadband-ISDN
  • B-ISDN is an enhancement of N-ISDN
  • Supports both BRI and PRI
  • Offers 2-symmetric full-duplex services
  • 155.52 Mbps (both ways)
  • 622.08 Mbps (both ways)
  • --------------------------------------------------
    --------------------------------------------------
    --------------------------------------------------
    ---------
  • Offers 1-asymmetric full-duplex services
  • 155.52 Mbps (one way--upstream)
  • 622.08 Mbps (other waydown-stream)

30
Figure 2-28 Simultaneous Voice/Data Transmission
with DSVD and ISDN
