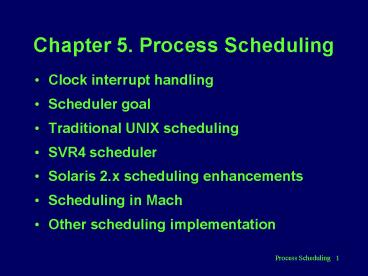

Chapter 5. Process Scheduling

• Clock interrupt handling
• Scheduler goal
• Traditional UNIX scheduling
• SVR4 scheduler
• Solaris 2.x scheduling enhancements
• Scheduling in Mach
• Other scheduling implementation

2
Clock Interrupt Handling

• H/W clock interrupts the system at fixed time
  intervals
• The clock interrupt handler is second priority
  only to that of power-failure interrupt
• The clock interrupt handler performs
• rearms the h/w clock if necessary
• updates CPU usage statistics for the current
  process

3
Clock Interrupt Handling (cont)

• performs scheduler-related functions, such as
• priority recomputation
• time-slice expiration handling
• sends a SIGXCPU signal to the current process if
  it has exceeded its CPU usage quota
• updates the time-of-day clock and other related
  clocks
• handle callouts
• wakes up system processes such as the swapper and
  pagedaemon when appropriate
• handle alarm

4
Callouts

• A callout records a function that the kernel must
  invoke at a later time
• e.g. SVR4
• int to_ID timeout(void (fn( )), caddr_t arg,
  long delta)
• In system context
• Used for periodic tasks
• retransmission of network packets
• scheduler and memory management functions
• monitoring devices to avoid losing interrupts
• polling devices that do not support interrupts

5
Callouts (cont)

• Callout implementation in BSD UNIX

Callout listhead
t 2 roundrobin
t 1 schedcpu
t 4 f1
t 0 f2
time left to fire 2 3 7 7
(a) Callout queue at on instant of time
Callout listhead
t 1 roundrobin
t 1 schedcpu
t 4 f1
t 0 f2
time left to fire 1 2 6 6
(b) Callout queue one tick later
6
Alarms

• A process requests the kernel to send it a signal
  after a specific amount of time
• three types of alarms
• real-time alarm
• relates to the actual elapsed time, via a
  SIGALARM signal
• high resolution ? high accuracy
• profiling alarm
• measures the amount of time the process has been
  executing, via SIGPROF signal
• virtual time alarm
• monitors only the time spent by the process in
  user mode, via SIGVTALARM signal

7
Scheduler Goals

• Deliver acceptable performance to each Ap.
• Categories of applications
• interactive
• spend a lot of time waiting user input
• system needs to reduce the average time and
  variance btw user action and application response
• acceptable delay is about 50 150ms
• batch
• do not require user interaction, as background
  jobs
• criteria tasks completion time
• real-time
• time-critical with guaranteed bounds on response
  time

8
Traditional Scheduling

• SVR3, 4.3 BSD
• Scheduling target
• time-sharing, interactive environment with
  several batch and foreground processes
  simultaneously
• Scheduling policy
• improve response time of interactive users, while
  ensuring that low priority, background jobs do
  not starve

9
Traditional Scheduling (cont)

• Priority-based
• priority changes with time
• preemptive time-slicing
• Kernel is nonpreemptible
• Process priority
• 0 49 kernel, 50 127 process in user mode
• proc structure
• p_pri current scheduling priority
• p_usrpri user mode priority
• p_cpu measure of recent CPU usage
• p_nice user-controllable nice factor

10
Traditional Scheduling (cont)

• Sleep priority
• kernel value (0 49)
• e.g. terminal input 28, disk I/O 20
• Priority calculation schedcpu( )
• every tick, clock handler increments p_cpu for
  the current process
• every second, p_cpu p_cpu - decay factor
• p_usrpri PUSER p_cpu/4 2p_nice
• PUSER is the baseline priority of 50

11
Traditional Scheduling (cont)

• Scheduler implementation

whichqs
qs
0
0
0
1
1
0
. . .
P
P
P
P
P
12
Traditional Scheduling (cont)

• Situations for context switch
• current process blocks on a resource, or exits
• priority recomputation procedure results in the
  priority of another process becoming greater than
  that of of the current one
• current process, or an interrupt handler, wakes
  up a higher-priority process

13
Traditional Scheduling (cont)

• Analysis
• simple and effective
• favor I/O-bound jobs
• not scale well
• no guarantee of CPU usage and response time
• kernel is non-preemptive priority inversion

14
SVR4 Scheduler

• Scheduling class
• time sharing and real-time
• class-independent routines
• common services such as context switching, run
  queue manipulation, and preemption
• class-dependent routines
• priority computation and inheritance

15
SVR4 Scheduler (cont)

• SVR4 dispatch queues

dqactmap
dispq
0
0
1
0
1
0
. . .
P
P
P
P
P
16
SVR4 Scheduler (cont)

• SVR4 kernel defines several preemption points
• places in the kernel code where all kernel data
  structures are in a stable state, and the kernel
  is about to embark on a length computation
• Three ranges of 160 priorities
• 0 59 time-sharing class
• 60 99 system priorities
• 100 159 real-time class

17
SVR4 Scheduler (cont)

• interface to the scheduling class

Global class table
rt_classfuncs
rt-init
sys_classfuncs
sys-init
ts_classfuncs
ts-init
proc structures
p_cid p_clfuncs p_clproc . . .
p_cid p_clfuncs p_clproc . . .
p_cid p_clfuncs p_clproc . . .
p_cid p_clfuncs p_clproc . . .
class-dependent data
class-dependent data
class-dependent data
class-dependent data
18
SVR4 Scheduler (cont)

• Time-sharing class
• changes process priorities dynamically
• round-robin scheduling with the same priority
• event driven scheduling
• reduces process priority each time it uses up its
  time slice
• boosts the priority of the process if it blocks
  on an event or resource, or if it takes a long
  time to use up it quantum

19
SVR4 Scheduler (cont)

• Real-time class
• scheduled before any kernel process
• fixed priority and time quantum
• requires bounded dispatch latency and response
  time

event occurs
Interrupt processing
process made runnable
dispatch latency
response time
nonpreemptive kernel processing
time
context switch initiated
context switch
process is scheduled to run
application code
process responds to event
20
SVR4 Scheduler (cont)

• Analysis
• allows the addition of scheduling class
• time-sharing class changes priorities based on
  events related to that process
• favor I/O-bound and interactive jobs over
  CPU-bound ones
• code path btw preemption points is too long for
  time-critical applications
• difficult to tune the system properly for a mixed
  set of jobs

21
Solaris 2.x Scheduling Enhancement

• Preemptive kernel
• most global kernel data structures must be
  protected by synchronization objects
• implementation of interrupts using special kernel
  threads
• Multiprocessor support
• single dispatch queue for all processors

22
MP Scheduling in Solaris 2.x

• Initial situation

23
MP Scheduling in Solaris (cont)

• After T6 and T7 become runnable

about to be switched out
CPU_chosen_level 130
about to be scheduled on P3
dispatcher queues
24
Priority Inversion

• Lower priority process holds a resource needed by
  a higher priority process, thereby blocking that
  higher priority process
• Solved by priority inheritance
• when a high-priority thread blocks on a resource,
  it temporarily transfer its priority to the lower
  priority thread that owns the resource

25
Priority Inversion (cont)
R
currently running
becomes runnable
holds
blocks
(a) Initial situation
runnable
currently running
holds
blocks
R
dispatcher queues
(b) Without priority inheritance
runnable
currently running
holds
blocks
R
inh pri 130
dispatcher queues
(c) With priority inheritance
26
Priority Inversion (cont)

• Transitive priority inheritance

currently running
holds
blocks
holds
blocks
R1
R2
becomes runnable
(a) Initial situation
currently running
runnable
holds
blocks
holds
blocks
R1
R2
inh pri 135
inh pri 135
dispatcher queues
(b) Transitive priority inheritance
27
Priority Inheritance

• Traversing the synchronization chain

blocked threads
holds
owner
owner
runnable
holds
holds
owner
owner
wants
holds
currently running
gp global priority ip inherited priority
28
Priority Inheritance (cont)
blocked threads
holds
owner
currently running
owner
holds
holds
owner
owner
holds
gp global priority ip inherited priority
blocked threads
29
Priority Inheritance (cont)

• Limitations
• is not used for semaphores and condition
  variables since the owner is usually
  indeterminate
• Turnstiles
• reduce information maintained by kernel for
  hundreds of synchronization objects

Turnstile pool
active
T
active
T
T
T
T
Blocked threads
active
T
Synchronization objects
30
Scheduling in Mach

• Schedules threads regardless of the task to which
  they belong
• Handoff scheduling
• a thread can directly yield the processor to
  another thread w/o searching the run queue
• improves the performance of the IPC calls
• Multiprocessor support
• processor allocation can be handled by a
  user-lever server program
• gang scheduling

31
Other Scheduling

• Deadline-driven scheduling
• Three-level scheduler
• isochronous class
• real-time class
• general-purpose class
• admission control
