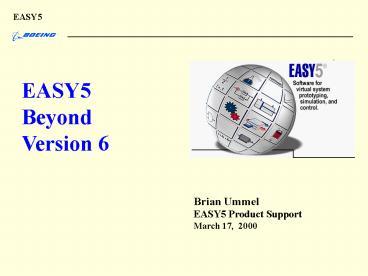

1 EASY5 Beyond Version 6 Brian Ummel EASY5 Product Support March 17, 2000 2 Development Areas
More improvements to the EASY5 Schematic Diagram
Making it easier to build Library Components
Making it easier to modify models
Improved Model Documentation
Enabling Concurrent Engineering
Configuration control of Models
Help with obtaining model data
Improved Viewing of Results
Making MAT and EASY5 work better together
Algorithm Enhancements
Platform Support - where EASY5 runs
3 Development Timescales Imminent Will be included in a bug-fix release within the next few months Near Term Will be included in the next main release (which will probably be called 7.0) which we hope to get out in the next 12 to 18 months). Further Out May be in our next release but may be delayed to a later release Future Direction Some ideas about where we would like to go but not understood enough yet to work on 4 Improvements to EASY5 Schematic Diagram
Near Term
Finer Grid - Four times as many grid points in both x and y axes allows much more freedom of placement of components while maintaining auto-routing of connections
Named Pins - allow connections to a component port to attach to a component by default at a specific point on the component icon. Alternate icons for the component can have different attach points
Text Annotation - Put a formatted text message anywhere on the schematic without having to tie it to a specific component
User Defined Connection Labels - allow you to put any text as a connection label rather than just the component name
Smart Hot Text - eliminate unnecessary zeros and ones (e.g. 1s 0 should display simply as s)
5 Making it Easier to Build Library Components
Near Term
New Macro Name Syntax
S2 IN-- becomes S_2_IN (or maybe sig_out_integ)
No double underscore or imbedded blanks
Total name length can be 24 characters - allowing 4 more to be added to designate instances
No limit to length of macro
Interim ability to use both old and new libraries
Further Out
New Icon Editor
New interface
New Operations
Text Blocks
Ability to edit existing text
Ability to reshape existing object
Schematic Macros
1. Build model schematic
2. Designate and name inputs and Outputs
3. Group becomes library component
6 Making it Easier to Modify Models
Near Term
Multiple selection of model objects
Cut and paste of object within and between models
Further Out
Replace Operation
Drag a component from the add menu and drop it on a component in the model would cause the new component to replace the old one.
The connections from and to the original component would be made to the new one.
Only happens when it makes sense
Insert Operation
Drag a component from the add menu and drop it on an existing model connection would cause the new component to be added to the model and connected between the original from and to components
Only happens when it makes sense
7 Improved Model Documentation
Near Term
Component Notes
Text form
Short text note explaining purpose of component in this model
Saved as part of model file
HTLM link
Could be used to point to vendor data for component
HTML Documentation to include Schematic
Uses Simple Vector Graphics (SVG) web protocol to draw schematic
SVG browser plug-in required (available free from Adobe)
Linked to HTML Docmod component tables
Clicking on component in schematic causes component data to be shown in Docmod frame
8 Enabling Concurrent Engineering
Further Out
Smart Submodels
Built like any model
Have named inputs and outputs to allow easy connection to rest of model
Connections made via standard Connection Form
Replace would update submodel without manual reconnection
Creator can determine if users can modify or even see the internals
Future Directions
Levels within Submodels
Can specify models of various levels of accuracy within single submodel
Only selected level is included within compiled model
Layers within Models
Permit selective viewing of schematic contents (e.g. only electrical)
9 Configuration Control of Models
Further Out
Based on having XML format which stores all model data
Current metafile contains extra and redundant data
Smart Difference Utility will be able to determine differences between versions of a model
Standard diff could be used but would require interpretation
Source code maintenance utility will be used to manage differences
SCCS or RCS on Unix
Several on windows
10 Help with Obtaining Model Data
Near Term
Prepared Common Data Sets
Pressing button on CDT will bring up list of parameter sets available
Example EC Motor component might have a parameter set for a 10 Horsepower Motor
Selecting a set would cause the parameters and initial conditions to be loaded into the component data table
Future Direction
Convenient Access to vendor supplied models of system elements
Preferred access via the world wide web
Would be in the form of single components or smart submodels
Requires agreement about protecting proprietary information
11 Improved Viewing of Results
Near Term
Improvements to Interactive Simulation Widgets
Improved control panel (combine with TI block)
Restart and extend capabilities
Multiple y-axis scales
Review strip chart results that have scrolled off window
Plot Everything from Simulation
Generate plot data before and after switch events and sample times
Further Out
Display Steady State Results on Schematic as Hot Text
Pressures and Temperatures near Components
Flows (and Temperatures) near connections
12 Making MAT and EASY5 Work Better Together
Present
Rely on system call to run EASY5 from within MAT
Slow - must re-start EASY5 on each call
Tested prototype based on CORBA communication
Performance was good
Configuration was complex
Stability was unacceptable
Near Term
New implementation based on MAT .emx architecture
Abbility to Create Executable as .emx file rather than stand-alone executable
Need for multible resident .emx files for optimization
13 Improved Algorithms
Near Term
Add Linearization of Discrete Implicit Systems
Update Switch State Logic
Allow continuous states to be reset at switch state events
Remove requirement that Set Switch command be executed even when no event occurs.
Further Out
Add new integration algorithms
Fixed step with proper switch state handling
Additional implicit system integration algorithms
Combine Steady State Scan and Root Locus
Future Directions
Run simulations on multiple processors
Generate separate models of top level submodels
Run within standard backplane architectures
Run stiff ( e.g. hydraulic) models in Real Time environments
14 Platform Support Where EASY5 runs
Imminent
Windows 2000 on Intel PC
D-space real time board within PC
Near Term
Improved integration with Exceed on PCs
Linux ( still waiting for demand to show up)
Continue support of current platforms (weak spot is DEC Alpha)
Future Direction
Web enabled GUI with EASY5 distributable between local and remote processors
