Nazareth Bedrossian

1

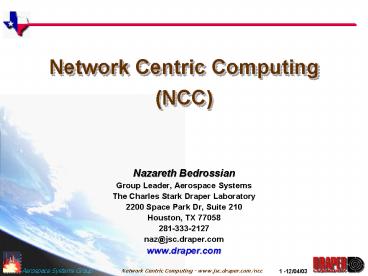

Network Centric Computing (NCC)

• Nazareth Bedrossian
• Group Leader, Aerospace Systems
• The Charles Stark Draper Laboratory
• 2200 Space Park Dr, Suite 210
• Houston, TX 77058
• 281-333-2127
• naz_at_jsc.draper.com
• www.draper.com

2
Overview

• Introduction
• Network Centric Computing (NCC)
• Internet Computing
• Distributed Simulation
• Grid Computing
• Draper NCC Examples
• Demos

3
What Is NCC?

• Networked computers for resource sharing and
  coordinated problem solving
• Context
• Business-To-Business (B2B), Peer-To-Peer (P2P),
  Application System Provider (ASP), Storage System
  Provider (SSP), Grid Computing, Internet
  Computing, Distributed Computing, etc
• Commercial Initiatives
• Sun, IBM-On Demand Computing, HP-Adaptive
  Computing

4
NCC Categories

• Internet Computing ? Distributed Users
• Centralized applications accessed by
  geographically distributed users
• Distributed Simulation ? Distributed Software
• Geographically distributed software subsystems
  which are assembled into complete simulations by
  geographically distributed users
• Grid Computing ? Distributed CPU Cycles
• Distribute computational load over geographically
  distributed resources

5
Draper NCC Examples

• Internet Computing
• eSim Provides remote users web access to
  simulations
• VSSim Provides remote users capability to share
  models create simulations
• Distributed Simulation
• XNsim Provides remote users capability to share
  models create simulations

6
What Is eSim?

• Web Server Software
• Enables multiple users to access any simulation
  via the Web
• Current version runs under Unix OS
• An interactive version, eSimI, has also been
  developed

7
An eSim Example

• Background
• Draper designs and flight certifies Shuttle
  On-orbit GNC system
• Use a high-fidelity 6DOF rigid plus flex-body
  simulation IOS (Interactive On-orbit Simulation)
• Provide support to MOD for Shuttle GNC system
  performance
• Desire an efficient method to support MOD
• Without eSim, MOD would call Draper personnel who
  would run IOS and call back with the performance
  data
• With eSim, MOD user can easily and directly run
  IOS and get performance data

8
eSim IOS
9
eSim Process
eSim Web Server
Simulation Web-Page
Simulation Owner Supplied
Inputs Web Page
Outputs Web Page
Owner Specified Input Variables
Web-Accessible Simulation Input Output Variables
Owner Specified Operational Modes
Simulation Driver File Execution Scripts
Owner Specified Output Variables
Simulation Interface Scripts
Simulation Postprocess Scripts
Postprocessing Tools
Simulation
Execute Simulation
10
Comparing Web Server To Remote Login

• No need for expert users or training users to run
  simulation
• No need to use auxiliary software, such as
  visualization tools
• Limits the of configurations/parameters user
  has to deal with
• No need to jump-through-hoops in order to login
• No need for account access, hence no potential
  for loitering

11
Comparing Web Server To Applets

• No need to rewrite simulation into applet
• Execution speed faster with natively compiled
  code
• Simulation results can be shared with multiple
  users
• Cant do this with an applet

12
eSim Benefits

• Do more with less and do it faster
• Eliminate duplicate development/verification/CM
• Automate simulation processes, and result
  documentation
• Reduce risk
• Prevent errors caused by maintaining multiple
  versions
• Protect intellectual property rights
• Access to results without revealing source code
• Increase user base
• Access larger user base with no re-write or
  re-host overhead
• Simulations can be accessed from anywhere on any
  platform

13
eSim Examples

• Draper Station Analysis Tool (DSAT)
• Draper Station Simulation (DSS) for Mathworks Inc
• Hydraulic Actuator for Parker Hannifin Corp
• eSimI Demonstrator
• Shuttle Interactive On-orbit Simulation (IOS)
• More examples available at NCC website
• www.jsc.draper.com/ncc

14
DSAT - Draper Station Analysis Tool
Station integrated GNC systems flight readiness
certification tool implemented in Matlab/Simulink
Web Interface
Desktop Interface
15
DSS - Draper Station Simulation
ISS 3DOF RigidFlex simulation developed in
Simulink Used as a demonstrator for Web server
based computing possibilities
16
Hydraulic Actuator
Hydraulic actuator simulation developed in
Simulink Provide access to aircraft hardware math
models for JSF program
17
eSimI Demonstrator
Can change simulation parameters on the fly
18
IOS - Interactive On-orbit Simulation
19
Draper NCC Examples

• Internet Computing
• eSim Provides remote users web access to
  simulations
• VSSim Provides remote users capability to share
  models create simulations
• Distributed Simulation
• XNsim Provides remote users capability to share
  models create simulations

20
What Is VSSim?
A Virtual System Simulation framework which
provides geographically dispersed user community
the capability to share models without revealing
source code and create simulations from them on a
central computer Used for Navy Trident Ballistic
Missile program
21
VSSim Software Description

• Intuitive COTS-based graphical user interface
• Subsystem model repository that can be
  populated with models from a variety of
  languages/tools
• Process and configuration control, intellectual
  property protection
• Supports collaborative development processes
• Provides model migration pathways to
  hardware-in-the-loop simulation environments
• Supports long-term simulation requirements via
  XML layer

22
VSSim Process

• MATLAB /SIMULINK/STATEFLOW
• C, C
• FORTRAN
• EASY5

Model Repository
GUI
Subsystem models dragged from repository to
modeling workspace

• Virtual system models solved using central
  integrators!

23
VSSim Architecture
I C D
SIMULINK Model Source
SIMULINK
Auto- Generated Wrapper code
GUI And Simulation Engine
I C D
C, C Model Source
Editor
Auto- Generated Wrapper code
Framework External Modeling Interface

EASY5 Real- Time Inter- face
Etc.
Other
24
Next Generation VSSim
SIMULINK Model Source
SIMULINK
EASY5
XML Model Definition
XML-to-EASY5 Model Interface Translator
XML Generator
GUI Sim Engine
I C D
Model Interface
Non-Real-Time Simulation User
Real-Time Interface
XML Model Definition
XML-to-Real Time Model Interface Translator
XML Generator
I C D
Real-Time Simulation User
Other?
25
Draper NCC Examples

• Internet Computing
• eSim Provides remote users web access to
  simulations
• VSSim Provides remote users capability to share
  models create simulations
• Distributed Simulation
• XNsim Provides remote users capability to share
  models create simulations

26
What Is XNsim?

• XNsim - eXtensible Network simulation
• Distributed simulation software
• Assemble simulations from remotely shared models
• written in different languages
• for different computing platforms
• for arbitrary connections between models
• for single/multiple community networks
• without revealing model source code

27
Comparing XNsim with Centralized Simulation

• Dynamically scalable architecture without
  additional cost
• Can easily add new component model
• Substantially reduce development cycle time,
  risk, cost
• Dont need to develop complete centralized sim in
  order to find out that a subsystem does not work
• Inexpensive and very easy to use GUI based sim
  design
• Provides for remote execution control, i.e.
  start/restart

28
XNsim Benefits

• Do more with less
• Eliminate duplicate development/verification/CM
• Test-Drive a model before buying it
• Protect investment in existing software base
• Integrate present with future
• Reduce risk
• Prevent errors caused by maintaining multiple
  versions
• Protect intellectual property rights
• Profit center
• Lease software via fractional or metered access
• Access larger user base with no re-write or
  re-host overhead

29
XNsim Architecture
User
Simulation Initialization Outputs
Hub Network Server
Simulation Exchange
Component Server
Component Server
Component Server
30
XNsim Components

• Designer
• Create and run sims from shared models
• Share
• Share models on subscriber network
• Master Server
• Maintains model library and maps simulation
  topology

31
Designer
Sim Results
GUI
Creating a simulation
32
Updating Designer
Designer After
Designer Before
33
Designer - Model Parameters
34
Share
GUI
Inputs
Outputs
Parameters
Component Editor
35
Share Object Compiler

• To share a new function called sine.c
• Enter its name in the Share Object Compiler
  which compiles and links the XN native wrapper
  for this function

sine.c
36
Master Server
Peer-to-Peer Supernode Maps Designer simulation
topology to shared components Connects community
of users to each other
37
Global XN Demo - 2002 AIAA GNC Conference

• A simulation was assembled in Monterey, CA from
  subsystem models executing on nodes in Houston
  Munich
• University of the Federal Armed Forces, Munich,
  Germany
• Draper Laboratory, Houston, USA

Network Connection NetZero Dial Up
50kbps Roundtrip Latency 250msec
Munich Node Share Friction, Spring
Monterey Node Master, Designer
Houston Node Share Integrator, Sine
