Title: Introduction to Wireless AdHoc Networks Routing


1

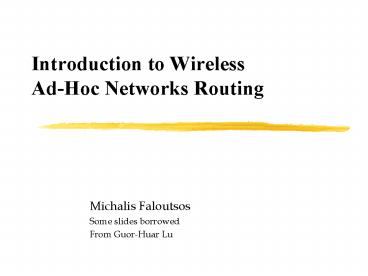

Introduction to Wireless Ad-Hoc Networks Routing
  • Michalis Faloutsos
  • Some slides borrowed
  • From Guor-Huar Lu

2
Outline
  • Challenges
  • Design Goals Specified by MANET (for now)
  • Types of Routing
  • Protocols in Detail
  • Conclusion

3
Challenges
  • Dynamic Topologies
  • Bandwidth-constrained, variable capacity links
  • Energy-constrained
  • Limited Physical security
  • Scalability

4
Types of routing
  • Flat Proactive Routing
  • Link state Fish-Eye Routing, GSR, OLSR.
  • Table driven Destination-Sequenced Distance
    Vector (DSDV), WRP)
  • On-Demand or Reactive Routing
  • Ad hoc On-demand Distant Vector (AODV)
  • Dynamic Source Routing (DSR)
  • Hybrid Schemes
  • Zone Routing ZRP, SHARP (proactive near, reactive
    long distance)
  • Safari (reactive near, proactive long distance)
  • Geographical Routing
  • Hierarchical One or many levels of hierarchy
  • Routing with dynamic address
  • Dynamic Address RouTing (DART)

5
Proactive Protocols
  • Proactive maintain routing information
    independently of need for communication
  • Update messages send throughout the network
    periodically or when network topology changes.
  • Low latency, suitable for real-time traffic
  • Bandwidth might get wasted due to periodic
    updates
  • They maintain O(N) state per node, N nodes

6
On-Demand or Reactive Routing
  • Reactive discover route only when you need it
  • Saves energy and bandwidth during inactivity
  • Can be bursty -gt congestion during high activity
  • Significant delay might occur as a result of
    route discovery
  • Good for light loads, collapse in large loads

7
Hybrid Routing
  • Proactive for neighborhood, Reactive for far away
    (Zone Routing Protocol, Haas group)
  • Proactive for long distance, Reactive for
    neighborhood (Safari)
  • Attempts to strike balance between the two

8
Hierarchical Routing
  • Nodes are organized in clusters
  • Cluster head controls cluster
  • Trade off
  • Overhead and confusion for leader election
  • Scalability intra-cluster vs intercluster
  • One or Multiple levels of hierarchy

9
Geographical Routing
  • Nodes know their geo coordinates (GPS)
  • Route to move packet closer to end point
  • Protocols DREAM, GPSR, LAR
  • Propagate geo info by flooding (decrease
    frequency for long distances)

10
Theoretical perspective
  • The capacity of a wireless
  • network is
  • Where N nodes, and C channel
  • capacity
  • Explanation N nodes in the field
  • Destinations are random
  • On average N0.5 hops per path
  • Each node has N0.5 paths go through
  • Gupta Kumar paper

11
Mobility increases capacity
  • Grossglausser and Tse (infocom 2001)
  • Statement if nodes move they will enentually
    carry the info where you want
  • Protocol
  • sender send one copy to receiver or one neighbor
  • Sender and relay will at some run into
    destination and send the packet
  • All paths are at most two hops
  • They show that the capacity of the network does
    not go to zero
  • Tradeoff?

12
Hierarchical routing bounds
  • Cluster nodes, and route between and within
    clusters
  • Location management finding where
  • Routing finding how to get there
  • Multiple levels log(N) levels
  • Location Mgm Each nodes stores O(N) locations
  • Routing overhead O(log3N)
  • Dominating factor location management and not
    the routing
  • Location mgmt handoff O(log2N)
  • See Susec Marsic, infocom 02

13
(No Transcript)
14
Types of routing
  • Flat Proactive Routing
  • Link state Fish-Eye Routing, GSR, OLSR.
  • Table driven Destination-Sequenced Distance
    Vector (DSDV), WRP)
  • On-Demand or Reactive Routing
  • Ad hoc On-demand Distant Vector (AODV)
  • Dynamic Source Routing (DSR)
  • Hybrid Schemes
  • Zone Routing ZRP, SHARP (proactive near, reactive
    long distance)
  • Safari (reactive near, proactive long distance)
  • Geographical Routing
  • Hierarchical One or many levels of hierarchy
  • Routing with dynamic address
  • Dynamic Address RouTing (DART)

15
Proactive DSDV - Destination-Sequenced Distance
Vector Algorithm
  • By Perkins and Bhagvat
  • Based on Bellman Ford algorithm
  • Exchange of routing tables
  • Routing table the way to the destination, cost
  • Every node knows where everybody else is
  • Thus routing table O(N)
  • Each node advertises its position
  • Sequence number to avoid loops
  • Maintain fresh routes

16
DSDV details
  • Routes are broadcasted from the receiver
  • Nodes announce their presence advertisements
  • Each broadcast has
  • Destination address originator
  • No of hops
  • Sequence number of broadcast
  • The route with the most recent sequence is used

17
Reactive Ad-Hoc On-demand Distance Vector
Routing (AODV)
  • By Perkins and Royer
  • Sender tries to find destination
  • broadcasts a Route Request Packet (RREQ).
  • Nodes maintain route cache and use destination
    sequence number for each route entry
  • State is installed at nodes per destination
  • Does nothing when connection between end points
    is still valid
  • When route fails
  • Local recovery
  • Sender repeats a Route Discovery

18
Route Discovery in AODV 1
Propagation of Route Request (RREQ) packet
19
Route Discovery in AODV 2
Path taken by Route Reply (RREP) packet
20
In case of broken links
  • Node monitors the link status of next hop in
    active routes
  • Route Error packets (RERR) is used to notify
    other nodes if link is broken
  • Nodes remove corresponding route entry after
    hearing RERR

21
Dynamic Source Routing (DSR)
  • Two mechanisms Route Maintenance and Route
    Discovery
  • Route Discovery mechanism is similar to the one
    in AODV but with source routing instead
  • Nodes maintain route caches
  • Entries in route caches are updated as nodes
    learn new routes.
  • Packet send carries complete, ordered list of
    nodes through which packet will pass

22
When Sending Packets
  • Sender checks its route cache, if route exists,
    sender constructs a source route in the packets
    header
  • If route expires or does not exist, sender
    initiates the Route Discovery Mechanism

23
Route Discovery 1 (DSR)
Building Record Route during Route Discovery
24
Route Discovery 2 (DSR)
Propagation of Route Reply with the Route Record
25
Route Maintenance
  • Two types of packets used Route Error Packet and
    Acknowledgement
  • If transmission error is detected at data link
    layer, Route Error Packet is generated and send
    to the original sender of the packet.
  • The node removes the hop is error from its route
    cache when a Route Error packet is received
  • ACKs are used to verify the correction of the
    route links.

26
The Zone Routing Protocol (ZRP)
  • Hybrid Scheme
  • Proactively maintains routes within a local
    region (routing zone)
  • Also a globally reactive route query/reply
    mechanism available
  • Consists of 3 separate protocols
  • Protocols patented by Cornell University!

27
Intrazone Routing Protocol
  • Intrazone Routing Protocol (IARP) used to
    proactively maintain routes in the zone.
  • Each node maintains its own routing zone
  • Neighbors are discovered by either MAC protocols
    or Neighbor Discovery Protocol (NDP)
  • When global search is needed, route queries are
    guided by IARP via bordercasting

28
Interzone Routing Protocol
  • Adapts existing reactive routing protocols
  • Route Query packet uniquely identified by
    sources address and request number.
  • Query relayed to a subset of neighbors by the
    bordercast algorithm

29
Comparisons 1
  • Things in common
  • IP based operation
  • Distributed operation
  • Loop-free routing
  • Very little or no support for sleep period
    operation and security

30
Comparisons 2
DSDV
31
Conclusion
  • On-demand routing protocols (AODV and DSR) are
    gaining momentum.
  • More analysis and features are needed
    (Performance comparison between protocols, QoS
    extension and analysis, multicast, security
    issues etc)
  • Good paper (though old)
  • A review of current routing protocols for ad-hoc
    mobile wireless networks, E. Royer, C.K. Toh

32
(No Transcript)
33
Performance?
  • End-to-end data throughput and delay
  • Route acquisition time
  • Percentage of out-of-order delivery
  • Efficiency
  • Average number of data bits transmitted/data bits
    delivered
  • Average number of control bits transmitted/data
    bits delivered
  • Average number of control and data packets
    transmitted/data packet delivered

34
Parameters
  • Network Size
  • Connectivity (average degree of a node)
  • Topology rate of change
  • Link capacity (bps)
  • Fraction of unidirectional links
  • Traffic patterns
  • Mobility
  • Fraction/frequency of sleeping nodes

35
References
  • Mobile Ad hoc Networking (MANET) Routing
    Protocol Performance Issues and Evalution
    Considerations (RFC 2501)
  • P. Misra., Routing Protocols for Ad Hoc Mobile
    Wireless Networks, http//www.cis.ohio-state.edu/
    jain/cis788-99/adhoc_routing/
  • The Zone Routing Protocol (ZRP) for Ad Hoc
    Networks ltdraft-ietf-manet-zone-zrp-04.txtgt
  • Fisheye State Routing Protocol (FSR) for Ad Hoc
    Networks ltdraft-ietf-manet-fsr-03.txtgt
  • Ad hoc On-demand Distance Vector (AODV) Routing
    ltdraft-ietf-manet-aodv-11.txtgt
  • The Dynamic Source Routing Protocol for Mobile Ad
    Hoc Networks (DSR) ltdraft-ietf-manet-dsr-07.txtgt

36
Fisheye State Routing (FSR)
  • Node stores the Link State for every destination
    in the network
  • Node periodically broadcast update messages to
    its neighbors
  • Updates correspond to closer nodes propagate more
    frequently

37
Multi-Level Scope (FSR)
  • Central node (red dot) has the most accurate
    information about nodes in white area and so on.
  • Parameters Scope level/radius size

38
ZPR architecture
39
Design Goals
  • Peer-to-peer mobile routing capability in mobile,
    wireless domain.
  • Intra-domain unicast routing protocol
  • Effective operation over a wide range of mobile
    networking scenarios and environments
  • Supports traditional, connectionless IP services
  • Efficiently manages topologies changes and
    traffic demands

40
Desired properties
  • Distributed operation
  • Loop freedom
  • Demand-based operation
  • Proactive operation
  • Security
  • Sleep period operation
  • Unidirectional link support
