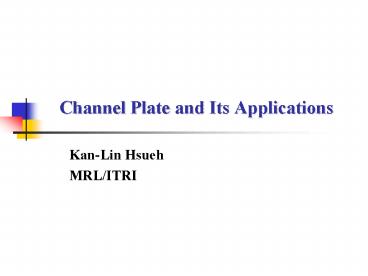

Channel Plate and Its Applications

1
Channel Plate and Its Applications

• Kan-Lin Hsueh
• MRL/ITRI

2
Micro-Channel Plate is

• A silicon or a glass disk
• Millions of high aspect ratio channels

3
Outline

• How it was/will be used
• How does it made of
• Electroforming of micro-wires

4
Outline

• How it was/will be used
• How does it made of
• Electroforming of micro-wires

5
It was used as an electron-multiplier

• One incident electron produces multiple secondary
  electrons
• Multiples the electron signal thousand/million
  times

6
The e-multiplier was used for

• Night vision, imaging intensification
• Imaging ion mass spectrometry

Photon/electron converter
Channel Plate
P screen
photon
7
How to Make Micro-Channel Plate

• The old way since 1960
• glass micro-channel plate
• The new era, 1980 - 1990
• silicon micro-channel plate
• aluminum nano-channel plate

8
Glass Micro-channel plate

• Glass monofiber draw
• Multifiber draw
• Billet slice, grind, and polish
• Chemical etching

9
Making of Silicon Micro-Channel Plate (I)

• Front surface patterning
• Back contact
• Electrochemical etching

10
Making of Silicon Micro-Channel Plate (II)

• Back polishing/etching
• SiO2 Conversion
• CVD coating/electrical contact

11
Electrochemical Etching of Silicon Wafer

• Key Factor
• current distribution inside wafer
• electrochemical and chemical reaction on the
  solution/wafer interface

12
Current Distribution in MCP
13
Background Electrochemical Process inside the
Channel
Electrochemical Reaction at Solution/silicon
Interface
Diffusion of Chemicals
14
Reactions at Solution/Wafer Interface
Si ? Si4 4 e-
Si4 6 F- ? SiF6-2
15
Cross Section View of MCP
16
Planar View of MCP
17
MCP at High Etching Current
18
MCP at High Etching Current
19
MCP at Polishing Current
20
Outline

• How it was/will be used
• Micro-channel plate was made from
• Front lithography/back Ohmic contact
• Electrochemical etching
• Back etching/polishing
• CVD coating/electrical contact
• Electroforming of micro-wires

21
Outline

• How it was/will be used
• How does made of
• Electroforming of micro-wires

22
Application of Nickel Micro-Wire/Co-Axial Cable
Power Line
Coaxial cable
23
Making of Micro-CoAxial Cable

• Electroless plating of nickel
• Coating of silicon oxide
• Electroforming of nickel

24
Planar View of Micro-wire
25
Planar View of Micro-wire
26
Planar View of Micro-wire
27
Summary of Micro-Channel Plate

• Application
• It was used for e-multiplier for imaging
  detection
• It can be used as a capillary column for
  miniature GC
• Substrate of Chemical sensor
• Fabrication Process
• Lithiography, electrochemical etching, CVD process

28
Summary of Micro-channel Plate

• Electroforming of Micro-wire
• Potential use for through wafer power line and
  coaxial signal line
• Nano-channel and wire
• Can be fabricated with similar process

29
Au Nanodot array on Si
Hideki Masuda and Masahiro Satoh, Japan Journal
of Apply Physics, vol. 35, (1996) L126
30
Preparation of a Pt-Ru bimetallic supported on
carbon nanotube
31
Inclusion of Crystalline Iron Oxide Nanoparticles
in Uniform Carbon Nanotubes Prepared by a
Template Carbonization Method
B.K. Pradhan, T. Toba, T. Kyotani, and A. Tomita,
Chem. Mater., 10 (1998) 2510
32
AFM lithography in constant current mode
Pattern making
33
AFM lithography in constant current mode
34
Electrochemically assembled quasi-periodic
quantum dot arrays
Evaporating Al on substrate, Si
Electropolished in perchloric acid, ethanol,
butyl cellusolve, and distill water.
S. Bandyopadhyay, A.E. Miller, H.C. Chang, and G.
Banerjee, Nanotachnology, 7 (1996) 360
35
Electropolishing of aluminum
S. Bandyopadhyay, A.E. Miller, H.C. Chang, and G.
Banerjee, Nanotachnology, 7 (1996) 360
36
Formation of nano-porous film
S. Bandyopadhyay, A.E. Miller, H.C. Chang, and G.
Banerjee, Nanotachnology, 7 (1996) 360
37
Modeling of pore formation
S. Bandyopadhyay, A.E. Miller, H.C. Chang, and G.
Banerjee, Nanotachnology, 7 (1996) 360
