Announcements

1

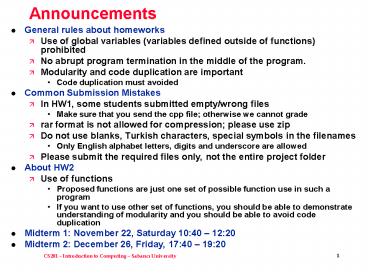

Announcements

• General rules about homeworks
• Use of global variables (variables defined
  outside of functions) prohibited
• No abrupt program termination in the middle of
  the program.
• Modularity and code duplication are important
• Code duplication must avoided
• Common Submission Mistakes
• In HW1, some students submitted empty/wrong files
• Make sure that you send the cpp file otherwise
  we cannot grade
• rar format is not allowed for compression please
  use zip
• Do not use blanks, Turkish characters, special
  symbols in the filenames
• Only English alphabet letters, digits and
  underscore are allowed
• Please submit the required files only, not the
  entire project folder
• About HW2
• Use of functions
• Proposed functions are just one set of possible
  function use in such a program
• If you want to use other set of functions, you
  should be able to demonstrate understanding of
  modularity and you should be able to avoid code
  duplication
• Midterm 1 November 22, Saturday 1040 1220
• Midterm 2 December 26, Friday, 1740 1920

2
Chapter 3 - Continued

• Overview of functions
• sequence of statements with its own local
  variables
• supports modularity, reduces code duplication
• Data transfer between function to be called and
  caller function
• by means of parameters
• currently one-way
• from caller function into function to be called
• later we will see how to return data back to the
  caller function

3
Function Prototype (from 2.6)

• Functions definition has two parts
• function heading
• name, parameters, return type
• function body (local variables and statements
  within curly brackets)
• void display (string name)
• cout ltlt Hello ltlt name ltlt endl
• Like variables, a function must be declared
  before its first call
• Problem of function declaration order
• You cannot call a function before you declare it
• SOLUTION You may define function prototypes (a
  copy of the heading) at the beginning without
  function declarations

4
Function Prototype Example Problem

• What is the problem below (program order.cpp) ?
• void Hi (string name) cout ltlt "Hi " ltlt
  name ltlt endl Greetings()void
  Greetings() cout ltlt "Things are happening
  inside this computer" ltlt endlint main()
  Hi("Fred") return 0
• Greetings() is called in Hi() but it is declared
  afterwards

5
Function Prototype Solution

• Add function prototypes to the beginning
  (order2.cpp)
• include ltiostreamgtinclude ltstringgtusing
  namespace stdvoid Hi (string)void
  Greetings()void Hi (string name) cout ltlt
  "Hi " ltlt name ltlt endl Greetings()void
  Greetings() cout ltlt "Things are happening
  inside this computer" ltlt endlint main()
  Hi("Fred") return 0

Prototypes

Function Declarations
6
Function Prototypes

• !!!Do not forget semicolon after the prototype
  definition!!!
• no semicolon after the parameters in normal
  definition
• Sometimes prototypes are not necessary
• if the order of function calls allows
• But it is a good programming practice to have
  them
• Parameter names are not needed in prototypes
• But it is OK if you have the parameter names.
• In included files
• we have the functions prototypes only
• implementations of function bodies are in
  libraries or in other cpp files
• they are linked together

7
Enumerated Types

• Section 9.3.4
• You can define your own type by giving its
  constant values (literals) as identifiers
• type for CardSuit
• type for colors
• Type definition syntax
• enum TypeName list of literals separated by
  comma
• Type definition example
• enum CardSuit spade, heart, diamond, club
• You can define variables of enum types, you can
  use them as parameters and return types
  throughout the cpp file
• So an enum type must be defined as global (after
  using namespace std and before the function
  declarations)
• Such a global type declaration is not a
  prohibited use of globals.

8
Enum types

• Example use
• CardSuit c
• c club
• Each constant of an enum type has an associated
  integer code
• starting from 0
• spade is 0, heart is 1, diamond is 2, club is 3
• Displaying an enum type variable actually
  displays its integer code
• cout ltlt c // displays 3
• Cannot assign an integer to an enum variable
• c 2 //illegal
• c CardSuit(2) //legal, c becomes diamond
• cannot input
• cin gtgt c //invalid
• can use comparison operators (lt, gt, lt, gt, ,
  !)
• The relational operators lt, gt, lt, gt compare
  codes
• if (c lt heart)
• cout ltlt "hi" ltlt endl

9
Introduction to Classes and Objects (3.4)

• In object-oriented programming terminology, a
  class is defined as a kind of programmer-defined
  type
• From the natural language definition of the word
  class
• Collection of members that share certain
  attributes and functionality
• Likewise classes in object-oriented programming
• In object oriented programming languages (like
  C) classes are used to combine everything for a
  concept (like date, student)
• Data (e.g. student id, gpa)
• Functions (e.g. students enroll, students
  graduate)

10
Introduction to Classes and Objects

• We define variables of types (like int, double).
  Similarly, we define objects of classes
• an object is a member of a class
• Why classes and objects? In other words, why
  object-oriented programming?
• It gives programmers the ability to write
  programs using off-the-shelf components without
  dealing with the complexity of those components
• Saves time and effort
• You may design and implement, and later use your
  own classes, but we will start with using
  other-programmers-defined classes
• this is what a programmer generally does

11
How to Use Classes?

• The behavior of a class is defined by member
  functions (methods) by which objects of that
  class are manipulated
• You should know about the member functions and
  what they do
• name of the function
• parameters and parameter types
• return type
• functionality
• You dont need to know how the function is
  implemented
• analogy you can add two int variables using ,
  but you dont need to know how computer really
  adds
• more analogy you can drive cars, but you dont
  need to know how the fuel injection works

12
Example Robot Class (not in the book)

• A class for robots
• You can create robots (objects) at different
  locations and facing different orientations
  (east, west, south or north)
• We use constructor for this purpose
• constructor general name for object creating
  functions
• You can change the color of the robot color is
  parameter of an enumerated type
• SetColor member function
• Robots can turn right
• TurnRight member function
• no parameter
• Robots can move at the facing direction
• Move member function
• can be used with or without parameters
• without parameter 1 step
• with parameter parameter is number of steps
• more robot functions will be given later

13
Robot World

• Robots live on a world of cells
• each cell has a coordinate
• southwest is (0,0) point
• south and west bounded
• east and north unbounded
• no cells with negative coordinates

14
More on robots class and robot world

• Robot world also allows you to
• install/uninstall barriers at cell boundaries
• plant/remove things within cells
• save, save as, open, run program, etc.
  (utilities)
• Robot world is actually a Windows application
• it needs two files to be added up to the project
• robots.cpp (robot class and other utilities are
  implemented)
• miniFW.cpp (for windows programming out of
  scope of this course)
• The file in which you write your main program
  should be another separate file.
• robots.h is to be included at the beginning of
  the main program
• robots.cpp, miniFW.cpp, robots.h and miniFW.h
  files should be in the folder as your actual
  program file.
• project should be win32 application This is
  very important!
• In such a project, robot world is created
  automatically even if you do not have anything in
  main.
• When run clicked, your program is executed on
  the current robot world.
• Important Detail your main is not actually the
  main program actual main (WinMain) is in
  robots.cpp, but do not bother with this detail
  for now.
• Caution cin and cout do not work in robot world

15
simplerobot.cpp sample program that utilizes
robots class

• include "Robots.h"
• using namespace std
• //simple robot test program
• int main ()
• Robot Ali(5, 1) //Ali is a robot at
  (5,1) location and facing east
• Ali.SetColor(white) //Ali's color is set to
  white
• Robot Ayse(5, 8, north)//Ayse is a robot at
  (5,8) location and facing north
• Ayse.SetColor(red) //Ayse's color is set to
  red
• Ali.Move(5)
• Ayse.TurnRight()
• Ayse.Move()
• Ayse.Move()
• Ayse.TurnRight()
• Ayse.Move(10)
• Ali.TurnRight()
• Ali.TurnRight()

16
Where is a Class Defined?

• Class definition/interface is in a header file (a
  file with .h extension)
• member function prototypes and and some other
  declarations
• function implementations are not in this header
  file
• Implementations of the member functions are in a
  .cpp file
• Robot example
• class definition/interface is in robots.h
• that is why it is included in simplerobot.cpp
• class implementation is in robots.cpp
• part of the project linked together

17
robots.h - Definition of class Robot (partial)

• ifndef Robots_h // to avoid duplicate
  inclusions of robots.h
• define Robots_h
• // enumerated types for colors and directions
• enum Direction east, west, north, south
• enum Color white, yellow, red, blue, green,
  purple, pink, orange
• class Robot
• public
• Robot (int x, int y, Direction dir east, int
  things 0)
• // robot constructor - color yellow,
  default direction is east, default
• //things in bag is zero
• void Move (int distance 1) // to move robot,
  default displacement is 1
• void TurnRight () // to turn the robot right
• void SetColor (Color color) //to change the
  color of robot
• // there are some other functions that we will
  see later
• // see next page for the rest of the file

Continued on the next page
18
robots.h - Definition of class Robot (partial)

• private
• int xPos //x-coordinate of the robot
• int yPos //y-coordinate of the robot
• Direction direction //direction of the robot
• Color color //color of the robot
• int bag //number of things in the
  bag of the robot
• bool stalled //is the robot dead?
• bool visible //is the robot visible on
  the screen?
• //the rest of the private part is out of scope of
  this course, at least for now
• endif

19
Parts of Class Definition

• Public
• Member functions as seen by programmer
• Programmer can use the functions defined in the
  public section only
• Constructors
• special member function to create objects
  (variables)
• there might be several constructors with same
  name, but different parameters (not the case for
  Robot class)
• Private
• Mostly the data part of the class
• Necessary for internal implementation of class
• e.g. xPos, yPos used by the implementation of
  Move function, but we do not use it as the
  programmer using the Robot class
• Not accessible by programmer
• e.g. in simplerobot.cpp, programmer cannot modify
  xPos

20
How to

• How to define objects?
• class_name object_name_list_separated_by_comm
  a
• do not forget arguments for each object, if any.
• How to call a member function?
• object_name.function_name(arguments)
• a member function operates on an object for which
  it is called.

21
How to

• How to use Robot class as a parameter
• if you do not change the color, position,
  orientation etc. of the robot, then use as other
  types (at least for now later we will see more
  efficient ways)
• void dothis (Robot myrobot, int param)
• However, if you change the robots
  characteristics (color, position, orientation,
  etc.), then you have to use the character
  between Robot and the parameter name
• void Go (Robot myrobot, int x, int y)
• Calling such functions is not different
• Do not use while calling
• Robot rob(5, 6, west)
• Go (rob, 12, 5)
• We will see the notation in more detail later
  (Section 6.2.3)
• this type of parameters are called reference
  parameters

Recommended since you generally change the robot
characteristics in functions
22
Some more recommendations

• Avoid creating robots in user-defined functions
• Create all necessary robots in main
• If needed pass them as parameters to other
  functions
• Addition to scope rules
• IMPORTANT RULE An identifier (e.g. an object or
  a variable) can be referred only in the compound
  block in which it is declared
• A compound block is the statements and
  declarations within matching curly brackets
• e.g. after if or else
• Implication of this rule in robot programs when
  a robot object is created in a compound block, it
  can be referred only in that block
• Otherwise, undeclared identifier error occurs
• Solving this problem by re-creating it is NOT A
  SOLUTION

if (xgt0) Robot r(x, 0) r.Move(3) r.Move
()
Undeclared identifier
23
Compiling, Linking

• Single file case
• Linking is necessary to use the libraries
• for example, iostream for cin and cout, string
  for string class operations
• library functions are defined (prototypes) in
  header files (included)
• library function bodies are ready in object code
• linked

myprog.cpp (source code)
myprog.obj (object code)
myprog.exe
compile
link
24
Compiling, Linking

• several .cpp files
• user-defined class implementations and some
  utility functions can be written in different
  .cpp files
• those files are independently compiled and then
  linked together to create the executable code
• libraries are linked too

simplerobot.cpp
int main () Robot Ali(5, 1) Ali.SetColor(white
) Ali.Move(5) return 0
simplerobot.obj
robots.cpp
robots.obj
RobotRobot (int x, int y, xPos x yPos
y direction dir color yellow ...
libraries
1101010101101010100110010101010 ...
25
include

• Kind of copy-paste
• specified header file is copied before
  compilation
• Include file locations
• standard ones are in INCLUDE directory under
  ....\Microsoft Visual Studio\VC98
• Tools ? Options ? Directories
• can specify more directories to search for header
  files
• difference between (this is very important)
• include ltfilenamegt
• only search in directories specified in options
• mostly used for standard header files like
  iostream
• include "filename"
• first search in the local directory, then the
  ones in options
• for user defined header files

26
Adding Files to Projects in VC

• .cpp files that are compiled and linked together
  (like class implementations) must be added to the
  project
• otherwise link error
• Standard libraries are found and linked
  automatically
• no need to add anything to the project for these
  libraries
• User-defined libraries, if available in object
  code (e.g. .lib files), must be added to the
  project
• otherwise link error
• Header files may or may not be added in project
• if not added, they are shown as external
  dependencies and this is OK
• No matter added to the project or not, the
  compiler still needs to find the header files in
  a folder
• they may not be found if directory settings are
  wrong, so be careful!
