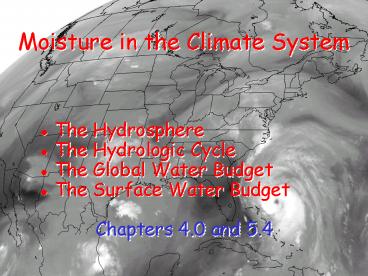

Moisture in the Climate System

1
Moisture in the Climate System

• The Hydrosphere
• The Hydrologic Cycle
• The Global Water Budget
• The Surface Water Budget
• Chapters 4.0 and 5.4

2
Moisture in the Climate System
____________________________

• The Hydrosphere
• The hydrosphere includes water on the Earth in
  all its forms

3
The Hydrosphere
____________________________

• Atmosphere
• Soil profile
• Vegetation
• Oceans
• Cryosphere

4
The Climate System
____________________________
5
The Hydrosphere
____________________________

• The hydrosphere consists mostly of ocean
  saltwater (97.2)
• The remaining percent consists of fresh water
  (2.8)

6
The Hydrosphere
____________________________
Not in Book
Strahler and Strahler Introducing Physical
Geography
7
The Hydrosphere
____________________________

• Most of the fresh water is stored as ice sheets,
  glaciers, and ground water
• Only 0.02 of the total water on the Earth
  remains for use by plants, animals and humans

8
The Hydrosphere
____________________________
Strahler and Strahler Introducing Physical
Geography
9
The Hydrosphere
____________________________

• A very small percentage (0.001) of water are
  held as vapor and cloud water droplets in the
  atmosphere
• While small, this reservoir of water is of
  enormous importance

10
The Hydrologic Cycle
____________________________

• The hydrologic cycle traces the various paths of
  water form oceans, through the atmosphere, to
  land, and its return to the oceans

11
The Hydrologic Cycle
____________________________
Relates to Figure 4.1
Strahler and Strahler Introducing Physical
Geography
12
The Hydrologic Cycle
____________________________

• Evaporation
• Evapotranspiration
• Condensation
• Precipitation
• Infiltration
• Runoff
• Storage

13
The Hydrologic Cycle
____________________________
Relates to Figure 4.1
Strahler and Strahler Introducing Physical
Geography
14
The Global Water Budget
____________________________

• The global water budget is a quantitative view of
  the hydrologic cycle
• While the amount of water vapor in the atmosphere
  is a small fraction of the total amount of water
  in the hydrosphere, the absolute quantities in
  the atmosphere are quite large

15
The Global Water Budget
____________________________
Not in Book
Strahler and Strahler Introducing Physical
Geography
16
The Surface Water Budget
____________________________

• Simply
• Input Output Net Quantity
• More Detailed
• Precipitation Evaporation ? ? Storage
  Runoff
• P E ? ? S R

17
The Surface Water Budget
____________________________

• P E ? ? S R
• Implications of changes in the components of the
  water budget
• Precipitation versus Evaporation?
• Storage?
• Runoff?

18
The Surface Water Budget
____________________________

• P E ? ? S R
• Actual Evaporation (AE)
• Potential Evaporation (PE)
• When P gt PE, then moist climate
• When P lt PE, then dry climate

19
The Surface Water Budget
____________________________

• Human Influences on AE versus PE
• Irrigation
• Lake/Dam Construction
• In dry areas, results in AE approaching or
  reaching PE
• Modification of local climate

20
