Topic 3: Molecular techniques used in medical diagnosis

1

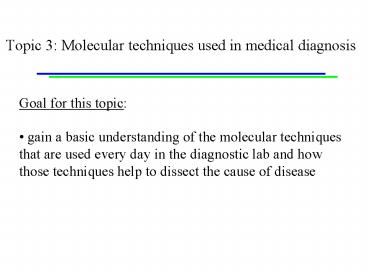

Topic 3 Molecular techniques used in medical
diagnosis

• Goal for this topic
• gain a basic understanding of the molecular
  techniques that are used every day in the
  diagnostic lab and how those techniques help to
  dissect the cause of disease

2
Separation of DNA Fragments by Gel
Electrophoresis
-
-

• Used to isolate/separate DNA fragments by size
• DNA is negatively charged- use a current to
  separate different sizes
• Visualize the DNA with dye that intercalates
  into strands

• Sequencing gel (acrylamide) -
• used to separate single base pairs

-

• Agarose gel - used to separate
• 10s-1000s of base pairs

• Pulsed field gel electrophoresis (agarose) -used
  to separate very large fragments

3
Restriction Endonucleases
P
OH
Blunt cut
OH
P

• Endonucleases are derived from bacteria
• They cut INTERNALLY
• They recognize a specific PALINDROMIC sequence
• REMEMBER when you cleave a
• phosphodiester bond, you get a 3 OH and
• a 5 phosphate (P).

P
OH
OH
5 overhang
P
P
OH
5 overhang
OH
P
P
OH
3 overhang
OH
P
4
Methods of Sequence Analysis
The human genome project utilized a shotgun
cloning approach - cloning down from very large
fragments to workable ones that are
easily sequenced.
5
Big Dye Sequencing
ddATP
ddGTP
ddTTP
ddCTP
6
Polymerase Chain Reaction
7
PCR Analysis - Multiple rounds of amplification
8
Lets look at an example of amplification.
1
45
5 GGATTCGATCATTCGGGCCAATAGCATACTTAGGCCATACCGAGC
3 3 CCTAAGCTAGTAAGCCCGGTTATCGTATGAATCCGGTATGGCTC
G 5
mutation you want to look for
PRIMERS TO USE 5 ATTCGAT 3 5 TCGGTAT 3
QUESTIONS WHERE WOULD THE PRIMERS
HYBRIDIZE? HOW BIG WOULD YOURE AMPLIFIED
PRODUCT BE?
9
Lets look at an example of amplification.
WHERE WOULD THEY HYBRIDIZE?
1
45
5 GGATTCGATCATTCGGGCCAATAGCATACTTAGGCCATACCGAGC
3 3 CCTAAGCTAGTAAGCCCGGTTATCGTATGAATCCGGTATGGC
TCG 5
primer 2 - 3 TATGGCT 5
5 ATTCGAT 3 primer 1
HOW BIG WOULD YOURE AMPLIFIED PRODUCT
(AMPLICON) BE? 41 bp
10
Polymorphisms in our genome can be used to look
for linked disease genes

• Types of polymorphisms
• single nucleotide polymorphisms (SNPs)
• variable number of tandem repeats (VNTRs)
• restriction fragment length polymorphism (RFLPs)
• These polymorphisms are inherited JUST LIKE OUR
  GENES!!!

11
Linkage analysis The polymorphism can only be
used to predict the presence of the disease gene
if it is LINKED
12
Patterns of Genetic Inheritance
RECESSIVE need 2 mutant alleles to see the
trait Example retinoblastoma
DOMINANT Only need one bad copy to see the
trait Example Marfans syndrome
13
X-linked Inheritance

• most often affects males
• have female carriers

14
RFLP Analysis
15
Southern Blotting
16
(No Transcript)
17
An example of VNTR linkage analysis

• Questions to answer
• 1) Does this trait appear to be inherited in a
  dominant or recessive fashion?
• 2) For each parent (generation II), which, if
  any, of their alleles appear to be linked to a
  mutant gene?
• 3) We are trying to determine if individual 3B is
  at risk for developing heart disease, as he is
  still quite young. What is his risk with respect
  to this locus?
• 4) Do you think that this VNTR will be helpful
  for ALL families with a history of heart disease?

18
The use of PCR in Forensics Medicine
19
Fragile X syndrome is caused by the expansion of
a VNTR region

• long, narrow face and prominent ears, jaw and
  forehead
• seizures
• mental impairment, ranging from learning
  disabilities to mental retardation
• ADD
• obsessive/compulsive
• 11200 males, 12500 females - most common
  inherited cause of learning disabilities
• VNTR is in the 5 UTR of the FMR1 gene -
  expansion causes lower expression of the gene

20
DNA microarray analysis
21
Preparation of cDNA from mRNA
22
Topic 3 Molecular techniques used in medical
diagnosis

• Goal for this topic
• gain a basic understanding of the molecular
  techniques that are used every day in the
  diagnostic lab and how those techniques help to
  dissect the cause of disease

• restriction endonucleases
• sequencing
• PCR amplification
• VNTR and RFLP linkage analysis
• cDNA microarray analysis
