Regression analysis

1

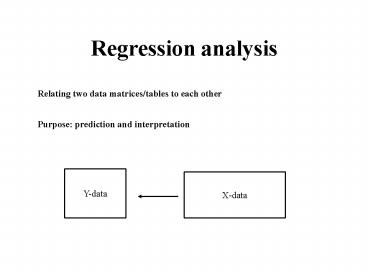

Regression analysis
Relating two data matrices/tables to each other
Purpose prediction and interpretation
Y-data
X-data
2
Typical examples

• Spectroscopy Predict chemistry from spectral
  measurements
• Product development Relating sensory to
  chemistry data
• Marketing Relating sensory data to consumer
  preferences

3
Topics covered

• Simple linear regression
• The selectivity problem a reason why
  multivariate methods are needed
• The collinearity problem a reason why data
  compression is needed
• The outlier problem why and how to detect

4
Simple linear regression

• One y and one x. Use x to predict y.
• Use a linear model/equation and fit it by least
  squares

5
Data structure
X-variable
Y-variable
2 4 1 . . .
7 6 8 . . .
Objects, same number in x and y-column
6
Least squares (LS) used for estimation of
regression coefficients
y
yb0b1xe
b1
b0
x
Simple linear regression
7
Regression analysis
Interpretation
Outliers?
Pre-processing
8
The selectivity problem A reason why multivariate
methods are needed
9
Can be used for several Ys also
10
Multiple linear regression

• Provides
• predicted values
• regression coefficients
• diagnostics
• If there are many highly collinear variables
• unstable regression equations
• difficult to interpret coefficients many and
  unstable

11

Collinearity, the problem of correlated X-variable
yb0b1x1b2x2e
Regression in this case is fitting a plane to
the data (open circles)
The two xs have high correlation Leads to
unstable equation/plane (in the direction with
little variability)
12
Possible solutions

• Select the most important wavelengths/variables
  (stepwise methods)
• Compress the variables to the most dominating
  dimensions (PCR, PLS)
• We will concentrate on the latter (can be
  combined)

13
Data compression

• We will first discuss the situation with one
  y-variable
• Focus on ideas and principles
• Provides regression equation (as above) and plots
  for interpretation

14
Model for data compression methods
XTPTE
Centred X and y
yTqf
T-scores, carrier of information from X to y P,q
loadings E,f residuals (noise)
15
Regression by data compression
PC1
Regression on scores
16
x1
x2
MLR
y
x3
x4
x1
t1
x2
PCR
y
t2
x3
x4
x1
t1
x2
y
PLS
x3
t2
x4
17
PCR and PLS

• For each factor/component
• PCR
• Maximize variance of linear combinations of X
• PLS
• Maximize covariance between linear combinations
  of X and y
• Each factor is subtracted before the next is
  computed

18
Principal component regression (PCR)

• Uses principal components
• Solves the collinearity problem, stable solutions
• Provides plots for interpretation (scores and
  loadings)
• Well understood
• Outlier diagnostics
• Easy to modify
• But uses only X to determine components

19
(No Transcript)
20
PLS-regression

• Easy to compute
• Stable solutions
• Provides scores and loadings
• Often less number of components than PCR
• Sometimes better predictions

21
PCR and PLS for several Y-variables

• PCR is computed for each Y. Each Y is regressed
  onto the principal components
• PLS The algorithm is easily modified. Maximises
  linear combinations of X and Y.
• For both methods Regression equations and plots

22
Validation is important

• Measure quality of the predictor
• Determine A number of components
• Compare methods

23
Prediction testing
Calibration Estimate coefficients
Testing/validation Predict y, use the coefficients
24
Cross-validation

25
Validation

• Compute
• Plot RMSEP versus component
• Choose the number of components with best RMSEP
  properties
• Compare for different methods

26
RMSEP
MLR
NIR calibration of protein in wheat. 6 NIR
wavelengths 12 calibration samples, 26 test
samples
27
Estimation error
Model error
Conceptual illustration of important phenomena
28
Prediction vs. cross-validation

• Prediction testing Prediction ability of the
  predictor at hand. Requires much data.
• Cross-validation Property of the method. Better
  for smaller data set.

29
Validation

• One should also plot measured versus predicted
  y-value
• Correlation can be computed, but can sometimes be
  misleading

30
Example, plot of y versus predicted y
Plot of measured and predicted protein NIR
calibration
31
Outlier detection

• Instrument error or noise
• Drift of signal (over time)
• Misprints
• Samples outside normal range (different
  population)

32
Outlier detection

• Outliers can be detected because
• Model for spectral data (XTPTE)
• Model for relationship between X and y (yTqf)

33
Outlier detection tools

• Residuals
• X and y-residuals
• X-residuals as before, y-residual is difference
  between measured and predicted y
• Leverage
• hi
