Generalised linear models

1

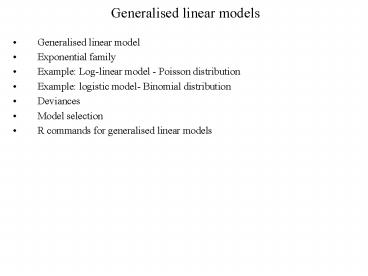

Generalised linear models

• Generalised linear model
• Exponential family
• Example Log-linear model - Poisson distribution
• Example logistic model- Binomial distribution
• Deviances
• Model selection
• R commands for generalised linear models

2
Shortcomings of general linear model

• One of the main assumptions for linear model is
  that errors are additive. I.e. observations are
  equal to their expectation value plus an error..
  Another assumption used in test statistics for
  linear model is that distribution of observations
  is normal. What happens if these assumptions
  break down, e.g. errors are additive for some
  function of the expected value and distributions
  are not normal?
• There are class of problems that are widely being
  used in such fields as medicine, biosciences.
  They are especially important when observations
  are categorical, i.e. they have discrete values.
  This class of problems are usually dealt with
  using generalised linear models.
• Let us consider these problems. First let us
  consider generalised exponential family.

3
Generalised linear model

• Linear models are useful when the distributions
  of the observations are or can be approximated
  with normal distribution. Even if it is not the
  case, for large number of observations normal
  distribution is a safe assumption. However there
  are many cases when different model should be
  used. Generalised linear model is a way of
  generalising linear models to a wide range of
  distributions. If the distribution of the
  observations is the from the family of
  generalised exponential family and mean value (or
  some function of it) of this distribution is
  linear on the input parameters then generalised
  linear model can be used. Generalised exponential
  family has a form
• Following distributions belong to the generalised
  exponential family (note that parameters we are
  considering are the mean values and for
  simplicity take S(?)1).
• Other members of this family include gamma,
  exponential and many others.

4
Generalised linear model Exponential family

• Natural exponential family of distributions has a
  form
• S(?) is a scale parameter. We can replace A(?)
  with ? by change of variables. In this case ? is
  called canonical parameter
• Many distributions including normal, binomial,
  Poisson, exponential distributions belong to
  this family.
• Moment generating function is
• Then the first moment (mean value) and the second
  central moments are

5
Generalised linear model

• If the distribution of observations is one of the
  distributions from the exponential family and
  some function of the expected value of the
  observations is a linear function of the
  parameters then generalised linear model can be
  used
• Function g is called the link function. That is a
  function that links observations with parameters
  of interest. Or it links predictors with
  responses. Here is a list of the popular
  distribution and corresponding link functions
• binomial - logit ln(p/(1-p))
• normal - identity
• Gamma - inverse
• Poisson - log
• All good statistical packages have implementation
  of several generalised linear models.
• To fit using generalised linear model, likelihood
  function is written

6
Link function and parameters

• Canonical link function for exponential families
  are equal to canonical parameter
• For example for normal distribution it is
  identity function
• For binomial distribution it is logit function
• For Poisson distribution it is

7
Generalised linear model maximum likelihood

• To estimate parameters in generalised linear
  models with maximum likelihood is used. Let us
  write it with canonical parameter with natural
  link function
• Here we assumed that the form of the
  distributions for different observations are the
  same but parameters are different. It is a
  non-linear optimisation problem. This type of
  problems are usually solved iteratively. One of
  he techniques used is iteratively weighted
  least-squares technique.
• Unfortunately closed form relations (unbiasedness
  of mean, equations for covariance estimator) that
  hold for linear models cannot be used here.

8
Poisson distribution log-linear model

• If the distribution of the observations is
  Poisson then log-linear model could be used.
  Recall that Poisson distribution is from
  exponential family and the function A of the mean
  value is logarithm. It can be handled using
  generalised linear model.
• When log-linear model is appropriate When
  outcomes are frequencies (expressed as integers)
  then log-linear model is appropriate. When we fit
  log-linear model then we can find estimated mean
  using exponential function
• Example Relation between gray hair and age
• Age
• gray hair under 40 over 40
• yes 27 18
• no 33 22

9
Binomial distribution logistic model

• If the distribution of the results of experiment
  is binomial, i.e. outcomes are 0 or 1 (success or
  failure) then logistic model can be used. Recall
  that a function of mean value has the form
• This function has a special name logit. It has
  several advantages If logit(?) has been
  estimated then we can find ? and it is between 0
  and 1. If probability of success is larger than
  failure then this function is positive, otherwise
  it is negative. Changing places of success and
  failure changes only the sign of this function.
  This model can be used when outcomes are binary
  (0 and 1).
• If logit(?) is linear then we can find ?
• For logistic model either grouped variables
  (fraction of successes) or individual items
  (every individual have success (1) or failure
  (0)) can be used.
• Ratio of the probability of success to the
  probability of failure is also called odds.

10
Tests for generalised linear models

• Tests applied for linear model are not easily
  extended to generalised linear models.
• In linear models such statistics as t.test,
  F.test are in common use. Validity of these tests
  are justified if the distributions of
  observations are normal.
• One of the general statistical tests that is used
  in many different applications is likelihood
  ratio test.
• What is the likelihood ratio test?

11
Likelihood ratio test

• Let us assume that we have a sample of size n
  (x(x1,,,,xn)) and we want to estimate a
  parameter vector ?(? 1,?2). Both ?1 and ?2 can
  also be vectors. We want to test null-hypothesis
  against alternative one
• Let us assume that likelihood function is L(x
  ?). Then likelihood ratio test works as follows
  1) Maximise the likelihood function under
  null-hypothesis (I.e. fix parameter(s) ?1 equal
  to ?10 , find the value of likelihood at the
  maximum, 2)maximise the likelihood under
  alternative hypothesis (I.e. unconditional
  maximisation), find the value of the likelihood
  at the maximum, then find the ratio
• w is the likelihood ratio statistic. Tests
  carried out using this statistic are called
  likelihood ratio tests. In this case it is clear
  that
• If the value of w is small then null-hypothesis
  is rejected. If g(w) is the the density of the
  distribution for w then critical region can be
  calculated using

12
Deviances

• In linear model, we maximise the likelihood with
  full model and under the hypothesis. The ratio of
  the values of the likelihood function under two
  hypotheses (null and alternative) is related to
  F-distribution. Interpretation is that how much
  variance would increase if we would remove part
  of the model (null hypothesis).
• In logisitc and log-linear models, again
  likelihood function is maximised under the
  null-and alternative hypotheses. Then logarithm
  (deviance) of ratio of the values of the
  likelihood under these two hypotheses
  asymptotically has chi-squared distribution
• That is the difference between maximum achievable
  log-likelihood and the value of likelihood at the
  estimated paramters
• That is the reason why in log-linear and logistic
  regressions it is usual to talk about deviances
  and chi-squared statistics instead of variances
  and F-statistics. Analysis based on log-linear
  and logistic models (in general for generalised
  linear models) is usually called analyisis of
  deviances. Reason for this is that chi-squared
  is related to deviation of the fitted model and
  observations.
• Another test is based on Pearsons chi-squared
  test. It approaches asympttically to chi-squared
  with n observtion minus n parameter degree of
  freedom.

13
Example

• Let us take the data esoph from R.
• data(esoph)
• That is a data set from a case-control study of
  (o)esophageal cancer in Ile-et-Vilaine, France
• attach(esoph)
• model1 glm(cbind(ncases,ncontrols) agegp
  tobgp alcgp,data esoph, family binomial())
• summary(model1)
• gives all sort of information about each
  parameters. They meant to show significance of
  each etimated parameter.
• It also gives information about deviances. Null
  deviance corresponds to the fit with one
  parameter and residual deviance with all
  parameters.

14
R commands for log-linear model

• log-linear model can be analysed using
  generalised linear model. Once the factors, the
  data and the formula have been decided then we
  can use
• result lt- glm(dataformula,familypoisson)
• It will give us fitted model. Then we can use
• plot(result)
• summary(result)
• Interpretation of the results is similar to that
  for linear model ANOVA tables. Degrees of freedom
  is defined similarly. Only difference is that
  instead of sum of squares deviances are used.

15
R commands for logistic regression

• Similar to log-linear model Decide what are the
  data, the factors and what formula should be
  used. Then use generalised linear model to fit.
• result lt- glm(dataformula,familybinomial)
• then analyse using
• anova(result,testChisq)
• summary(result)
• plot(result)

16
Bootstrap

• There are different ways of applying bootstrap
  for these cases
• Sample the original observation with design
  matrix
• Sample the residuals and add them to the fitted
  values (for each member of family and each link
  function it should be done differently)
• Use estimated parameters and do parametric
  sampling.
• fit the model (using glm and family of
  distributions)
• For each cell in the design matrix find the
  parameters of the distribution
• Sample using the distribution with this parameter
• Fit the model again and save coefficients (or any
  other statistics of interest)
• Repeat 3 and 4 B times
• Build distributions and other properties

17
Model selection problem

• There are at least two techniques for model
  selection. The first one is well known Akaikes
  Information Criterion (AIC). It has the form
• AIC 2p-2log(L)
• Where p is the number of parameters of the model
  and L is the value of the likelihood function at
  the maximum. AIC attempts to combine two
  conflicting factors. If we increase the number of
  parameters then likelihood function should not
  decrease. So AIC tries to tell if increase in the
  likelihood justifies the increase of the number
  of parameters.
• The second way for model selection is use of more
  general purpose cross-validation.

18
Model selection Cross validation

• Cross validation would work as follows
• Select one of the models
• Divide data randomly into K roughly equal sizes
• For subset k1,K fit the model using all data
  excluding k-th subset
• Calculate prediction error for k-th subset
• Repeat 3) and 4) for all subsets and calculate
  overall prediction error
• Go to step 1) and do all steps for all the models
  under consideration
• Select the model that gives lowest prediction
  error
• Note that calculating prediction error may not be
  a straightforward task

19
Exercise

• Exercise will be ready on Friday.

20
References

• McCullagh P. and Nelder, J. A. (1989) Generalized
  Linear Models. London Chapman and Hall.
• Myers, RM, Montgomery, DC and Vining GG.
  Generalized linear models with application in
  Engineering and the Sciences
• McCullagh CP, Searle, (2001) Generalized, linear
  and mixed models
