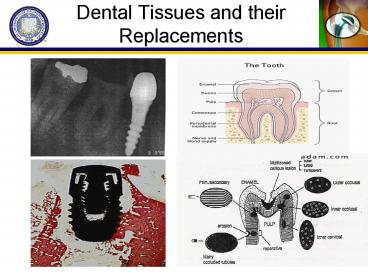

Dental Tissues and their Replacements

1
Dental Tissues and their Replacements
2
Issues

• Dental decay
• Periodontal disease
• Movement of teeth (orthodontics)
• Restorative treatments
• Thermal expansion issues related to fillings
• Fatigue and fracture of teeth and implants

3
(No Transcript)
4
Marshall et al., J. Dentistry, 25,441, 1997.
5
Tissue Constituents

• Enamel-hardest substance in body-calcium
  phosphate salts-large apatite crystals
• Dentin-composed largely of type-I collagen
  fibrils and nanocrystalline apatite
  mineral-similar to bone
• Dentinal tubules-radiate from pulp
• Pulp-richly vascularized connnective tissue
• Cementum-coarsely fibrillated bonelike substance
  devoid of canaliculi
• Periodontal Membrane-anchors the root into
  alveolar bone

6
ENAMEL

• 96mineral, 1 protein lipid, remainder is water
  (weight )
• Minerals form Long crystals-hexagonal shape
• Flourine- renders enamel much less soluble and
  increases hardness
• HA Ca10(PO4)6(OH)2

40 nm 1000 nm in length
7
DENTIN

• Type-I collagen fibrils and nanocrystalline
  apatite
• Dentinal tubules from dentin-enamel and
  cementum-enamel junctions to pulp
• Channels are paths for odontoblasts
  (dentin-forming cells) during the process of
  dentin formation
• Mineralized collagen fibrils (50-100 nm in
  diameter) are arranged orthogonal to the tubules
• Inter-tubular dentin matrix with nanocrystalline
  hydroxyapatite mineral- planar structure
• Highly oriented microstructure causes anisotropy

8
Structural properties
Park and Lakes, Biomaterials, 1992.
9
Dental Biomaterials

• Amalgams/Fillings
• Implants /Dental screws
• Adhesives/Cements
• Orthodontics

10
Materials used in dental applications

• Fillings amalgams, acrylic resins
• Titanium Ti6Al4V dominates in root implants and
  fracture fixation
• TeethPorcelain, resins, ceramics
• BracesStainless steel, Nitinol
• Cements/resins acrylate based polymers

11
Motivation to replace teeth

• Prevent loss in root support and chewing
  efficiency
• Prevent bone resorption
• Maintain healthy teeth
• Cosmetic

12
Amalgams/Fillings

• An amalgam is an alloy in which one component is
  mercury (Hg)
• Hg is liquid at RT- reacts with silver and tin-
  forms plastic mass that sets with time
• Ni-Ti, gold, acrylic resins

13
Thermal expansion concerns

• Thermal expansion coefficient
• ? ?L/(Lo?T)
• ? ? ?T
• Volumetric Thermal expansion coefficient
• V 3?

14
Volume Changes and Forces in Fillings

• Consider a 2mm diameter hole which is 4mm in
  length in a molar tooth, with thermal variation
  of ?T 50C
• ?amalgam 25x10-6/C ?resin 81x10-6 /C
  ?enamel 8.3 x10-6 /C
• E amalgam 20 GPa E resin 2.5 GPa
• ?V Vo x 3? x ?T
• ?Vamalgam p (1mm) 2 x 4mm x 3 (25-8.3) x10-6 x
  50
• 0.03 mm3
• ?Vresin 0.14 mm3
• (1-d) F E x ?? x A
• E (?T ) ?(?amalgam/resin -
  ?enamel ) x pDh
• F amalgam 420 N
• F resin 228 N
• Although the resin expands 4x greater than the
  amalgam, the reduced stiffness (modulus) results
  in a lower force

15
Environment for implants

• Chewing force can be up to 900 N
• Cyclic loading
• Large temperature differences (50 C)
• Large pH differences (saliva, foods)
• Large variety of chemical compositions from food

16
Structural Requirements

• Fatigue resistance
• Fracture resistance
• Wear resistance
• Corrosion resistance

17
Titanium implants

• Titanium is the most successful implant/fixation
  material
• Good bone in-growth
• Stability
• Biocompatibility

18
Titanium Implants

• Implanted into jawbone
• Ti6Al4V is dominant implant
• Surface treatments/ion implantation improve
  fretting resistance

19
Titanium Biocompatibility

• Bioinert
• Low corrosion
• Osseointegration

20
Fatigue

• Fatigue is a concern for human teeth (1 million
  cycles annually, typical stresses of 5-20 MPa)
• The critical crack sizes for typical masticatory
  stresses (20 MPa) of the order of 1.9 meters.
• For the Total Life Approach, stresses (even after
  accounting for stress concentrations) well
  below the fatigue limit (600 MPa)
• For the Defect Tolerant Approach, the Paris
  equation of da/dN (m/cycle) 1x10-11(DK)3.9 used
  for lifetime prediction.
• Critical crack sizes at threshold are 1.5 mm
  (detectable).

21
Fatigue Properties of Ti6Al4V
22
(No Transcript)
23
Structural failures

• Stress Cracking
• Fretting
• Low wear resistance on surface
• Loosening
• Third Body Wear

24
(No Transcript)
25
Design Issues

• Internal taper for easy fitting
• Careful design to avoid stress concentrations
• Smooth external finish on the healing cap and
  abutment
• Healing cap to assist in easy removal

26
Surgical Process for Implantation

• Drill a hole with reamer appropriate to
  dimensions of the selected implant at location
  of extraction site

27
Temporary Abutment

• Place temporary abutment into implant

28
Insertion

• Insert implant
• with temporary abutment attached into prepared
  socket

29
Healing

• View of temporary abutment after the healing
  period (about 10 weeks)

30
Temporary Abutment Removal

• Temporary abutment removal after healing period
• Implant is fully osseointegrated

31
Healed tissue

• View of soft tissue before insertion of permanent
  abutment

32
Permanent Crown Attached

• Abutment with all-ceramic crown integrated
• Adhesive is dental cement

33
Permanent Abutment

• Insert permanent abutment with integrated crown
  into the well of the implant

34
Completed implant

• View of completed implantation procedure
• Compare aesthetic results of all-ceramic
  submerged implant with adjacent protruding metal
  lining of non-submerged implant

35
Post-op

• Post-operative radiograph with integrated
  abutment crown in vivo

36
Regulatory Issues

• Class III
• Requires PMA or 510K
• Requirements for PMA
• Overall device specification
• Manufacturing methods
• Sterilization
• Mechanical testing
• Biocompatibility
• Clinical Studies
