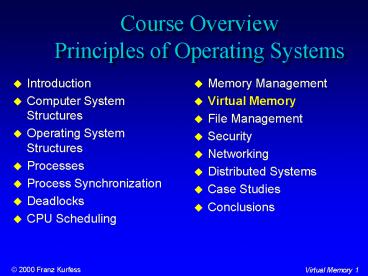

Course Overview Principles of Operating Systems

1
Course OverviewPrinciples of Operating Systems

• Introduction
• Computer System Structures
• Operating System Structures
• Processes
• Process Synchronization
• Deadlocks
• CPU Scheduling

• Memory Management
• Virtual Memory
• File Management
• Security
• Networking
• Distributed Systems
• Case Studies
• Conclusions

2
Chapter Overview Virtual Memory

• Motivation
• Objectives
• Background
• System Requirements
• Virtual Memory
• Page Replacement Algorithms
• FIFO
• Least Recently Used
• Clock Algorithms

• Frame Allocation
• Thrashing
• Working Set Model
• Page Fault Frequency
• Implementation Issues
• Important Concepts and Terms
• Chapter Summary

3
Motivation

• not all parts of a process image are needed
• at all times during the execution
• every time the program is run
• unnecessary parts can be kept on secondary
  storage (hard disk)
• they need to be brought into main memory when
  needed
• improves the utilization of main memory
• fewer infrequently used sections of main memory
• more processes can be accommodated
• must be managed carefully to avoid substantial
  decrease in performance

4
Objectives

• realize the limitations of memory management
  without virtual memory
• understand the basic techniques of virtual memory
• fetch methods for requested pages
• page replacement methods
• allocation of frames to processes
• be aware of the tradeoffs and limitations
• locality of reference
• predicting future page references
• evaluate the performance impact of virtual memory
  on the overall system
• effective access time

5
Background

• limitations of systems without virtual memory
• memory is not fully utilized
• sometimes overlays are used by programmers to
  time-share parts of main memory
• lower degree of multiprogramming
• there is not enough physical memory to
  accommodate all processes
• program size
• the size of programs (process images) is limited
  by the available physical memory
• level of abstraction
• the programmer must be aware of hardware details
  like the size of physical memory

6
Processes in Main Memory

• it is not really necessary to keep the complete
  process image always in main memory
• currently used code
• currently used (user) data structures
• system data (heap, stack)
• some parts of the process image may be kept on
  secondary storage
• must be swapped in when needed

7
Virtual Memory

• principle
• hardware requirements
• software components
• data structures
• advantages and problems

8
Virtual Memory Principle

• a technique that allows the execution of
  processes that are not completely in main memory
• separates logical memory (as viewed by the
  process) from physical memory

9
System Diagram
CPU
Main Memory
Hard Disk
Control Unit
Registers
Arithmetic Logic Unit (ALU)
System Bus
David Jones
10
Virtual Memory Diagram
Process
Page Table
Process Control Block
1
34
2
58
3
122
4
68
5
99
6
38
7
55
Program
8
43
9
131
10
102
11
171
12
76
13
123
Data
14
144
15
93
User Stack
Shared Address Space
Reference Bit
11
Hardware Requirements

• virtual memory usually is supported by a memory
  management unit (MMU)
• minimum requirements
• address conversion support
• as in paging or segmentation
• additional entry in page tables
• present bit (valid/invalid bit)

12
Software Components

• paging or segmentation
• to keep track of the parts of processes and their
  locations
• swapper
• loads and unloads parts of processes between main
  memory and hard disk
• fetch algorithm
• determines which parts of the process should be
  brought into main memory
• demand paging is the most frequently used one
• page replacement algorithm
• determines which parts are swapped out when
  memory needs to be freed up

13
Data Structures

• pages or segments
• parts of the process image handled by virtual
  memory
• page frames
• sections of physical memory that hold pages
• page tables
• keep track of the allocation of pages to frames
• free page frame list
• list of all frames currently not in use
• replacement algorithm tables
• contain data about pages and frames
• used to decide which pages to replace
• swap area
• secondary memory area for pages not currently in
  main memory
• a complete image of every process is kept here

14
Advantages and Problems

• advantages
• large virtual address space
• processes can be larger than physical memory
• better memory utilization
• only the parts of a process actually used are
  kept in main memory
• less I/O for loading or swapping the process
• only parts of the process need to be transferred
• problems
• complex implementation
• additional hardware, components, data structures
• performance loss
• overhead due to VM management
• delay for transferring pages

15
Page Faults

• an interrupt/trap is generated if a memory
  reference leads to a page that is currently not
  in main memory
• may be caused by any memory access(instructions,
  user data, system data)
• additional information must be kept in the page
  table to indicate if a process is currently in
  main memory
• present bit
• valid/invalid bit may be used
• the page needs to be loaded before execution can
  continue

16
Page Fault Handling

• a page fault trap is generated if the present bit
  is not set
• a page frame is allocated
• if there are no free frames left, the page
  replacement algorithm must be invoked
• a page is read into the page frame
• the page table is updated
• the instruction is restarted

17
Page Fault Times

• assumptions 100 MHz CPU clock cycle, 20 ms
  average access and transfer time per page

18
Page Fault Rate

• an instruction that takes normally tens of
  nanoseconds will take tens of milliseconds if a
  page fault occurs
• a factor of 100,000 longer
• this is an intolerable slowdown
• the frequency of page faults is very important
  for the performance of the system
• the page fault rate must be kept very low

19
Page Faults and EAT

• effective access time (p page fault rate)
• EAT p access with page fault
  (1-p) access without page fault

20
Page Faults and Performance

• what is the performance loss for a page fault
  rate of 1 in 100,000?
• access time without page fault 100 ns
• memory access time including page table and TLB
  effects
• access time with page fault0.5 20 ms 0.5
  40 ms 30 ms
• page replacement for 50 of page faults
• EAT 0.00001 30 ms (1- 0.00001)
  100 ns 300 ns 99.999999 ns 400 ns
• this is a 300 performance loss

21
Page Faults and Performance

• what page fault rate is needed for a 10
  performance loss?
• same conditions as previous example
• a 10 performance loss corresponds to a 110 ns
  EAT
• 110 ns gt p 30 ms (1- p) 100 ns
  gt p 30,000,000 ns 100ns 10 ns gt p
  30,000,000 ns p lt 10/30,000,000
  lt 1/3,000,000 1 in 3 million
• only one out of 3 million memory accesses may
  cause a page fault

22
Locality of Reference

• locality of reference indicates that the next
  memory access will be in the vicinity of the
  current one
• spatial
• successive memory accesses will be in the same
  neighborhood
• temporal
• the same memory location(s) will be accessed
  repeatedly
• locality of reference is the main reason why the
  number of page faults can be low

23
Reasons for Locality of Reference

• instruction execution
• the execution of a program proceeds largely in
  sequence
• except for branch and call instructions
• iterative constructs repeat a rather small number
  of instructions several times
• data access
• many data structures are accessed in sequence
• list, array, tree
• may depend on programming style and the code
  generated by the compiler

24
Data Structures and Locality

• good locality
• stack, queue, array, record
• medium locality
• linked list, tree
• bad locality
• graph, pointer

25
Fetch Policy

• determines which pages will be brought into main
  memory from secondary storage
• easy if it is known which pages will be used next
• in practice this is not known
• the most popular approach is demand paging
• pages are fetched when needed
• this is indicated by a page fault
• an alternative is prepaging (anticipative paging)
• an attempt is made to load pages before they are
  actually needed
• is not always feasible

26
Demand Paging

• an attempt to access a page that is currently not
  in main memory generates a page fault
• in response to the page fault, the respective
  page is loaded into main memory
• requires an available frame

27
Prepaging

• anticipative paging
• pages that are likely to be used in the near
  future are loaded before they are needed
• this saves the waiting time for the page to be
  brought in
• especially with DMA it can be performed
  concurrently with program execution
• can depend on secondary storage policies
• contiguously stored pages are advantageous
  because of lower seek times

28
Placement Policy

• tries to identify a good location for a program
  part to be brought into main memory
• not a problem with paging
• each page fits in every frame
• for (pure) segmentation it is essentially a
  variation of the general memory allocation
  problem
• find a fitting hole for the segment to be brought
  in

29
Replacement Policy

• identifies a frame to be freed when a page fault
  occurs, but no free frame is available
• the page occupying that frame must be swapped out
  to secondary storage
• can be based on a number of algorithms
• FIFO, least recently used, clock-based, etc.

30
Replacement Algorithm Objective

• ideally, the page being replaced should be the
  page least likely to be referenced in the near
  future
• in practice, this is not possible because future
  page references are unknown
• many algorithms try to predict the future by
  looking into the past
• assuming that the past behavior of a process is
  similar to its future behavior
• locality of reference enables the connection
  between the past history and the future

31
Page Replacement Algorithms

• first-in, first-out (FIFO) algorithm
• optimal algorithm
• least recently used (LRU) algorithm
• LRU approximation algorithms

32
Evaluation of Algorithms

• keep the number of page faults as low as possible
• the performance of page replacement algorithms is
  often compared on the basis of a reference string
• the reference string indicates the sequence in
  which pages are used
• it is derived from a trace of the addresses
  accessed in a system
• if several addresses point to the same page, only
  one entry for the reference string is generated
• depends on the number of available frames
• with more frames, the number of page faults
  decreases until all pages can be accommodated

33
First-In, First-Out

• the page that was brought in first will be
  replaced first
• must keep track of the time when a page is loaded
• this can also be done in a FIFO queue
• very simple, but not very good
• the oldest page may have been used very recently
• there is a good chance that the replaced page
  will be needed again shortly

34
FIFO Example

• seven pages
• four frames

Reference String
4
3
1
5
1
2
3
6
7
4
2
5
6
1
3
4
7
4
4
4
4
4
2
2
2
2
2
2
5
5
5
5
5
5
3
3
3
3
3
3
6
6
6
6
6
6
1
1
3
3
1
1
1
1
1
1
7
7
7
7
7
7
3
3
3
5
5
5
5
5
5
4
4
4
4
4
4
4
7
F
F
F
F
F
F
F
F
F
F
F
F
Page Faults 12
35
FIFO Example

• seven pages
• five frames

Reference String
4
3
1
5
1
2
3
6
7
4
2
5
6
1
3
4
7
4
4
4
4
4
4
4
6
6
6
6
6
6
6
6
6
6
3
3
3
3
3
3
3
7
7
7
7
7
7
7
7
7
1
1
1
1
1
1
1
4
4
4
4
4
4
4
4
5
5
5
5
5
5
5
5
5
5
1
1
1
1
2
2
2
2
2
2
2
2
2
3
3
3
F
F
F
F
F
F
F
F
F
F
Page Faults 10
36
Optimal

• the page that will not be used for the longest
  period is replaced
• looks forward in the reference string (into the
  future)
• provably optimal algorithm
• impractical for real systems
• cant be implemented since it is not known when a
  page will be used again
• used as a benchmark

37
Optimal Example

• seven pages
• four frames

Reference String
4
3
1
5
1
2
3
6
7
4
2
5
6
1
3
4
7
4
4
4
4
4
4
3
3
3
3
3
1
1
1
1
5
5
5
F
F
F
F
F
Replacement Candidates 4, 3, 1, 5 Selected 1
38
Optimal Example

• seven pages
• four frames

Reference String
4
3
1
5
1
2
3
6
7
4
2
5
6
1
3
4
7
4
4
4
4
4
4
4
4
3
3
3
3
3
3
3
1
1
1
2
2
2
5
5
5
5
5
F
F
F
F
F
Replacement Candidates 4, 3, 2, 5 Selected 3
39
Optimal Example

• seven pages
• four frames

Reference String
4
3
1
5
1
2
3
6
7
4
2
5
6
1
3
4
7
4
4
4
4
4
4
4
4
4
3
3
3
3
3
3
6
6
1
1
1
2
2
2
2
5
5
5
5
5
5
F
F
F
F
F
F
F
Replacement Candidates 4, 6, 2, 5 Selected 3
40
Optimal Example

• seven pages
• four frames

Reference String
4
3
1
5
1
2
3
6
7
4
2
5
6
1
3
4
7
4
4
4
4
4
4
4
4
4
4
4
4
4
7
7
3
3
3
3
3
3
6
7
7
7
2
2
1
1
1
2
2
2
2
2
2
5
5
5
5
5
5
5
5
5
5
F
F
F
F
F
F
F
F
Replacement Candidates 4, 7, 2, 5 Selected 2 or
5 (both pages wont be used anymore)
41
Optimal Example

• seven pages
• four frames

Reference String
4
3
1
5
1
2
3
6
7
4
2
5
6
1
3
4
7
4
4
4
4
4
4
4
4
4
4
4
4
4
4
7
7
3
3
3
3
3
3
6
7
7
7
7
6
2
1
1
1
2
2
2
2
2
2
6
5
5
5
5
5
5
5
5
5
5
5
F
F
F
F
F
F
F
F
F
Replacement Candidates 4, 7, 6, 5 Selected 6 or
5 (pages wont be used anymore)
42
Optimal Example

• seven pages
• four frames

Reference String
4
3
1
5
1
2
3
6
7
4
2
5
6
1
3
4
7
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
7
7
3
3
3
3
3
3
6
7
7
7
7
7
6
2
1
1
1
2
2
2
2
2
2
6
6
5
5
5
5
5
5
5
5
5
5
1
1
F
F
F
F
F
F
F
F
F
Replacement Candidates 4, 7, 6, 1 Selected 6 or
1 (pages wont be used anymore)
43
Optimal Example

• seven pages
• four frames

Reference String
4
3
1
5
1
2
3
6
7
4
2
5
6
1
3
4
7
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
7
7
3
3
3
3
3
3
6
7
7
7
7
7
7
7
6
2
1
1
1
2
2
2
2
2
2
6
3
3
3
5
5
5
5
5
5
5
5
5
5
1
1
1
1
F
F
F
F
F
F
F
F
F
F
Page Faults 10
44
Least Recently Used (LRU)

• the page that has not been used for the longest
  period is replaced
• looks backward in the reference string (into the
  past)
• similar to the optimal algorithm, but practical
• requires additional information about the pages
• last usage (time stamp, ordering of the pages)

45
LRU Example

• seven pages
• four frames

Reference String
4
3
1
5
1
2
3
6
7
4
2
5
6
1
3
4
7
4
4
4
4
4
4
3
3
3
3
3
1
1
1
1
5
5
5
F
F
F
F
F
Replacement Candidates 4, 3, 1, 5 Selected 4
46
LRU Example

• seven pages
• four frames

Reference String
4
3
1
5
1
2
3
6
7
4
2
5
6
1
3
4
7
4
4
4
4
4
2
2
2
3
3
3
3
3
3
3
1
1
1
1
1
1
5
5
5
5
5
F
F
F
F
F
F
Replacement Candidates 2, 3, 1, 5 Selected 5
47
LRU Example

• seven pages
• four frames

Reference String
4
3
1
5
1
2
3
6
7
4
2
5
6
1
3
4
7
4
4
4
4
4
2
2
2
2
3
3
3
3
3
3
3
3
1
1
1
1
1
1
1
5
5
5
6
5
6
F
F
F
F
F
F
F
Replacement Candidates 2, 3, 1, 6 Selected 1
48
LRU Example

• seven pages
• four frames

Reference String
4
3
1
5
1
2
3
6
7
4
2
5
6
1
3
4
7
4
4
4
4
4
2
2
2
2
2
3
3
3
3
3
3
3
3
3
1
1
1
1
1
1
7
7
5
5
5
6
5
6
6
F
F
F
F
F
F
F
F
Replacement Candidates 2, 3, 7, 6 Selected 2
49
LRU Example

• seven pages
• four frames

Reference String
4
3
1
5
1
2
3
6
7
4
2
5
6
1
3
4
7
4
4
4
4
4
2
2
2
2
4
4
3
3
3
3
3
3
3
3
3
3
1
1
1
1
1
1
7
7
7
5
5
5
6
5
6
6
6
F
F
F
F
F
F
F
F
F
Replacement Candidates 4, 3, 7, 6 Selected 3
50
LRU Example

• seven pages
• four frames

Reference String
4
3
1
5
1
2
3
6
7
4
2
5
6
1
3
4
7
4
4
4
4
4
2
2
2
2
4
4
4
3
3
3
3
3
3
3
3
2
3
2
1
1
1
1
1
1
7
7
7
7
5
5
5
6
5
6
6
6
6
F
F
F
F
F
F
F
F
F
F
Replacement Candidates 4, 2, 7, 6 Selected 6
51
LRU Example

• seven pages
• four frames

Reference String
4
3
1
5
1
2
3
6
7
4
2
5
6
1
3
4
7
4
4
4
4
4
2
2
2
2
4
4
4
4
3
3
3
3
3
3
3
3
2
3
2
2
1
1
1
1
1
1
7
7
7
7
7
5
5
5
6
5
6
5
6
6
5
F
F
F
F
F
F
F
F
F
F
F
Replacement Candidates 4, 2, 7, 5 Selected 7
52
LRU Example

• seven pages
• four frames

Reference String
4
3
1
5
1
2
3
6
7
4
2
5
6
1
3
4
7
4
4
4
4
4
2
2
2
2
4
4
4
4
4
3
3
3
3
3
3
3
3
2
3
2
2
2
1
1
1
1
1
1
7
6
7
7
7
6
5
5
5
6
5
6
5
6
6
5
5
F
F
F
F
F
F
F
F
F
F
F
F
Replacement Candidates 4, 2, 6, 5 Selected 4
53
LRU Example

• seven pages
• four frames

Reference String
4
3
1
5
1
2
3
6
7
4
2
5
6
3
4
7
1
4
4
4
4
4
2
2
2
2
1
4
4
4
4
1
3
3
3
3
3
3
3
3
2
3
2
2
2
2
1
1
1
1
1
1
7
6
7
7
7
6
6
5
5
5
6
5
6
5
6
6
5
5
5
F
F
F
F
F
F
F
F
F
F
F
F
F
Replacement Candidates 1, 2, 6, 5 Selected 2
54
LRU Example

• seven pages
• four frames

Reference String
4
3
1
5
1
2
3
6
7
4
2
5
6
3
4
7
1
4
4
4
4
4
2
2
2
2
1
4
4
4
4
1
1
3
3
3
3
3
3
3
3
3
3
2
2
2
2
3
1
1
1
1
1
1
7
6
7
7
7
6
6
6
5
5
5
6
5
6
5
6
6
5
5
5
5
F
F
F
F
F
F
F
F
F
F
F
F
F
F
Replacement Candidates 1, 3, 6, 5 Selected 5
55
LRU Example

• seven pages
• four frames

Reference String
4
3
1
5
1
2
3
6
7
4
2
5
6
3
4
7
1
1
4
4
4
4
4
2
2
2
2
1
4
4
4
4
1
1
3
3
3
3
3
3
3
3
3
3
2
2
2
2
3
3
1
1
1
1
1
1
7
6
7
7
7
6
6
6
6
5
5
5
6
5
6
4
6
6
5
5
5
5
4
F
F
F
F
F
F
F
F
F
F
F
F
F
F
F
Replacement Candidates 1, 3, 6, 4 Selected 6
56
LRU Example

• seven pages
• four frames

Reference String
4
3
1
5
1
2
3
6
7
4
2
5
6
3
4
7
1
1
4
4
4
4
4
2
2
2
2
4
4
4
4
1
1
1
3
3
3
3
3
3
3
3
3
2
2
2
2
3
3
3
1
1
1
1
1
1
7
7
7
7
6
6
6
6
7
5
5
5
6
5
6
6
6
5
5
5
5
4
4
F
F
F
F
F
F
F
F
F
F
F
F
F
F
F
Number of Page Faults 15
57
Not Recently Used (NRU) Alg.

• replaces one of the pages that have not been
  recently used
• simplification of the LRU algorithm
• only records if a page has been used or not
• the actual time when it was used last is not
  recorded
• status bits are associated with each page in
  memory
• R bit is set when the page is referenced
• M bit is set when the page is modified

58
NRU Usage

• pages can be divided into 4 categories
• not referenced, not modified
• not referenced, modified
• referenced, not modified
• referenced, modified
• not referenced/modified pages are replaced before
  referenced/modified pages
• modified pages have to be written to secondary
  storage before their frames can be reused

59
Simulating the LRU Algorithm

• aging
• associate a byte with each page in memory
• periodically, shift all the bits to the right and
  inserts the reference bit into the high-order bit
• the page with the lowest number is the least
  recently used page

60
Clock Replacement Algorithms

• pages are arranged in a circular buffer
• each page table entry has at least a reference
  bit
• the reference bit is sometimes also called use
  bit
• sometimes an additional modified bit is used
• the reference bit is set to 1 every time the page
  is accessed
• the algorithm looks for a page whose reference
  bit is 0
• the bit of every page checked by the algorithm is
  set to 0
• approximation of LRU
• tolerable overhead
• variations are used in many real systems

61
Clock Replacement Algorithm
reference bit R 0 evict page R 1 clear R
and advance hand
62
Second Chance Algorithm

• example of a clock replacement algorithm
• after the first visit, the page gets another
  chance to be referenced until the clock algorithm
  visits again
• modification of a FIFO replacement strategy
• will evict the oldest page only if its reference
  bit is set to 0
• avoids evicting a heavily used page that happens
  to be the oldest in memory

63
Frame Allocation

• determines how many frames a process may use
• fixed number of frames
• flexible number of frames
• allocation methods
• equal share for each process
• proportional allocation
• factors for determining the number of frames
• process image size
• priority
• accumulated CPU time
• time to finish
• CPU-bound vs. I/O bound-process

64
Frame Allocation Strategy

• global allocation
• a replacement frame is selected from the set of
  all frames
• may reduce or increase the number of frames
  allocated to a process
• may favor some processes over others
• generally better overall system throughput
• local allocation
• a replacement frame is selected only from the
  frames allocated to that process
• less influence from other processes

65
Replacement and Allocation
66
Fixed Allocation, Local Scope

• the number of frames per process is decided when
  the process is loaded, and cant be changed
• replacements must be done within the frames of
  the process
• too small
• large number of page faults
• many active processes
• too large
• small number of active processes
• low CPU utilization
• few page faults

67
Variable Allocation, Local Scope

• allocate a number of frames to new processes
• referred to as resident set
• prepaging or demand paging to fill up the
  allocation
• replacements are selected from the frames of this
  process
• the resident set size is re-evaluated occasionally

68
Variable Allocation, Global Scope

• similar to above, but replacements may be
  selected from frames of other processes
• relatively easy to implement
• processes with high page fault rates grow
• even if they dont really need more frames
• may be unfair towards some processes

69
Thrashing

• if a process doesnt have enough pages, it will
  generate lots of page faults
• the replaced page may be needed again soon
• as a consequence, CPU utilization may go down
• some older operating systems compensated for this
  by bringing in more processes
• this leads to each process having even fewer
  pages, and more page faults CPU utilization goes
  down, and more processes are brought in, etc.
• leads to severe performance problems

70
Thrashing Diagram
thrashing
CPU utilization
level of multiprogramming
71
Overcoming Thrashing

• local page replacement will limit the effects of
  thrashing to the affected processes
• does not eliminate it completely
• thrashing processes still increase the effective
  access time for other processes
• thrashing can be prevented by providing a process
  with enough pages
• can be determined through locality models
• almost all memory references will be in one or a
  few localities of the process

72
Working Set Model

• is derived from the locality model
• the working set comprises all pages that have
  been used during the last n page references
• n defines the size of the working set window
• the working set is an approximation of the
  localities of a process
• if the sum of all working sets for active
  processes is greater than the total number of
  available frames there is a danger of thrashing
• the working set of a process changes size as the
  process moves between localities

73
Working Set Model Usage

• the operating system monitors the working set of
  each process
• each process is allocated enough frames to
  accommodate its working set
• if enough frames are free, more processes are
  brought in
• if the sum of the working set sizes exceeds the
  total number of available frames, a process must
  be suspended
• optimizes CPU utilization
• keeps the degree of multiprogramming high
• prevents thrashing

74
Problems Working Set

• size and membership of the working set may change
• the past doesn't always predict the future
• considerable overhead for an exact determination
  of the working set
• the optimal value for the working set window size
  is unknown
• the page fault frequency may be used for an
  approximation

75
Page Fault Frequency Model

• the operating system monitors the page fault
  frequency (PFF) of each process
• if it gets too high, the process needs more
  frames
• if it gets too low, the process can do with fewer
  frames
• if the PFFs of too many processes are too high,
  some processes have to be suspended

76
Page Fault Frequency Diagram
process needs more frames
upper bound
page fault rate
lower bound
process needs fewer frames
allocated page frames
77
Paging Demons

• background process that periodically inspects
  memory looking for pages to evict based on the
  page replacement algorithm
• contents of the page may be kept in a page pool
  in case the page is needed again before it gets
  overwritten

78
Locking Pages

• a page is locked in memory to prevent its
  replacement
• page locks can be used to prevent problems with
  I/O operations
• allows I/O to complete before the page involved
  in the I/O operation is replaced
• an alternative is to use system buffers for I/O
• better control of the operating system over the
  use of pages

79
Cleaning Policy

• determines when modified pages should be written
  out to secondary memory
• demand cleaning
• a page is written out only when it has been
  selected for replacement
• one page fault involves writing one page and
  reading in another page
• precleaning
• pages are written before frames are needed
• may involve unnecessary write operations for
  pages that change frequently
• compromise page buffering

80
Page Buffering

• a number of page frames are not allocated to
  processes, but used by the operating system as
  cache or buffer
• keeps some recently swapped out pages in main
  memory so they dont need to be swapped in in
  case they are needed again soon
• the processes may not be aware of that

81
Load Control

• determines the number of processes in main memory
  (degree of multiprogramming)
• too few processes
• not enough processes in the ready queue
• may lead to new processes being swapped in
• too many processes
• high page fault frequency
• danger of thrashing

82
Process Suspension

• determines the process(es) that will be swapped
  out of main memory to the secondary storage
• low priority processes
• process causing many page faults
• last process activated
• least likely to have working set resident
• smallest process
• will be easy to swap in again
• largest process
• frees up the largest number of frames
• process with the largest remaining execution time

83
Virtual Memory Implementation

• page replacement and frame allocation are not the
  only considerations for a virtual memory system
• prepaging
• page size
• program structure
• I/O and virtual memory
• file mapping (memory-mapped files)

84
Direct Memory Access

• DMA unit is capable of transferring data directly
  between memory and I/O device
• CPU doesnt have to be involved
• cycle stealing
• the DMA unit steals bus access cycles from the
  CPU
• CPU has to wait because it would be too costly to
  restart the DMA transfer
• the execution of instructions is suspended, not
  interrupted

85
Real-Time Systems

• with virtual memory, unpredictable and very long
  delays may occur
• this is very bad for real-time system
• real-time processes need small and bounded
  latencies
• partial solution important pages may be locked
  into main memory
• used in Solaris 2.x

86
Important Concepts and Terms

• clock replacement algorithm
• contiguous allocation
• effective access time
• file mapping
• first-in, first-out algorithm
• fragmentation
• global frame allocation
• least recently used algorithm
• local frame allocation
• locality
• logical address
• memory-mapped files
• memory management unit (MMU)

• non-contiguous allocation
• optimal replacement algorithm
• page fault
• page replacement algorithm
• page table
• physical address
• present bit
• reference string
• segmentation
• spatial locality
• swap area
• temporal locality
• thrashing
• virtual memory
• working set

87
Chapter Summary

• virtual memory keeps only parts of processes in
  main memory
• the rest is stored on secondary storage
• virtual memory separates the logical address
  space from physical memory
• allows the execution of processes larger than
  physical memory
• the programmer does not have to know the size of
  physical memory
• leads to better resource utilization
• performance loss due to page faults
