Title: SKADS: Array Configuration Studies Implementation of Figures-of-Merit on Spatial-Dynamic-Range


1

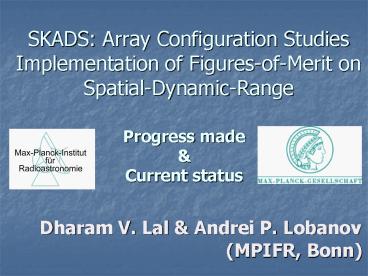

SKADS Array Configuration StudiesImplementation
of Figures-of-Merit on Spatial-Dynamic-Range
Progress madeCurrent status Dharam V.
Lal Andrei P. Lobanov
(MPIFR, Bonn)
2
HUGE task
  • To quantify imaging performance of the SKA.

3
Some Terminologies
  • Figures-of-Merit
  • Any parameter which is a measure of
    (u,v)-plane coverage
  • e.g., SDR, RMS noise levels, synthesized beam
    size, etc.
  • Spatial Dynamic Range
  • The ratio of the largest adequately imaged
    structure and the synthesized beam

4
Terminologies
  • (u,v)-gap parameter OR ?u/u
  • A measure of quality of the (u,v)-plane coverage
    characterising the relative size of holes in
    the Fourier plane
  • ? U2 U1 / U2
  • for a circular (u,v)-coverage
  • where, U2 and U1 are the (u,v)-radii of two
    adjacent baselines.

5
Figures of Merit
  • Commonly used resolution, beam shape, sidelobe
    level, dynamic range, etc
  • Additional spatial dynamic range, pixel
    fidelity

Resolution
Spatial dynamic range
6
Spatial Dynamic Range
  • Spatial dynamic range (SDR) the ratio
    between largest and smallest adequately
    imaged scales it measures, effectively,
    brightness sensitivity of an array on all
    scales.
  • SDR reflects a number of aspects of array
    design, including the type of primary
    receiving element (antenna), signal
    processing, and distribution of
    antennas/stations.
  • Array configuration SDR can be expressed as a
    function of a gap, Du/u, between
    adjacent baselines (u1,u2) Du/u (u2
    u1)/u2 (u2 gt u1)
  • Uniform sensitivity is provided by Du/u
    const

7
SDR Factors
  • Integration time
  • FoV
  • Channel bandwidth
  • UV-coverage

Analytical estimate SDR of SKA will not be
limited by the uv-coverage if Du/u ? 0.1 on all
scales
The goal is to derive more specific requirements
from numerical testing.
8
Methodology
  • Generate test array (X,Y) for logarithmic
    (equiangular) spiral array configuration
  • Project this array on Earths surface and
    determine (Lat, Lon, Z)
  • Choose an appropriate input source model
  • RUN glish scripts in aips to obtain
    visibilities
  • Import these visibilities into AIPS and perform
    the mapping using IMAGR task.
  • Determine the figures of merit

9
Preliminaries
  • An arbitrary choice of source model
  • Observing ?
  • 1.4 GHz

Observing direction, RA 000000 Dec
900000 A RUN of 12 hrs
10
Experiment 1
  • A station at origin
  • Three spiral arms
  • Five stations in each
  • arm
  • Range of baseline
  • from 20 100m
  • to 20 5000m

vary Bmax/Bmin constant N
  • U2 U1 / U2

11
Experiment 1
  • Input group of source components
  • six Gaussian components,
  • typical size 1 arcsec
  • Results from Dirty Map
  • (Use AIPS task IMAGR)
  • 4k x 4k image size
  • each pixel 2 arcsec
  • Figures-of-Merit

VLA D? ? A
12
Experiment 2
(U,V) gap parameter ? U2 U1 / U2
i.e., fix Bmax/Bmin vary N
13
Experiment 2
  • Results (Use AIPS task IMAGR)
  • 8k x 8k image size and each pixel being 3 arcsec
  • Figures-of-Merit

dirty map
CLEAN map
14
Experiment 2
  • Shortest spacings, a few 10s of metres ? degree
  • Longest spacings (5000m) ? arcseconds

15
Results
  • The behaviour of figures of merit and hence the
    SDR does not seem to have a simple dependence on
    ?u/u.
  • Close to small (u,v)-gap parameter values, the
    (nearly) linear relationship does not hold good.
  • We show that uv-gap parameter can be used to
    relate the (u,v)-coverage to the characteristics
    of the map.

16
Results
  • These empirical solutions can be implemented
    into any proposed configuration.
  • We plan to use the SDR FoM to quantify imaging
    performance of
  • KAT / MEERKAT, ASKAP, SKA Phase I
  • Limitations of CLEAN deconvolution algorithm
  • Need new algorithms and parallelisation.

17
