From Bolometric to Monochromatic

1

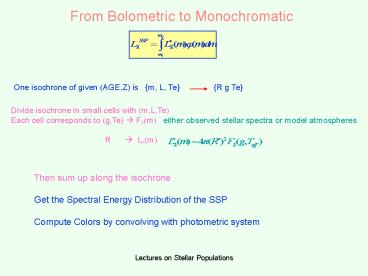

From Bolometric to Monochromatic
One isochrone of given (AGE,Z) is m, L, Te
R g Te
Divide isochrone in small cells with
(m,L,Te) Each cell corresponds to (g,Te) ? F?(m)
either observed stellar spectra or model
atmospheres
R
? L?(m)
Then sum up along the isochrone Get the Spectral
Energy Distribution of the SSP Compute Colors by
convolving with photometric system
2
An Alternativebest suited for FCT applications
The monochromatic contributions of the PMS phases
are weighted with the Fuel Burned in each phase
3
Exercise the Bolometric Correction of an SSP
The Bolometric Correction of each portion of the
isochrone is weighted by its contribution to the
bolometric light cells with a small contribution
to total L are not important to the bolometric
correction of the SSP
4
Contributions of individual phases
At short wavelenghts we see the MS (turn off,
mostly) In the K band the MS is
never important Notice the AGB phase
transition and the RGB dominating past approx 3
Gyr
5
Contributions of individual phases Z dependence
BOL MS,AGB,RGB
V MS, RGB At Low Z HB is important
K AGB and RGB
6
Calibration of AGB
Total Fuel will depend on Z More important The C
- M share depends on Z
Based on dependence of envelope mass at the
first pulse on age scaling of Renzini Voli
models behaviour with metallicity
7
SSPs at AGB phase transition
In the optical theres no difference In the IR
the flux is 3 times higher than without TP
AGB Notice the strong absorption features due to
C (C2, CN) and M (TiO,H2O) stars The V-K color
jumps by more than 1 mag
8
SSPs across AGB phase transition
At higher Zs the O-rich stars are favoured
At older ages the TP AGB becomes less important
9
SSP Integrated Colors
Older SSPs are redder
Metal rich SSPs are redder
Past 2-3 Gyr the colors dependence on age is mild
Frascati vs Padova tracks B-V bluer with
Padova Larger TO mass at given age V-K redder
with Padova Redder RGB at solar Z
The discrepancy between The various authors is
gt than the systematics due to the use of
different tracks
10
Integrated Colors Comparison with
ObservationsOLD SSPs
Models Maraston 2004 13 Gyr old SSPs blue and
intermediate HB at Z/Hlt-1 solid Kroupa
dashed Salpeter dotted Bruzual Charlot 2003

Data MW Globulars from Harris et al.
Z/H on Zinn West scale
Colors are not affected by IMF Most lum comes
from stars within a small mass range
Agreement is good but for B-V Likely
Color-Temperature transformation
11
Integrated Colors Comparison with
ObservationsINTERMEDIATE AGE
Filled circles MC Globulars with SWB
type in 3 6 (several authors)
Models younger than 2 Gyr and with Z0.5 Zo
solid Maraston 2004 dashed PEGASE dotted
Bruzual Charlot 2003
Optical IR colors span a wide range among
these clusters a sizeable effect from the
development of the AGB must be present
Open Triangles Clusters in NGC7252, a merger
remnant
12
SEDs Comparison with ObservationsACROSS the
AGB PHASE TRANSITION
13
Mass to Light Ratios
IMF effect
M/L increases with age in every band But notice
the AGB phase transition in K M/L increases with
Z But notice the small span in the K band
Reasonable agreement among authors Notice the Y
scale BC2003 have different tracks Worthey
possibly too much light on RGB Vazdekis ?
14
What have we learnt

• Each isochrone portion contributes to the total
  BC factor
• weighted by its contribution to the total
  bolometric light of the SSP
• Short wavelenghts (U,B,V) best sample the MS Turn
  off
• Long wavelenghts (IR) best sample RGB and AGB
• The contribution of the various phases in the
  various bands depend on Z
• at low Z the HB becomes important in optical
  light
• at high Z the MS always dominates the
  optical
• The treatment of the TP AGB is very critical for
  SSPs between 0.2 2 Gyr
• still a lot of work to do, but a sizeable
  contribution from this phase IS needed
• Considerable discrepancies still in the
  integrated colors from different authors
• because of (a) different tracks (b)
  different atmospheres (c) different codes
• M/L ranges from about unity to about tens from
  young to old SSPs
• In the K band the M/L ratio is almost independent
  of metallicity
