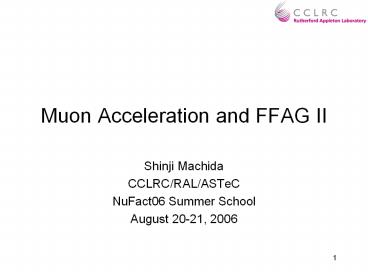

Muon Acceleration and FFAG II

1
Muon Acceleration and FFAG II

• Shinji Machida
• CCLRC/RAL/ASTeC
• NuFact06 Summer School
• August 20-21, 2006

2
Content

• Acceleration of muons
• Evolution of FFAG
• FFAG as a muon accelerator
• Scaling FFAG
• Non-scaling FFAG
• Design example of muon acceleration
• Japanese scenario
• US and Europe scenario
• Appendix Proton driver
• Reference (among others)
• BNL-72369-2004, FNAL-TM-2259, LBNL-55478
• NuFactJ Design study report

3
3

• FFAG as a muon accelerator

4
Betatron oscillation and Tune

• In transverse plane, a particle in an accelerator
  oscillates around the centeral orbit.
• It is called betatron oscillation and its
  oscillation frequency is tune. Precisely
  speaking tune is

x
s
FFAG as a muon accelerator
5
Cardinal conditions

• Geometrical similarity
• r0 average curvature
• r local curvature
• q generalized azimuth
• Constancy of k at corresponding orbit points
• k index of the magnetic field

The field
satisfies the scaling law. Tune is constant
independent of momentum scaling FFAG
FFAG as a muon accelerator
6
Beyond scaling FFAG

• If we can break scaling law, FFAG will be much
  simpler and magnet will be smaller.
• Why do we keep scaling (constant tune) during
  acceleration?
• Because of resonance in
  accelerator.

No gentle slope at low momentum. - Orbit
excursion is shorter. Constant gradient. -
Linear magnet.
FFAG as a muon accelerator
7
Resonances in accelerators

• There are many resonances near operating tune.
  Once a particle hits one of them, probably it
  will be lost.
• In reality, however,
• operating tune moves
• due to imperfection
• of magnet (red zigzag line).
• Particles can survive after
• crossing resonances
• if resonance is weak and
• crossing is fast.

Tune diagram of 150 MeV FFAG
FFAG as a muon accelerator
8
Non-scaling FFAG

• Muons circulate only a few (15) turns in FFAG.
• Is resonance really harmful to a beam? Maybe not.
• Forget scaling law !
• Let us operate ordinary AG synchrotron without
  ramping magnet.
• Orbit moves as momentum increases.
• Large ap makes the orbit shift small.
• Focusing force decreases as momentum increases.

FFAG as a muon accelerator
9
Orbit for different momentum

• Orbit shifts more at larger dispersion section.
• No similar shape unlike scaling FFAG.

high p
low p
non-scaling
FFAG as a muon accelerator
10
Tune variation in a cycle

• Tune decreases as a beam is accelerated.
• dn(tune)/dT(turn)1 for muon rings.

low p
high p
FFAG as a muon accelerator
11
Beam dynamics issues

• Acceleration out of RF bucket.
• Crossing of many resonances during acceleration.
• Structure resonance has some effects.
• With alignment errors, integer resonances have to
  be considered.
• Huge acceptance (30,000 p mm-mrad) for muons.
• Dynamic aperture without acceleration at
  injection energy.

FFAG as a muon accelerator
12
Synchrotron oscillation and RF bucket (1)

voltage
time
momentum
lt lt
lt lt
voltage
time
lt lt
lt lt
FFAG as a muon accelerator
13
Synchrotron oscillation and RF bucket (2)

momentum
time
If momentum is too large, it cannot be trapped in
sinusoidal RF voltage. -gt RF bucket.
FFAG as a muon accelerator
14
Acceleration in non-scaling FFAG (1)

• Revolution frequency changes because orbit shifts
  and path length changes although speed of mouns
  is already a speed of light.
• If you look at orbits carefully,
• path length at the central
• momentum is shortest.

FFAG as a muon accelerator
15
Acceleration in non-scaling FFAG (2)

• In a first half of a cycle, path length becomes
  shorter and revolution frequency becomes higher.
• In a second half of a cycle, path length becomes
  longer and revolution frequency becomes lower.

1/revolution freq.
momentum
FFAG as a muon accelerator
16
Acceleration in non-scaling FFAG (3)

• Suppose we choose RF frequency that is
  synchronized with revolution frequency at the
  center.
• In the first half of a cycle, a particle lags
  behind the RF.
• At the center, a particle is synchronized with
  RF.
• In the second half, a particle lags again.

low center high
voltage
time
FFAG as a muon accelerator
17
Acceleration in non-scaling FFAG (4)

• In the longitudinal phase space, a particle
  follows the path with constant color.
• If there is enough RF voltage, a particle can be
  accelerated to the top
• energy.
• This is called
• Gutter acceleration.

momentum
time
FFAG as a muon accelerator
18
Transverse amplitude effects
Longitudinal phase space (phi, momentum)
5 to 10 GeV ring

• without transverse amplitude

with finite transverse amplitude
Horizontal is 5,000 pi mm mrad Vertical is zero
FFAG as a muon accelerator
19
Source of longitudinal emittance growth

• A particle with large transverse amplitude has
  longer path length.
• This effects become visible because muon
  emittance (amplitude) is huge.

x
s
FFAG as a muon accelerator
20
Matching between two FFAG rings
20GeV
10GeV
5GeV

• Second harmonics and 10 increase of RF voltage
  partially cure the problem.

FFAG as a muon accelerator
21
RLA

• Synchrotron oscillation helps to mix momentum
  spread.

FFAG as a muon accelerator
22
Resonance crossing without errors

• Vertical is 5,000 p mm-mrad, normalized, zero
  horizontal emittance.
• Shows the coupling due to nx-2ny0 (structure)
  resonance.
• If we start finite horizontal and zero vertical
  emittance, no exchange of emittance.

vertical emittance
5 GeV
horizontal emittance
10 GeV
FFAG as a muon accelerator
23
Resonance crossing without errors, amplitude
dependence
5,000 pi mm-mrad
500 pi mm-mrad
0.5 pi mm-mrad
FFAG as a muon accelerator
24
Resonance crossingwith alignment errors

• Beam has to face many integer
  tunes.

tune per cell
tune per ring
FFAG as a muon accelerator
25
Resonance crossing with alignment errors,
envelope

• Horizontal is 10,000 p mm-mrad, normalized, zero
  vertical emittance.
• Errors of 0, 0.05, 0.10, 0.20 mm (rms).

Horizontal phase space (x, xp)
0. mm
0.05 mm
0.10 mm
0.20 mm
FFAG as a muon accelerator
26
Scaling vs. non-scaling

• Scaling machine principle is proven.
• Large acceptance so that cooling is not needed.
• Magnet tends to be larger. Cost more.
• Non-scaling machine can be more compact. Cost
  less.
• Need cooling to fit a beam into the acceptance.
• Principle have to be proven.
• Resonance crossing
• Gutter acceleration
• Demonstration by electron model is scheduled in
  UK.

FFAG as a muon accelerator
27
FFAG as a muon acceleratorsummary

• FFAG used to satisfy scaling law, that assures
  geometrical similarity of orbit and tune
  independent of momentum.
• If resonance crossing is not harmful, scaling law
  is not necessary.
• Just ordinary synchrotron without ramping magnet
  makes a new concept of FFAG, namely non-scaling
  FFAG.
• Acceleration is so fast that RF frequency cannot
  be synchronized with revolution frequency.
• Gutter acceleration is one possible way.
• Transverse amplitude makes longitudinal growth.

FFAG as a muon accelerator
28
4

• Design example of muon accelerator

29
Japanese scheme

• Scaling FFAG
• Acceleration with a bucket of low frequency RF,
• 520 MHz

30
Acceleration

• No time to modulate RF frequency.
• 1 MV/m (ave.) RF voltage gives large
• longitudinal acceptance.
• From 10 to 20 GeV/c within 12 turns.

31
Accelerator chain

• Before acceleration
• Target and drift
• No cooling section
• Four scaling FFAGs,
• 0.3 - 1.0 GeV
• 1.0 - 3.0 GeV
• 3.0 - 10.0 GeV
• 10. - 20. Gev
• If physics demands, another FFAG
• 20. - 50. GeV

32
Longitudinal emittance vs acceptance(after
target and drift)
Acceptance of US scheme is 0.167 eV.sec (150
mm). Difference comes from frequency of RF (5 vs.
201 MHz).
33
Transverse emittance
100 mm (100,000 pi mm-mrad)
34
Hardware RD (1)
Low frequency RF (ferrite loaded)
Shunt impedance
Ferrite core
35
Hardware RD (2)
Low frequency RF (air core)
36
Hardware RD (3)
Superconducting magnet
37
US scheme (Europes similar)

• Combination of RLA (LA) and Non scaling FFAG
• High frequency RF, 201 MHz

38
Accelerator chain

• Before acceleration
• Target, drift, buncher, rf rotator, and cooling
• Linac
• 0.220 GeV - 1.5 GeV
• RLA
• 1.5 - 5. GeV
• Two non-scaling FFAGs
• 5. - 10. GeV
• 10. - 20. GeV
• If physics demands, another non-scaling FFAG
• 20. - 50. GeV

39
Before acceleration

• Three more stages compared to Japanese scheme.

40
A way to make small emittance fit into 201 MHz RF
There is some stage to make longitudinal
emittance smaller so that 201 MHz RF can be used.
41
Emittance evolution before FFAG injection

• Cooling is also necessary to fit into the
  acceptance.

transverse
longitudinal
Emittance mm
Path length m
42
Acceleration system requirements
From Reference 1.
Initial momentum 0.3 GeV/c
Final momentum 20 GeV/c
Normalized transverse acceptance 30 mm
Normalized longitudinal acceptance 150 mm
Bunching frequency 201.25 MHz
Maximum muons per bunch 1.1 x 1011
Muons per bunch train per sign 3.0 x 1012
Bunches in train 89
Average repetition rate 15 Hz
Minimum time between pulses 20 ms
43
Design example of muon accelerationsummary

• Japanese scheme assumes low frequency (5 MHz) RF
  and no cooling is necessary. It uses scaling
  FFAG.
• US and Europe scheme assumes high frequency (200
  MHz) RF. It uses non-scaling FFAG.
• Hardware RD is going on.
• Proof of principle model for non-scaling FFAG is
  scheduled in UK.

44
Appendix

• FFAG as a proton driver

45
Requirement of proton driver (1)

• Beam power
• energy x current
• energy x (particles per bunch) x (repetition
  rate)
• Energy
• MW using a few GeV or more energetic protons.
• Particles per bunch and Repetition rate
• From accelerator point of view, low ppb is
  preferable.
• Probably rep. rate does not matter as long as
  the beam power above is obtained.

46
Requirement of proton driver (2)

• Beam quality
• Short bunch is preferable for smaller
  longitudinal emittance.
• Momentum spread of protons is not important
  because that of muons can not be small.
• Beam size (transverse emittance) is not important
  either.

47
Machine candidate (1)

• Slow cycling synchrotron (0.1 1 Hz)
• J-PARC is one of examples
• Maximum energy is 50 GeV.
• Particles per bunch is high, 3e14 to obtain 0.75
  MW
• Should be more to upgrade to a few MW facility
• Space charge and beam instability are problems.

48
Machine candidate (2)

• Rapid cycling synchrotron (10 50 Hz)
• ISIS upgrade is one of examples
• Maximum energy is 50 GeV.
• Particles per bunch can be reduced,
• Design of 30 GeV with 50 Hz is feasible.

49
Machine candidate (3)

• Rapid cycling linac (10 50 Hz)
• SPL is one of example
• Maximum energy is limited to a few GeV.
• More particle per bunch is needed compared with
  RCS
• Space charge and beam instability problem are
  less because acceleration is quicker.

50
Machine candidate (4)

• FFAG (100 1000 Hz)
• Maximum energy can be as high as synchrotron.
• Particles per bunch can be much less.
• Space charge and beam instability problem are
  less because acceleration is quicker.

SCS RCS RCL FFAG
energy 50 GeV 50 GeV 3 GeV 20 GeV
rep. rate 0.11 1050 50 1001000
ppb high low low much low
Space charge etc. serious moderate less No problem
51
Subjects to be studied

• Electron model of non scaling FFAG
• New scheme of acceleration
• Resonance crossing
• High intensity operation
• Optimization of scaling magnet
• Make the magnet superconducting

52
Exercise (4)

• Scaling FFAG has magnetic field shape as
• Momentum compaction factor ac is defined as
• Show momentum compaction factor of scaling FFAG.
• RF bucket (half) height is
• where E is total energy, h is harmonic
  number, h is slippage factor defined as
• how much RF voltage is required to
  accelerate 10 to 20 GeV when h20 and k280.

53
Exercise (5)

• Scaling FFAG has magnetic field shape as
• where B0 and r0 are magnet strength and average
  radius at injection.
• Ignore the azimuthal dependence and calculate
  orbit shift between 10 to 20 GeV when k is 280
  and r0 is 120m.
• The present design assumes the muon emiitance of
  30 pi mm (or 30,000 pi mm-mrad) normalized.
  Calculate beam size at 10 GeV and 20 GeV and
  compare them with the orbit shift.
• Use the relation
  where R is average radius of an
• accelerator (120 m) and n is tune (20).
