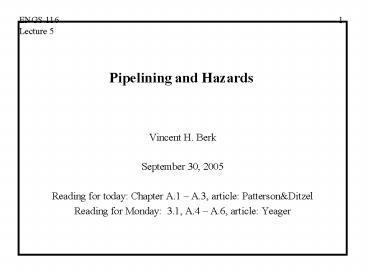

Pipelining and Hazards

1
Pipelining and Hazards

• Vincent H. Berk
• September 30, 2005
• Reading for today Chapter A.1 A.3, article
  PattersonDitzel
• Reading for Monday 3.1, A.4 A.6, article
  Yeager

2
Review Pipelined DLX DatapathFigure A.18, Page
A-31
3
Hazards

• Hazards are situations that hamper execution flow
• Structural Hazards
• Resource Conflict, hardware cannot support all
  possible combinations of instructions
  simultaneously.
• Data Hazards
• Source operands are not available instruction
  depends on results of previous instructions still
  in the pipeline
• Control Hazards
• Changes in program counter

4
Structural Hazards
5
One Memory Port/Structural Hazardsfrom SECOND
EDITION
I n s t r. O r d e r
Load
Instr 1
Instr 2
stall
Instr 3
Mem
6
Structural Hazard Single Memory
7
Speed Up Equation for Pipelining

• Speedup from pipelining
• Ideal CPI CPIunpipelined /Pipeline depth
• Speedup

8
Speed Up Equation for Pipelining
9
Example Dual-port vs. Single-port

• Machine A Dual ported memory
• Machine B Single ported memory, but its
  pipelined implementation has a clock rate that is
  1.2 times faster
• Ideal CPI1 for both
• Loads and stores are 40 of instructions executed
• Machine A is 1.17 times faster

10
Data Hazards

• sub R2, R1, R3 R2 written by sub
• and R12, R2, R5 first operand (R2) depends on
  sub
• or R13, R6, R2 second operand (R2) depends on
  sub
• add R14, R2, R2 both operands depend on sub
• sw 100 (R2), R15 index (R2) depends on sub
• Notice that the value written into R2 by the
  subtract instruction is needed in all of the
  following instructions

11
Classification of Data Hazards

• Consider instructions i and j, where i occurs
  before j.
• RAW (read after write) j tries to read a
  source before i writes it, so j gets the old
  value
• WAW (write after write) j tries to write an
  operand before it is written by i (only possible
  in pipelines that write in more than one pipe
  stage or allow an instruction to proceed even
  when a previous instruction is stalled)
• WAR (write after read) j tries to write a
  destination before it is read by i, so i
  incorrectly gets the new value (only possible
  when some instructions can write results early in
  the pipeline and other instructions can read
  sources late in the pipeline)

12
Software Solution

• Compiler recognizes data hazard and adds nops to
  eliminate it
• sub R2, R1, R3 register R2 written by sub
• nop no operation
• nop
• nop
• and R12, R2, R5 now, result from sub available
• or R13, R6, R2
• add R14, R2, R2
• sw 100 (R2), R15

13
Data Hazard Control Stalls

• Hazard occurs when instruction reads (in ID
  stage) register that will be written by an
  earlier instruction (in WB stage)
• Idea Detect hazard and stall instructions in
  pipeline until hazard is resolved
• Detect hazard by comparing read fields in IF/ID
  pipeline register with write fields in later
  pipeline registers (ID/EX, EX/MEM, MEM/WB)
• To add bubble in pipeline
• Preserve PC register and IF/ID pipeline
  register
• Change EX, MEM, and WB control fields of ID/EX
  pipeline
• register to do nothing

14
Data Hazard Reduction Forwarding

• Needed result is available before it is written
  into register file in WB stage
• Idea Use temporary results instead of waiting
  for registers to be written
• Cannot solve problem of write (load) followed by
  read
• Almost all pipelined machines today use some form
  of forwarding

15
Data Hazard on R1Figure A.6, Page A-17
I n s t r. O r d e r
16
Forwarding to Avoid Data HazardFigure A.7, Page
A-18
CC 1
CC 5
CC 2
CC 3
CC 4
CC 6
I n s t r. O r d e r
17
Data Hazard Even with Forwarding Figure A.9,
Page A-20
CC 1
CC 5
CC 2
CC 3
CC 4
I n s t r. O r d e r
IM
Reg
DM
18
Data Hazard Even with ForwardingFigure A.10,
Page A-21
CC 1
CC 5
CC 2
CC 3
CC 4
CC 6
lw r1, 0(r2)
I n s t r. O r d e r
sub r4, r1, r5
IM
Reg
and r6, r1, r7
IM
or r8, r1, r9
19
(No Transcript)
20
Control Hazard on BranchesThree Stage Stall
CC 1
CC 5
CC 2
CC 3
CC 4
CC 6
CC 7
CC 8
CC 9
40 beqz R1, 36
Reg
44 and R12, R2, R5
Program Execution Order (in instructions)
48 or R13, R6, R2
52 add R14, R2, R2
80 ld R4, R7, 100
21
(No Transcript)
22
Branch Stall Impact

• If CPI 1, 30 branches, 3-cycle stall ? new
  CPI 1.9!
• Two simple solutions
• Predict not taken
• Continue with decoding code that is already in
  Instruction Cache
• Usually lt 50 correct, however, no stalls when
  correct
• Branch delay slot
• The first instruction following the branch is
  ALWAYS executed
• Compiler can figure out what to put there

23
Delayed Branch
24
Delayed Branch

• Where to get instructions to fill branch delay
  slot?
• Before branch instruction
• From the target address only valuable when
  branch taken
• From fall through only valuable when branch
  not taken
• Canceling branches allow more slots to be
  filled
• Compiler effectiveness for single branch delay
  slot
• Fills about 60 of branch delay slots
• About 80 of instructions executed in branch
  delay slots useful
• in computation
• About 50 (60 x 80) of slots usefully filled

25
Evaluating Branch Alternatives
