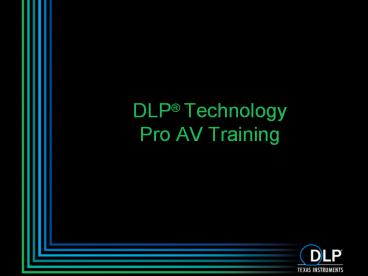

DLP Technology Pro AV Training
2
DLP Overview
All images in this presentation are simulated
unless otherwise noted
3
What is DLP?

• Millions of tiny mirrors that make the picture
  look amazing
• A nationally recognized technology brand

4
How DLP technology works
5
How DLP technology works
6
How DLP technology works
7
How DLP technology works
8
How DLP technology works
9
How DLP technology works
10
Single Chip DLP solution
11
Single Chip DLP solution
DLP technology for education, business and home
12
Single Chip DLP solution
13
Does DLP matter?
According to the market YES!

• Affordable DLP technology has radically shifted
  market share in just two years
• Generated market share shifts in retail and IT
  segments
• Creates opportunity to win new business
• Growth in new brands and product categories

Rapid Growth of DLP
KU
Source DTC
14
Why is it Important to you?
Easy to read
15
Stunning Image Quality
Fill Factor
55-60 Fill Factor (Screen Door effect)
gt90 Fill Factor (no
Screen Door effect)
Higher fill factor more life-like images
Easy to see detail when close to the screen
16
Stunning Image Quality
DLP
LCD
Contrast Ratio
Millions of mirrors deliver higher native
contrast
The high native contrast ratio of DLP technology
makes text from PowerPoint Word look sharper
and clearer in bright classrooms
17
Easy To Read Graphs Equations with DLP
DLP
LCD
High Contrast High Fill Factor EASY TO READ
18
Stunning Image Quality
Video Performance
Faster switching speed smooth, sharp video
19
Why is it Important to you?
Great Color
20
BrilliantColor overview
6 Color Processing
3 Color Processing

• BrilliantColor provides brightness increases in
  non-primary colors and boosts overall color
  intensity
• Provides flexibility in color wheel design
  allowing for bright, large color gamuts and
  differentiation from OEMs
• BrilliantColor works in all resolutions - SVGA,
  XGA, WXGA, 720P, SX

Click to learn more about BrilliantColor
21
BrilliantColor
Projected image on screen
Optics
Projection Lens
Lamp
4
6
3
5
DMD
Color Wheel
Color Processing
22
Brilliant color (Color Triangulation)
RGB Color Space
White Color Boost
Cyan, Magenta Yellow Boost
23
BrilliantColor simulation
Without BrilliantColor
BrilliantColor
24
Why is BrilliantColor amazing?

• Improves color accuracy
• Bright Yellows
• Rich Reds
• Detailed Greens and Oranges
• Enables precision color curves to match key
  colors
• Utilizes similar algorithms used in DLP Cinema
• Custom color tables for large accounts?
• Completely changed the home theater market in 2006

Market Impact
When BrilliantColor is activated, the picture
becomes immediately brighter. Blacks and shadow
values remain perceptibly unchanged while
midtones and highlights increase in luminance by
about 25
Projector Central review
Source DTC
25
Why is it Important to you?
Designed to last
26
How does dust affect a projector?

• If filters are clogged the projector runs
  hotter
• Reduces overall lumens
• Reduces contrast and readability
• Can make the image look dull / colorless
• Shift color spectrum / white point

Intertek Dust Study
Sharp XR 2180X (DLP)
Epson EMP 82
Technology DLP Resolution XGA Brightness
2800 Lumens Contrast Ratio 2200 1
Technology LCD Resolution XGA Brightness
2000 Lumens Contrast Ratio 400 1
Source Intertek
27
How do DLP and LCD projectors deal with dust?

• Dust settling on LCD panel can blur / distort
• DLP chip is sealed enabling a consistent image
  even in a dusty environment
• Reduces contrast in both units
• DLP contrast reduced by 20 (end 1800/1)
• LCD contrast reduced by 80 (120/1)
• Noticeable shift in LCD white point uniformity

Full On/Full Off Contrast vs. Time
DLP
LCD
Actual photos from study
LCD 24Hrs
DLP 24Hrs
28
Dust and LCD projectors
LCD Projectors

• LCD Projectors have dust filters
• But may not catch all the dust
• Require frequent cleaning
• 100-200 hrs
• If clogged can raise temperature shortening
  lamp life

29
Dust and DLP projectors
DLP Projector

• DLP chip is sealed
• Do not require a fan directly on the chip
• Chip is cooled from the back
• Dust cannot block a critical image part
• Enables filterless projectors
• 120 models available today
• Enables optical engine to be completely sealed to
  outside air

30
DLP Projectors last longer
Color Decay - Projector color integrity with use
over time
DLP
LCD

• Intertek ETL SEMKO Study
• 6 projector models (three DLP three LCD) 54
  total units
• 3 Duty cycles (24/7, 5.5 on-2.5 off, 1.5 on-2.5
  off)

• Results
• Regardless of duty cycle, LCD projectors degrade
  with use over time
• DLP projectors deliver consistent image and color

Actual photos from study
Source Intertek ETL SEMKO
31
Panel degradation affects contrast
Actual photos from study Blue black contrast grid
LCD

• Reduced contrast
• LCD Contrast after 2500 hours (2 years)
• 250/1
• DLP contrast after 2500 hours (2 years)
• 1800 / 1
• LCD images turn yellow
• Impact on learning?

Contrast250/1
LCD(2500 hrs)
DLP
Contrast1800/1
DLP(2500 hrs)
32
Why is it Important to you?
Affordable to operate
33
What are top three costs of owning a projector?
Filter Cleaning and replacements
Optical Panel cleaning and replacement
Lamp Replacement

• LCD
• Popular models requires cleaning every100-200
  hours
• Filter replacement often requires projector
  removal from stand
• Clogged filter can significanty impact lamp life
• Dust can accumulate on the LCD panel if not
  maintained
• DLP
• Enables filter free design projector is
  typically cleaned only at lamp replacement
• Eliminates risk of shortened lamp life due to
  clogged filter
• Sealed chip resists degradation in dusty
  environment

Clogged filter
34
What are top three costs of owning a projector?
Filter Cleaning and replacements
Optical Panel cleaning and replacement
Lamp Replacement

• LCD
• Heat is the 1 cause of lamp failure
• UHP lamps generate significant heat and must be
  cooled to prevent failure
• Dirty filters can limit airflow in projector
  potentially causing early lamp failure
• Manufacturers can test for filter blockage
  potentially invalidating any warranty
• DLP
• Most DLP projectors do not require a filter

Source Pro AV Magazine Jan 2007
35
What are top three costs of owning a projector?
Filter Cleaning and replacements
Optical Panel cleaning and replacement
Lamp Replacement

• LCD
• Dust inside the optical engine requires expensive
  cleaning
• LCD projectors suffer color and contrast
  degradation over time
• Reduced contrast and yellowing potentially
  affectingreadability
• Consistent deterioration under every usagemodel
  tested
• Typical LCD engine replacements cost between 400
  - 800
• DLP
• Resists image degradation from dust
• DLP chip will produces quality images well beyond
  4000 hours

Dust inside a LCD projector
36
Compare the costs for yourself
37
Compare the costs for yourself
38
Compare the costs for yourself
Filter typically replaced at lamp change
Agree on reasonable cost to service projector
use help button if needed
Contrast declines to 50 of original at 2500
hours see link under help
Cleaning interval is from owners manual use
standard service costs
LCD panels typically replaced to restore to
original specs
Use
Use
39
Compare the costs for yourself
Filter cleaning and Color Decay costs can be
significant and avoidable
Find it on the web at www.dlp.com/tco
Use
Use
40
Why DLP is the right choice

• Deliver beautiful, easy to read images with high
  contrast and BrilliantColor
• Resists image degradation from dusty environments
• Enables filterless projectors to reduce
  maintenance costs and staff time
• - Reduces risk of lamp failure due to filter
  blockage
• Immune to panel degradation delivering clear
  images for thousands of hours

41
