Title: Epics .db to Oracle RDB


1

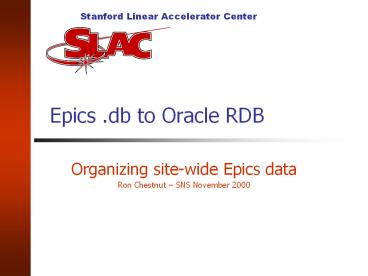

Epics .db to Oracle RDB
  • Organizing site-wide Epics data
  • Ron Chestnut SNS November 2000

2
Three steps from .db to Oracle
  • Generate a database report
  • Import the report with Sqlload
  • Parse the names to get individual fields
  • Used at SLAC for compatibility with legacy
    control system wildcarding capabilities

3
Generating the report (1)
bic_template file ./bic_bxbcm.db
STNHB60,BIT3_CARD0 STNLB60,BIT3_CARD1
file ./bic_dcct.db STNHB60STNLB60 etc.
4
Generating the report (2)
bic_report script rm bic.all_pv dbLoadTemplate
bic_template dbreport OUT.INP.35 DESC.20
sort gt bic.all_pv
5
Import the data with SQLLOAD
Script sqlloader acct/pwd controlpvload.ctl Cont
rol file options(skip2)load datainfile
bic.all_pvappend into table pvlist when
pv_type ! TYPE (pv_type position(115)
char, pvnam position(1645) char)
6
Parse the names into fields
pvnam PB60DCCTLIFETIME fld1 PB60 fld2
DCCT fld3 LIFETIME nfld 3
7
End up with nice table
SQLgtdesc pvlist name
typePV_TYPE char(15)
PVNAM char(30)PV_INOUT char(35)PV_DESC char(2
0)FLD1 char(15).FLD6 char(15)NFLD number(1
)pv_last_field char(15) SQLgt select count()
from pvlist COUNT()----------------
16932
8
Current Uses at SLAC
  • Support wildcarded history source files
  • Generate filtered and sorted reports with simple
    SQL
  • Provide a uniform way to find PV names
  • Reduce maintenance load
