1

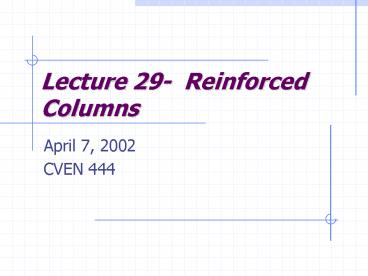

Lecture 29- Reinforced Columns
  • April 7, 2002
  • CVEN 444

2
Lecture Goals
  • Columns
  • Short Column Design
  • Column Example
  • Interaction Diagrams

3
Behavior under Combined Bending and Axial Loads
Interaction Diagram Between Axial Load and Moment
( Failure Envelope )
Concrete crushes before steel yields
Steel yields before concrete crushes
Note Any combination of P and M outside the
envelope will cause failure.
4
Example Axial Load Vs. Moment Interaction Diagram
Consider an square column (20 in x 20 in.) with 8
10 (r 0.0254) and fc 4 ksi and fy 60 ksi.
Draw the interaction diagram.
5
Example
6
Example
Use a series of c values to obtain the Pn verses
Mn.
7
Example
Cb
8
Design for Combined Bending and Axial Load (short
column)
Column Types
Tied Column - Bars in 2 faces (furthest from axis
of bending.
3)
- Most efficient when e/h gt 0.2 - rectangular
shape increases efficiency
9
Design for Combined Bending and Axial Load (short
column)
10
Design for Combined Bending and Axial Load (short
column)
Spices
All bars in compression Use
compression lap splice (ACI 12.16)
11
Design for Combined Bending and Axial Load (short
column)
Column Shear
Recall ( Axial Compression )
Ties must satisfy ACI 11 and ACI Sec. 7.10.5
12
Design for Combined Bending and Axial Load (short
column)
13
Non-dimensional Interaction Diagrams
or
See Figures B-12 to B-26 or ACI Common 340 Design
Handbook Vol 2 Columns (ACI 340.2R-91)
14
Non-dimensional Interaction Diagrams
15
Design using non-dimensional interaction diagrams
Calculate factored loads (Pu , Mu ) and e for
relevant load combinations Select potentially
governing case(s) Use estimate h to calculate gh,
e/h for governing case(s)
1.)
2.)
3.)
16
Design using non-dimensional interaction diagrams
Use appropriate chart (App. A) target rg (for
each governing case) Select
4.)
Calculate required
Read
5.)
17
Design using non-dimensional interaction diagrams
If dimensions are significantly different from
estimated (step 3), recalculate ( e / h ) and
redo steps 4 5. Revise Ag if
necessary. Select steel
6.)
7.)
18
Design using non-dimensional interaction diagrams
Using actual dimensions bar sizes to check all
load combinations ( use charts or exact
interaction diagram). Design lateral
reinforcement.
8.)
9.)
19
Example Column design using Interaction Diagrams
Determine the tension and compression
reinforcement for a 16 in x 24 in. rectangular
tied column to support Pu 840 k and Mu 420
k-ft. Use fc 4 ksi and fy 60 ksi. Using the
interaction diagram.
20
Example Interaction Diagrams
Compute the initial components
21
Example Interaction Diagrams
Compute the initial components
22
Example Interaction Diagrams
Compute the coefficients of the column
23
Example Interaction Diagrams
Using an interaction diagram, B-13
24
Example Interaction Diagrams
Using an interaction diagram, B-14
25
Example Interaction Diagrams
Using linear interpolation to find the r of the
column
26
Example Interaction Diagrams
Determine the amount of steel required Select
the steel for the column, using 11 bars
27
Example Interaction Diagrams
The areas of the steel The loading on the
column
28
Example Interaction Diagrams
The compression components are
29
Example Interaction Diagrams
The tension component is
30
Example Interaction Diagrams
Take the moment about the tension steel
31
Example Interaction Diagrams
The first equation related to Pn
32
Example Interaction Diagrams
The second equation comes from the equilibrium
equation and substitute in for Pn
33
Example Interaction Diagrams
Substitute the relationship of c for the stress
in the steel. The problem is now a cubic
solution c fs RHS 15
in. 37.7 -10.38 19 in. 11.45
2.64 19.5 in. 8.92 4.63 20.0 in.
6.52 6.70 19.98 in. 6.62 6.62
34
Example Interaction Diagrams
Compute Pn Compute Mn about the center
35
Example Interaction Diagrams
Compute Mn about the center
36
Example Interaction Diagrams
Check that Mn is greater than the required Mu
Check the Pn is greater than the required Pu
37
Example Interaction Diagrams
Determine the tie spacing using 4 bars
Use 16 in.
38
Homework
Due 4/18/03 Problem 9.6, part a using at least 10
points Using the interaction diagram, design a
column with h 28 in., g 0.84 and b 18 in.,
PD 240 k and PL 480 k and Mu 704 k-ft.
Determine the amount of reinforcement and type of
ties and their spacing for fy 60 ksi and fc
5 ksi
39
Project
Part A3 Due 4/18/03 Part B1 Due 4/23/03
40
Exam 2
November ? (19 or 26)
