Title: Group Scheduling in System Software


1

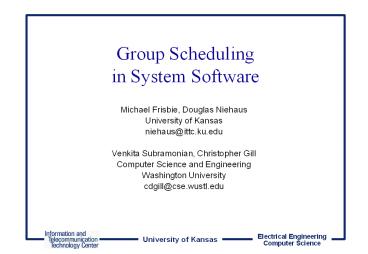

Group Schedulingin System Software
Michael Frisbie, Douglas Niehaus University of
Kansas niehaus_at_ittc.ku.edu Venkita Subramonian,
Christopher Gill Computer Science and
Engineering Washington University cdgill_at_cse.wustl
.edu
2
Motivation
  • Real-time and embedded systems have widely
    varying computation semantics
  • Varying policies for controlling specific
    computations
  • Varying levels of focus for systems
  • Single purpose embedded systems
  • General purpose systems with a RT application
  • Multi-media, machine control and user-interface
  • No single policy is likely to be appropriate for
    all

3
Motivation
  • Computation in computer systems is not
    exclusively done under the publicly exposed
    scheduling model
  • OS computational components
  • Interrupts, SoftIRQs, Tasklets, and Bottom halves
  • Execute outside exposed scheduling policies
  • Manifest as noise in the scheduling model
  • Active middleware
  • Linux PThreads library, TAO
  • Manifest as competing load

4
Goals
  • Highly configurable framework within which a wide
    range of policies can be specified
  • Selection of predefined scheduling semantics
  • Implementation of customized schedulers
  • Application computation oriented representation
  • Representation of all computation components on
    system under scheduling framework
  • Current semantics available as default policies
  • Requires some new types of information

5
Platform
  • Linux
  • Growing popularity for real-time and embedded
  • Middleware version for portability and range of
    mechanism control
  • KU Real-Time Linux (KURT-Linux)
  • OS computation components integration
  • Interrupt handling modifications
  • Number of related projects
  • Data Streams Performance Evaluation Framework
  • Ability to gather detailed scenario-oriented data

6
Group Scheduling
  • Application computation centric scheduling view
  • Computations are implemented by a group of one or
    more computation components
  • Threads, IRQ handlers, SoftIRQ, Tasklets, BH's
  • Flexible framework for composing and configuring
    the system scheduling decision function (SSDF)
  • SSDF chooses the computation component using the
    CPU at any given time
  • Framework explicitly supports description of both
    computations and relations among computations

7
Group Structure
  • Group a set of computation components with an
    associated Scheduling Decision Function (SDF)
  • Elements within a group can be threads, other
    groups, or other computation components
  • Elements can belong to more than one group
  • Scheduling decision tree (SDT) composed of one or
    more groups
  • Control semantics for computation components
  • SDT for computations are composed to form the
    System Scheduling Decision Tree (SSDT)

8
System Scheduling Decision Tree (SSDT)
  • Controls the system's computation components
  • Explicitly or implicitly
  • Ultimate goal is to make all of it explicit and
    easily configurable across a wide semantic range
  • Can co-exist with the default system scheduler
  • Semantic hooks
  • SSDT invocation before default scheduler (DS)
  • Method of making DS skip components under SSDT
    control

9
First-Refusal (FR) SSDT
  • FR-SSDT uses a sequential SDF at the top level
  • SDT controlling components under group scheduling
    model has first refusal
  • Linux SDF (default scheduler) makes the decision
    if no component under the group model should run
  • Exclusion of components from DS ensures precise
    control as needed

10
MLFQ SDT Example
  • Top level priority SDF maintains the priority
    equivalence class view
  • Each priority class is a group using a
    round-robin policy to share the CPU among members
  • Dynamic priority adjustment of processes can move
    them among priority classes

11
Related Work
  • Hierarchical Scheduling
  • Regher and Stankovic (RTSS 2001)
  • Likely computationally equivalent (capability)
  • Distinguished by which abstractions are
    emphasized
  • CPU Inheritance Scheduling
  • Ford and Susarla (Flux Project)
  • Group scheduling emphasizes
  • Application structure reflected in groups
  • Integration of all computation components
  • Interrupts, tasklets, etc

12
Kernel Implementation
  • Modifies the default Linux scheduler to permit
    the GS framework to have a chance to choose
  • Hook to make default scheduler exclude a
    component is the most subtle change
  • Changes to existing code to consult the exclusion
    notation, rather than trying to remove the
    component from the base data structure
  • Control for components other than threads is the
    most significant feature for real-time systems

13
Middleware Implementation
  • Currently controls only threads at the user level
  • Part of DARPA PCES2 project
  • Layering on top of supplied Linux scheduler
    requires indirect control through available
    mechanisms
  • Separates managing and managed threads into
    equivalence classes to determine CPU use
  • Uses Fixed Priority POSIX scheduling model as
    implemented by Linux SCHED_FIFO

14
Middleware Implementation
  • Scheduler has two threads
  • SSDT thread selects current thread
  • API thread processes group operation requests
  • Block Catcher detects when current thread blocks
  • Signals SSDT thread
  • Uses SIGSTOP and SIGCONT to control availability
    of thread for execution
  • Model is incomplete because it cannot know when a
    previously blocked thread becomes unblocked

15
Thread Priority Classes
  • Reaper spawns scheduler and then blocks
  • Scheduler SSDT thread chooses current thread
  • API thread processes group operation requests
  • Block Catcher detects current thread block,
    signals SSDT
  • Non-current threads are both at lower priority
    and SIGSTOP
  • Linux threads at level 0

16
Context Switch Event Sequence
  • Thread A is current thread
  • Timer or other event blocks or pre-empts Thread
    A
  • Scheduling Thread runs and selects Thread B,
    blocks in nanosleep
  • Context switch to Thread B begins its execution

17
Middleware Implementation Tradeoffs
  • Portable standards based implementation
  • POSIX fixed priority scheduling
  • Socket based group API access
  • Significantly greater context switch delay
    compared to existing kernel based implementation
  • SSDT thread context switch and Block Catcher as
    well if current thread blocks
  • Most significant need is SSDT thread notification
    that a threads unblocks
  • Scheduler Activations

18
Performance Evaluation
  • Metric
  • Scheduling overhead
  • Context switch latency (A to B)
  • Parameters
  • Number of Processes
  • CPU bound or I/O bound
  • User/Kernel Implementation
  • Others
  • Signal delivery details and semantics

19
Context Switch Overhead - Kernel
20
Kernel Performance
  • Constant with respect to CPU or I/O bound
  • Considerably lower than MW version
  • Simple SSDT
  • Does not require signal delivery

21
Context Switch Overhead Compute Bound MW
22
Context Switch Overhead Blocking MW
23
Middleware Performance
  • Different with respect to CPU or I/O bound
  • Requires signal delivery
  • Block Catcher mechanism adds latency
  • Considerably higher than kernel version
  • Simple SSDT
  • Some extension to existing system semantics
    required for completeness
  • Unblocking notification upcall

24
Group Scheduling Summary
  • Provides a flexible control framework
  • Within which resource control and
  • Distributed end-to-end scheduling constraints
    can be expressed and enforced
  • Portable middleware version
  • Limited by lack of unblocking notification upcall
  • Implementation under KURT-Linux is simple
  • ACE system call wrappers
  • VxWorks threads state change notification

25
Current Status
  • Integration of all KURT-Linux OS computational
    components under group scheduling framework
  • Recently completed
  • Michael Frisbies Masters Thesis topic
  • We are currently working on Group Scheduling
    control of service classes in
  • Event Channel
  • TAO based computations
  • Includes control of middleware threads, queues,
    etc.

26
Future Work
  • Middleware use of group scheduling to provide
    support for service classes in Event Channel and
    TAO
  • Concurrency constraint representation in
    KURT-Linux to permit fine grain computation
    component control under group scheduling
  • Experimentation with application aware scheduling
    decision functions
  • Integrated DSKI/DSUI instrumentation to
    diagnose/deduce scheduling-related optimizations
    and fine-grain points of inefficiency (cruft
    sleuthing)
