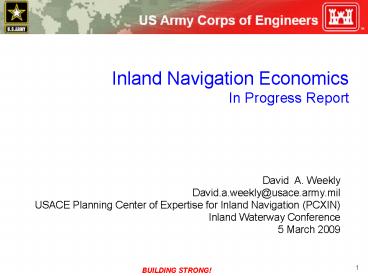

Inland Navigation Economics In Progress Report

1
Inland Navigation EconomicsIn Progress Report

• David A. Weekly
• David.a.weekly_at_usace.army.mil
• USACE Planning Center of Expertise for Inland
  Navigation (PCXIN)
• Inland Waterway Conference
• 5 March 2009

BUILDING STRONG!
2
Topics

• Waterway Future
• History and Recessions
• Future Uses (MARAD Study)
• National Navigation Economics Product Delivery
  Team (PDT)
• Estimations of Value and Main Chamber Closure
  Costs draft report
• Budget Implications
• Great Lakes and Ohio Division (LRD) Navigation
  Economics PDT
• Input/Output Modeling with REMI
• Pool Loss
• Way Forward

3
Economic growth (or decline) affects traffic, but
not dramatically
4
Presentation To Maritime Administration, U.S.
Department of Transportation October 3, 2008
5
The Five Regional Corridors Evaluated in the
Analysis include 95 percent of the population.
6
Water Container potential increases dramatically
in three corridors (Great Lakes, Mississippi and
Gulf) with increasing fuel prices.
7
Water bulk traffic also increases dramatically
with increased fuel prices. Example, Mississippi
increases three times if fuel is 7 per gallon.
Critical price is 2 to 4
8
MARAD Study Conclusions

• Water and Rail modes are far less affected by
  fuel prices than Truck.
• Because Rail capacity is limited, the potential
  for the Water mode is significantly enhanced.
• Water traffic doubles or triples as diesel fuel
  goes up from 2 to 7 per gallon.
• Great Lakes, Mississippi, and Gulf corridors
  generate sufficient traffic to initiate new water
  service
• East and West Coast generate potential for water
  coastal feeder services for gateway ports

9
National PDT Objectives

• Estimate the value of each lock
• Develop a matrix of main chamber closure impacts
  on industry

10
Estimate Lock Value

• Develop lock inventory database 198 projects
• Commercial cargo transportation rate savings
  supplemented with savings estimated for the Gulf
  Coast shrimp fleet and oil rig supply vessels
• Value ranges
• 4 locks greater than 1 billion
• 15 locks 500 million - 1 billion
• 76 locks 100 million - 500 million
• 65 locks 1 million - 100 million
• 38 locks less than 1 million

11
Rank by Base Savings
12
Main Chamber Closure Cost Matrix

• Shipper-Carrier Cost (SCC) Model
• Estimate carrier and shipper costs of unscheduled
  main lock chambers
• Cost depends on response to closure
• Simulate delays at each project for each closure
  duration specified
• Random arrivals of historic number of tows
• Use lock specific processing times
• If delays exceed 30-60 hrs, divert to overland
  route or draw from inventory
• Calculate delay costs
• Estimate overland diversion costs

13
Closure Cost Matrix Key Drivers

• Cost of closure
• Duration of closure
• Availability of alternatives
• Auxiliary lock chamber functioning
• Alternate water routes
• Number of transits
• Cost of alternate overland route
• Hourly operating costs
• Remember does not address closure likelihood

14
SCC ResultsTop Ten Locks by Tons

• Ranked by
• mtons tons Hr 30-day
• Ohio River LD52 88.9 1 38 33
• Ohio River LD53 78.3 2 20 107
• Smithland 73.7 3 29 105
• Miss River LD27 67.7 4 33 28
• Melvin Price 65.2 5 21 94
• Newburgh LD 65.1 6 31 27
• JT Myers LD 64.6 7 24 43
• Greenup LD 62.2 8 37 46
• Soo Locks Poe 57.5 9 1 1
• Byrd LD 53.9 10 41 83

15
SCC ResultsTop Ten Locks by Closure

• Ranked by
• mtons tons Hr 30-day
• Soo Locks - Poe 57.5 9 1 1
• Bowman L, GIWW 41.9 19 122 2
• Calcasieu L,GIWW 41.8 20 143 3
• Miss River LD24 30.1 24 8 4
• Miss River LD22 28.9 26 6 5
• Miss River LD19 25.5 32 7 6
• Miss River LD21 28.5 27 15 7
• Miss River LD18 24.2 35 12 8
• Miss River LD25 30.2 23 25 9
• Lagrange LD 29.0 25 26 10

16
Initial SCC ResultsBudget Implications

• High tonnage locks typically have highest asset
  value (most have two chambers)
• Investment packages
• Base operations maintenance pkgs at high
  tonnage locks should rise to the top
• Incremental investment pkgs condition
  assessments being equal, single chamber, high
  transit locks should rise to the top

17
LRD PDT Objectives

• Regional Input/Output (IO) Modeling with REMI
• Shipper savings and transportation effects
• Electric rate changes and impacts
• Inability to operate without water
• Pool Loss - estimates basin-wide
• Identify intakes and users
• Estimate water usage value
• Estimate impact on production

18
LRD Nav EconomicsRegional IO Model
Work Status
Phase 1 define study area by county and assign
shipper savings to all industries Phase 2
waterway impacts all industries Phase 3
utility rate impacts Phase 4 water captive
impacts
19
LRD Navigation EconomicsPool Loss
Step 1 - inventory of water intakes Step 2 -
determine actual and maximum withdrawals and
response to pool loss Step 3 - estimate of the
dollar value of water Step 4 identify
production facilities and employment and sales
data
Study Methodology
BUILDING STRONG!
20
Inventory of Intakes
Preliminary Results
BUILDING STRONG!
21
Municipal and Industrial Withdrawals
BUILDING STRONG!
22
Response to Pool Loss
BUILDING STRONG!
23
Water Value
Preliminary Results
BUILDING STRONG!
24
Companies Affected
Preliminary Results
BUILDING STRONG!
25
LRD Nav EconomicsPool Loss Summary

• Study looked at 3,735 miles of navigable water
  way and 57 L/D projects within the Ohio River
  system.
• Study accounts for 388 intakes currently used to
  withdraw water. 23 billion gallons a day is
  withdrawn. Estimated value is about 1 billion.
• For rivers, the Ohio River has the largest water
  withdrawals and for pools, the McAlpine pool has
  the largest withdrawal.
• Municipal users account for 6 percent of the
  water withdrawn and industrial users for 94
  percent.

BUILDING STRONG!
26
Way Forward 1 Improve Data

• Develop non-transportation benefits for locks and
  dams
• Develop regional effect economics
• Develop non-traditional impacts
• Highway congestion, accidents, emissions
• Other shipper responses like production shifts
• Probability and consequence of failure for each
  level of investment for each site chambers and
  dams

27
Way Forward 2 Improve Modeling

• Address auxiliary closure impacts
• Incorporate dam performance and impacts
• Calculate expected closures, losses and benefits
  within one model, not in steps within
  spreadsheets
• Calculate net benefits (use investment cost as an
  input to model)
• Optimize investments over a life cycle
