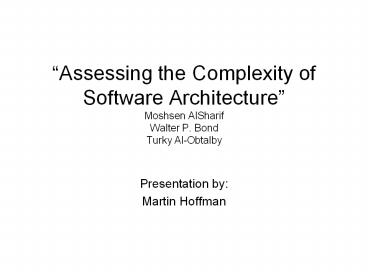

Assessing the Complexity of Software
ArchitectureMoshsen AlSharifWalter P.
BondTurky Al-Obtalby

• Presentation by
• Martin Hoffman

2
Problem

• Primary activity of Software Architecture design
  is decomposition.
• Reduce complexity into manageable parts.
• Process is an art form, not a defined procedure.
• Architect must decide which component to process
  and how.

3
Complexity

• Intra-component complexity
• Complexity within a component
• Inter-component complexity
• Complexity between components
• Reducing intra-component complexity sometimes
  increases inter-component complexity.

4
Purpose

• Formulate a way to identify and calculate the
  complexity factors within inter and
  intra-complexity.
• Compile a new metric to measure the overall
  complexity of the software architecture.

5
Complexity Measurement

• Complexity measurement methods can be categorized
  as
• Internal-code-based source code of the modules
  is available
• External information or control-flow between
  modules is available
• Hybrid-code-based both source and flow
  information is available.
• Goal is to measure complexity in the architecture
  design phase.

6
Full Function Points (FFP)

• FFP methodology is based on the Functional Size
  Measure (FSM), which is used to measure
  complexity.
• FFP is used to evaluate the decomposition of
  systems.
• FFP is able to measure intra- and inter-component
  complexity.

7
FFP Functionality measurement

• An architecture is made up of components
• Each component contains a collection of services
  (functionality) that each component provides for
  other components.
• These components affect the interface (external
  dependency) and internal work of each component.
• Functionality measurement serves as an indicator
  of the internal and external complexity.

8
1 Weakness in FFP

• Does not account for the number of other
  components a component interacts with.
• Example a functional process reads/writes to
  many other functional processes, FFP does not
  consider where that functional process resides.
• FFP does not address coupling for identified
  components.

9
2 Weakness in FFP

• FFP defines Read/Write data in reference to
  storage without distinguishing if that storage is
  local or shared between components.
• Shared data has additional complexity.

10
Resolution

• 1 Count coupling as additional source of
  complexity but only in cases where the component
  is a client. (import)
• 2 Identify components that write to shared
  memory (CW) and those that read (CR). Define
  coupling caused by shared data as (CW CR).

11
Steps to measure Software Complexity

1. Identify the components of the architecture.
2. Identify the functional processes of each
   component.
3. Identify the sus-process of each functional
   process.
4. Compute the Component Complexity CXi of component
   i.
5. Compute the Component Coupling CCi of component i.

12
Steps to measure Software Complexity - continued

1. If Shared data is used, compute complexity and
   coupling effect on system
2. Model the system complexity and coupling as
   vectors. A system w/ n components and m shared
   data would result in nm complexity terms and nm
   coupling terms.
3. Compute System Complexity SX and System coupling
   SC using Euclidean norm distance formula.

13
Example KWIC

• Key Word In Context (KWIC)
• Inputs set of text lines
• Human Species
• Have Failed
• Output all circular shifts of these lines in
  alphabetical order.
• Failed Have
• Have Failed
• Human Species
• Species Human

14
Shared Data Architecture
Communication between modules using Shared memory.
15
Shared Data Architecture
Moderate Component complexity, High Coupling due
to shared data solution. Poor attention to the
reuse Quality Attribute
16
Abstract Data Type Architecture
Internal module implementation is hidden.
Internal data representation is protected.
Access functions are the only way to store and
retrieve data.
17
Abstract Data Type Architecture
More complex solution resulting in more
components but less coupling. Better reuse and
modifiability.
18
Implicit Invocation Architecture
Based on the abstract data, using an active data
model. Data triggers events to interested
components.
19
Implicit Invocation Architecture
More Component complexity but less Coupling.
20
Pipe and Filter Architecture
Data flow approach.
21
Pipe and Filter Architecture
Low complexity and coupling. Better architecture
than previous examples.
22
Conclusion

• The new FFP can be used to measure the complexity
  of alternative architectures.
• Complexity can be determined early in the
  architecture life-cycle.
