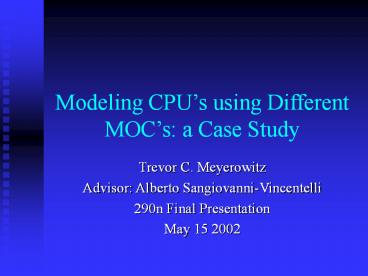

Modeling CPUs using Different MOCs a Case Study

• Trevor C. Meyerowitz
• Advisor Alberto Sangiovanni-Vincentelli
• 290n Final Presentation
• May 15 2002

2
Outline

• Introduction
• Motivation
• The Simple CPU to be modeled
• The Domains Investigated
• Modeling a Non-Pipelined Processor
• Modeling a Pipelined Processor
• Demo
• Conclusions

3
Motivation

• Processor Designs are becoming much larger and
  more complicated
• Many instructions in flight at a single time
• Strange Orderings, Speculation
• This can be very hard to verify
• We are developing a methodology to help alleviate
  these problems.
• Using Different Models of Computation can
  Potentially Simplify the Design Task
• PtolemyII Allows us to Compare a Variety of these
  MOCs in a Unified Framework

4
The Simple CPU

• Processor Statistics
• Small Instruction Set
• ADD, SUB, ADDI, SUBI, and BNE
• Only Integer Operations
• 128 registers, 128 entry instruction memory
• This is enough to be interesting
• Data dependencies
• Control flow

5
The Domains Investigated

• Process Networks
• Untimed Model
• Kahn-Macqueen Semantics
• Infinite Queues
• Blocking Reads
• Fully Deterministic
• Schedule Independent

• Synchronous Reactive
• Untimed Model
• Instantaneous Communication and Computation
• Iterates Until a Fixed Point is Found
• Signals must be monotonic

6
The Nonpipelined Processor

• Code and netlist reusued for both domains (I.e.
  these are domain polymorphic actors)
• Represented in PtolemyII as Fetch, Regfile,
  Execute and a Delay.
• Fetch only after previous instruction has
  completed

7
Non-Pipelined Processor Pseudocode (Fetch
Regfile)
public class Fetch public fire() pc
input_pc.get(0) ltrs, rt, rd, val, instgt
readIMEM(pc) output_inst.send(0,
inst) output_regs.send(rs, rt)
public class Reg public fire() if
(read_mode) inst input_get_op_codes()
ltrs_v, rt_vgt read_regs()
output_regs.send(0, inst)
output_regs.send(rs_v, rt_v) else
rd_v input_get_write_vals()
write_values() read_mode
!read_mode
8
Non-Pipelined Processor Pseudocode (Execute)
public class Exec public fire() if
(write_modefalse) reg_vals
input_reg_vals() inst_type
read_inst() results exec_inst(inst_type,
reg_vals) else
write_values(rd, results)
write_next_pc(results) write_mode
!write_mode
9
Non-Pipelined Processor Differences between
Domains

• SR required that we put the register read and
  register write in different iterations as well as
  split of execution and writing its results
• Process networks cannot query port status
• SR requires use of prefire and postfire
  conditions
• We shared code between the two domains, SR
  probably has more flexibility.

10
Pipelined Processor

• Only required recoding of fetch behavior
• Fetch every iteration
• Only stall after branches (no branch prediction)
• No forwarding logic is required!?
• This is because two register reads cant occur
  without a register write happening between them
• Due to PN deterministic requirement
• Also true because of SR because of states
• Probably could structure SR to require forwarding
  logic (lower level of abstraction!!)

11
Pipelined Processor Fetch pseudo-code
public class Fetch public fire() if
(initial_firing
prev_inst_is_branch) pc
input_pc.get(0) ltrs, rt, rd, val,
instgt readIMEM(pc)
output_inst.send(0, inst) output_regs.send(rs
, rt) pc pc1
Causes you to stall until the branch is finished.
Immediately fires again if there is no branch!
12
Pipelining and Forwarding (t0)
Program
Fetch
Reg File
Exec
Inst_2 R3 R1(?) R1(?)
Inst_1 R1 R2(4) R3(5)
Register File State R1 2 R2 4 R3 5
13
Pipelining and Forwarding (t1)
Program
Fetch
Reg File
Exec
Inst_2 R3 R1(2) R1(2)
Inst_1 R1(9) R2(4) R3(5)
Register File State R1 2 R2 4 R3 5
The PN and SR models dont have this problem
because they enforce the order read inst_1,
write inst_1, read inst_2
This is an error!! It should read R1 as 9. We
can solve this by adding forwarding logic, or
stalling the pipeline
14
Pipelined Processor with Branch Prediction

• Still in order, but branches are predicted
  instead of stalling.
• Requires recoding of Fetch and the Register File
• Fetch
• Performs branch prediction
• Handles mispredicts
• Register File
• Keeps a queue of instructions
• Stall on dependencies
• Only write resolved instructions to regfile
• This represents one refinement path
• Biased towards Process Networks

15
DEMO TIME
Inst RD, RS, RT (Val)ADD 5 5 5 ADD 6 5 5 BNE 5
20 -3 ADD 7 6 6 ADD 8 7 7 ADD 9 8 8 ADD 10 9
9 SUB 11 10 50
Program Code
16
Outline

• Introduction
• Modeling a Non-Pipelined Processor
• Modeling a Pipelined Processor
• Demo
• Conclusions
• Other Architectural Features
• Observations
• Future Work

17
Other Architectural Features

• Out of Order Execution
• Requires breaking of PN model
• Superscalar execution
• Multiple fetches at once.. Might be problematic
  to do in PN.
• Memory systems
• Initially simple, more complicated when
  refinements are added.

18
Observations

• Process Networks are relatively easy to use and
  are quite predictable.
• Process Networks are great for initial abstract
  models.
• Synchronous Reactive is simpler than DE to work
  with, but more complicated to design than PNs.
• PN doesnt deal well with ordering refinements,
  but SR can handle them better.
• We envision a methodology where you start with a
  PN model and then move to an SR model.

19
Future Work

• Look at implementing other architectural features
• Examine relaxing PNs requirements
• Look at domain specific actors
• Examine composing different MOCs
• Introduce timing

20
Thank You!
