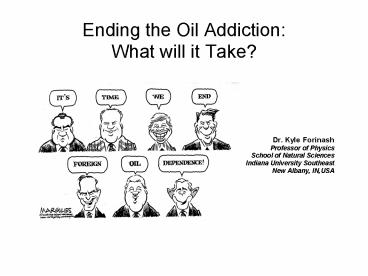

Ending the Oil Addiction: What will it Take?

1
Ending the Oil Addiction What will it Take?

• Dr. Kyle Forinash
• Professor of Physics
• School of Natural Sciences
• Indiana University Southeast
• New Albany, IN,USA

2
World energy needs are projected to increase by
more than 55 in the next 20 years.
3
Why will we need more energy?
4
Fortunately ...
5
Developed nations consume the most energy.
6
Developed nations have similar uses for energy.
7
86 of the worlds energy comes from fossil fuels.
8
In 1956 M. King Hubbert predicted that US oil
production would peak in the early 1970s.
Excerpt from Hubbert's original paper
9
Oil Production in the US did peak in the early
1970s.
10
Originally Hubbert fit approximately bell shaped
curves to the data by hand.
-8

• Input parameters
• Current consumption, N(t) at year t.
• Cumulative consumption up to year t.
• Total reserves QT.

11
Later workers have used the Logistic Equation.
Production rate
or
Cumulative production at time t
12
Other methods give different results. US
Geological Survey prediction of peak year for oil
13
Proven oil reserves have increased over time
but....
14
The size of newly discovered oil fields has been
decreasing with time for 40 years.
15
Oil and many other resources appear to fit
Hubbert's model of production.
16
Fossil fuel resources are a finite source.
17
Sample Hubbert analysis results.
18
Transportation accounts for 1/5 of world energy
use.
19
New technology of the of the past 20 years has
been used to make cars bigger and faster.
20
Gasoline will be hard to replace.

• Fuel Energy per Weight (MJ/kg)
• Hydrogen 114 (10 liquid 5 compressed gas)
• Gasoline 48
• Crude Oil 43
• Plant Oil (Bio-Diesel) 38
• Ethanol 28
• Common Coal 22
• Natural Gas (STP) 20
• Air Dried Wood 15
• Potatoes 4
• Carbon Fiber Flywheel 0.8
• Lithium Batteries (at 400C) 0.2
• Lead Batteries 0.1

21
So what kind of car should I buy?
22
It takes energy to make energy.(All fuel
conversion processes lose energy.)

• Process Conversion
  Type Efficiency
• Dry Cell Battery Chemical to
  Electrical 85-95
• Natural Gas to Compressed Chemical to
  Chemical 85
• Crude Oil to Gasoline Chemical to Chemical 79
• Natural Gas to H2 Chemical to Chemical 60
• Coal to Gasoline Chemical to Chemical 50
• Grid Electric to H2 Chemical to Chemical 22
• Photo-Voltaic Radiative to Electrical 15-25
• Soybean to Bio-Diesel Chemical to Chemical 30
• Corn to Ethanol Chemical to Chemical 5-10
• Plant Photosynthesis Radiative to
  Chemical 4-5

23
Problems with hydrogen as a car fuel.

• H2 is not a fuel (requires energy to make).
• H2 is more difficult to transport and more
  dangerous than diesel, gasoline, propane or
  natural gas.
• H2 will require a new distribution grid (compared
  to existing electric grid).
• 40 energy loss to make H2 from natural gas.
• 30 energy loss to make H2 from electricity
  (hydrolysis).
• 50 energy loss to compress H2.
• 40 energy loss in fuel cell to create
  electricity.

24
Problems with plant oil as a car fuel.

• Total possible energy production, all arable land
  (1.6x106 km2)
• In US cultivated with soybeans (bio-diesel) 25.6
  Quad Btu
• US transportation consumption (2004) 27.8 Quad
  Btu

25
Not all processes have the same
efficiency.(Thermal engines are less efficient
than electrical engines.)

• Process Conversion
  Type Efficiency
• Large Electric Generator Mechanical to
  Electrical 98-99
• Large Electric Motor Electrical to
  Mechanical 90-97
• Home Gas Furnace Chemical to Thermal
  90-96
• Small Electric Motor Electrical to
  Mechanical 60-75
• Fuel Cell Chemical to Electrical 50-60
• Large Steam Turbine Thermal to
  Mechanical 40-45
• Diesel Engine Thermal to Mechanical 30-35
• Gasoline Engine Thermal to Mechanical 15-25
• Florescent Lights Electrical to
  Radiative 15-25
• Incandescent Lights Electrical to Radiative
  2-5

26
The second law of thermodynamics limits the
efficiencies of heat engines.(Thermal to
mechanical processes.)
27
Combined efficiency is limited by the least
efficient step.
28
So what else can we do? (Change our way of
life?!?)
29
(No Transcript)
30
Other energy use.

• Industry accounts for 1/4 of world energy use
• Combined heat and power (CHP) systems can be 85
  efficient.
• Buildings (lighting, heating, cooling,
  refrigeration, hot water, appliances) account for
  1/3 of world energy use
• Low emissivity window coatings (5 US total
  energy lost in 1973).
• Buildings exist which are heated entirely from
  internal processes (no furnace).
• Advanced lighting (50 efficiency possible).
• Appliance improvements (new refrigerators use 75
  less energy than in 1974).

31
Will conservation hurt our standard of living?
32
Will conservation hurt the economy?
33
What about renewables?
34
Choices for renewable energy.
(food crops, grassy and woody plants, residues
from agriculture or forestry, organic component
of municipal and industrial wastes, fumes from
landfills)
35
Land area needed to supply all energy used, 2005,
with solar. (20 efficiency solar cell, 50
storage and transmission loss.)

• Country Annual Energy Use (Quad Btu) Land
  Needed
• Argentina 2.7 0.2
• China 46.6 4.7
• Denmark 0.88 3.7
• Egypt 2.8 0.4
• France 11.2 3.7
• Ghana 0.1 0.1
• Japan 22.4 10.8
• Russia 17.1 0.3
• UK 9.8 7.8
• US 98.8 1.9

36
Nuclear choices.

• Death and cancer rates much lower for nuclear
  than coal, oil or natural gas use.
• France gets 75 of electricity from nuclear
  (19.6 for the US, 17 for world in 2003).
• 'Inherently safe' reactors (pebble bed, modular
  design, few moving parts, smaller).
• The radioactive waste problem (vitrification,
  fuel recycling).
• Fusion First reactor by 2050?

37
Conclusion There is no silver bullet.

• Use of oil is going to decline coal shale oil
  will last a while longer (but CO2 is a problem).
• Hydrogen, plant fuel are probably not good ideas.
• Conservation should play a big role.
• Use of renewables should be increased wind,
  biomass, hydroelectric, and especially solar.
• Use of electric power should be increased where
  possible because of higher efficiency.
• Nuclear power may be a necessary evil.
• New sources? Methane hydrates?

38
http//physics.ius.edu/kyle/K/Energy/Energy.html
