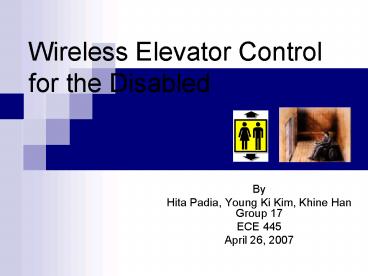

Wireless Elevator Control for the Disabled

1
Wireless Elevator Control for the Disabled

• By
• Hita Padia, Young Ki Kim, Khine Han Group 17
• ECE 445
• April 26, 2007

2
Introduction

• To help disabled people who have difficulties in
  reaching the elevator control buttons to call or
  select floors.
• Uses RF communications instead of IR detection

3
Features

• Calling elevator within a range of 20ft.
• LCD screen to display floor selections.
• Door Open, Send buttons and joystick on the
  control box for desired floor selections.
• Detachable control box on wheelchair.
• Expandable design (currently 4-floor prototype)

4
System overview

• Hardware
• -LINX HP3 Series Transmitter and Receiver
• -916 MHz Whip and Microchip antennas
• -2 x 8 character LCD
• -Joystick and Push Buttons
• -PIC microcontrollers (16F877A)
• - Power Supplies 9V batteries and AC to DC
  Adapter
• - Reed Relays
• Software
• - Programming PICs in C

5
Completed Project Picture
6
Design Overview
7
Hardware overview- TX module

• - PIC16F877A Microcontroller
• - Transmitter (Linx TXM-900-HP3-PPS)
• - Chip Antenna (ANT-916-SP)
• - 2X8 LCD for displaying floor numbers or
  characters
• - Joystick for selecting floors
• - Two push buttons for door-open and
  select/send operations
• - 9V batteries

8
TXM Circuit Microcontroller

• PIC16F877A (SMD type)
• - Receive signals from joystick and push
  buttons
• - Determine and send corresponding data bits to
  the LCD screen
• - Also determine when and which bytes should be
  sent to the receiver
• - Sleep mode unless interrupt signals are
  received from the inputs

9
TXM Circuit Transmitter

• Transmitter (Linx TXM-900-HP3-PPS)
• - 915.37 MHz operation selected by DIP-switch
  on board (CS2, CS1, CS0 1,0,1)
• - Send the data received from PIC to the RXM

10
TXM Circuit Chip Antenna

• Chip Antenna
• - Send signals at 916MHz
• - resistant to proximity effects with good
  isotropic radiation patterns

11
TXM Circuit User Interface

• 2X8 LCD Screen
• - Interfaced with PIC
• - Displays starting floor in first row and
  destination floor in second row
• - Displays Door Open if the door open button
  is pressed

12
TXM Circuit Joystick

• Joystick (4-way Microswitch)
• - Scroll through the LCD screen
• - Select both the starting and destination
  floors
• - Movements interfaced with PIC to control
  the floor numbers display on the LCD screen
• - Association with screen scrolling
• Left-Right movement destination
  floor
•
  selection
• Up-Down movement starting floor
  selection

13
TXM Circuit Push Buttons

• Push Buttons (SPDT momentary switches)
• - Send signals to PIC for transmission
• - Two push buttons for Send (blue button) and
  Door-Open (white button)
• - Need to press Send button twice
• 1st Press signals PIC to send selected floor s
• 2nd Press signals elevator has arrived at
  starting floor
• - Pressing Door-Open button signals PIC to
  send corresponding data byte (0xff) to RXM

14
TXM Circuit Schematic
15
Hardware overview- RX module

• Components
• - PIC 16F877A
• - Receiver (RXM-900-HP3-PPS)
• - Darlington Transistors
• - 5V DC Reed Relay Switches
• - Protection Diodes

16
RXM Circuit Microcontroller

• Polls the receiver for data
• Data received is determined and hamming corrected
  before data execution
• Supplies small current to the base of the
  darlingtons to turn them on according to data

17
RXM Circuit Receiver

• Same 916MHz configuration as transmitter

18
RXM Circuit Antennas
4th 3rd 2nd G

• Antennas placed every 2 floors using coaxial
  cables
• Hanged upside down in the elevators hoist-way
• Connected to the RXM through a splitter

Elevator Hoist-way
19
RXM Circuit Darlington Transistors

• Amplifies the small current from PIC to turn on
  the reed relay switches
• High current gain
• Current adjustments are made by using different
  resistances at the emitter

20
RXM Circuit Reed Relays (NO)

• Operates at 5V DC
• Connected in parallel to the relay switches
  inside the elevators control circuitry
• Closing time of reed relay is set to 500ms
  enough to charge up the elevators relays
• Low power consumption (20 mA each)

21
RXM Circuit Protection Diodes

• Placed in parallel with the reed relays
• Prevents large back emf from the relays (when
  transistor switch is turned off) from damaging
  the transistors

22
Receiving Module Schematic
23
Software Programming Key Points

• Smd_tmodule.hex, Tmodule.hex
• Smd version is the complete program for PCB
• Hard to add any new connections
• Breadboard version uses DIP type PICs
• Both include an LED flashing for 10s after PIC
  has waken up
• Both interrupt driven turn off LCD and
  transmitter before going to sleep
• - Power up process initialize LCD

24
Software Programming

• Smd_rmodule.hex, Rmodule.hex
• - Both include an LED test signal that lights up
  whenever data is received from receiver
• - Nothing happens if unexpected data is received
• -

25
Software Hamming Code (7,4)

• Data from transmitter is encoded in Hamming and
  decoded by the receiver side PIC
• Last 7 bits sent by PIC is data encoded in
  Hamming, MSB is used to differentiate between
  door open and floor selections

26
Hamming Code Limitations

• 1-bit error correction feature but data sent is
  limited to 4 bits (for 8 bit transmission)
• Suggested Solution
• - Encode an 8-bit data in 4-bit chunks and
  transmit twice

27
TXM Power Supply Circuit

• Two 9V Lithium batteries in parallel.
• Use of MC33375 5V (SMD type) voltage regulator
  to step down voltage to 5V
• Damage protection by connecting 1N4004 diodes in
  series with each battery power line

28
TXM Power Supply Schematic
29
Verification Procedures

• MC33375 Voltage Regulator Test(1)
• - Connect 1uF and 0.1uF capacitors to both
  input and output of the regulator in parallel
• - Connect a load R100ohm to the output of
  regulator
• -Supply 12V to 2V with Agilent E6361A Power
  Supply
• - Measure and observe the voltage across the
  load and the current flowing through the load
  using mutimeter whether it steps down to 5Vdc and
  draw proper current or not

30
Verification Procedures

• Test for MC33375-5.0R2G(2)
• - Oscilloscope measurement of voltage across a
  100 ohms load
• - somewhat stable but high ripple component

31
Verification Procedures

• Test for MC33375-5.0R2G (3)
• - Add one more 1uF E.L to its output in
  parallel to reduce the ripple
• -Supply 9V with Agilent E6361A
• - Measure and observe the voltage across the
  load using oscilloscope
• - More stable, smaller ripples

32
RX Circuit Power Supply

• Wall-Power (120Vac, 60Hz)
• AC/DC Adapter (5Vdc)

33
RXM Power Supply Schematic
34
Verification Procedures

• Test for AC to 5V DC Adapter
• - Connect output of adapter to 10uF E.L and
  0.1uF in parallel as the datasheet recommended
• - Measure and observe the voltage that
  adapter outputs using oscilloscope

35
Verification Procedures

• Testing the LINX RX and TX range
• Input at the RX
  Output at TX at 22 feet


36
Testing the LINX RX and TX range (Continued)

• Output at RX at 30 feet

37
Testing Darlington Transistors
38
Power Consumption

• Current Flowing Through the Circuits
• Power Consumption

State TXM RXM
Active 51.8mA 70mA
Idle 42.6mA 40mA
State TXM RXM
Active 0.4662 Watts 0.35 Watts
Idle 0.3834Watts 0.2 Watts
39
Battery Life

• We use two 9V Lithium batteries in parallel to
  raise the current capacity of power supply for
  TXM.
• A 9V Lithium battery has a current capacity of
  1.2Ah
• The Equation for Battery Life
• Battery Life

State Irequired tlife
Active 51.8mA 46.33hr
Idle 42.6mA 56.34hr
40
Testing ProcedureTransmitting and Receiving
Antenna

• Power Transmitted from the Transmitting Micro
  chip Antenna -20.647dBm

41
Safety Considerations

• Lithium batteries can explode when shorted
  separation of power and ground pins and
  insulation
• FCC Compliance Verification still needed
• High voltage operation of relay switches in the
  elevator circuitry hooking up the RXM with an
  elevator requires a professional

42
Problems Encountered

• PIC Microcontroller Problems
• - Programming SMD type PIC
• - Interfacing PIC with LCD display
• - Interrupt INT_RDA not working
• Image Source http//img.akizukidenshi.com/images/
  org/pic16f877-pt.jpg

43
Problems Encountered (continued)

• Strength of Microstrip antenna not strong enough
  when enclosed in the circuit box
• Reed relays from ECE store room found to be
  unable to stand the 120V connection to the
  elevators relay switches
• Coaxial cable gain of new (RG-58C) vs gain of
  old (RG-174)

44
Results!

• Correct and stable interface with LCD and inputs
• Successful control of elevator relays
• Range Problems
• - 36 ft antenna found to work well in vertical
  direction (w/o a lot of obstables)
• - Thick walls around elevator obstructing signal
  reception

45
Recommendations

• Place antennas outside of the hoist-way
• Signal amplifiers connected to each reception
  antenna
• Use a weather resistant whip antenna for the
  transmission side and place antenna outside the
  box

46
Idea Extensions

• Usage of transceivers on both modules - every
  building with receiver hooked up can then send
  of floors it has to transmitter once within
  range
• Similar concept for other purposes
• - Opening building entrances

47
Credits

• Professor Gary Swenson
• Dwayne Hagerman
• Jeff Miller
• Professor Franke
• Mark and all the guys from Parts Shop
• Machine Shop guys
• Fellow 445 students

48
Thank You

• Questions?
• Comments?
