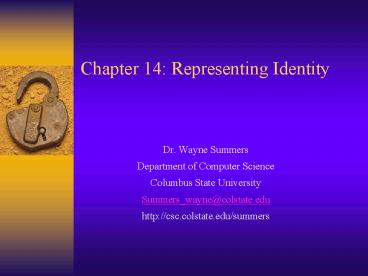

Chapter 14: Representing Identity

1
Chapter 14 Representing Identity

• Dr. Wayne Summers
• Department of Computer Science
• Columbus State University
• Summers_wayne_at_colstate.edu
• http//csc.colstate.edu/summers

2
Representing Identity

• Principal - unique entity (ex. File, user)
• Identity - specifies a principal (ex. Filename,
  UID)
• Authentication binds a principal to a
  representation of identity internal to the
  computer
• Principals may be grouped into sets called groups
• Role type of group that ties membership to
  function

3
Naming and Certificates

• Certificate mechanism for binding cryptographic
  keys to identifiers
• X.509v3 certificates use Distinguished Names
  /OColumbus State University/OUComputer Science
  Dept/CNWayne Summers
• CA authentication policy
• describes the level of authentication required to
  identify the principal to whom the certificate is
  to be issued
• Defines the way in which principals prove their
  identity
• CA issuance policy describes the principals to
  whom the CA will issue certificates

4
Identity on the Web

• Host Identity
• Ethernet (MAC) address 00-07-E9-72-B3-75
• IP address 192.168.0.3
• Host name jaring.colstate.edu
• Static Dynamic Identifiers
• ARP (maps MAC and IP addresses)
• DNS (maps IP addresses and host names)
• DHCP provides a dynamic IP address
• NAT (Network Address Translation) router that
  translates between external and internal
  (private) addresses (e.g. 10.x.y.z)

5
Identity on the Web

• State and Cookies
• Cookie token that contains information about
  the state of a transaction on a network
• name and associated value are encoded to
  represent the state
• Expiration field indicates when the cookie is
  valid
• Domain indicates for which domain the cookie is
  intended
• Path restricts the dissemination of the cookie
  within the domain
• Secure field restricts the use of the cookie to
  over SSL connections only

6
Anonymity on the Web

• Anonymizer site that hides the origin of the
  connection (similar to a proxy server)
• Pseudo-anonymous remailer remailer that
  replaces the originating e-mail address before it
  forwards the e-mail but keeps the mappings
• Cyberpunk (type 1) remailer strips the header
  before forwarding
• Mixmaster (type 2) remailer- Cyperpunk remailer
  that only handles enciphered messages and pads
  messages to a fixed size before sending them
