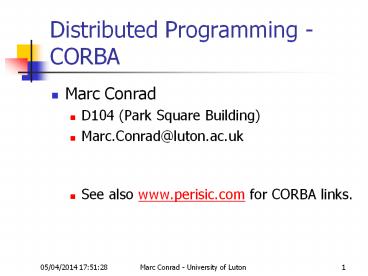

Distributed Programming - CORBA

1
Distributed Programming - CORBA

• Marc Conrad
• D104 (Park Square Building)
• Marc.Conrad_at_luton.ac.uk
• See also www.perisic.com for CORBA links.

2
The Common Object Request Broker Architecture

CORBA
3
Today

• Overview
• Acronyms (CORBA, ORB, OMG)
• One more acronym (IDL)
• An extensive example of an IDL to Java mapping
  (part one)

4
The Common Object Request Broker Architecture

• CORBA is not a programming language but an
  architecture.
• CORBA is an elegant and sophisticated way to
  describe and link the use of objects in a
  distributed environment.
• The "dirty work", the implementation of the
  behavior of the objects is out of the scope of
  CORBA.

5
The Common Object Request Broker Architecture

• CORBA is in the context of Object Oriented
  Programming.

BUT The objects can be located on different
machines all over the world and implemented in a
variety of languages!
6
The Common Object Request Broker Architecture

• The Object Request Broker (ORB) is itself an
  object which provides the services for accessing
  remote objects and transmitting data.
• Note that the implementation of the ORB depends
  on the specific vendor. The CORBA standard only
  defines the interface.

7
The Common Object Request Broker Architecture
8
The Common Object Request Broker Architecture

• CORBA is a standard which has been devloped by
  the OMG, the Object Management Group.
• The OMG is the world's largest computer industry
  consortium with over 800 members.
• See http//cgi.omg.org/cgi-bin/membersearch.pl

9
The History of the OMG

• Founded 1989 by eleven companies as non profit
  organisation.
• Aims on standards for object oriented software
  production.
• Other projects
• MDA http//www.omg.org/mda/
• UML http//www.omg.org/uml/
• CWM http//www.omg.org/cwm/

10
OMG technology

• The framework within which all OMG adopted
  technology fits is the OMA the Object
  Management Architecture.
• So, learning CORBA is also on learning about
  Object Oriented technologies from a language
  independent view.

11
OMG goals

• The goals of the OMG are promotion of the
  object-oriented approach to software engineering
  and development of a common architectural
  framework for writing distributed object-oriented
  applications based on interface specifications
  for the object in the application.

12
OMG - structure

• See http//www.omg.org/news/about/omg_technology_p
  lenary.htm
• Platform Technology Committee
• This committee is concerned with infrastructure
  issues, e.g. the ORB.
• Domain Technology Committee
• This committee is concerned with technologies to
  support application development,e.g. electronic
  commerce.

13
The Common Object Request Broker Architecture

• CORBA is a standard which has been developed by
  the OMG, the Object Management Group (OMG).
• The OMG is the world's largest computer industry
  consortium with over 800 members.
• See http//cgi.omg.org/cgi-bin/membersearch.pl

14
The Common Object Request Broker Architecture

• But Common also means something else
• CORBA is a architecture which has the power to
  integrate legacy code written in languages as
  Java, C, C, Smalltalk, COBOL, Lisp, Python.

We focus here mainly on Java
15
A Collection Of Rather Boring Acronyms.

CORBA
16
A Collection Of Rather Bulky Acronyms.

• OMG - Object Management Group
• ORB - Object Request Broker
• IDL - Interface Definition Language
• IOR - Interoperable Object Reference
• POA - Portable Object Adapter
• IIOP - Internet Inter-ORB Protocol

17
The Interface Definition Language (IDL)

• The IDL provides a class definition for objects
  similar to a C header file or a Java interface.
• However IDL does not provide an implementation.

18
The CORBA Development Process

• Write some IDL that describes the interfaces to
  the object or objects that will be used or
  implemented.
• Compile the IDL file.
• Identify the IDL compiler generated classes and
  interfaces.
• Write additional code.
• Run the application.

19
IDL and Java

• Warning!
• For simplicity we discuss in this lecture only
  the IDL to Java mapping, that means using an IDL
  for producing Java classes which are used in a
  Java environment.
• Other languages which are similarly supported are
  C, Lisp, Smalltalk, ...

20
IDL Overview.
(diagram Java Programming with CORBA, OMG press,
page 143)
21
IDL Example

• module Example
• interface Hello
• string sayHello()

22
IDL Example

• module Example
• interface Hello
• string sayHello()

This is an example of an IDL which provides one
method, namely hello(). This code is saved in a
file hello.idl
23
Understanding the IDL

• OMG IDL is a purely declarative language designed
  for specifying programming-language-independent
  operational interfaces for distributed
  applications. OMG specifies a mapping from IDL to
  several different programming languages,
  including C, C, Smalltalk, COBOL, Ada, and
  Java. When mapped, each statement in OMG IDL is
  translated to a corresponding statement in the
  programming language of choice.
• from http//java.sun.com/j2se/1.3/docs/guide/idl/
  tutorial/GSIDL.html

24
Understanding the IDL

• You can use the tool idlj (provided by SUN) to
  map an IDL interface to Java and implement the
  client class. When you map the same IDL to C
  and implement the server in that language, the
  Java client and C server interoperate through
  the ORB as though they were written in the same
  language.
• from http//java.sun.com/j2se/1.3/docs/guide/idl/
  tutorial/GSIDL.html

25
IDL Example

• module Example
• interface Hello
• string sayHello()

A module is a namespace similar to C namespaces
or Java packages It acts as a container for
related interfaces and declarations.
26
IDL Example

• module Example
• interface Hello
• string sayHello()

Declares the application interface of the class.
Similar to C header files or Java interfaces.
27
IDL Example

• module Example
• interface Hello
• string sayHello()

An operation. Operations are mapped to (Java,C,
...) methods.
28
Mapping Hello.idl to Java(Here with idlj)

• Go to a command line prompt and type in the
  following command idlj -fall
  Hello.idl

29
Mapping Hello.idl to Java(Here with idlj)
The name of your Compiler. The idlj is offered as
part of the JDK 1.3. Other vendors use other
compiler, e.g. idl2java by VisiBroker

• Go to a command line prompt and type in the
  following command idlj -fall
  Hello.idl

30
Mapping Hello.idl to Java(Here with idlj)

• Go to a command line prompt and type in the
  following command idlj -fall
  Hello.idl

The name of the IDL file you have specified.
31
Mapping Hello.idl to Java(Here with idlj)
This option (specific to idlj) means that files
should be generated both for a server and a
client implementation. (Default Client only)

• Go to a command line prompt and type in the
  following command idlj -fall
  Hello.idl

32
Mapping Hello.idl to Java(Here with idlj)

• The command idlj -fall Hello.idl produces 6
  files

33
Mapping Hello.idl to Java(Here with idlj)

• The command idlj -fall Hello.idl produces 6
  files

34
Mapping Hello.idl to Java(Here with idlj)

• The command idlj -fall Hello.idl produces 6
  files
• _HelloImplBase.java
• _HelloStub.java
• Hello.java
• HelloHelper.java
• HelloHolder.java
• HelloOperations.java

35
Mapping Hello.idl to Java(Here with idlj)

• This abstract class is the server skeleton,
  providing basic CORBA functionality for the
  server. It implements the Hello.java interface.
  The server class HelloServant extends
  _HelloImplBase.

• _HelloImplBase.java
• _HelloStub.java
• Hello.java
• HelloHelper.java
• HelloHolder.java
• HelloOperations.java

36
Mapping Hello.idl to Java(Here with idlj)

• This class is the client stub, providing CORBA
  functionality for the client. It implements the
  Hello.java interface

• _HelloImplBase.java
• _HelloStub.java
• Hello.java
• HelloHelper.java
• HelloHolder.java
• HelloOperations.java

37
Mapping Hello.idl to Java(Here with idlj)

• This signature interface contains the Java
  version of our IDL interface. The Hello.java
  interface extends org.omg.CORBA.Object, providing
  standard CORBA object functionality.

• _HelloImplBase.java
• _HelloStub.java
• Hello.java
• HelloHelper.java
• HelloHolder.java
• HelloOperations.java

38
Mapping Hello.idl to Java(Here with idlj)

• This operations interface contains the single
  method sayHello(). The IDL-to-Java mapping puts
  all of the operations defined on the IDL
  interface into this file.

• _HelloImplBase.java
• _HelloStub.java
• Hello.java
• HelloHelper.java
• HelloHolder.java
• HelloOperations.java

39
Mapping Hello.idl to Java(Here with idlj)

• This final class provides auxiliary
  functionality, notably the narrow() method
  required to cast CORBA object references to their
  proper types.

• _HelloImplBase.java
• _HelloStub.java
• Hello.java
• HelloHelper.java
• HelloHolder.java
• HelloOperations.java

40
Mapping Hello.idl to Java(Here with idlj)

• This final class holds a public instance member
  of type Hello. It provides operations for out and
  inout arguments, which CORBA allows, but which do
  not map easily to Java's semantics.
• Note that CORBA allows call-by-value method
  parameters which are not directly available in
  Java.

• _HelloImplBase.java
• _HelloStub.java
• Hello.java
• HelloHelper.java
• HelloHolder.java
• HelloOperations.java
