Intro to Fields and Math of Fields

1

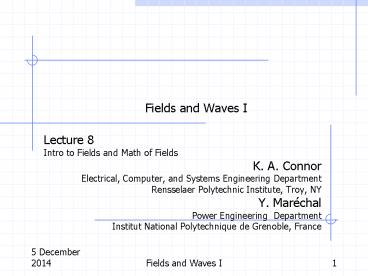

Fields and Waves I

• Lecture 8
• Intro to Fields and Math of Fields
• K. A. Connor
• Electrical, Computer, and Systems Engineering
  Department
• Rensselaer Polytechnic Institute, Troy, NY
• Y. Maréchal
• Power Engineering Department
• Institut National Polytechnique de Grenoble,
  France

2
These Slides Were Prepared by Prof. Kenneth A.
Connor Using Original Materials Written Mostly by
the Following

• Kenneth A. Connor ECSE Department, Rensselaer
  Polytechnic Institute, Troy, NY
• J. Darryl Michael GE Global Research Center,
  Niskayuna, NY
• Thomas P. Crowley National Institute of
  Standards and Technology, Boulder, CO
• Sheppard J. Salon ECSE Department, Rensselaer
  Polytechnic Institute, Troy, NY
• Lale Ergene ITU Informatics Institute,
  Istanbul, Turkey
• Jeffrey Braunstein Chung-Ang University, Seoul,
  Korea

Materials from other sources are referenced where
they are used. Most figures from Ulabys
textbook.
3
Electrostatics
Electric Field of a Point Charge
4
Overview

• The math we have seen so far
• Phasor notation
• Partial differential equations
• The wave equation
• For fields, we need to review vector calculus
• Vector notation
• Coordinate systems
• Line, area and volume integrals
• Gradient, divergence and curl

5
Fields and Waves I

• 3 systems of coordinates

6
Vector representation
3 PRIMARY COORDINATE SYSTEMS

• RECTANGULAR

• CYLINDRICAL

• SPHERICAL

Examples
Sheets - RECTANGULAR
Wires/Cables - CYLINDRICAL
Spheres - SPHERICAL
7
Cartesian coordinates basics
Unit Vector Representation for Rectangular
Coordinate System
The Unit Vectors imply
Points in the direction of increasing x
Points in the direction of increasing y
Points in the direction of increasing z
8
Cartesian coordinates Dot product

• Definition
• Meaning of dot product

Dot Product (scalar)
Magnitude of vector
9
Cartesian coordinates Cross product

• Definition
• Meaning of the cross product

Cross Product
(VECTOR)
10
Cylindrical coordinates Basics
Ulaby
11
Cylindrical coordinates Unit vectors
The Unit Vectors imply
Points in the direction of increasing r
Points in the direction of increasing j
Points in the direction of increasing z
f
In cylindrical coordinates, both
and
are functions of
12
Cylindrical coordinates Dot product
UNIT VECTORS
Cylindrical representation uses r ,f , z
Dot Product
(SCALAR)
13
Spherical coordinates Basics
Ulaby
14
Spherical coordinates Unit vectors
z
P
q
r
The Unit Vectors imply
Points in the direction of increasing r
f
y
x
Points in the direction of increasing q
Points in the direction of increasing j
f
In spherical coordinates,
and
are functions of
and
q
15
Spherical coordinates Dot product
UNIT VECTORS
Spherical representation uses r ,q , f
Dot Product
(SCALAR)
z
P
q
r
x
f
y
16
Vector representation Summary
RECTANGULAR Coordinate Systems
CYLINDRICAL Coordinate Systems
SPHERICAL Coordinate Systems
NOTE THE ORDER!
r,f, z
r,q ,f
Note We do not emphasize transformations between
coordinate systems
17
Vector representation Examples

• In spherical coordinate system

18
Fields and Waves I

• Differential calculus

19
Differential calculus introduction

• Example

• integration over 2 delta distances

20
Differential lengths
1. Rectangular Coordinates
When you move a small amount in x-direction, the
distance is dx
In a similar fashion, you generate dy and dz
( dx, dy, dz )
Generate
2. Cylindrical Coordinates
Differential distances
( dr, rdf, dz )
21
Differential lengths
3. Spherical Coordinates
Distance r sinq df
Differential distances
( dr, rdq, r sinq df )
22
Differential lengths

• Representation of differential lengths dl in the
  3 coordinate systems

rectangular
cylindrical
spherical
23
Differential surfaces and volumes
Example of surface differentials
or
Representation of differential surface element
Vector is NORMAL to surface
Differential volume ( a scalar)
24
Differential volumes Cartesian coordinates
Ulaby
25
Differential volumes cylindrical coordinates
Ulaby
26
Differential volumes cylindrical coordinates
Ulaby
27
Differential volumes spherical coordinates
28
Differential volumes spherical coordinates
Ulaby
29
Integrals calculations

• How to perform integrals (surface or volumes ) ?
• What is the right system of coordinates ?
• What is kept constant?
• What does the limits stand for ?
• What are the differentials?
• See that on the following examples

30
Area calculus

• Find the following area
• Cylindrical area
• r5, 30ltflt60, 0ltzlt3cm

31
Area calculus

• Find the following surface area
• Spherical area
• 30ltqlt60, 0ltflt2p, r3cm

32
Volume calculus examples
33
Volume calculus examples
34
Volume calculus examples

• Volume in cylindrical coordinates
• Calculate the volume by integration of
• 1ltrlt3, 0ltfltp/3, -2ltzlt2
• The electric charge density inside a sphere is
  given by 4cos2(q) . Find the total charge Q
  contained in a sphere of radius 2cm.

35
Volume calculus examples
36
Fields and Waves I

• The curl , gradient and divergence operators

37
Curl operator Basics
NOTATION
Implies a CLOSED LOOP Integral
measures circulation or Curl of B
Example of a uniform field B in the x direction
38
The Curl operator

• The curl operator
• Main property (Stokess theorem)

NOTATION
Result of this operation is a VECTOR
This is NOT a CROSS-PRODUCT
To calculate CURL, use formulas in the textbook
Surface integral on right is surface enclosed by
line on the left
39
Curl operator physical example
Plot of magnetic field direction and modulus
Current flowing in an infinite wire
40
Rotation or Curl operator Examples
41
(No Transcript)
42
Examples
43
Gradient operator

• The gradient operator
• Main property

GRADIENT measures CHANGE in a SCALAR FIELD

• the result is a VECTOR pointing in the direction
  of increase

For a Cartesian system
ALWAYS
You will find that
IF
, then
and
44
Gradient physical example

• Current flow simulation

V10
V0
Current modulus in color shades And
arrows Potential in red equi lines
45
Gradient examples
46
Surface integrals
Note that all 3 coordinates are involved
, measures flux of
, through a surface
47
Surface integrals and flux
Example - FLUID FLOW
, there is flow through
For,
But,
, there is no flow
Hence,
, measures FLUX
Example Let y2, x0 to 3 and z -1 to 1
, then,
48
Divergence operator
Measures Flux through any surface
Global quantities
Measures Flux through closed surfaces
is related to
, is a local measure of flux property
49
Divergence operator

• The divergence operator

NOT a DOT product but has similar features
Notation
Result is a SCALAR, composed of derivatives
in Cartesian coordinates
Divergence Theorem
Volume integral on right is volume enclosed by
surface on the left
50
Divergence operator physical example
2 chips on a PCB Temperature in color shade, Iso
values of temperature in red lines
The integral heat flux through the surface of a
chip amount of heat included in its volume
51
Examples
52
Operators summary

• Curl
• Measures the circulation of a vector field
• Gradient
• Measures the change in a scalar field
• Divergence
• Measures the flux of a vector field trough a
  surface

Result is a VECTOR
Result is a VECTOR
Result is a SCALAR
53
Visual Electromagnetics for Mathcad

• On Main Course Info Page
• Download the Mathcad Explorer
• Download Visual Electromagnetics
