Programming Unreal Tournament

1

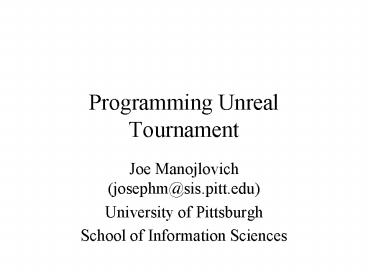

Programming Unreal Tournament

• Joe Manojlovich (josephm_at_sis.pitt.edu)
• University of Pittsburgh
• School of Information Sciences

2
Points of Contact

• Usability Study Lab, 2nd floor, Information
  Sciences Building
• Meetings every Tuesday, Thursday 3pm to 7pm (all
  are welcome)
• (Unofficial) Pittsburgh Unreal Research Group
• There is a surprisingly large amount of UT
  hacking for research purposes going on in the
  Pittsburgh area
• University of Pittsburgh (several schools)
• Carnegie Mellon University (several schools)

3
What is Unreal Tournament?

• UT is a multiplayer video game
• Produced by Epic games (http//www.epicgames.com)
• Runs on Windows, Linux, Macintosh, PlayStation,
  and soon Xbox
• http//www.unrealtournament.com

4
Old/Current Versions of Unreal

• Unreal I
• The original Unreal game
• Single player
• Obsolete and unsold now (?)
• Unreal Tournament
• Multiplayer Unreal game
• Obsolete and unsold as of a month or 2 ago

5
New Versions of Unreal

• Unreal 2
• Single player
• Due 2003
• Unreal Tournament 2003
• Multiplayer
• Due summer 2002 (any day now)
• Unreal Forever
• Xbox
• Due 2003

6
Why Program UT?

• By using UT as a basis for other research, you
  can avoid needless reinventing while benefiting
  from a proven development platform
• UT is designed for programming, and many tools
  and resources are available to assist you

7
Research Being Done with UT

• Gamebots
• This is a modification to UT that allows one to
  control UT bots remotely over a standard network
  connection (www.gamebots.org)
• CaveUT
• This project uses multiple UT clients to create
• el-cheapo 3D visualization (http//www2.sis.pitt.
  edu/jacobson/ut/CaveUT.html)
• Many others

8
How to Program Unreal Tournament

• UnrealScript
• Source code level
• Level Programming
• Graphics level
• Scenes
• People
• Weapons

9
UT Source Code

• Since UT is based on a virtual machine model like
  Java, most of the game is actually written in
  UnrealScript
• You can read the source code to most of the game,
  except the low level graphics rendering
  components and a few other bits
• UnrealEd will let you browse and edit the game
  source code
• Also available online http//usl.sis.pitt.edu/tru
  rl/unrealdocs

10
Common Terms

• Bots Players in game under human or AI control
• Level self-contained environment containing
  bots and their surroundings
• Maps a level, without the bots
• Game a level, with active bots, running on a UT
  server

11
Types of Games

• DeathMatch
• Free for all

• TeamGame
• Team free for all

• Domination
• Control of
• level points

• Assault
• Task-oriented

• Capture the Flag
• Goal of returning
• enemy flag to
• home base

12
The Unreal Virtual Machine

• UT is divided up into several components
• Server
• Client
• Rendering engine
• Engine support code

13
The Unreal Virtual Machine
Actor(s)
Tournament Male
Level
DM-Tutorial
Game Type
Death Match
Client(s)
Game Code
Engine
Network
OpenGL, DirectX, etc.
Underlying Hardware/Operating System
14
Unreal Network Architecture
UT is a client/server based game
Client
Server

• Currently supports 32 players on a server
• This may increase with the new version of UT

15
Java/C vs. UT

• If you have some knowledge of any object-oriented
  language, then learning UnrealScript itself is
  easy
• UnrealScript is much simpler than real
  object-oriented languages which are burdened with
  complex features unnecessary for game development

16
Object-Oriented Programming

• Objects
• Function code and data combined in one unit
• Classes
• Templates for production of objects
• Inheritance
• Classes arranged in a hierarchy, where children
  classes start with properties of its parents

17
Inheritance

• Animal
• Reproduces
• Consumes

• Bird
• Has Wings
• Flies

• Fish
• Has Fins
• Swims
• Gills to Breath

• Robin
• Small
• Red Chest

• Ostrich
• Large
• Doesnt Fly

• Great White
• Large

• Goldfish
• Small

18
Class Structure in UT

• Objects/Actors
• Pawns
• Info

19
Object/Actor Classes

• Object is the basic superclass for every Unreal
  class
• Actor class, subclass of Object, defines basic
  game functionality
• Players
• Weapons
• AI
• Most of the UT game itself

20
Pawn Class

• Subclass of Actor
• Defines the living entities of a level
• PlayerPawn, a subclass of Pawn, is used for all
  players in the game
• ScriptedPawn, another subclass of Pawn, is used
  to drive the built-in game players

21
Info Class

• Info classes maintain game data
• GameInfo manages game related information
• ZoneInfo handles the composition of spaces in
  levels, such as water, lava, etc.
• PlayerReplicationInfo is used for network games,
  to minimize network traffic between Unreal
  clients and the server

22
UnrealScript Syntax

• UnrealScript is a full programming language
  solely used for the Unreal series of video games
• Most of its syntax is very similar to other
  high-level programming languages such as Java or
  C

23
Variables

• byte A single-byte value ranging from 0 to 255.
• int A 32-bit integer value
• bool A boolean value either "true" or "false"
• float A 32-bit floating point number
• string A string of characters
• name The name of an item in Unreal (such as the
  name of a function, state, class, etc)

24
Variables (cont.)

• Enumeration A variable that can take on one of
  several predefined name values
• Object and actor references A variable that
  refers to another object or actor in the world
• Structs Similar to C structures, UnrealScript
  structs let you create new variable types that
  contain sub-variables

25
Variables (cont.)

• To declare a variable
• var int a
• var byte Table64
• var string32 PlayerName
• var actor Other

26
Language Constructs

• UT supports all the standard loops, like those in
  Java or C
• If
• For
• While
• Do-While

27
UnrealScript States

• States are unique to game programming languages
  like UnrealScript
• Allow one to define functionality based time and
  state of a bot
• For example, a bot could have a Running state
  that will cause the bot to flip while jumping,
  but only while running, and not while standing
  still or walking

28
An Example State
auto state Idle Begin log( "I am idle!"
) sleep( 10 ) goto 'Begin'
29
An Example State (cont.)

• All this state does is override a built-in
  inherited state that is active when a bot isnt
  doing anything, i.e., idle
• Every 10 seconds of idle time, this code will
  print to the log I am idle!

30
Modifications

• Mutators
• Used to make slight changes to the game
• Subclass parts of the game, and redefine game
  code
• Can be mixed with other mutators at run-time
• Gametypes
• Used to change large parts of the game
• Cannot combine with other gametypes

31
Using the Command Line Tools
Start-gtPrograms-gtAccessories-gtCommand Prompt
cd C\UnrealTournament\System
32
An Example Mutator

• Remember that mutators simply take some built-in
  functionality of UT and modify it slightly
• Mutators subclass the UT Mutator class
• For this example, well create a low gravity
  mutator. The game already has one built in, but
  it makes a good example, as its very simple.

33
The Low Grav Mutator

• In the UnrealTournament directory, create a
  directory named MyPackage and inside that a
  directory named Classes
• Create a text file named LowGrav.uc in the
  Classes directory
• Edit the UnrealTournament.ini file, in the System
  directory, and add your package name to the
  EditPackages list

34
The Low Grav Mutator (cont.)

• class LowGrav expands Mutator
• Each source file will have this class
  declaration, and only one class can be in each
  source file

35
The Low Grav Mutator (cont.)

• function bool CheckReplacement(Actor Other, out
  byte bSuperRelevant)
• if( Other.IsA('ZoneInfo'))
• ZoneInfo(Other).ZoneGravity
  vect(0,0,-200)
• return true
• An inherited function, used to replace or modify
  actors in a level

36
The Low Grav Mutator (cont.)

• In the command prompt, enter the
  UnrealTournament/System directory
• Type ucc make all
• Create a text file named MyPackage.int in this
  directory, with the contents (one line)
  Object(NameMyPackage.LowGrav,ClassClass,
• MetaClassEngine.Mutator,DescriptionMy Low
  Gravity, My Low Gravity")
• This will make your mutator show up in the game
  menus

37
The Low Grav Mutator (cont.)

• To run your mutator, start UT
• Start a new practice session
• Click on the Mutators button
• Scroll down to My Low Gravity and double click
  on it
• Close the window, and start the practice session

38
UnrealEd

• UT comes with a dedicated 3D level modeling and
  source code editing program
• Most do actual coding outside of UnrealEd, since
  many prefer to use other source code development
  tools such as Microsoft Developer Studio
• Most source code work done by UnrealEd can also
  be done from the command line

39
Using UnrealEd

• Start program UnrealEd.exe in the
  UnrealTournament/System directory
• Most people design maps in more mature 3D
  modeling program, such as Maya or 3D Studio Max
• UnrealEd is fine for doing pure UT design that is
  not too complex

40
An Example Level

• I was planning to show an example of creating a
  level here, using UnrealEd, but its not
  something that lends itself well to a
  presentation
• This is also a cheap way for me to get out of
  admitting that I dont know much about level
  programming

41
Unreal Graphics

• Meshes
• These are the skeletons that form the bodies of
  UT creatures
• Have no defined surface
• Textures
• Applied to meshes to provide a surfaces

42
Resources

• http//unreal.epicgames.com
• http//www.planetunreal.com
• http//www.unrealscript.com

43
Questions

• Questions, concerns, comments, sarcasm, insults?
• Please email or come to the group meetings on
  Tuesdays and Thursdays there are just so many
  little tips and tricks that are best learned in
  person
