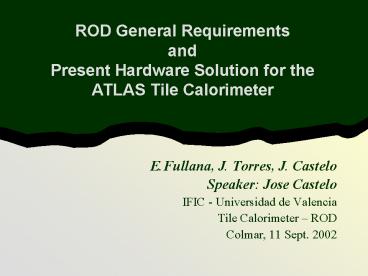

ROD General RequirementsandPresent Hardware
Solution for the ATLAS Tile Calorimeter

• E.Fullana, J. Torres, J. Castelo
• Speaker Jose Castelo
• IFIC - Universidad de Valencia
• Tile Calorimeter ROD
• Colmar, 11 Sept. 2002

2
Introduction Basic functionalities

• DATA PROCESSING Raw Data gathering from FE at
  the L1A event rate 100Khz to ROBS with
  intermediate processing and formatting.
• TRIGGER TTC signals will be present (latency
  2ms after L1A) at each module providing ROD
  L1ID, ROD BCID and Ttype (trigger type).
• ERROR DETECTION Synchronism Trigger Tasks. The
  ROD must check that the BCID and L1ID numbers
  received from CTP match with the ones received
  from the FEB. If a mismatch is detected an error
  flag must be reported.
• DATA LINKS Input data must be received with
  optical input RX. Event data processed must be
  sent to ROB through the standard ATLAS readout
  links and standard DAQ-1 data format at the L1A
  event rate (100khz).
• BUSY GENERATION Provide a ROD busy signal in
  order to stop L1A generation. This signal will be
  an OR function ROD crate modules and managed by
  the ROD TTC crate as an interface with CTP.
• LOCAL MONITORING VME access of the data during
  a run without introducing dead-time or additional
  latency in the main DAQ data. Each ROD
  motherboard are VME slaves commanded by the ROD
  Controller (VME SBC).

3
ATLAS TDAQ Read-Out System

• LVL1 decision taken with calorimeter data (coarse
  granularity) and muon trigger chambers data.
  Buffering is done on Detector Electronics.
• LVL2 is using Region of Interest data (up to 4
  of whole event) with full granularity and
  combines information from all detectors.
  Buffering is implemented in ROBs.
• EF refines the selection, can perform event
  reconstruction at full granularity using latest
  alignment and calibration data. Buffering in EB
  EF

RODs
4
TileCal ROD Dataflow and TTC partitions

• 9856 calorimeter channels. (Two fibers/drawer.
  19712 ch with redundant info)

5
ROD Crate

• Crate Hardware
• ROD Controller
• TTC interface (TBM) Trigger and Busy Module
• FE, Calibration Cards for data injection,
  calibration, etc
• M RODs per N Crates Motherboards with Processing
  Units Transition modules for Output optical
  links. Nowadays design M8 and N4. Total 32 ROD
  modules for 10.000 calorimeter cells acquisition.
• Interface with Environment
• ATLAS DAQ and TileCal Run Control Online
  Software
• CTP Reception of TTC information and management
  of a per crate ROD BUSY.
• DATAFLOW Process FEB events, detects
  synchronization errors, and send data to ROBs for
  ROIs lvl2 decision.

Crate OR BUSY to CTP
TTC signals from CTP
Online Software
Detector Data
Event Data
6
TCC scheme

• Number of TTC partitions 4
• Organized around f 0, 2p EB(hlt0), CB(hlt0),
  CB(hgt0), EB(hgt0)
• This distribution will allow us to work with only
  central barrels if there are not enough RODs in
  the early runs.
• The scheme shown is for 4 partitions in two
  crates with 2 TBM (actually is only possible with
  4 crates because TBM architecture design)

7
Tiles ROD Racks and interconnections between
crates

• USA15 room (radiation free)
• 2 Racks (52U)
• Standard 9U Atlas crates. 9U(slot) with
  transition module (probably 160mm). External size
  for CERN crates 10U
• Cooling Air/water (not decided, it depends on
  the amount of power dissipated by G-LINK
  receivers)
• Readout fibers
• Input fibers (front in MB)
• Output fibers (rear TM)

8
Using new LArg ROD Motherboard for Tiles
9
Using LArg new motherboard. Hardware performance

• LArg needs more processing power per link 128
  channels/link (LArg), 45 for CB and 32 for EB
  ch/link (tilecal) so only 2 Processing Units,
  and 2 Output Controllers plus SDRAM data storage
  are enough for Tiles dataflow needs. Some
  estimations
• Input bandwidth. The maximum input BW of each
  link for a tilecal physic event is 467,2
  Mbit/sec, so 4 links (4 drawers) is 1,825
  Gbits/sec. Input bandwidth of the Processing Unit
  is 2,5Gbits/sec (64bits_at_40Mhz) gt One PU has
  enough input BW for 4 links.
• The processing unit. We need to process 154
  channels (four drawers) in two TMS320C6414_at_600MHz
  DSPs (4800 MIPS each). This DSP has the same core
  with some improvements in number of registers and
  an enhanced DMA unit over the actual DSP we have
  tested is the TMS320C6202_at_250MHz (2000 MIPS). Our
  actual lab routines could process 45 channels in
  around 5,5ms (assembler) or 15,5ms (C code).
  Potentially, we could process 154 channels with
  the new PU TMS320C6414_at_600MHz with 9600MIPs (two
  DSPs) in 3,92 ms (assembler) or around 11ms (C
  language). Because our limit is 10ms at LVL1
  100KHz rate, thus if we believe in improvements
  in the C compiler from Texas Instruments,
  probably we could program the final system in a
  better maintainable C code and only with 2
  Processing Unit mezzanines installed in the
  motherboard.
• Output Bandwidth. The typical BW for 154 channels
  (four drawers) is 656 Mbits/sec. Then, an Output
  Controller FPGA of 1,28 Gbits/sec (32_at_40MHz) has
  enough BW for the output of each Processing Unit
  (154 channels each).
• Transition Module 2 mezzanine links are enough
  for this configuration.

10
Compatibility issues with LArg motherboard

• From Tiles FEB electronics we need to adjust a
  simple VHDL change in FEB FPGAs (Glink HDMP1032
  pin ESMPXENB0)
• From LArg new motherboard design we need
• To connect the CAV line of the HDMP1024 to the
  Staging FPGA  in order to receive control words
  (not only data words). In the Figure this line is
  highlighted in RED color.
• To connect the FLAGSEL line of HDMP1024 to
  Staging FPGA. LArg used the FLAG bit to mark the
  even and odd 16 bit fragments, and Tilecal use
  CAV (control bit) to mark the start of
  transmission and count for the even and odd 16
  bit fragment.  Tiles use the FLAG bit to mark the
  global CRC word so Tiles need FLAGSEL set high,
  and LArg set low, so is needed to connect this
  pin to Staging FPGA for maintaining
  compatibility. In Figure this line is highlighted
  in RED color.
• The connection of FDIS, ACTIVE, LOOPEN and STAT1,
  seems to be correct since they are standard. The
  configuration is Simplex method III.
• To replace the LArg 80MHz clock with Tiles 40MHz
  clock, (pinout compatible oscillators needed) for
  getting the right reference clock for the G-LINK
  receivers (Tiles uses HDMP1032_at_40MHz in the
  interface links).

11
ROD SOFTWARE OPTIMAL FILTERING ALGORITHM (I)

• A multisampled method firstly developed for
  liquid ionization calorimeters. (See W.E. Cleland
  and E.G. Stern, Nucl. Instr. And Meth. A 338
  (1994) 467)
• Allows the reconstruction of Energy and time
  information.
• Additionally minimizes the noise coming from
  thermal sources (electronics) and also from
  minimum bias events. (see plots)

Noise reduction of optimal filtering algorithm
(OF) versus others algorithms (FF). Data
testbeam 2001
12
ROD SOFTWARE OPTIMAL FILTERING ALGORITHM (II)
Samples coming from the front end electronics
First Set of weights a1, a2, a3 an,
S1 S2 S3 . Sn
Energy information E
Time information

• Weights are obtained from noise atocorrelation
  matrix and ideal PMT shape waveform g(t).
• The mathematical procedure uses Lagrange
  Multipliers in order to reduce the electronic
  noise factor (see E.Fullanas talk
  _at_feb_tilecal_analysis_meeting)

Second Set of weights b1, b2, b3 bn,
13
DSP Software Implementation DSP Core Architecture

• Based on Texas DSP C6202
• Harvard Architecture Program and data memory
  could be accessed at the same time.
• FCLK 250Mhz . Cycle time 4ns. 2000 MIPs
• Data/Program Memory 1Mbit (128kbyte)/ 2Mbit (64k
  32bits)
• DMA channels 4
• EMIF HPI 32bits
• McBSP 3
• Timers 2 (32 bit)
• VCORE 1.8v / VI/O 3.3v
• 3 phase PIPELINE
• 8 independent ALUS. Load-Store Architecture With
  32 32-Bit General-Purpose Registers (two banks of
  16). All instruction conditional

14
DSP Software Implementation OF Algorithm

• Using Optimal filtering for obtain Energy, Tau,
  and c2.
• The implementation is considering 7 samples of 10
  bits.
• Actual studies demonstrate that the resolution
  will not be improved with different weights for
  each cell gt Use of the same calibration
  constants table for all channels (this could be
  changed).
• The calculations are 32bit integer except for
  Multiplication (16bits) due to DSP architecture.
  Always trying to get the maximum resolution of
  the integer ALU operations.
• C and Assembler code were developed compare two
  input languages for coding the algorithm

15
C vs. Assembler
Energy/Tau/c2 algorithm for 45 channels and 7
samples of 10bit. Compilation characteristics
comparative for the best speed performance
profiling option
16
Actual developments Staging FPGA (I)

• Online dataflow
• Routes the incoming data from the different FEB
  inputs and send it to the connector of the PU
  concerned, depending if it is staging or not.
  This feature provides the possibility to use only
  two processing units instead of four, routing the
  data to the desired PU (the staging is configured
  through VMEbus).
• Glink chips configuration that will be performed
  by the staging chips.
• It gets the temperature of the Glink and
  transmits it to the VME chip (generates an IRQ).
  Because these chip usually has high power
  consumption.
• It transmits the Glink errors (parity and ready)
  to the PUs and to the VME.
• During the tests it will
• Read the Glink data and transfer it to the VME.
• Transfer data from the VME to the PU. Similar
  function as 'data distributor block' in the
  demonstrator board.
• Transfer at high rate some pattern data to the
  PU.
• The code must be written in VHDL because of
  maintainability reasons.

17
Actual developments Staging FPGA (II)
18
Summary

• Work with ROD demonstrator board were very useful
  and instructive
• Waiting for the first prototypes of new
  motherboard and studying LArg and Tilecal
  compatibilities for a common ROD board for ATLAS
  calorimeters
• Programming a versatile program of Staging FPGA
  compliant with tilecal and LArg
• Optimal Filtering studies and analysis were
  successful for 1998 testbeam data. Actually this
  work is focused over 2001 and 2002 tilecal
  testbeam data. Better results are expected with
  final FEB electronics mounted on these test beams
  (real electronic noise).
• DSP implementation of Optimal Filtering under
  10ms (100KHz atlas lvl1 rate) in ASSEMBLER, but
  not in C using 250MHz C6202 DSP. We expect to
  be below this threshold with new generation PU
  with 600MHz C6414
• DAQ (online software) integration of demonstrator
  board.
