Title: Collimator Wakefield Issues

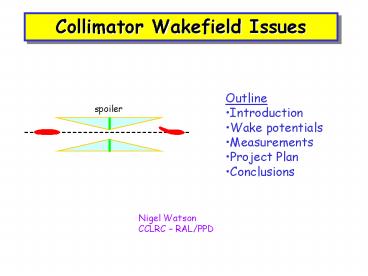

1
Collimator Wakefield Issues
  • Outline
  • Introduction
  • Wake potentials
  • Measurements
  • Project Plan
  • Conclusions

Nigel Watson CCLRC RAL/PPD
2
Introduction
  • Success of LC requires
  • High (integrated) luminosity
  • Acceptable backgrounds
  • Machine protection
  • Detectors must be able to turn on and use
    recorded data
  • High luminosity
  • Minimise emittance growth, DR ? IP
  • Control relative beam-beam motion at IP
  • High beam currents

3
Spoiler/Absorber
  • Thin (lt1X0) spoilers
  • spread out beam, multiple Coulomb scattering,
    dE/dx
  • Low z bulk, but require durable, low resistivity
    surface
  • Damaged surfaces significant effect on WF
    behaviour
  • Thick (20-30X0) absorbers, in spoiler shadow

SLC, 20mm Au coating on Ti Decker et al,
Linac96
4
Collimator Wakefields
  • Conservative system design, to remove 0.1 of
    beam
  • Avoid large amplitude component from entering FF
  • Mechanical collimators close to beam
  • Continuously scrape halo (10kW)
  • Enlarge spot size of mis-steered beam by Coulomb
    scattering
  • Beam excites wake potential in material, acts
    back on (tail of) bunch
  • Transverse loss (kick) factor, ?yKy (near
    axis)
  • Position jitter ? angle jitter
  • Jitter amplification a la TRC AbKb
    p(1Ab2)1/2
  • Emittance growth De/e ? A2b

5
Jitter Amplification Comparison
De/e ? A2b
  • Vertical plane, unacceptable jitter
  • NB with tail folding OFF, pessimistic/conservativ
    e
  • Tail folding loosens collimation requirements
  • Reduces significance of collim. wake fields
  • Experimental verification?

6
Collimator Wakefields
  • WF in vertical plane important even in error free
    machine
  • Collim at betatron phase of FD most criticaL
  • Contribute to position jitter of beam at IP
  • Separate into to reduce effect use
  • Geometric wake ? smooth tapers
  • Resistive wall wake ? high conductivity
  • Roughness impedance ? high quality finish
  • Very difficult to calculate analytically -
    possible only for simple configurations
  • Difficult to model, esp. for short bunches
    (sz300mm), shallow tapers (a20mrad), small ½
    gaps (b0.4mm), in reasonable time

7
Data
  • Recent measurements using dedicated facility at
    SLAC, study geometric and resistive wakes
  • Improvements to theory (Stupakov et al)
  • Geometric wakes for tapered, rectangular
    collimators
  • inductive (shallow tapers)
  • intermediate regime
  • diffractive (steep tapers)
  • Resistive wakes (Piwinski et al)
  • Analytic calculations used in TRC, assuming
  • ? is Cu
  • no tail folding
  • near-axis wakes (linear, dipole region)
  • Near-wall wakes (non-linear) possible machine
    protection issue

8
SLAC CollWake Expt.
At 1.19 GeV point in SLAC linac
sz 650mm
Magnet mover, y range ?1.4mm, precision 1mm
9
Near wall wakes
  • Primarily study near axis wakes, dipole mode,
    linear region
  • Add bump, study near wall region
  • Non-linear, more important for machine protection

Kick angle (mrad)
Beam-collim. offset (mm)
From Tenenbaum, SLAC accel. seminar, Feb. 01
10
e.g. Resistive Wake Study
  • Initial study was of geometric wake
  • Second study compared Cu and graphite, same
    geometry
  • Reasonable agreement with resistive wake theory

Kick angle (mrad)
Beam-collim. offset (mm)
From Onoprienko, Seidel, Tenenbaum, EPAC02
11
Third Set of Collimators
  • Continue study of resistive wakes, compare Cu vs.
    Ti
  • Thereafter, concentrate on geometric (perhaps
    two-step) tapers

12
Wakefield Reduction Methods
  • Optimisation of collimator form need
    reliable/validated predictions
  • Ideal case - infinite long taper, circular
  • Realistic - include constraints from finite size,
    available longitudinal space, and adjustability
  • 2-step tapers
  • More complex shapes, non-linear tapers,
  • Tail folding
  • (and if all else fails) increase vxd radius at
    IP?

13
Project Plan
  • Studying basic physics effects
  • Not critically dependent on technology, but
    easier for cold machine
  • Aim to design optimal spoiler jaw
    (material/geometry)
  • Direct measurement of wakefields at SLAC
  • Dedicated facility, single beam measurements
  • Already one good collab. (Seidel/DESY) with
    Tenenbaum et al on graphite collimators
  • Also previous UK involvement (Brunel)
  • Progress slow need two interventions
    technical experts to install new collimators,
    plus operation time
  • Turn around 1 set of 4 spoiler jaws per 1.5yr
    (3 between 99-04)
  • SLAC willing to collaborate, situation evolving
    post ITRP decision

14
Project Plan
  • Design/test optimal spoiler jaw profiles
    (material/geometry)
  • Beam tests slow, need improved turnround to test
    new ideas
  • RGC.s proposal (8/03) to use cold tests,
    building on groups expertise and existing h/w at
    DL/Lancaster
  • Emulate beam by short pulse along thin wire
    stretched along axis of pipe with spoilers inside
  • Microwave signal excites h.o. modes, then
    measure
  • Distortion of current pulse on leaving structure
    in time domain
  • Transmission parameter S21 as f(freq.)
  • Integration of impedances -gt loss factors
  • Study variation with displacement of wire from
    axis
  • Challenging, but benefits from strong
    collaboration within CI (CCLRC/Lancaster)

15
Project Plan
  • Set up cold test rig within CI (calibration,
    etc.)
  • SLAC recently using coaxial wire in freq. domain,
    measure loss factors in NLC accelerating
    structures (Baboi, Jones et al)
  • Do-able!
  • Benchmark against known spoiler profile, large
    taper angle, MAFIA etc. simulation
  • Carl has started to set up MAFIA simulations
  • Extend to alternative designs (e.g. multi-step or
    non-linear tapers), extract at least relative
    performance
  • Use cold test results to
  • Provide data to assist development of improved
    e.m. modelling in problematic regimes
  • Also within UK, build up expertise (non-LC
    applications)
  • (Within EUROTeV) collaborate with TU Darmstadt
  • Design one-off test proposal for direct beam
    measurement at SLAC
  • With FP6 funding, extend into material damage
    studies

16
TDR impedance measurements
  • Used for SRS components
  • SRS bunch length at injection 20ps
  • Fast step pulse ? gaussian via IFN, into vessel
  • Receive pulse on sample scope, waveform analysis
    gives loss parameter

From HillPugh, EPAC94
17
TDR setup
  • Carl B. examined mothballed h/w
  • Many conical launch cones (need rectangular)
  • Thin wire (250mm?)
  • Consider vertical plane operation to avoid sag
  • Critical issue
  • Pulse speed!
  • Time LC bunch sz
  • 1 ps
  • Quick survey, fastest available off the shelf
    pulse generator for TDR 10ps (Tek. 80E04
    modulePSPL module TDS8200 scope)
  • Options
  • build our own fast rise source
  • scale up spoilers (but x10?!)
  • alternative approaches?
  • Lancaster freq. domain h/w?

1.7m
From HillPugh, EPAC94
18
SLAC
  • Considering move of WF box to End Station A
  • Significant improvement in access, share time
    with Mike Woods tests in ESA
  • Access could allow 2 sets profiles/yr
  • PTs initial estimates, kick resolution
    comparable to sector 2 location, even with higher
    beam energy
  • Better single pulse resolution
  • Longer lever arms for BPMs
  • Timescale not fixed, but assuming no disasters
    crop up, expect to be done in current (US) FY
  • Will help us, but does not remove need for cold
    tests

19
Improved Predictions
Yokoya formula
  • Theoretical/Modelling
  • Zagorodnov, Weiland ECHO
  • Uniformly Stable Conformal approach very close
    to stable absolute error,
  • indep. of collim. length
  • Even in region close to origin
  • Applicable for non-linear, near-wall wakes.
  • Essential improvements, permit more reliable
    optimisation

transverse wake
20
From Zagorodnov and Weiland, TESLA Collab, Jan.
04
21
SummaryConclusion
  • Understanding wakefields important for LC
  • Calculations (Bane, Stupakov) and modelling
    (esp. near wall) much improved, e.g.
  • constant (absolute) error, indep. of mesh
    ECHO (Weiland, Zagorodnov)
  • More data will improve further
  • More reliable LC spoiler design
  • UK effort (Lancaster/CCLRC), starting programme
    of
  • cold tests
  • e.m. modelling
  • beam test
  • More ideas

Build up UK expertise
