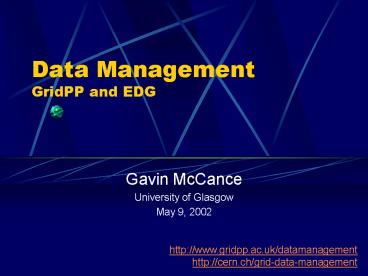

Data ManagementGridPP and EDG

• Gavin McCance
• University of Glasgow
• May 9, 2002

http//www.gridpp.ac.uk/datamanagement http//cern
.ch/grid-data-management
2
Overview

• Status of data management work
• Products delivered to 1.2
• GDMP 3.0
• Reptor replica manager
• Spitfire
• Optor grid simulation
• Whats currently available and future plans

3
WP2 Data Management
Work is done within the EDG WP2 team (based in
CERN)

• Replication
• Replica catalogue
• Replica manager
• Query Optimisation
• Grid replica optimisation
• Meta-data management
• Secure, transparent access to meta-data
• Service discovery

Direct UK involvement
4
General Status

• Deliverables on target
• Major software released for 1.2
• UK manpower based at Glasgow
• 2.5 RAs, Me, Will Bell, Paul Millar (50)
• 1 PhD student, David Cameron
• 1 more student to come in September

5
File Replication
File-1
LFN

• Requires replica catalogue or replica location
  service
• Keeps track of the mapping between logical file
  name and physical file names
• Requires replica manager or replica management
  service
• High level tool to actually do the replication
  and manage what files are being replicated

Paris
File-1
Chicago
Glasgow
File-1
File-1
6
File Replication

• Current replication functionality provided by
  GDMP 3.0 new for 1.2 release!
• Used for mirroring of storage elements
• Implements subscription based replication model
  with security, and updates the Globus replica
  catalogue

7
GDMP 3.0
Site A
Site B

• Site B subscribes to site As files
• A produces new file B will be notified of
  this
• B then starts transfer of new files from A
• Replica catalogue at B is updated to reflect
  new file replica.

8
GDMP 3.0

• Changes w.r.t. 2.
• New security model host certificates
• Server delegation, i.e. accounts on SE not
  necessarily required
• Client-only install possible
• Basic space management
• Stand-alone server option
• unsubscribe option

9
GDMP 3.0 status

• Final version of GDMP released for 1.2
• For future, GDMP will be absorbed into the
  Replica Manager Service which will offer richer
  functionality
• SRPM, RPM, tarball, User Guide, Quick Config for
  EDG SEs
• http//cmsdoc.cern.ch/cms/grid/

10
Replica Location Service

• Current Globus replica catalogue is LDAP based
• To be replaced with new GIGGLE framework
  Replica Location Service
• Joint EDG WP2 / Globus / PPDG project
• Trade-offs global consistency, space, query /
  update overhead, reliability

11
RLS model

• Reliable local state
• Relaxed global consistency
• Soft state updates to global index nodes permits
  graceful behaviour in face of network problems
• Secure access
• Implemented as web service

12
Hierarchical indexing. The higher- level RLI
contains pointers to lower-level RLIs or LRCs.
RLI
RLI Replica Location Index
LRC Local Replica Catalog
RLI
RLI
LRC
LRC
LRC
LRC
LRC
Storage Element
Storage Element
Storage Element
Storage Element
Storage Element
13
Scalable, reliable

• LFN Namespace partitioned among RLIs
• Redundant RLIs for reliability
• Lossy compression
• Higher level RLIs may lose accuracy about mappings

14
RLS status

• Currently Alpha for developers
• http//cern.ch/grid-data-management/replica-locati
  on-service/RLS.html
• New version will be progressively integrated with
  other replication software.
• Testbed deployment in September release

15
Replica Management Service

• Web Service under development (Reptor)
• Will absorb GDMP functionality and extend it
• Will use the Replica Location Service
• Two facets
• Core Replica Management API
• Optimisation API

16
Core Reptor API

• Similar to GDMP API
• registerEntry
• copyFile
• copyAndRegisterFile
• replicateFile
• deleteFile
• listReplicas

17
Interactions with SE

• Defined file types

18
RMS Current Status

• Testbed can use GDMP for 1.2
• Defined Reptor API currently wraps the Globus
  Replica Manager
• Will be developed progressively
• Full version on testbed in September
• Technical reports http//cern.ch/grid-data-manage
  ment/publications.html

19
Grid Query Optimisation

• Best place for a job?
• Joint WP1 / WP2 question
• Approach 2-Phase Optimisation
• Phase 1 Find suitable CE for job execution given
  distribution of files it will access
• Phase 2 Re-optimise file access during job
  execution (due to dynamic nature of Grid, the
  resource status changes over time)

20
Optimisation API

• initFilePrefetch(LFN, CE, protocol, fraction)
• cancelFilePrefetch(LFN, CE)
• getBestFile(LFN, protocol, fraction)
• getNetworkCosts(SE1, SE2, filesize, protocol)
  from WP7
• getIOCosts(SE, PFN) from WP5

21
Grid Replica Optimisation

• Controlled intelligent replication to optimise
  grid over the longer term
• Collect getBestFile requests
• Intelligence based on algorithms
• Test replication algorithms on data-centric grid
  simulator

22
Optor replica optimiser simulation

• Simulate prototype Grid
• Input site policies and experiment data files.
• Introduce replication algorithm
• Files are always replicated to the local storage.
• If necessary oldest files are deleted.

23
Optor first results
Even a basic replication algorithm significantly
reduces network traffic and program running times.
New economics-based algorithms under
investigation!
http//ppewww.ph.gla.ac.uk/ScotGRID/Optor
24
Meta-data Management

• Spitfire v1.1.0 delivered
• A grid enabled database service
• Grid enabled front end to any type of RDBMS
• Examples
• Grid meta-data replica catalogue, service
  registry
• Application meta-data experimental data
  catalogues, calibration data

25
V1.1.0 XSQL Spitfire

• CURRENT (v1.1.0) is based on XSQL templates on
  the server, e.g.

ltroleRead-only/gt ltquerygt SELECT FILENAME
FROM HFS_DATASET WHERE RNNO_at_run AND
TRIGGER_at_trig AND STATUS_at_stat lt/querygt
File URL http//filecat1.atlas.cern.ch/hfs/findD
ataSet.xsql
26
V1.1.0 Spitfire client

• Any HTTP client either your own app, or a
  web-browser form
• POST an HTML FORM to
• http//filecat1.atlas.cern.ch/hfs/findDataSet.xs
  ql with parameters run25555, trighighlumi,
  statgood

• The operation is made on the database, and the
  result send back to the client

27
Security Mechanism
Servlet Container
SSLServletSocketFactory
RDBMS
Trusted CAs
TrustManager
Revoked Certsrepository
Security Servlet
ConnectionPool
Authorization Module
Does user specify role?
Role repository
Translator Servlet
Role
Connectionmappings
Map role to connection id
28
V1.1.0

• V1.1.0 available for 1.2 release now!
• SRPM, RPM, tarball installation
• User / Admin / Quick Install guides
• http//cern.ch/hep-proj-spitfire

29
New spitfire client (dev)

• Users can use either this or v1.1.0 static (XSQL
  template based) functionality
• A database client API has been defined
• Will implement as grid service using standard web
  service technologies

30
Client side API to access remote database

• DB Admin
• Create(), Drop(), Alter() Table, Database
• DB Core functionality
• Insert(), Update(), Delete(), Select()
• DB Role admin
• Secure, role based authorisation
• DB Information
• Schema, Quotas, Disk space

31
Extra functionality

• To be developed..
• Distributed querying
• Replication of meta-data
• Automated expiration and cleanup
• Discussions with UK DBTF and GGF Database Group

32
Service Index

• How do I find a specific grid service?
• E.g. replica location server, image database,
  information service
• XML Service description
• What, where, attributes, how to contact.
• Scalable architectures for querying this
  developed
• Service index web service
• W. Hoscheks thesis and paper (WP2_at_CERN)
• API developed

33
More Info

• More information available at

http//www.gridpp.ac.uk/datamanagement http//cer
n.ch/grid-data-management
