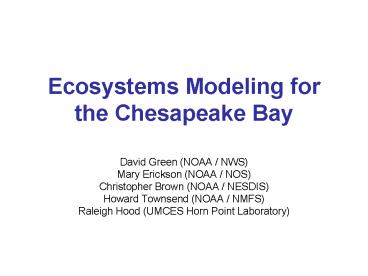

Ecosystems Modeling for the Chesapeake Bay

1
Ecosystems Modeling for the Chesapeake Bay

• David Green (NOAA / NWS)
• Mary Erickson (NOAA / NOS)
• Christopher Brown (NOAA / NESDIS)
• Howard Townsend (NOAA / NMFS)
• Raleigh Hood (UMCES Horn Point Laboratory)

2
Ecological Forecasting in Chesapeake Bay Current
Capabilities

• Generate daily nowcasts and 3-day forecasts of
  sea nettles, the harmful algal bloom Karlodinium
  veneficum, and Vibrio cholerae in Chesapeake Bay
• Predictions created by identify the locations
  where ambient conditions coincide with the
  preferred environment ( habitat) of the organism
• Disseminate prototype predictions on WWW

Predicted chance of encountering sea nettle, C.
quinquecirrha, on August 17, 2007
Predicted relative abundance of Karlodinium
veneficum on August 17, 2007
3
Sea Nettle Forecasting Procedure

• Estimate current surface salinity and temperature
  fields
• Georeference salinity and SST fields
• Apply habitat model
• Generate image illustrating the probable
  distribution of sea nettles
• Disseminate to users on WWW

4
Transitioning Nettle Forecasts to Operations at
NWS

• Vision
• Use NOS-supplied Chesapeake Bay Operational
  Forecast System model
• Disseminate products through NWS
• Follow Operations and Service Improvement Process
• Assembling Integrated Working Team
• Writing Statement of Need
• Meet with Research Innovation Team

5
Future Plans Chesapeake Bay Forecast System

• Objective
• Develop a fully integrated, ecosystem model of
  the Chesapeake Bay and its watershed that
  assimilates in-situ and satellite-derived data by
  adapting and coupling existing models
• Consists of a coupled air / land / coastal ocean
  modeling system
• System Components
• Air Atmosphere - Weather Research and
  Forecasting (WRF) Model
• Land Land - Soil and Water Assessment Tool
  (SWAT)
• Coastal Ocean Regional Ocean Modeling System
  (ROMS)

6
Variables of Interest

• Temperature
• Salinity
• Current velocities
• Chlorophyll concentration
• Nutrient concentrations
• Dissolved oxygen concentration
• Biomass estimates and taxonomic information of
  phyto- and zooplankton

7
Biogeochemical and Ecological Forecasting

• We are coupling a simple biogeochemical/ecosystem
  model to ChesROMS
• This model will generate mechanistic
  biogeochemical/ecological forecasts

Biogeochemical/ecological model
ChesROMS physical model
8
Biogeochemical and Ecological Forecasting

• Prognostic State Variables
• chlorophyll
• Nitrate
• Ammonium
• DON
• Oxygen
• Detritus
• Zooplankton
• Biogeochemical/ecological forecasts
• Additional forcing variables for empirical
  habitat models

ChesROMS modeled oxygen
9
Migrating to the NOAA Chesapeake ROMS

• We propose to migrate our ecological forecasting
  models to CBOFS2
• Higher resolution allows better bathymetric
  representation
• This improves simulation of physical processes
  (particularly salinity)
• This provides more accurate forcing for our
  empirical and mechanistic models

10
The Need for High Performance Computing

• Our model development efforts (spin up, test and
  validation runs) are currently constrained by our
  computational resources
• Spin up, test and validation runs using CBOFS2
  will require much higher performance computing
  capabilities
• Computational demand of running CBOFS2
  operationally with a coupled biogeochemical/ecolog
  ical forecasting model may also require HPC

Microway 12 node (24 processor) cluster at Horn
Point Laboratory currently used for ChesROMS spin
up, test and validation runs
11
Ecological Modeling in Fisheries

• Traditional View
• Focus on Population dynamics
• Surveys and catch monitoring to understand fish
  biology and fishers
• Goal Population Status Assessment

• Ecosystem-based View
• Broad view on how multiple factors affect
  fisheries and interact
• Research on fishes, their food, and biotic and
  physical environment
• Forecasting could be important for Marine Spatial
  Planning

H. Townsend, NCBO
12
Moving Towards Forecasting in Fisheries

• Several Nascent Forecasting attempts
• Coho Salmon return for spawning in Columbia river
• NEMURO.FISH for global climate change simulation
  projects
• Marine Mammal Density Forecasts

H. Townsend, NCBO
13
What ecological forecasts for fisheries can we
create in the Chesapeake?

• Forecast disease microbe density in shellfish
  beds and aquaculture farms
• Climate change simulation projections for
  commercially and recreationally important fish
• Forecast recruitment of major fisheries species

H. Townsend, NCBO
14
What do we need for a fisheries ecological
forecasts in the Chesapeake?

• Operational backbone modeling suite to create
  forecasts of environmental variables
• Research and monitoring to provide data for
  developing and validating forecast models
  (statistical and process models to overlay on
  environmental variable forecast
• Forecast office that works with regional
  management agencies and structure (e.g.,
  Chesapeake Bay Program) to ensure utility of and
  support for forecast

H. Townsend, NCBO
15
Extra Slides
16
Statistical Mechanistic Approach
V1
Prediction
Using real-time and forecast data acquired and
derived from a variety of sources and techniques
to drive multi-variate empirical habitat models
that predict the probability of the target
species.
V2
17
ROMS
Precipitation
Solar Radiation
Wind
Heat Flux
Sediment Transport
Atmospheric Deposition and Ventilation
Currents
Zooplankton
Temperature, Salinity, O2, Light
Phytoplankton
Nutrients (N,P)
Tidal Harmonics
Sediment Resuspension
Particle Sinking Remineralization

• Conditions at Bays Mouth
• Near-real time water level
• Climatological vertical profiles of temperature,
  salinity, and NO3, PO4, O2 concentrations

18
Chesapeake Bay Forecast System

• Objective Develop a fully integrated, ecological
  model of the Chesapeake Bay and its watershed
  that assimilates in-situ and satellite-derived
  data by adapting and coupling existing models
• Purpose
• Near-Real Time Applications Nowcasting and
  forecasting of marine organisms, ocean health,
  and coastal conditions
• Climate Research Estimating effect of climate
  change on the health of coastal marine ecosystems
• Partners ESSIC, UM, UMCES, NOAA, and others

SeaWiFS true-color image of Mid-Atlantic
Region from April 12, 1998. Image provided by
the SeaWiFS Project, NASA/Goddard Space Flight
Center and ORBIMAGE
