Title: Enzymes:


1

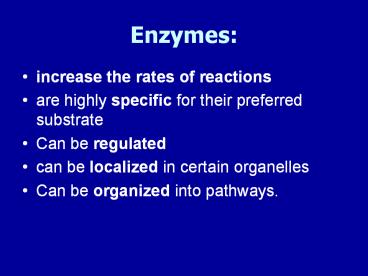

Enzymes
  • increase the rates of reactions
  • are highly specific for their preferred substrate
  • Can be regulated
  • can be localized in certain organelles
  • Can be organized into pathways.

2
Rate Enhancement
Enzyme Non-enzymic t1/2 (yr) Rate Enhancement
OMP decarboxylase 78 000 000 1.4 X 1017
Adenosine deaminase 120 2.1 X 1012
Cytidine deaminase 69 1.2 X 1012
Carbonic anhydrase 5 sec 7.7 X 106
3
The Thermodynamics of a Reaction
Reaction performed Under standard
conditions 25oC and 1 atmosphere air pressure
Free Energy (G)
Substrate (1 M)
Progress of the reaction
4
The Thermodynamics of a Reaction
Reaction performed Under standard
conditions 25oC and 1 atmosphere air pressure
Free Energy (G)
Substrate (1 M)
DG0
Product (1 M)
Progress of the reaction
5
The Thermodynamics of a Reaction
Reaction performed Under standard
conditions 25oC and 1 atmosphere air pressure
Free Energy (G)
A negative DG0 Makes the reaction Thermodynamicall
y favourable
Substrate (1 M)
DG0
Product (1 M)
Progress of the reaction
6
The Thermodynamics of a Reaction
Reaction performed Under standard
conditions 25oC and 1 atmosphere air pressure
Free Energy (G)
The DGo is related to the Keq. The exact
relationship is as follows DGo -RTlnKeq
Substrate (1 M)
DG0
Product (1 M)
Progress of the reaction
7
The Kinetics of a Reaction
Free Energy (G)
Substrate (1 M)
DG0
Product (1 M)
Progress of the reaction
8
The Kinetics of a Reaction
Activation Energy DG
Free Energy (G)
Substrate (1 M)
DG0
Product (1 M)
Progress of the reaction
9
The Kinetics of a Reaction
The enzyme lowers the activation energy DG
Free Energy (G)
Substrate (1 M)
DG0
Product (1 M)
Progress of the reaction
10
The Kinetics of a Reaction
The enzyme lowers the activation energy DG DG
Free Energy (G)
Substrate (1 M)
DG0
Product (1 M)
Progress of the reaction
11
Recapping
  • Enzymes CANNOT change the thermodynamics of a
    reaction DGo or Keq
  • They CANNOT change the direction of a reaction or
    the position of the equilibrium.
  • They DO increase the rate of the reaction by
    lowering the activation energy.

12
Reaction Rate Measurements
  • The rate of a reaction is measured as the moles
    of product produced per unit time.
  • The most user friendly units are mmol/min.
  • The term ASSAY is used in Biochemistry to
    describe a reaction that measures something
    enzyme activity or the concentration of a
    metabolite.

13
Measuring the rate of a reaction
product
Time (min)
14
Measuring the rate of a reaction
The initial linear rate Is used for all enzyme
kinetics measurements
product
dP/dt
Time (min)
15
Calculating Velocity
  • Using the Alkaline Phosphatase Experiment,
    suppose you had a change in Absorbance per min
    (DA/min) of 0.3..
  • Step 1 Convert to Dconcentration/min by dividing
    the DA/min by the extinction coefficient (e), say
    15 mM-1cm-1 giving Dconc/min 0.02 mM/min
  • Step 2 Convert to nmoles/min in the assay. The
    assay is 1 mL so 0.02 mM/min 0.02 mmol/mL/min
    20 nmol/min/assay.

16
The Effect of substrate
on a simple first order reaction without an enzyme
Slope k, the rate constant
Reaction rate
First order means the reaction rate is dependent
on the concentration of only one reactant.
substrate
17
The Effect of substrate
on a simple first order reaction with an enzyme
All the available enzyme is saturated with
substrate
Reaction rate
substrate
18
The Effect of substrate
on a simple first order reaction with an enzyme
Vmax
Reaction rate
The KM is the S at ½Vmax
substrate
KM
19
The Effect of substrate
on a simple first order reaction with an enzyme
Vmax
The KM describes the shape of the curve
Reaction rate
The KM is the S at ½Vmax
substrate
KM
20
Vmax What is the maximum speed the car can go at?
21
KM how much petrol do you need to travel at 60
kph?
Maybe the little car is more efficient?
22
The Lineweaver-Burk Plot
A double reciprocal plot used to find Vmax and KM
1/Vmax
1/v
1/S
-1/KM
23
The KM
Vmax
Two different isoenzymes with different KMs for
the same substrate. Which has the higher affinity
for the substrate?
Reaction rate
KM
KM
substrate
24
The KM
Vmax
Higher affinity because it takes less substrate
to attain Vmax.
Reaction rate
KM
KM
substrate
25
The KM
Vmax
Higher affinity means a lower KM
Reaction rate
KM
KM
substrate
26
The Progress of the Reaction in more detail.
E S
ES
EX
E P
EX
Free Energy (G)
DG
S
DG0
P E
ES
Progress of the reaction
27
The KM and the Vmax
E S
ES
E P
KM
Kcat Vmax/E
Measures the affinity of the enzyme and substrate
Measures how fast the reaction can go
28
The KM
In most cases
OR
Rate of dissociation
KM
Rate of association
29
The Significance of KM
  • The S which gives ½ Vmax
  • A measure of the affinity the enzyme has for the
    substrate
  • A low KM means high affinity and vice versa a
    high KM means low affinity
  • The KM is independent of the E

30
What is Vmax?
  • Vmax is measured in Units (U).
  • 1 Unit (U) is the amount of enzyme required to
    release 1 mmole of product (P) in 1 minute under
    Vmax conditions.
  • You measure the rate of the reaction over a short
    time (min).

31
Vmax and E
The Vmax can be used practically to measure the
amount of active enzyme in a sample e.g. serum.
You will use this in the gene expression prac.
Vmax
enzyme
32
kcat
  • The number of molecules of substrate converted to
    product by 1 molecule of enzyme in 1 second.
  • This is equivalent to the mmoles of product
    produced per sec per mmole of enzyme OR the
    nmoles P/sec/nmol E
  • Units are seconds-1

33
Calculating kcat
  • Begin with the Vmax
  • In the Alkaline Phosphatase experiment the Vmax
    is usually around 30 nmol/min.
  • This works out to 0.5 nmoles P/sec (/60)
  • Now all we need to know is how many nmoles of
    Enzyme produced this rate.
  • To calculate this we need to know how much enzyme
    we added to the assay and the molecular weight of
    the enzyme.

34
Calculating kcat
  • In the Alkaline Phosphatase experiment you added
    20 ?L of enzyme solution containing 50 ?g/mL
    enzyme. This means we have 2050 ng 1 ?g.
  • So now our Vmax rate is
  • 0.5 nmoles P/sec/1 000 ng E

35
Calculating kcat
  • The Vmax rate is
  • 0.5 nmoles P/sec/1 000 ng E
  • If the molecular weight of Alkaline Phosphatase
    is 100,000 then there is 1/100 (1 000/100 000)
    of a nmole of Enzyme in the assay.

36
Calculating kcat
  • If 1/100 th of a nmole of Enzyme catalyses the
    formation of 0.5 nmoles of product in 1 second
    then.
  • 1 nmole of enzyme will catalyse 0.5100 50
    nmoles of product in 1 second
  • The Kcat 50 nmol sec-1nmol-1
  • The Kcat 50 sec-1

37
The Steady State Assumption
  • Used to explain the shape of the hyperbola
  • A level of ES, ES, is established very early in
    the reaction
  • This ES level is dependent on the S
  • This ES remains constant throughout the
    reaction.

38
The Steady State Assumption
Product
Substrate
39
The Steady State Assumption
40
The Michaelis Menten Plot
Vmax
Reaction rate
The KM is the S at ½Vmax
substrate
KM
41
Prac Results Alkaline Phosphatase
42
Prac ResultsAlkaline Phosphatase
43
(No Transcript)
44
The Michaelis Menten Relationship
  • The equation below describes the hyperbola.
  • Velocity Vmax S
  • (S Km)

45
Deriving the Michaelis Menten Relationship
  • The steady state assumption means that the rate
    of formation of ES the rate of breakdown of ES

46
Deriving the Michaelis Menten Relationship
  • Mathematically the steady state assumption means
    that the rate of formation of ES the rate of
    breakdown of ES.
  • Rate of formation k1ES
  • Rate of breakdown k-1ES k2ES
  • Therefore k1ES k-1ES k2ES

47
Deriving the Michaelis Menten Relationship
  • k1ES k-1ES k2ES
  • Simplifying k1ES ES (k-1 k2)
  • Now KM (k-1 k2)/ k1
  • So ES ES KM

48
Deriving the Michaelis Menten Relationship
  • ES ES KM
  • Now the Total amount of Enzyme ET Efree ES
  • ?E Efree ET ES
  • ET ES ES KM/S
  • ET ES KM/S ES

49
Deriving the Michaelis Menten Relationship
  • ET ES KM/S ES
  • Now Vmax ETk2 and velocity (v) ESk2
  • So multiplying both sides by k2
  • ET k2 ES k2(KM/S 1)
  • Vmax v (KM/S 1)

50
Deriving the Michaelis Menten Relationship
  • Vmax v (KMS)/S )
  • Cross multiplying 1/v (KM S)
  • Inverting V Vmax S
  • (KMS)

VmaxS
51
kcat/KM
  • This measurement reflects the efficiency of the
    enzyme.
  • What we really want to know is how often ES goes
    to E P.
  • An efficient enzyme will send all the ES to E
    P.
  • An inefficient enzyme will send some back to E
    S

52
kcat/KM
  • Kcat is k2 and KM (k-1 k2)/k1
  • So kcat/KM k2 k1 / (k-1 k2)
  • Now if the enzyme is really efficient k-1 will be
    really small (very little ES going back to E S)
  • kcat/KM approaches k1. This is limited by the
    rate of diffusion.

53
Inhibitors
  • Inhibitors can be irreversible or reversible.
  • Irreversible inhibitors usually covalently bind
    to the enzyme they are often slower to act (time
    dependent inhibition) and present as
    non-competitive inhibition. They cannot be
    dialysed out or diluted out.
  • Reversible inhibitors competitive,
    non-competitive, mixed, uncompetitive

54
The Competitive Inhibitor
  • The inhibitor binds to the same site on the
    enzyme as the substrate
  • Thus it competes with the substrate
  • It eventually reaches Vmax
  • It needs more substrate to do it ? Km increases

55
(No Transcript)
56
The Effect of a Competitive Inhibitor
Vmax
The competitive Inhibitor Is in yellow
Reaction rate
substrate
KM
57
The Competitive Inhibitor
1/v
A Competitive Inhibitor
No Inhibitor
1/Vmax
1/S
-1/KM
58
The Competitive Inhibitor
Vmax unchanged Km increases -1/Km increases
1/v
A Competitive Inhibitor
No Inhibitor
1/Vmax
1/S
-1/KM
59
The Non-Competitive Inhibitor
  • The inhibitor binds to a site other than the
    substrate binding site
  • Both I and S can bind to the enzyme
    simultaneously
  • It never reaches Vmax
  • The Km does not change
  • It is like adding less enzyme to an assay

60
(No Transcript)
61
The Effect of a Non-competitive Inhibitor
Vmax
Reaction rate
The non-competitive Inhibitor Is in yellow
substrate
KM
62
The Non-competitive Inhibitor
A Non-competitive Inhibitor
1/v
No Inhibitor
1/Vmax
1/S
-1/KM
63
The Non-competitive Inhibitor
  • Vmax decreases
  • 1/Vmax increases
  • Km unchanged

A Non-competitive Inhibitor
1/v
No Inhibitor
1/Vmax
1/S
-1/KM
64
The mixed Non-Competitive Inhibitor
  • The inhibitor binds to a site other than the
    substrate binding site
  • But the binding of the substrate to the enzyme
    alters the affinity of the inhibitor for the
    enzyme
  • Both Km and Vmax change
  • The most common type of inhibition

65
Ki ? Ki
66
The mixed non-competitive Inhibitor
A mixed non-competitive Inhibitor
1/v
No Inhibitor
1/Vmax
1/S
-1/KM
67
The Uncompetitive Inhibitor
  • The inhibitor binds to the ES complex only
  • Both Km and Vmax decrease
  • Vmax/Km unchanged

68
(No Transcript)
69
The Uncompetitive Inhibitor
  • Vmax decreases
  • Km decreases
  • Vmax/Km unchanged

An uncompetitive Inhibitor
1/v
No Inhibitor
1/Vmax
1/S
-1/KM
70
Regulatory Enzymes
  • Allosteric regulation the binding of a small
    molecule (ligand) distant from the active site,
  • Covalent modification, often phosphorylation of
    serine, threonine or tyrosine residues,

71
Regulatory Enzymes
  • Changes in the amount of enzyme either by changes
    in gene expression, (often at the level of
    transcription) or protein turnover,
  • Substrate availability,
  • Inhibition (competitive etc),
  • Activation of zymogens or pro-enzymes.

72
Allosteric Regulation
73
Allosteric Enzymes
74
Allosteric Regulation
75
Covalent Modification
  • Usually phosphorylation
  • Residues serine, threonine or tyrosine
  • The example of glycogen synthase
  • Often used in cell signalling
  • Insulin signalling

76
Zymogen Activation
  • Often used with proteases
  • To prevent random destruction of the cell
  • Produced as an inactive form
  • A small portion cleaved off to activate
  • Chymotrypsinogen ? chymotrypsin
  • Trypsinogen ? trypsin
Write a Comment
User Comments (0)
About PowerShow.com
