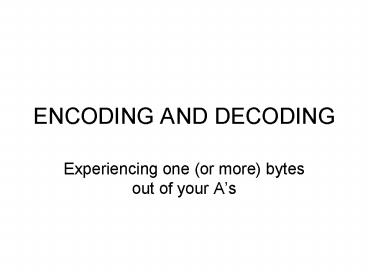

ENCODING AND DECODING

1
ENCODING AND DECODING

• Experiencing one (or more) bytes out of your As

2
Overview

• Its not your fathers character set
• 8 bit characters
• ASCII
• The rest of the world wakes up to computers
• Unicode
• Character codes
• Different flavors
• Encoding and Decoding classes
• Example

3
The Good Old Days

• Focus on unaccented, English letters
• Every letter, number, capital, etc
• Represented by codes 0-127
• Space, 32 A, 65 a, 97
• Used 7 bits, one bit free on most computers
• Wordstar and the 8th bit
• Below 32 control bits ? 7, beep 12, formfeed

4
(No Transcript)
5
8th bit, values 128-255

• Everybody had their own ideas
• OEM Character sets
• IBM-PC -gt graphics (horizontal bars, vertical
  bars, bars with dangles, etc.)
• Outside U.S. ? different languages
• Code 130

6
8th bit, values 128-255

• Everybody had their own ideas
• OEM Character sets
• IBM-PC -gt graphics (horizontal bars, vertical
  bars, bars with dangles, etc.)
• Outside U.S. ? different languages
• Code 130

7
8th bit, values 128-255

• Everybody had their own ideas
• OEM Character sets
• IBM-PC -gt graphics (horizontal bars, vertical
  bars, bars with dangles, etc.)
• Outside U.S. ? different languages
• Code 130 é in US, Gimel ? character in Israel
• Difficult to exchange documents
• Code pages regional definition of bit values
  128-255
• Israel Code page 862
• Greek Code page 737
• ISO/ANSI code pages
• Asia Alphabets had thousands of characters
• No way to store in one byte (8 bits)

8
Unicode

• Not a 16-bit code
• A new way of thinking about characters
• Old way
• Character A maps to memory or disk bits
• A-gt 0100 0001
• Unicode way
• Each letter in every alphabet maps to a code
  point
• Abstract concept
• A is Platonic form just floats out there
• A -gt U0639 ? code point

9
Unicode

• Hello -gt U0048 U0065 U006C U006C U006F
• Storing in 2 bytes each
• 0048 0065 006C 006C 006F (big endian)
• Or 4800 6500 6C00 6C00 6F00 (little endian)
• Need to have a Byte Order Mark (BOM) at beginning
  of stream
• UTF8 coding system
• Stores Unicode points (magic numbers) as 8 bit
  bytes
• Values 0-127 go into byte 1
• Values 128 go into bytes 2, 3, etc.
• For characters up to 127, UTF8 looks just like
  ASCII

10
UNICODE Encodings

• UTF-8
• UTF-16 characters stored in 2 byte, 16-bit
  (halfword) sequences also called UTF-2
• UTF-32 characters stored in 4byte, 32 bit
  sequences
• UTF-7 forces a zero in high order bit -
  firewalls
• Ascii Encoding everything above 7 bits is
  dropped

11
Definitions

• .NET uses UTF-16 encoding internally to store
  text
• Encoding
• transfers a set of Unicode characters into a
  sequence of bytes
• Send a string to a file or a network stream
• Decoding
• transfers a sequence of bytes into a set of
  Unicode characters
• Read a string from a file or a network stream
• StreamReader, StreamWriter default to UTF-8

12
Encoding/Decoding Classes

• UTF32Encoding class
• Convert characters to and from UTF-32 encoding
• UnicodeEncoding class
• Convert characters to and from UTF-16 encoding
• UTF8Encoding class to convert to and from UTF-8
  encoding 1, 2, 3, or 4 bytes per char
• ASCIIEncoding class to convert to and from ASCII
  Encoding drops all values gt 127
• System.Text.Encoding supports a wide range of
  ANSI/ISO encodings

13
Convert a string into a stream of encoded bytes

• Get an encoding object
• Encoding e Encoding.GetEncoding(Korean)
• 2. use the encoding objects GetBytes() method
  to convert a string into its byte representation
• byte encoded
• encoded e.GetBytes(Im gonna be Korean!)
• Demo D\_Framework 2.0 Training
  Kits\70-536\Chapter 03\EncodingDemo

14
Write a file in encoded form
FileStream fs new FileStream("text.txt",
FileMode.OpenOrCreate) ... StreamWriter t
new StreamWriter (fs, Encoding.UTF8)
t. Write("This is in UTF8")
Read an encoded file
FileStream fs new FileStream("text.txt",
FileMode.Open) ... StreamReader t new
StreamReader(fs, Encoding.UTF8) String s
t.ReadLine()

15
Summary

• ASCII is one of oldest encoding standards.
• UNICODE provides multilingual support
• System.Text.Encoding has static methods for
  encoding and decoding text.
• Use an overloaded Stream constructor that accepts
  an encoding object when writing a file.
• Not necessary to specify Encoding object when
  reading, will default.

16
References

• www.unicode.org
• Unicode and .Net what does .NET Provide?
  http//www.developerfusion.co.uk/show/4710/3/
• Hello Unicode, Goodbye ASCII http//www.nicecleane
  xample.com/ViewArticle.aspx?TIDunicode_encoding
• The Absolute Minimum Every Software Developer
  Absolutely, Positively Must Know About Unicode
  and Character Sets (No Excuses!)
  http//www.joelonsoftware.com/articles/Unicode.htm
  l
