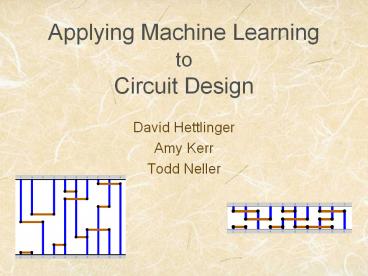

Applying Machine Learning to Circuit Design

1
Applying Machine Learning to Circuit Design

• David Hettlinger
• Amy Kerr
• Todd Neller

2
Channel Routing Problems (CRPs)

• Chip Design
• Each silicon wafer contains hundreds of chips.
• Chip components, specifically transistors, are
  etched into the silicon.
• Often groups of components need to be wired
  together.

3
A Simple CRP Instance
Silicon Channel
4
One Possible Solution
Goal Decrease the number of horizontal tracks.
5
CRPs Constraints

• Horizontal Horizontal segments cannot overlap.
• Vertical If subnet x has a pin at the top of
  column a, and subnet y has a pin at the bottom of
  column a, then subnet x must be placed above
  subnet y.

6
Simulated Annealing (SA)

• Background
• Annealing came from a process blacksmiths use.
• Metal is heated then cooled slowly to make it as
  malleable as possible.
• Statistical physicists developed SA.

7
SA Problem Components

• Definable states The current configuration
  (state) of a problem instance must be
  describable.
• New state generation A way to generate new
  states.
• Energy function A formula for the relative
  desirability of a given state.
• Temperature and annealing schedule A
  temperature value and a function for changing it
  over time.

8
A Visual Example
Local Minimum
Global Minimum
9
Applying Simulated Annealing to CRPs

• Definable states The partitioning of subnets
  into groups.
• New states generation Change the grouping of
  the subnets.
• Energy function The number of horizontal tracks
  needed to implement a given partition.
• Temperature and annealing schedule Start the
  temperature just high enough to accept any new
  configuration. As for the annealing schedule,
  reinforcement learning can help find that.

10
A Simple CRP Example
Start State of a CRP Instance
Partition Graph of this State
11
A Simple CRP Example
States 1 and 2
Partition Graphs of theses States
12
A Simple CRP Example
States 1, 2 and 3
Partition Graphs of these States
13
A Simple CRP Example
Starting through Ending States
Partition Graphs of these States
14
A Generated CRP Instance
Start State
A Solution
12 Horizontal Tracks
15 Horizontal Tracks
15
SA Problem Components

• Definable states The current configuration
  (state) of a problem instance must be
  describable.
• New state generation A way to generate new
  states.
• Energy function A formula for the relative
  desirability of a given state.
• Temperature and annealing schedule A
  temperature value and a function for changing it
  over time.

16
The Drunken Topographer

• Imagine an extremely hilly landscape with many
  hills and valleys high and low
• Goal find lowest spot
• Means airlift a drunk!
• Starts at random spot
• Staggers randomly
• More tired ? rejects more uphill steps

17
Super-Drunks, Dead-Drunks, and Those In-Between

• The Super-Drunk never tires
• Never rejects uphill steps
• How well will the Super-Drunk search?
• The Dead-Drunk is absolutely tired
• Always rejects uphill steps
• How well will the Dead-Drunk search?
• Now imagine a drunk that starts in fine condition
  and very gradually tires.

18
Traveling Salesman Problem

• Have to travel a circuit around n cities (n
  400)
• Different costs to travel between different
  cities (assume cost distance)
• State ordering of cities (gt 8?10865 orderings
  for 400 cities)
• Energy cost of all travel
• Step select a portion of the circuit and reverse
  the ordering

19
Determining the Annealing Schedule

• The schedule of the cooling is critical

• Determining this schedule by hand takes days

• Takes a computer mere hours to compute!

20
Reinforcement Learning Example

• Goal Ace a class

• Need to learn how long we need to study to get an
  A

• Trial Error study for various amts. of time

• Short term reward exam grades, amt free time

• Long term rewards

• Grade affects future opportunities
• i.e. whether we can slack off later

• Our semester grades (goal is to max. this!)

21
Reinforcement Learning (RL)

• Learns completely by trial error

• No preprogrammed knowledge

• No human supervision/mentorship

• Receives rewards for each action

1. Immediate reward (numerical)
2. Delayed reward actions affect future
situations opportunities for future rewards

• Goal maximize long-term numerical reward

22
RL The Details
Agent
Sensation
Reward
Action
Environment

• Agent the learner (i.e. the student)

• Environment everything the agent cannot
  completely control.
• Includes reward functions (i.e. grade scale)
• Descript. of current state (i.e. current average)
• Call this description a Sensation

23
RL Value Functions

• Use immediate delayed rewards to evaluate
  desirability of actions/learn task

• Value function of a state-action pair, Q(s,a)

• The expected reward for taking action a from
  state s

• Includes immediate delayed reward

• Strategy Most of the time, choose the action
  that corresponds to the maximal Q(s,a) value for
  the state.
• Remember, must explore sometimes!

24
RL Q-Functions

• We must learn Q(s,a)

• To start, set Q(s,a) 0 for all s, a.

• Agent tries various actions.

• Each time experiences action a from state s,
  updates estimate of Q(s,a) towards the actual
  reward experienced

• If usually pick the action a that has the
  maximal Q-value for that state

? max. total reward ? optimal performance
25
Example Grid World

• Can always move up, down, right, left
• Board wraps around

Goal

Start

• Get to goal in as few steps as
• possible.
• Reward ?
• Meaning of Q?

• What are the optimal paths?

26
Applying RL to CRP

• Can learn an approx. optimal annealing schedule
  using RL

• Reward function

• Rewarded for reaching better configuration

• Penalized for the amount of time used to find
• this better configuration

? Computer learns to find an approx optimal
annealing schedule in a time-efficient manner.

• Program self-terminates!

27
Conclusions

• CRP is an interesting but complex problem

• Simulated Annealing helps us solve CRPs

• Simulated Annealing requires annealing schedule
  (how to change temperature over time)

• Reinforcement learning which is just learning
  through trial error lets a computer learn an
  annealing schedule in hours instead of days.

28
Any Questions?
