Geotechnical Engineering

1

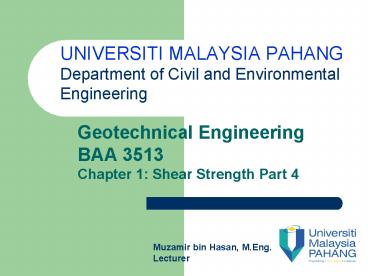

UNIVERSITI MALAYSIA PAHANG Department of Civil
and Environmental Engineering

• Geotechnical Engineering
• BAA 3513
• Chapter 1 Shear Strength Part 4

Muzamir bin Hasan, M.Eng. Lecturer
2
The Triaxial Shear Test

• One of the most reliable methods to determine
  shear strength parameters.
• Used widely for research and conventional
  testing.
• Soil specimen about 38 mm in diameter and 76 mm
  long.
• Specimen is subjected to confining pressure by
  compression of fluid in chamber (Note sometimes
  air is used as a compression medium)
• To cause shear failure in the specimen, one must
  apply axial stress through a vertical loading ram.

3
The Triaxial Shear Test

• This stress can be applied in one of two ways
• Application of dead weights or hydraulic pressure
  in equal increments until the specimen falls.
• Application of axial deformation at a constant
  rate by means of a geared or hydraulic loading
  press. This is a strain-controlled test.

4
The Triaxial Shear Test
5
The Triaxial Shear Test
6
The Triaxial Shear Test
7
(No Transcript)
8
The Triaxial Shear Test
9
The Triaxial Shear Test
10
The Triaxial Shear Test
11
(No Transcript)
12
(No Transcript)
13
The Triaxial Shear Test
14
Consolidated-Drained (CD) Triaxial Test

• The CD test is started by increasing the
  confining pressure s3 in all the triaxial
  chamber.
• As s3 is increased, the pore water pressure u
  also increases (provided drainage is prevented).
• This increase in u is usually expressed as the
  Skempton parameter B,

15
Consolidated-Drained (CD) Triaxial Test

• For saturated soft soils, B is approximately
  equal to 1 for saturated stiff soils B lt 1.
• As drainage is allowed, the excess pore pressure
  is dissipated and consolidation occurs.
• In time, uc becomes zero.

16
Consolidated-Drained (CD) Triaxial Test
17
Consolidated-Drained (CD) Triaxial Test
18
(No Transcript)
19
(No Transcript)
20
(No Transcript)
21
Inclination of the Plane of Failure Due to Shear
22
Inclination of the Plane of Failure Due to Shear
23
Inclination of the Plane of Failure Due to Shear
24
Example 7.1 (page 186)

• A consolidated-drained triaxial test was
  conducted on a normally consolidated clay. The
  results are as follows
• s3 276 kN/m2
• (?sd)f 276 kN/m2
• Determine
• Angle of friction, ø
• Angle ? that the failure plane makes with the
  major principal plane
• Normal stress, s, and shear stress, ?f, on the
  failure plane

25
Solution

• a.

26
Solution

• b.

27
Solution

• c.

28
Example 7.2 (page 188)

• For the triaxial test described in 7.1,
• Determine the effective normal stress on the
  plane of maximum shear stress.
• Explain why the shear failure occurred along a
  plane with ? 54.73º and not along the plane of
  maximum shear stress of maximum shear stress.

29
Solution
a. Maximum shear stress occur on the plane with ?
45
30
Solution
b. The shear stress that will cause failure along
the plane with ? 45 is
However, the shear stress induced on that plane is
Because ?138 kN/m2 lt 146.2 kN/m2 ?f, the
specimen did not fail along the plane of maximum
stress
