Karen Jensen

1

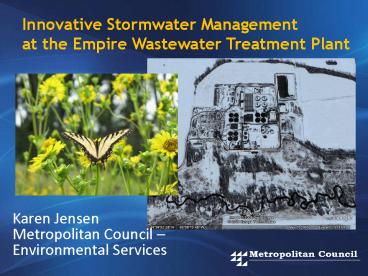

Innovative Stormwater Management at the Empire
Wastewater Treatment Plant

• Karen Jensen
• Metropolitan Council
• Environmental Services

2
Acknowledgements

• Pat Oates, Cammy Johnson, Rene Heflin, Linda
  Henning, Bill Moore, Jim Roth - MCES
• Friends of the Mississippi Karen Schik
• Minnesota DNR
• Dakota SWCD
• Washington Conservation District
• Applied Ecological Services Matt Lasch
• Greg Pates

3
Note The Met Council does not yet have
monitored evidence proving the efficacy of
LID practices. This presentation includes
anecdotal and observational evidence only.
Future monitoring is planned.
4
Metropolitan Council

• Transit system Metro Transit
• Wastewater system - MCES
• Metropolitan Housing Redevelopment Authority
• Livable Communities
• Comprehensive planning

17-member Policy Board 16 members representing
equal population districts and Chair
5
MCES Wastewater System

• 7 treatment plants
• 610 miles of regional interceptors
• Estimated 3 billion-4 billion replacement value
• 358 million gallons per day treatment capacity
• 105 communities connected

6
Trout Facts (Mn DNR)
7
Empire WWTP Overview

• Constructed in 1979 with capacity of 3 mgd
  located in Empire Township
• Total land area 480 acres Process area 30
  acres
• Receives influent from Lakeville, Apple Valley,
  Farmington and surrounding areas
• from approx. population of 175,000
• Plant expansion (2007) capacity from 12 mgd to
  24 mgd Potential 48 mgd
• Includes septage receiving area, bio-P, anaerobic
  digestion, biosolids are landspread on MCES land
  and nearby farmland
• Effluent diverted in 2008 12-mile pipe to
  Mississippi River
• Soil sand, sandy loam, silty loam

8
Empire Stormwater Planning
9
Empire Innovative Stormwater Goals

• Meet (or exceed) Proposed Requirements for New
  MPCA
• NPDES Industrial Stormwater Permit
• Infiltrate at Minimum 2 Over Entire Site
• Test Operation, Performance, and Maintenance of
  LID Stormwater Practices
• at a Continuously Operating Industrial Facility
• Select Practices Particularly Appropriate to
  Trout Stream Watershed
• Select Practices Which Would Serve as Examples
  Projects for Surrounding
• Communities
• Initial Collection of Anecdotal/Observational
  Data on Performance
• Eventual Collection of Measured Performance Data
• Enhance Local Wildlife Habitat
• Protect the Vermillion River

10
Timeline of Empire Expansion

• 1999 Commencement of Master Planning process for
  Empire/Rosemount (REMP)
• 1999 Contacted by Friends of Mississippi and DNR
  regarding Vermillion River Leads to preparation
  of Natural Resources Plan (FMR, SWCD, DNR)
• 2002 Completion of Natural Resources Plan
• 2003 Pre-Bid meeting for WWTP expansion project
• 2003 Stabilization of streambank at 11 sites on
  Vermillion River
• 2003 Restoration of 50-acre wet meadow wetland
• Late-2003 Commencement of Construction of WWTP
  Expansion
• 2004 Friends of Mississippi organizes volunteers
  to plant restored streambanks
• 2005 Friends of Mississippi organizes volunteers
  to plant restored wetland
• 2007 Expansion Completed
• Early 2008 Effluent Diversion to Mississippi River

11
Low Impact Development (LID)

• Aka Better Site Design, Smart Growth Practices,
• LID practices attempt to replicate
  pre-development hydrology to reduce runoff
• rate, volume, and pollutant load
• Minimize impacts by reducing impervious areas,
  conserving natural drainage
• courses, enhancing infiltration
• Benefits reduce cost of infrastructure
• (pipes, manholes, etc) groundwater
• recharge, enhanced wildlife habitat,
• decreased thermal impact,
• Use of native plants increased
• soil permeability, less irrigation,
• decreased herbicide/pesticide
• use, reduced mowing,
• carbon sequestration

Burnsville Raingarden
12
Low Impact Development (LID)
Pre-Development
Urbanized
Credit Chris May, U of Wash.
13
Low Impact Development (LID)
www.api.ning.com
14
Low Impact Development (LID) Implementation
Initial and Routine Maintenance
Planning and Design
Implementation/ Construction
15
http//www.pca.state.mn.us/water/ stormwater/storm
water-manual.html
http//www.metrocouncil.org/ environment/water/BMP
/manual.htm
16
(No Transcript)
17

• Vermillion River Facts (Vermillion River JPO)
• Vermillion River JPO (Dakota/Scott Counties)
• Watershed 335 sq mi
• Dakota and Scott Counties rapidly growing
• 40 population growth in 1990s
• 20 municipalities
• 49 miles of designated trout stream
• Only world class trout stream in a major metro
  area
• in the USA (Trout Unlimited)

18
Trout Facts (Mn DNR)

• Native to Minnesota Brook (Salvelinus
  fontinalis) and Lake (S. namaycush)
• Stocked Brown (Salmo trutta) and Rainbow
  (Oncorhynchus mykiss) Trout
• Require cold, highly oxygenated water
• Food macroinvertebrates (mayfly, caddisfly,
  stone fly), insects,
• Crustaceans. Adult fish will eat other fish,
  small mammals, birds
• Typically feed in riffle/run stream features
  adults shelter during day,
• feed at night
• Shelter habitat logs, snags, pools, undercut
  banks, undercut rocks
• Brook Trout lay eggs in redd in gravel with
  upwelling of spring water
• Predation humans, birds (eagles, herons,
  kingfisher), mammals

www.caribouair.ca
19
BMPs at Empire Overview
Credit Friends of Mississippi
20
(No Transcript)
21
BMP Effluent Diversion

• Completed in early 2008
• Goal Reduce thermal impact on Vermillion River,
  aid in flood reduction, Regulatory Compliance
• Planning MCES, REMP Partners
• Implementation Contractor
• Cost 74 million

22
(No Transcript)
23
(No Transcript)
24
BMP Pollution Prevention/Source Reduction

• Goal Implement site management to meet
  requirements of proposed NPDES Industrial
  Stormwater Permit, including SWPPP
• Planning MCES
• Implementation MCES
• Specifications Developed of map with impervious
  areas, BMPs, sensitive areas, material storage,
  stormsewer outfalls, spill kit locations
• Maintenance Regular updates to map regular
  inspections
• Outcome Created interactive map template

25
BMP Pollution Prevention/Source Reduction
26
(No Transcript)
27
BMP Streambank Stabilization

• Completed in 2003 by DNR
• Goal stabilize 11 areas of streambank reduce
  TSS/Turbidity
• to River enhance trout habitat restore native
  vegetation
• Planning Friends of Mississippi and DNR
• Implementation DNR, contractor, FMR volunteers
  98,000
• Maintenance minimal
• Outcome Banks successfully stabilized. Shading
  enhanced Trout
• habitat restored with lunker boxes

28
Initial Bank Conditions
29
Construction 2003
30
Completed Project
31
(No Transcript)
32
BMP Wetland Restoration

• Completed in 2003
• Goal restore wet meadow wetland on 50 acres of
  marginal farmland protect groundwater store
  runoff enhance habitat
• Planning Friends of Mississippi and DNR
• Implementation FMR, contractor, FMR
  volunteers 230,000
• Maintenance 2003-2005 FMR and contractor
  50,000
• Outcome Wetland restored additional bird and
  insect species
• Challenges Initial dry conditions due to
  dewatering, drought Disturbance during effluent
  diversion need for continuous maintenance

33
Pre-Restoration
34
2006
35
(No Transcript)
36
BMP Vegetated (Green) Roof
37
Green Roof Review

• Intensive Green Roof
• Deep growing media (greater than 6)
• Mix of hard and soft scaping
• Allow interaction of people and landscape
• Can include trees, water features, etc

• Extensive Green Roof
• Shallow growing media (2-6)
• Typically only soft scaping
• Usually not intended for interaction of people
  and
• landscape
• Typically 18-34 lb/sq ft wet weight

38
Green Roof Overview

• Advantages of Green Roofs
• Stormwater interception evapotranspiration
  Extensive 2-5 storage
• Conversion of impervious surface
• Cooling of roof surface and building lowered
  cooling costs and energy use
• Reduction of temperature of urban heat island
• Filter and bind air born dust particles
• Longer life of roof membrane thru protection from
  UV Estimated 50 year lifespan
• Habitat aesthetic enjoyment
• Higher property values

• Disadvantages of Green Roofs
• May raise temperature of discharged runoff
  greater thermal mass
• Require structural strength
• Cost (25-30 per sq ft) approx 2x traditional
  industrial roof
• Does require regular maintenance weeding
• Does require irrigation during drought

39
Green Roof Overview
Credit roofscapes.com
40
Phillips EcoEnterprise Building
41
Minneapolis City Hall
42
Minneapolis Public Library
43
Minneapolis Condominiums
44
Empire Green Roof

• Completed in 2007
• Goal Install green roof assess maintenance
  requirements assess appropriate plant species
  create feature easily observable by public ADA
  compliant
• Planning MCES Luken Architects
• Implementation Contractor, MCES
• System American Hydrotech 6 growing medium
• Plants Dianthus June grass Prairie Onion
  Sedum
• Cost 25,000 above traditional roof (15 sq/ft)
• Maintenance Contractor 1,800/year Irrigated
  with treated effluent
• Outcome Successful implementation Attractive
  Killdeer nest in 2009
• Challenges Plant establishment, migrating
  hydro- seed irrigation (drip system to be
  installed in 2010) high-organic growing medium

45
2007
46
Late 2007
47
Early 2008
48
Early 2009
49
Late 2009
50
BMP Infiltration Basins
51
Empire Infiltration

• Final seeding in 2009
• Goal Infiltrate runoff from 2 storm Use
  native plants
• Planning MCES Rani Engineering
• Implementation Contractor, MCES
• Plants Native grasses and forbs (flowers)
• Specifications 12 sand/compost/topsoil Scarify
  to 2 ft depth clean straw mulch drill seed
• Maintenance Contractor
• Outcome 0 discharge from infiltration basins
  since construction, even in 3 rain events
• Challenges Plant establishment, retro fit of
  forebay reconstruction of septage receiving
  basin

52
North Infiltration 2005
53
BMP North Infiltration Late-2009
Area 1.2 acres Assumed infiltration rate
0.5/hr Drainage area 11.8 acres
54
Empire South Infiltration Pre-Construction
55
Empire South Infiltration Post-Construction
Area 0.8 acres Assumed infiltration rate
0.5/hr Drainage area 10.6 acres 11.8 acres
56
Infiltration Basins
West Infiltration (Septage Receiving)
57
West Infiltration Basin Re-Design and
Construction (2010)
58
BMP Pervious Pavers
59
Pervious Paver Overview

• High durability lifespan of 50 years
• High load capacity 8,000 psi
• High infiltration rate 3 in/hr (conservative)
• Renewable if plugged with sediment
• May require less winter sand/salt due to thermal
  connection with ground

60
BMP Pervious Pavers

• Completed in 2006
• Goal Install 6 pervious paver parking areas
  test durability to heavy truck traffic and
  plowing observe infiltration capacity create
  maintenance specs
• Planning MCES Contractor
• Implementation Contractor,
• System Uni EcoStone cast concrete
• Specifications 2 sand base 10 washed class 5
  gravel
• Cost 33,330 (4.37 sq/ft) excluding
  sand/gravel
• Maintenance Vacuuming and gravel replacement
  in 2010
• Outcome Successful implementation no
  dislodged or broken pavers infiltration rate
  high
• Challenges Timing of installation UV bulb
  transport

61
(No Transcript)
62
Paver Challenge UV Bulb Transport
63
BMP Grassed Swales
64
Stormwater Surprises and Challenges
65
Stormwater Surprises and Challenges
66
Stormwater Surprises and Challenges
67
(No Transcript)
68
Thank You!
Karen Jensen Metropolitan Council Environmental
Services 651-602-1401 karen.jensen_at_metc.state.mn.u
s
69
(No Transcript)
70
Trout Facts (Mn DNR)
71
(No Transcript)
72
Grassed Swales
Infiltration Basins
Vegetated (Green) Roof
Pervious Paver Parking
Native Plant Garden
73
Trout Facts (Mn DNR)
74
(No Transcript)
75
Title of Presentation

• Name
• Title
• Company Name
