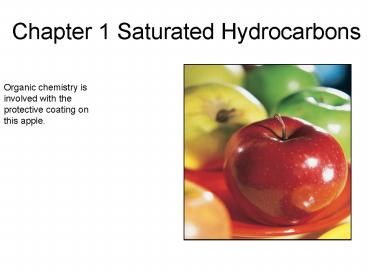

Chapter 1 Saturated Hydrocarbons

1
Chapter 1 Saturated Hydrocarbons
Organic chemistry is involved with the
protective coating on this apple.
2
What is organic chemistry?

• Organic chemistry is the study of covalent
• compounds ctg. carbon..
• excluding the binary carbon compounds
• from group VIA.
• .

3
Practice Classify the follow compounds as
organic or inorganic compounds
CH3NH2
SOCl2
CoCO3
4

• Organic compounds include drugs, fuels,
• toiletries, plastics, and fabrics.

Lipstick is made of organic molecules. Cosmetics
and perfumes contain organic compounds.
4
5
Oil is a mixture of many different organic
compounds.
6
Gasoline is a mixture of many different organic
compounds but mainly isooctane and heptane.
7
Isoctane and heptane are hydrocarbons ..lets
look how they are classified.
8
Classification of Hydrocarbons
9
(No Transcript)
10
Alkanes
11
Alkanes are molecules that contain only C-C and
C-H single bonds. Alkanes are acyclic
while cycloalkanes are cyclic.
12
Alkanes have the formula CnH2n2 (where n
an integer)
13
Cycloalkanes have the formula CnH2n
14
Practice Exercise Circle each molecule that can
be classified as an alkane
15
Types of Formulas
16
Three major categories are used to represent
organic cmpds

• Molecular ( number and type of atoms)
• e.g. C3H8 is propane )
• Structural ( wide variation in use)
• Lewis structure ( or expanded)
• Condensed
• Line-angle (or skeletal, not C-C-C
• however)

17

• 3. Models ( used to represent cmpds on paper
• or in 3D space)
• Ball and stick (all atoms and all bonds
• in 3D)
• (b) Space filling (only atoms are shown
• in 3D)
• Dash and wedge ( all atoms and all bonds
• on a 2D surface)

18
(No Transcript)
19
Practice Exercise Change the line-angle formula
to a condensed formula and a molecular formula.
See problem 12.35 ( 1.49)
20
Review of Line Angle Structures
21
See practice problem in class
22
Naming Alkanes
23
How to Name Alkanes (CnH2n2)
24
Before you learn to name alkanes you must.
25
Learn these parent names
26
Identifying the Longest Chain
27
What is the name of this alkane?
28
Identify the longest chain and then name it
29
Naming the Substituents
30
Naming Substituents (Alkyl Groups)

• Groups along C backbone are called
• substituents
• Alkane substituents are called alkyl groups
• Alkyl groups are the parent RH (alkane)
• minus a H atom

31
Examples of Alkyl Groups
32
You must know these alkyl group names and the
common abbreviations.. methyl (Me) ethyl ( Et)
propyl( Pr) isopropyl(i-Pr)
33
(No Transcript)
34
What is the name of this alkane?
35
Name the alkyl groups on the longest chain.
Now, indicate the location of the substituent on
the chain (the locant) .
36
methyl methyl dimethyl ethyl 2 5 6
9 (left to right) 2 3 7 10 ( right to
left)
37
methyl methyl 2, 6-dimethyl 5-ethyl- (
note e comes before m) 2 5 6 13 (left
to right sum is lower) 3 4 7 14 ( right to
left)
38
5-ethyl-2, 6-dimethyloctane
39
Lets do a practice problem!
40
Name this compound
41
Draw the line-angle formula for this compound
3-ethyl-2-methylhexane
42
Naming Cycloalkanes
43
(No Transcript)
44
(No Transcript)
45
You must know the four cycloalkanes shown in
the next slide
46
Practice Match the name with the structure.
Cyclobutane
Cyclopropane
Cyclohexane
Cyclopentane
47
Naming Cycloalkanes

• When naming monosubstituted cycloalkanes
• 1. Name the substituent
• 2. Name the parent cycloalkane

48
For example
These are identical molecules that are named
this way methyl cyclohexane
methylcyclohexane
49
Practice Give the IUPAC name for eachcompound.
50
Isomers
51
Isomers are two or more molecules with the same
molecular formula but .. differ in how the
atoms are connected or how the atoms are
positioned in space.
52
(No Transcript)
53
Are these isomers?
54
Yes they are isomers. What type of isomers are
they?
55
Constitutional Isomers
56
Examples of Constitutional Isomers (Alkanes)
2-methylpentane
3-methylpentane
57
Example of Constitutional Isomers (RX)
1-bromopropane
2-bromopropane
58
Examples of Constitutional Isomers (Alkenes)
1-pentene
2-pentene
59
Stereoisomers (Alkane Conformers)
60
Conformers are stereoisomers formed by C-C bond
rotation or by changes in certain ring containing
molecules.
61
In general the major conformers of ethane are
either eclipsed or staggered.
62
Stereoisomers (Cis-Trans)
63
Example of Ring Cis-Trans Isomers
cis-1,2-dibromocyclohexane
trans-1,2-dibromocyclohexane
64
Example of Alkene Cis-Trans Isomers
cis-1,2-dibromoethene
trans-1,2-dibromoethene
65
Classification of Carbon Atoms
66

• A carbon atom in an organic compound can be
  classified by the number of carbon atoms bonded
  to it.
• A carbon atom is either
• primary (1)
• secondary (2)
• tertiary (3), or
• quaternary (4)

67
(No Transcript)
68
(No Transcript)
69
Physical Properties of Hydrocarbons
(saturated and unsaturated)
70
Why is oil insoluble in water? Why does it
float on top of water?
71
Table of Properties for Hydrocarbons
72
Table of Properties for Hydrocarbons
73
Table of Properties for Hydrocarbons
74
Table of Properties for Hydrocarbons
75
Change in b.p. of hydrocarbons as a function of
structure
76
Alkane Reactions
77
1. Combustion
78
(No Transcript)
79
(No Transcript)
80
2. Halogenation (X atom replaces H atom only
Cl and Br are used)
CH3Cl HCl
81
(No Transcript)
