CMS Software Architecture

1

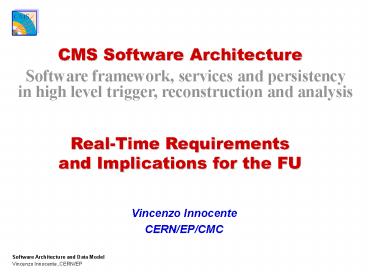

CMS Software Architecture
Software framework, services and persistency in
high level trigger, reconstruction and analysis
Real-Time Requirementsand Implications for the FU

• Vincenzo Innocente
• CERN/EP/CMC

2
CMS (analysisreconstruction) Software
Quasi-online Reconstruction
Environmental data
Detector Control
Online Monitoring
store
Request part of event
Store rec-Obj
Request part of event
Event Filter Object Formatter
Request part of event
store

Persistent Object Store Manager
Object Database Management System
Store rec-Obj and calibrations
store
Request part of event
Data Quality Calibrations Group Analysis
Simulation G3 and or G4
User Analysis on demand
3
Use Cases (single event processing)(current
functionality in ORCA)

• Simulated Hits Formatting
• Digitization of Piled-up Events
• DAQ Online monitoring (today for Test-Beams)
• L1 Trigger Simulation
• Track Reconstruction
• Calorimeter Reconstruction
• Global Reconstruction
• Physics Analysis
• Histogramming, Event visualization

4
Use Cases (Job Level)(current functionality in
ORCA)

• Select input event-collection (data
  card or env variable)
• Select events from collection (code,
  or at link time)
• Produce analysis-objects
• Choose to make persistent newly created objects
• Select output event-collection
• Select a physical-clustering strategy
• (location of output data)
• Select a detector and an algorithm configuration
• Decide if persistent objects are obsolete (and
  re-construct them)
• Perform shallow or deep copy of selected events

5
Requirements (from the CTP)

• Multiple Environments
• Various software modules must be able to run in a
  variety of environments from level 3 triggering,
  to individual analysis
• Migration between environments
• Physics modules should move easily from one
  environment to another (from individual analysis
  to level 3 triggering)
• Migration to new technologies
• Should not affect physics software module

6
Requirements (from the CTP)

• Dispersed code development
• The software will be developed by
  organizationally and geographically dispersed
  groups of part-time non-professional programmers
• Flexibility
• Not all software requirements will be fully known
  in advance
• Not only performance
• Also modularity, flexibility, maintainability,
  quality assurance and documentation.

7
Strategic Choices

• Modular Architecture (flexible and safe)
• Object-Oriented Framework
• Strongly-typed interface
• Uniform and coherent software solutions
• One main programming language
• One main persistent object manager
• One main operating system
• Adopt standards
• Unix, C, ODMG, OpenGL...
• Use widely spread, well supported products (with
  healthy future)
• Linux, C, Objectivity, Qt...
• Mitigate risks
• Proper planning with milestones
• Track technology evolution investigate and
  prototype alternatives
• Verify and validate migration paths have a
  fall-back solution ready

8
Components

• Reconstruction Algorithms
• Event Objects
• Physics Analysis modules
• Other services (detector objects, environmental
  data, parameters, etc)
• Legacy not-OO data (GEANT3)
• The instances of these components require to be
  properly orchestrated to produce the results as
  specified by the user

9
Architecture structure

• An application framework CARF (CMS Analysis
  Reconstruction Framework),
• customizable for each of the computing
  environments
• Physics software modules
• with clearly defined interfaces that can be
  plugged into the framework
• A service and utility Toolkit
• that can be used by any of the physics modules
• Nothing terribly new, but...
• We should be able to cope with
• LHC-collaboration complexity

10
CARFCMS Analysis Reconstruction Framework
Physics modules
Specific Framework
Reconstruction Algorithms
Data Monitoring
Event Filter
Physics Analysis
Generic Application Framework
Calibration Objects
Event Objects
Configuration Objects
CMS adapters and extensions
Utility Toolkit
ODBMS
C standard library Extension toolkit
Geant4
CLHEP
Paw Replacement
11
Reconstruction Scenario

• Reproduce Detector Status at the moment of the
  interaction
• front-end electronics signals (digis)
• calibrations
• alignments
• Perform local reconstruction as a continuation of
  the front-end data reduction until objects
  detachable from the detectors are obtained
• Use these objects to perform global
  reconstruction and physics analysis of the Event
• Store Retrieve results of computing intensive
  processes

12
Reconstruction Model
Geometry
Conditions
Sim Hits
Raw Data
Detector Element
Event
Digis
Rec Hits
Algorithm
13
Action on Demand
Compare the results of two different track
reconstruction algorithms
Reco Hits
Detector Element
Reco Hits
Reco Hits
Hits
Event
Reco T1
T1
CaloCl
Reco T2
Analysis
Reco CaloCl
T2
14
Action on Demand in HLT

• Introducing and removing algorithms (even at run
  time) is straightforward and efficient
• A new filter algorithm will automatically trigger
  the creation and/or the loading of the objects it
  needs
• Removing (or not running) a filter will
  automatically inhibit the creation of the objects
  it depends upon (including geometry, conditions,
  algorithms etc. )
• HLT can work on best effort
• fully reconstruct and fully store events for
  express-line analysis
• partially reconstruct and store just raw data for
  the rest
• read and store partial events for calibration
  purposes
• Offline jobs will identify what has been already
  reconstructed, what is obsolete, what is missing,
  and bring the analysis to completion with no user
  intervention

15
Problems with traditional architectures

• Traditional Framework schedules a-priori the
  sequence of operations required to bring a given
  task to completion
• Major management problems are produced by changes
  in the dependencies among the various operations
• Example 1
• Tracks of type T1 are reconstructed only using
  tracker hits
• Tracks of type T2 requires calorimetric clusters
  as seeds
• Fast simulation reconstruct tracks type T3
  directly from generator information
• switching from T1 to T2 the framework should
  determine that calorimeter reconstruction should
  run first
• If T3 are used the most of the tracker software
  is not required
• Example2
• The global initialization sequence should be
  changed because, for one detector, conditions
  change more often than foreseen

16
Event Builder/Filter (Real World Object Model)
BU
FED
Read Out Unit
1
FU
FED, ROU, BU, FU, all assemble event fragments
from data coming higher in the chain. Current
wisdom dictates that BU assembles full events,
ship fragments to FU and keeps an event until FU
decides its fate. The whole design should
accommodate technology evolution that could
modify protocols, buffer management and network
connections at any level
1..m
Event
17
FU input software(evolution of Test-Beam
prototypes)

• BU Proxy
• Handle connection with real BU (or any other
  input device)
• Unpack received fragments
• Push data into Read Out Units
• Read Out Unit
• Receive raw-data from BU Proxy
• Push FED data in the corresponding Detector
  Element
• an intermediate FED object may be required
• Perform AS-IS raw-data persistent storage
• Detector Element
• Request Data from Read Out Unit
• Decode FED data
• Cache decoded and reconstructed data.
• Supply data to reconstruction algorithms and to
  persistent storage manager

18
FU output

• FU should be capable of persistently store any
  raw and reconstructed data corresponding to
  accepted events.
• Which objects to store and how to clusterize them
  should be configurable.
• All this is common to all reconstruction
  processes.
• Current solution is that the FU formats the data
  in its final storage representation and write
  them to a device that, at configuration time, has
  been chosen to be a local disk or a remote data
  server.
• If raw-data has to be stored, the safest and more
  flexible solution is to save them in their
  original format at Read Out Unit level
  granularity.

19
CMS Test Beam setup I/O performance Test
April 1999
(published in RD45 LHCC report)
20
Hardware

• Configuration
• System SunEnterprise 450 (4 X UltrSPARC-II
  296MHz)
• Memory size 512 Megabytes
• Page Size 8KB
• Disk Controllers 2 X Dual FW-SCSI-2 (Symbios,
  53C875)
• Disks 20 X FUJITSU MAB3091S SUN9.0G Rev. 1705
• OS Solaris 5.6
• File-system Configuration
• 80GB striped file-system of 19 slices 128K "away"

21
Simple C I/O
Writing 2GB files in records of 8KB using
ofstreamwrite (egcs 1.1)
5 processes 90 MB/s
Less than 50 cpu load
22
Objectivity Test

• H2 like raw data structure
• random size objects (average 2.4KB useful data)
• 4000 events with 45 raw-objects each
• 180K raw-objects in total corresponding to 436MB
  of useful data
• including event structure and overhead a total of
  469MB written to disk per run

23
Objectivity optimization

• 32K page size
• INDEX mode 0
• 100 page cache size
• no associations (only VArrayTltooRef()gt)
• commit and hold each 1000 events

24
Results (local database)
12 processes 22 MB/s
100 cpu usage!
25
Distributed federation

• Remote lock server
• less than 10 degradation
• Remote System Databases
• initialization time increases by a factor 5 to 10
• from few seconds to several tens
• database population less than 10 degradation
• Remote Event database
• limitation from present network speed (1MB/s??)

26
Conclusions from I/O test (1)

• Using a state of the art commercial disk server
  we can write at a speed of 90MB/s using a simple
  C program
• On the same system, writing a more realistic
  raw-data event structure with Objectivity/DB, we
  can reach 22MB/s
• Running on two such systems I reached a peak
  sustained aggregate speed of 40MB/s

27
Conclusion from I/O test (2)

• The CMS online farm is foreseen to have a power
  of 4.5 Tips distributed over 1000 cpus
• Today, to write with Objectivity at 100 MB/s, a
  power of about 6 Gips, distributed over 20 cpus,
  is required
• We can safely estimate that Objectivity
  formatting of raw data will require less than 1
  of the CMS online computing power

28
FU output alternative solutions

• One alternative is to stream full reconstructed
  events, using some intermediate proprietary
  format, to a buffer-system and format them
  asynchronously.
• If event formatting is required, it will require
  a similar amount of memory cpu
• It could be faster if large-buffer
  sequential-streaming is used
• The fall back solution is to stream raw-data as a
  single complete event record in native format
  directly from the BU (or the BU-Proxy) to the
  fastest and closest device and perform any
  additional formatting offline.
• The final bottleneck will most probably be the
  network

29
Conclusions

• Current CMS software architecture was designed
  with HLT requirements in mind
• Configurable framework
• Action on demand
• Plug-in physics modules
• Several Filter Farm peculiarities already
  prototyped in Test-Beam
• The use of uniform and coherent software
  solutions will make online-offline software
  migration possible
• Risks can be mitigated
• Using the framework to shield physics modules
  from the underlying technology (will not penalize
  performance)
• Having fall-back solutions ready

30
A Uniform and Coherence Approachto Object
Persistency

• Vincenzo Innocente
• CERN/EP/CMC

31
HEP Data

• Environmental data
• Detector and Accelerator status
• Calibrations, Alignments
• Event-Collection Data
• (luminosity, selection criteria, )
• Event Data, User Data

Navigation is essential for an effective physics
analysis Complexity requires coherent access
mechanisms
32
Uniform approach

• Coherent data access model
• Save effort
• Leverage experience
• Reuse design and code
• Main road in producing better and higher quality
  software

33
CMS needs a serious DBMS

• An experiment lasting 20 years can not rely just
  on ASCII files and file systems for its
  production bookkeeping, condition database,
  etc.
• Even today at LEP, the management of all real and
  simulated data-sets (from raw-data to n-tuples)
  is a major enterprise
• Multiple models used (DST, N-tuple, HEPDB,
  FATMAN, ASCII)
• A DBMS is the modern answer to such a problem
  and, given the choice of OO technology for the
  CMS software, an ODBMS (or a DBMS with an OO
  interface) is the natural solution for a coherent
  and scalable approach.

34
CMS Experience

• Designing and implementing persistent classes not
  harder than doing it for native C classes.
• Easy and transparent distinction between logical
  associations and physical clustering.
• Fully transparent I/O with performances
  essentially limited by the disk speed (random
  access).
• File size overhead (5 for realistic CMS object
  sizes) not larger than for other products such
  as ZEBRA, BOS etc.
• Objectivity/DB (compared to other products we are
  used to) is robust, stable and well documented.
  It provides also many additional useful
  features.
• All our tests show that Objectivity/DB can
  satisfy CMS requirements in terms of performance,
  scalability and flexibility

35
CMS Experience

• There are additional configuration elements to
  care about ddl files, schema-definition
  databases, database catalogs
• organized software development rapid prototyping
  is not impossible, its integration in a product
  should be done with care
• Performance degradations often wait you around
  the corner
• monitoring of running applications is essential,
  off-the-shell solutions often exist (BaBar,
  Compass, CMS)
• Objectivity/DB is a bare product
• integration into a framework is our
  responsibility
• Objectivity is slow to apply OUR changes to their
  product
• Is this a real problem? Do we really want a
  product whose kernel is changed at each user
  request?

36
Alternatives ODBMS

• Versant is a viable commercial alternative to
  Objectivity
• do we have time to build an effective partnership
  (eg. MSS interface)?
• Espresso (by IT/DB) should be able to produce a
  fully fledged ODBMS in a couple of years once the
  proof-of-concept prototype is ready
• IT restructuring and Hoffman review have delayed
  Espresso
• We hope to be able to resume Espresso tests soon
• Migrate CARF from Objectivity to another ODBMS
• We expect that it would take about one year
• Such a transition will not affect the basic
  principles of CMS software architecture and Data
  Model and
• Will involve only the core CARF development team.
• Will not disrupt production and physics analysis

37
Alternatives ORDBMS

• ORDBMS (Relational DB with OO interface) are
  appearing on the market
• Up to now they looked targeted to those who have
  already a relational system and wish to make a
  transition to OO
• A New ORACLE product has the appearance of a
  fully fledged ODBMS
• IT/DB is in the process of evaluating this new
  product as an event store
• If these early prototypes will look promising
  CMS will join this evaluation next year.
• We hope to be able to assess the impact of ORDBMS
  on CMS Data Model and on migration effort before
  the end of 2001

38
Fallback Solution Hybrid Models

• (R)DBMS for Event Catalog, Calibration, etc
• Object-Stream files for event data
• Ad-hoc networked dataserver and MSS interface
• Less flexible
• Rigid split between DBMS and event data
• One way navigation from DBMS to event data
• More complex
• Two different I/O systems
• More effort to learn and maintain
• This approach will be used by several experiment
  at BNL and FermiLab
• (RDBMS not directly accessible from user
  applications)
• CMS and IT/DB are following closely these
  experiences.
• We believe that this solution could seriously
  compromise our ability to perform our physics
  program competitively

39
ODBMS Summary

• A DBMS is required to manage the large data set
  of CMS
• (including user data)
• An ODBMS provides a coherent and scalable
  solution for managing data in an OO software
  environment
• Once an ODBMS will be deployed to manage the
  experiment data, it will be very natural to use
  it to manage any kind of data related to detector
  studies and physics analysis
• Objectivity/DB is a robust and stable kernel
  ideal to be used as the base to build a custom
  storage framework
• Realistic alternatives start to appear on the
  market
• CMS actively follows these developments
