A Gentle Introduction to Cryptography

1

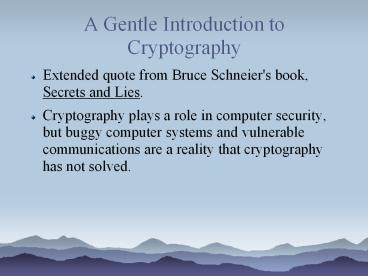

A Gentle Introduction to Cryptography

• Extended quote from Bruce Schneier's book,
  Secrets and Lies.
• Cryptography plays a role in computer security,
  but buggy computer systems and vulnerable
  communications are a reality that cryptography
  has not solved.

2
Quote from Eugene Spafford

• Using encryption on the Internet is the
  equivalent of arranging an armored car to deliver
  credit card information from someone living in a
  cardboard box to someone living on a park bench.

3
Outline of these lectures

• The general goals of cryptographic systems
• Vulnerabilities of cryptographic systems
• Two basic categories of cryptographic algorithms
• Symmetric
• Asymmetric (public key)
• Methods for sharing keys (including
  Diffie-Hellman)

4
Outline (cont.)

• Methods for ensuring data integrity (hash
  algorithms)
• Methods for authentication (digital signatures)

5
The General Goals of Cryptography

• Confidentiality assuring that only authorized
  parties are able to understand the data.
• Integrity ensuring that when a message is sent
  over a network, the message that arrives is the
  same as the message that was originally sent.

6
Goals (cont.)

• Authentication ensuring that whoever supplies or
  accesses sensitive data is an authorized party.
• Nonrepudiationensuring that the intended
  recipient actually received the message
  ensuring that the sender actually sent the
  message.

7
Basic Terms

• Encryption scrambling a message or data using a
  specialized cryptographic algorithm.
• Plaintext the message or data before it gets
  encrypted.
• Ciphertext the encrypted (scrambled) version of
  the message.
• Cipher the algorithm that does the encryption.

8
Basic Terms (cont.)

• Decryption the process of converting ciphertext
  back to the original plaintext.
• Cryptanalysis the science of breaking
  cryptographic algorithms.
• Cryptanalyst a person who breaks cryptographic
  codes also referred to as the attacker.

9
More on Confidentiality

• Confidentiality means that only authorized
  parties are able to understand the data
  (authorized from the perspective of the party
  that encrypted the data).
• It is okay if unauthorized parties know that
  there is data. It is even okay if they copy the
  data, so long as they cannot understand it.

10
Authentication

• How can we know that a party that provides us
  with sensitive data is an authorized party?
• How can we know that the party that is accessing
  sensitive data is an authorized party?
• This is a difficult problem on the Internet.
• Two solutions are
• Passwords
• Digital signatures

11
Integrity

• This involves ensuring that when a message (or
  any kind of data, including documents and
  programs) is sent over a network, the data that
  arrives is the same as the data that was
  originally sent. It is important that the data
  has not been tampered with.
• Technical solutions include
• Encryption
• Hashing algorithms

12
Nonrepudiation

• Ensuring that the intended recipient actually got
  the message.
• Ensuring that the alleged sender actually sent
  the message.
• This is a difficult problem. How do we prove
  that a person's cryptographic credentials have
  not been compromised?

13
An Important Message

• In theory, some crytographic algorithms seem to
  be EXTREMELY secure.
• Vulnerabilities arise when systems administrators
  do not deploy the encryption systems securely.
• A fundamental rule DON'T CODE YOUR OWN
  CRYPTOGRAPH ALGORITHMS.
• Another rule When using a cryptographic library,
  use the intuitive user interfaces provided with
  those libraries.

14
Message from Cryptlib Developer,Peter Gutman

• The major design philosophy behind the code
  behind Cryptlib is to give users the ability to
  build secure apps without needing to spend
  several years learning crypto. ... The
  important point is that anybody should be able to
  employ them important cryptographic algorithms
  without too much effort. ...

15
Standard Algorithms areIncredibly Secure

• Using a 128 bit key for a symmetric encryption
  algorithm, there are 2128 possible keys.
• Even with the computing resources of the US
  government, most of the software developers alive
  today will be dead before the government could
  break such an encryption Viega and McGraw

16
Incredibly secure (cont.)

• Most security experts believe that 256-bit keys
  are good for the lifetime of the universe (many
  billions of years).
• The problem is that encryption is just one link
  in the chain of security. Encryption is a really
  strong link in that chain, but one weak link
  breaks the chain.
• It is usually easier for the attacker to hack
  your machine and steal the plaintext than to
  break your cipher.

17
A Simple Example

18
A Simple Encryption Example

19
Common Types of Attacks

• Known cipher attacks the attacker has the
  ciphertext and she tries to decrypt the message
  by generating all possible keys.
• Rarely successful because the number of possible
  keys is enormous.
• Also, the decrypted message (for certain types of
  data) may not be easy to recognize when it
  appears.

20
Common Types of Attacks (cont.)

• Known plaintext attack the attacker has both the
  ciphertext and the plaintext.
• Again, this is difficult because there are so
  many keys, but the plaintext information may make
  experimentation easier than in the previous case.
• We are assuming that the attacker knows the
  algorithm that was used for the encryption.

21
Common Types of Attacks (cont.)

• Chosen plaintext attacks The cryptanalyst
  introduces the plaintext into the system and then
  watches for how that plaintext will be encrypted.
• The Allies used this approach in WWII by sending
  out false messages about allied troop movements.
• Often the attacker will try to feed a planned
  sequence of messages that would reveal the most
  about the way in which the data is being
  encrypted.

22
Common Types of Attacks (cont.)

• Side channel attacks use seemingly incidental
  information that can reveal important information
  about the key being used.
• Viega and McGraw mention DPA (Differential Power
  Analysis) attacks on smart cards. A DPA attack
  analyzes the power output from a processor
  performing an encryption algorithm in order to
  get information about the key being used by that
  algorithm.

23
Symmetric Cryptography

• Symmetric algorithms are used for
• Confidentiality
• Data integrity
• Even if an attacker captures the data, the
  attacker will not be able to manipulate it in any
  meaningful way.

24
Symmetric Cryptography (cont.)

• Symmetric algorithms use a single key shared by
  two communicating parties.
• The shared key must remain secret to ensure the
  confidentiality of the encrypted data.
• The shared key problem is the main technological
  challenge for this kind of encryption.
• We will discuss solutions to the key exchange
  problem a bit later.

25
Figure A-1 from Viega and McGraw

• The way symmetric encryption works is shown in
  Figure 1-A from Viega and McGraw.
• The message and the key are provided as input to
  the encryption algorithm.
• The output is the ciphertext, which can then be
  transferred over an insecure medium.

26
Figure 1-A (cont.)

• On the receiver end, the secret key and the
  ciphertext are inputs to the decryption
  algorithm.
• The output is the original plaintext.

27
Symmetric Cryptography (cont.)

• The secret key must be shared securely.
  Otherwise, the most sophisticated cryptographic
  algorithm is useless.
• One method of distributing the key is using the
  sneaker-net.
• Protocols exist for exchanging keys over an
  insurecure medium, but care must be taken to
  assure a good authentication process.
• Asymmetric cryptography is a common method for
  sharing keys.

28
Symmetric Cryptography

• Two main categories of symmetric algorithms
• Block ciphers
• Stream ciphers
• Most well-known and well-studied symmetric
  algorithms use block ciphers.
• Block ciphers break up the message into
  constant-size blocks and encrypt the code block
  by block.

29
Block Ciphers

• Typical block sizes are 64 bits or 128 bits.
• Messages are padded (with extra bits) to fit the
  block size.
• The simplest type of block ciphers work in ECB
  (Electronic Code Book) mode. In this mode, each
  block is encrypted separately, independent of the
  other blocks (like in our simple XOR example).

30
Block Ciphers (cont.)

• ECB block ciphers are not secure because given
  plaintext is always encoded in the same way.
• Thus, the attacker can look look for common
  linguistic patterns.
• These patterns can help the attacker to figure
  out the algorithm and key being used.

31
Block Ciphers (cont.)

• In CBC (Cipher Block Chaining) mode, blocks are
  also encrypted one at a time, but the initial
  state for each block is dependent on the
  ciphertext of the previous block.
• Thus, the same text will be encrypted in many
  different ways. This makes it much more
  difficult for the cryptanalyst to crack the
  cipher.
• CBC mode is the default mode for many block
  ciphers.

32
Block Ciphers (cont.)

• A variety of block cipher modes exist (in
  addition to CBC) for making sure that repeated
  plaintext is encoded in different ways throughout
  the message.
• These modes are the default for the standard
  secure symmetric encryption algorithms (like DES).

33
Cipher Block Chaining (CBC) Mode

• By adding gibberish into the middle of the
  ciphertext, the attacker can interfere with the
  decryption of a CBC encrypted message.
• Two methods are used to defend against this kind
  of gibberish attack
• Encode the length of the message at the start of
  the message or elsewhere to help the receiver
  figure out if the message has been tampered with.
• Use a cryptographic checksum (or hash) as a
  signature for your message.

34
Block Ciphers (cont.)

• The longer the message, the better chance the
  attacker has of breaking the encryption.
• Bruce Shneier says that a message would have to
  be at least 34 gigabytes in length for a 64-bit
  cipher before this would become a genuine risk.

35
Block Ciphers (cont.)

• Two factors influence the security of a symmetric
  block cipher
• The quality of the algorithm (e.g., ECB mode
  ciphers are less secure).
• The length of the key (e.g., 64 bit blocks are
  questionable, but 128 bit blocks are considered
  more than adequate).
• There is a classic trade-off between efficiency
  and security.

36
Security is Hard to Prove

• Demonstrating how secure a cryptographic
  algorithm is remains an extremely hard problem.
• The best test seems to be years of experience and
  public exposure.
• The one-time pad method (which has been used in
  the military) is absolutely secure, but not very
  practical because the key changes with each
  communication.

37
Extended Quote from Lecture Notes

• The two basic goals of a cryptographic algorithm
  are (a) to make life difficult for the attacker
  and (b) to produce algorithms that are efficient
  both in terms of space and time. An algorithm
  that is too inefficient to be used in practice is
  of little value even if it were proven to be
  highly secure ...

38
Quote (cont.)

• It is fairly easy for the cryptography researcher
  to design an algorithm that is secure against all
  KNOWN forms of attack. It is far more difficult
  to design an algorithm that will be secure
  against types of attacks that are still UNKNOWN.
  It is nearly impossible to predict new attacks
  against block ciphers that will be manifesting in
  future years.

39
Quote (cont.)

• For example, Viega and McGraw state that many
  people believe that the NSA has developed
  sophisticated attacks against block ciphers that
  they have not shared with the rest of the world.

40
Block Size

• A 64-bit cipher is considered too small for high
  security applications. According to Bruce
  Shneier (back in 1995), an organization such as
  the NSA could break a 64-bit key in under one
  minute.
• A 256-bit key is believed to be secure enough
  that a computer made of all the matter in the
  universe computing for the entire lifetime of the
  universe would have an infinitesimal probability
  of finding a key by brute force.

41
Quantum Computing

• But, then there is always Quantum Computing ....

42
Important Commercial Algorithms

• The most important symmetric algorithms from a
  commercial point of view are
• DES (Data Encryption Standard)
• 3DES
• AES (Advanced Encryption Standard)

43
DES

• This has been a US government standard for many
  years (although recently complimented with AES).
• It uses a 64-bit key (actually, only 56 bits are
  used for the encryption, the other 8 bits are
  parity bits), so it is no longer viable.
• Increased processing speeds (in recent years) are
  making brute force attacks on DES more viable.

44
3DES

• Then, came the idea of using DES twice on a given
  message.
• A subtle form of attack was discovered which made
  2DES no better than DES.
• 3DES proved to have the properties that 2DES was
  supposed to have.
• 3DES is a viable and popular symmetric block
  algorithm.
• 3DES has one downside it is inefficient.

45
DES According to Denning

46
DES According to Denning

• GET THE IDEA?

47
3DES

• Despite the fact that it is inefficient, 3DES is
  considered a very good (and it is a very popular)
  choice for encryption.
• Several good implementations of 3DES are easily
  downloaded off the Internet.

48
AES

• The NIST (National Institute of Standards and
  Technology) ran a competition for a new
  encryption standard.
• The winners were announced in October 2000. They
  were Joan Daemen and Vincent Rijmen. Their
  algorithm is called RijnDael or AES (Advanced
  Encryption Standard).
• AES is now an accepted federal standard and is
  widely available in open source form.
  Implementations are available in C and Java.

49
AES (cont.)

• 3DES still has the advantage that it has been
  studied (in DES) form for many years.
• The guestimate is that AES will be a viable
  encryption standard for the next 50 years, but
  there could be some surprises down the raod.

50
The Key Distribution Problem

• For symmetric ciphers, each pair of communicating
  agents needs a unique key.
• If there are lots of users, this creates a key
  management problem.
• Key derivation algorithms are used to generate a
  unique key for each communicating pair.
• If the master key for the key derivation
  algorithm is compromised, you've got a major
  problem.

51
Key Distribution (cont.)

• Some have even attacked derived keys in a key
  distribution system to get the master key.
• Another approach is to use a key management
  system that generates session keys for each
  communication. Even for the same communicating
  pair, the session keys will change from session
  to session.
• Kerberos, from MIT, is a highly regarded open
  source computer security product that supports
  symmetric key management.

52
The Great Philosopher, Yogi Berra

• It is difficult to make predictions, especially
  about the future.

53
Asymmetric (Public Key) Cryptography

• Public key cryptography is an attempt to
  circumvent the key distribution problem
  completely.
• As it turns out, asymmetric algorithms tend to be
  very inefficient.
• Their main use is in solving the key exchange
  problem for symmetric cryptography.

54
Public Key Crypto (cont.)

• In asymmetric cryptography, each user has two
  keys a public key and a private key.
• The public key is made public. For example, it
  may be published on a Web site.
• The private key must be kept secret. It is never
  shared with anyone.
• The security of the private key in public key
  crypto is as important as key security in
  symmetric crypto.

55
Public Key Crypto (cont.)

• There is no key distribution problem in public
  key cryptography.
• Some people have compared public key cryptography
  to a mailbox. Many people can put mail into the
  mailbox (in effect, using the public key), but
  only a postal worker with the appropriate key
  (corresponding to the private key) can retrieve
  the mail from the mailbox.

56
Figure A-2

• Alice wants to send a message to Bob.
• Alice uses Bobs public key to encrypt the
  message.
• The encrypted message is sent over the insecure
  medium.
• Bob uses his private key to decrypt the encrypted
  message.
• No one but Bob knows the private key.

57
Public Key Crypto (cont.)

• Public key encryption and decryption algorithms
  tend to be incredibly slow relative to symmetric
  key algorithms.
• Public key algorithms tend to be about 100 times
  slower than DES.
• In general, encrypting large messages using
  public key cryptography is not considered
  practical.

58
Public Key Crypto (cont.)

• The most important use for public key
  cryptography is for solving the symmetric
  cryptography key exchange problem.
• Viega and McGraw say that using public key
  cryptography is a more secure choice than using
  key derivation algorithms.
• SSL uses this strategy public key crypto for
  sharing keys and symmetric algorithms for
  encrypting the message.

59
Rivest, Shamir, and Adelman (RSA)

• RSA is the most famous public key algorithm.
• RSA starts with picking two HUMONGOUS prime
  numbers, p and q. Each of these prime numbers
  contains hundreds to thousands of bits.
• The two prime numbers remain secret (they are the
  private key).
• Their product, n p q, is the public key.

60
RSA (cont.)

• The product (the public key) is used to encrypt
  the message.
• Only someone who knows the prime factors can
  decrypt the message in a reasonable amount of
  time.
• The security of RSA is based on the difficulty of
  factoring n into the prime factors p and q.
• At this point in history, this is seen as a
  difficult problem.

61
RSA (cont.)

• RSA is still considered secure after twenty years
  of use.
• The big security problem is that some
  implementations of RSA have been flawed and had
  security problems of their own.
• The software developer should use a well-tested
  and highly-regarded implementation of RSA.
• Never code your own!!!

62
RSA (cont.)

• There are huge numbers of large prime numbers.
• There are approximately 10151 primes of length
  512 bits or less.
• One interpretation is that there are enough
  primes of up to 512 bits to assign every atom in
  the universe 1074 prime numbers without ever
  repeating one of those primes.

63
The Future of RSA

• The future of RSA is hard to predict.
• It depends upon what happens in prime number
  factoring theory.
• Not too many years ago, experts believed that no
  one would ever have the resources necessary to
  factor a 128 bit number.
• Now, an organization with adequate resources, can
  factor a 512 bit number in just a few months.

64
The Future of RSA (cont.)

• Viega and McGraw recommend that you use no less
  than a 2,048 bit key for data requiring long-term
  security (ten or more years).
• It may be that 1,024 bit numbers may be nearing
  the end of their usefulness even for short-term
  security.
• The longer the key, the longer it takes to
  encrypt messages using public key cryptography.

65
Public Key Crypto Vulnerabilities

• Public Key encryption algorithms are more
  susceptible to chosen plaintext attacks than
  symmetric algorithms.
• However, since public key is generally used to
  encrypt small messages (like keys), plaintext
  attacks are not a practical problem.
• More significant is the man-in-the-middle type
  of attack.

66
Man-in-the-Middle Attacks

• Figure A-3 depicts a man-in-the-middle attack.
• First, lets consider this kind of attack in
  terms of Alice trying to send a message to Bob.
• In this kind of attack, Ted sends Alice his own
  public key, misrepresenting it as Bobs public
  key.
• Ted is pretending that he is Bob when he is
  communicating with Alice.

67
Man-in-the-Middle (cont.)

• Ted sends Bob Teds own public key,
  misrepresenting it as Alices public key.
• Ted is pretending to be Alice when he
  communicates with Bob.
• Ted is intercepting all traffic between Bob and
  Alice.

68
Man-in-the-Middle (cont.)

• When Alice sends Bob a message, she encrypts it
  using Teds public key (she thinks it is Bobs).
• When Ted receives Alices message, he can decrypt
  it.
• Ted can then send Bob a modified or entirely
  different message, encrypting it was Bobs public
  key.
• Bob decrypts the message, thinking it came from
  Alice.

69
Man-in-the-Middle (cont.)

• Figure A-3 depicts the situation in terms of a
  client and a server.
• The client (Alice) asks for the servers public
  key so she can send secure information to the
  server (Bob).
• But, the client is not communicating with the
  server. She is communicating with the attacker,
  who sends her his public key.

70
Man-in-the-Middle (cont.)

• Meanwhile, the attacker establishes his secure
  connection with the server.
• This gives the attacker access to any information
  that the client sends to the server and any
  information that the server sends back to the
  client.
• This kind of problem motivates the need for a
  public key infrastructure (PKI).

71
PKI

• The basic idea behind a Public Key Infrastructure
  (PKI) is that a trusted third party certifies
  valid keys.
• Back to Bob and Alice. In this case, Alice would
  receive Bobs public key through a trusted third
  party, a certification authority (CA).
• The CA would say, in effect Alice, trust us,
  Bob is a dependable fellow and this is Bobs
  public key.

72
PKI (cont.)

• Obviously, this does not solve the matter of
  trust (the security problem).
• How can Alice be sure that she can trust the
  so-called trusted authority?
• One of the largest CAs at this point in time is
  Verisign.
• Verisign performs background checks on applicants
  before issuing them a public key for a fee.

73
PKI (cont.)

• Verisigns track record is not perfect.
• Several people registered with Verisign under the
  name Bill Gates.
• In March 2001 Microsoft announced that two false
  keys with MSs name on them had been issued by a
  CA.

74
PKI (cont.)

• The problem of trusted identity, taken from Viega
  and McGraw .

75
PKI (cont.)

• Advice for developers from Viega and McGraw ...

76
Cryptographic Hashing Functionsfor Data Integrity

• Cryptographic hashing functions are used to
  ensure the integrity of data.
• Cryptographic hashing functions are sometimes
  called cryptographic checksums or integrity
  checksums.
• Hashing functions are also used for digital
  signatures, which we shall discuss later.

77
Integrity Checksums

• Since stuff happens, it is important to have some
  means of detecting unauthorized changes to files.
• An integrity checksum is a value that is computed
  from the data that is being protected.
• The integrity checksum is stored separately from
  the protected data.

78
Integrity checksums (cont.)

• The recipient of the data recomputes the checksum
  from the data that is received and compares that
  checksum to the value that was recorded
  separately by the provider of the data.
• If the original checksum and the recomputed
  checksum do not match, then the data has been
  changed in some way.

79
Desirable Qualities for Checksum Computations

• The computation must depend upon every single bit
  in the data, so that if even one bit is changed,
  that will be reflected in the checksum.
• The computation must be such that it would be
  rare for two messages to have exactly the same
  checksums.
• The checksum should not reflect the original data
  in any obvious way.

80
Desirable properties (cont.)

• The third property implies that an attacker would
  not be able to figure out how to manipulate the
  data so that the cryptographic checksums for the
  valid data and the corrupted data would wind up
  being the same. Another way of stating this is
  that it would be difficult for the attacker to
  reverse engineer the checksum computation.

81
Hashing functions

• Checksums are computed using hashing functions.
• Hashing functions are one-way functions. This
  means that the ciphertext (i.e., the checksum)
  cannot be used to reconstruct the plaintext.
• The checksum (the ciphertext) is much smaller
  than the plaintext.

82
Hashing functions (cont.)

• Hashing functions provide a kind of digital
  fingerprint.
• When we take a fingerprint, we lose a lot of
  information about the person.
• Still fingerprints and checksums are useful
  despite the information that is lost.
• Checksums are sometimes called cryptographic or
  digital fingerprints.

83
Hashing functions (cont.)

• A checksum is sometimes called
• A message digest, or
• A message authentication code, or MAC
• The security of the hashing function is related
  to the size of the resulting checksum (in bits).
• Viega and McGraw suggest using hashing functions
  that produce a checksum of at least 160 bits.

84
Checksum Systems

• SHA-1 is a federal standard for computing
  checksums.
• SHA-1 does not use secret keys. The checksum is
  computed with a public hashing function and needs
  to be stored in a safe way. For example
• On a secure medium an attacker cannot modify
• Encrypted on a completely separate medium from
  the original data

85
Checksum systems (cont.)

• SHA-1 uses a 160 bit digest.
• SHA-1 is known to be secure.
• Newer versions of SHA may have security problems
  because they have not been as thoroughly tested
  as SHA-1.
• Tripwire is a checksum system that works with the
  operating system to see if files have been
  created, deleted, or modified in an unauthorized
  way.

86
Hashing Functions and Passwords

• Hashing functions are often used to store
  passwords for users who are logging onto a
  multi-user system.
• When the user tries to log in with his or her
  established password, the login program hashes
  it, and compares the newly hashed password with
  the stored hash.
• If the two are equal, the system assumes the user
  typed in the right password.

87
Telnet and other Internet Protocols

• With Telnet, the password goes over the network
  unhashed.
• A packet sniffer could be used to catch the
  password in transit.
• Telnet authentication provides a very low bar for
  potential attackers to clear.
• Other protocols that have a similarly weak
  authentication mechanism include FTP, POP3, and
  IMAP.

88
Attacks on Hashing Computations

• A brute force attack involves finding an
  alternative text that will yield the same hash
  signature. This is usually fairly difficult
  because the alternative text is likely to be
  gibberish.
• An effective attack is called a birthday attack.

89
A Simple Birthday Attack

• Suppose Bob and Alice enter an agreement in which
  Alice agrees to pay Bob 5.00 per widget. This
  agreement is sent to Bob with a cryptographic
  checksum. Bob decides not to store the original
  document on his server, just the checksum
  thinking that would be adequate evidence if Alice
  tries to present an alternative document ...

90
A Simple Birthday Attack (cont.)

• In fact, Alice does try to present an alternative
  document which states that the agreement is that
  she pay 1.00 per widget. Bob thinks she will
  fail in a legal battle because he has the
  cryptographic checksum. Unfortunately for Bob,
  Alice's new document has the same checksum as the
  original and Bob loses in court.

91
A Simple Birthday Attack (cont.)

• What Alice did (what is called a birthday attack)
  involved taking the original document (with the
  known checksum) and replacing all references to
  5 to 1. Then, she systematically reformats the
  1 per widget document by changing spaces to tabs
  and so forth. Eventually she finds a 1 document
  that has the same checksum as the original 5
  document.
• This kind of attack would be difficult with
  checksums of 512 or even 256 bits.

92
Digital Signatures for Authentication

• Public key encryption enabled the development of
  the technology of digital signatures.
• Digital signatures are somewhat analogous to
  traditional handwritten signatures.
• Digital signatures are strongly bound to the
  document, but weakly bound to the individual.
• A digital signature is computed, in part, using
  the contents of the document being signed.

93
Main Goals of Digital Signatures

• A signature should be proof of authenticity. Its
  existence on a document should be able to
  convince people that the person whose signature
  appears on the document signed the document.
• A signature should be impossible to forge. The
  person who signed the document should not be able
  to claim that the signature is not theirs
  (support for non-repudiation).

94
Main Goals (cont.)

• After the document is signed, it should be
  impossible to alter the document without
  detection. The signature is intrinsically linked
  to the document that is being signed.
• It should be impossible to transplant the
  signature to another document. Again, the
  digital signature is intrinsically linked to the
  document that is being signed.

95
Figure 12.1 from Denning

• This figure shows one scheme for digital
  signatures that uses public key cryptography and
  hash algorithms (the usual technology).
• As you might have guessed, Alice wants to send a
  sign and encrypted message to Bob.
• Here's how it works

96
Figure 12.1 (cont.)

• 1. Alice generates a message key, K, for
  symmetric encryption. Alice encrypts the message
  M with K, getting the ciphertext message, CM.
• 2. Alice encrypts K with Bob's public
  key-encrypting key, Kbobpub, getting the
  ciphertext key, CK. This will allow Bob to
  retrieve the key for decrypting the ciphertext.

97
Figure 12.1 (cont.)

• 3. Alice uses a hashing function to compute a
  checksum for the message, M. She then encrypts
  the checksum (for public key encryption) using
  her private signature key KSAlicepriv. The
  encrypted checksum is the signature, S.
• 4. Alice sends CK (the encrypted message key), CM
  (the encrypted message), and S (the digital
  signature) to Bob.

98
Figure 12.1 (cont.)

• 5. Bob uses his private key, Kbobpriv, to decrypt
  CK. This gives him the key, K, that Alice
  originally sent to encrypt the message, M.
• 6. Bob uses K to decrypt CM (the encrypted
  message) to get the message, M.
• 7. Bob uses Alice's public signature key
  KSAlicepub to validate S, the digital signature.
  This requires that Bob use the hashing function
  to hash the message M. The resulting checksum
  should be equal to the decrypted signature, S.

99
Figure 12.1 (cont.)

• This technology of digital signatures uses
• A hash function to help generate the digital
  signature, S.
• Symmetric (secret key) cryptography to encrypt
  the message, M.
• Public key cryptography to share the secret key
  used to encrypt and decrypt the message, M.
• Public key cryptography to encrypt and decrypt
  the digital signature, S.

100
Pretty Good Privacy (PGP)

• This is how Bob and Alice would accomplish the
  same goals using a user-friendly e-mail
  encryption system called Pretty Good Privacy
  (PGP)
• 1. Alice composes an e-mail message to Bob. She
  clicks on a button or menu item that says send
  signed and encrypted.

101
Pretty Good Privacy (cont.)

• 2. The encryption system prompts Alice for a
  password. The password unlocks her private
  signature key, which is stored encrypted on disk
  or on a separate storage medium.
• 3. The encryption system looks up Bobs public
  key (for encrypting messages sent to Bob under
  public key cryptography) in Alice's address book
  or on her digital key ring which is stored in a
  file on her disk.

102
Pretty Good Privacy (cont.)

• 3 (cont.). The digital key ring generates K, the
  symmetric key that will be shared with Bob, and
  computes CK, the encrypted key, CM, the encrypted
  message, and S, the digital signature. It puts
  the message in the outbound queue.
• 4. When the message shows up in Bob's inbox, he
  clicks on a button to read the message.

103
Pretty Good Privacy (cont.)

• 5. Bob's encryption system prompts him for a
  password, which unlocks his private key. It
  decrypts CK to retrieve K, and then uses K to
  decrypt CM, to get the message M.
• 6. The encryption system on Bob's machine then
  looks up Alice's public signture key in Bob's
  address book or key ring. It validates her
  signature S. The decrypted message is displayed
  to Bob along with an indication as to whether the
  signature was valid.

104
Pretty Good Privacy (cont.)

• Alice and Bob each have two digital key rings
  when they use PGP. They have a private ring that
  holds their private keys and a public ring that
  holds their own public keys and the public keys
  of those they are communicating with.
• The key rings are implemented as files stored on
  the hard drive or on a diskette.

105
Diffie-Hellman

• Diffie-Hellman is another popular method for
  sharing secret keys.
• Diffie-Hellman has some similarities to the use
  of public key encryption to share secret keys.
• This method was developed in 1976 by Whitfield
  Diffie and Martin Hellman, two cryptographers at
  Stanford University.
• In 1997 it was revealed that British
  cryptographers had developed a similar idea in
  the 1960s and early 1970s.

106
Diffie-Hellman (cont.)

• Here is a simple description of the
  Diffie-Hellman protocol that allows two parties
  to compute a message key for symmetric encryption
  without that secret ever being shared explicitly
• 1. Each party independently generates a private
  key.
• 2. They each compute a public key as a
  mathematical function of their individual private
  keys.

107
Diffie-Hellman (cont.)

• 3. They exchange public keys.
• 4. Each party then computes a message key (the
  secret key) which is derived from their own
  private key and the other person's public key.
  They both arrive at the same message key.

108
Diffie-Hellman (cont.)

• The public keys must be computed using a one-way
  function (a hashing function) that makes it
  imposible to get back the private keys from the
  publicly exchanged keys.
• If an attacker has access to one party's public
  key and the other party's private key, the
  attacker could compute the message key.
• The mathematics is such that the publicly
  exchanged keys cannot reveal either party's
  private key.

109
Diffie-Hellman (cont.)

• The mathematics is based on the following
  relationship
• y gx mod N
• It is easy to compute y if g, x, and N are known,
  but it is not easy to compute x if y, g, and N
  are known.
• The problem of finding x is called the discrete
  logarithm problem because x is the logarithm of y
  base g (mod N). For numbers that are hundreds of
  digits long, this is a hard problem.

110
Diffie-Hellman (cont.)

• Here is how Diffie-Hellman works, allowing Allice
  and Bob to establish a secret message key.
  Assume that p is some prime number and g is a
  base number
• Alice generates a secret key, xalice.
• Bob generates a secret key, xbob.
• Alice computes a public key yalice gxalice mod
  p.
• Bob generates a public key ybob gxbob mod p.

111
Diffie-Hellman (cont.)

• Bob and Alice exchange their public keys.
• Alice now computes the message key, K, as
• K ybobxalice mod p
• Bob now computes the message key, K, as
• K yalicexbob mod p
• Both Bob and Alice end up with the same key,
  namely
• K gxalice xbob mod p

112
Diffie-Hellman (cont.)

• In practice, very large numbers are used (several
  hundred DIGITS each), but here is an example
  using small numbers
• p 11, g 5, xalice 2, xbob 3.
• Alice computes her public key
• yalice 52 mod 11 3.
• Bob computes his public key
• ybob 53 mod 11 4.

113
Diffie-Hellman (cont.)

• Bob and Alice exchange their public keys.
• Alice computes the message key, K, as
• K 42 mod 11 5.
• Bob computes the message key, K, as
• K 33 mod 11 5.
• Both kend up with the same message key, namely
• K 523 mod 11 15,625 mod 11 5.

114
Diffie-Hellman (cont.)

• Diffie-Hellman are used in several network
  protocols and commercial products, including PGP.
• With Diffie-Hellman, keys can be generated as
  needed (on the fly) and they can be discarded at
  the end of the conversation.

115
Software Developers andCryptography

• According to Viega and McGraw the most common
  mistakes developers make with respect to
  cryptography are
• Failing to apply cryptographywhen it is needed.
• Applying cryptography in an incorrect manner when
  it is deployed.

116
Developers and Crypto (cont.)

• The most important rule is
• Never, Never implement your own cryptographic
  algorithms!!!
• An experienced cryptanalyst will not be deterred
  by the fact that an algorithm is secret (not in
  the public domain). Their tools do not require
  knowledge of the algorithm.

117
Developers and Crypto (cont.)

• The safest policy is to use a published,
  well-used algorithm that has been
  well-scrutinized by respected cryptographers over
  a period of at least a few years.

118
Developers and Crypto (cont.)

• Viega and McGraw note that most of the major
  network protocols that use encryption have been
  broken at least once. These include
• SSL (Secure Socket Layer) version 2 this should
  never be used.
• SSH (Secure Shell Protocol) version 1 this
  should be avoided.
• MS's Point-to-Point protocol used in MS's Virtual
  Private Network (VPN).

119
Developers and Crypto (cont.)

• It is not only important to use well-known
  encryption algorithms, but also to use
  well-scrutinized implementations of those
  algorithms, because the algorithms could be
  implemented incorrectly.
• Developers also need to understand the legal
  framework surrounding cryptography. The laws
  have been weakened somewhat concerning shipping
  strong crypto stuff overseas, but there are still
  laws governing this domain.

120
Developers and Crypto (cont.)

• The best bet, in terms of avoiding legal
  complications, is to use off-the-shelf, freely
  available cryptographic packages.
• Handout with reviews of two cryptographic
  libraries.
