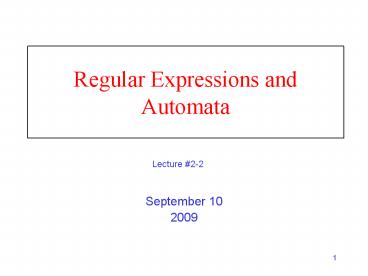

Regular Expressions and Automata

1
Regular Expressions and Automata
Lecture 2-2

• September 10
• 2009

2
Finite State Automata

• Regular Expressions (REs) can be viewed as a way
  to describe machines called Finite State Automata
  (FSA, also known as automata, finite automata).
• FSAs and their close variants are a theoretical
  foundation of much of the field of NLP.

3
Finite State Automata

• FSAs recognize the regular languages represented
  by regular expressions
• SheepTalk /baa!/

• Directed graph with labeled nodes and arc
  transitions
• Five states q0 the start state, q4 the final
  state, 5 transitions

4
Formally

• FSA is a 5-tuple consisting of
• Q set of states q0,q1,q2,q3,q4
• ? a finite alphabet of symbols a,b,!
• q0 a start state
• F a set of accept/final states in Q q4
• ?(q,i) a transition function mapping Q x ? to Q

5
State Transition Table for SheepTalk
State Input Input Input
State b a !
0 1 Ø Ø
1 Ø 2 Ø
2 Ø 3 Ø
3 Ø 3 4
4 Ø Ø Ø
6
Recognition

• Recognition (or acceptance) is the process of
  determining whether or not a given input should
  be accepted by a given machine.
• Or its the process of determining if as string
  is in the language were defining with the
  machine
• In terms of REs, its the process of determining
  whether or not a given input matches a particular
  regular expression.
• Traditionally, recognition is viewed as
  processing an input written on a tape consisting
  of cells containing elements from the alphabet.

7

• FSA recognizes (accepts) strings of a regular
  language
• baa!
• baaa!
• baaa!
• Tape metaphor a rejected input

q0
b
!
a
b
a
8
Recognition

• Simply a process of starting in the start state
• Examining the current input
• Consulting the table
• Going to a new state and updating the tape
  pointer.
• Until you run out of tape.

9
D-Recognize
10
b a a a a !
State Input Input Input
State b a !
0 1 Ø Ø
1 Ø 2 Ø
2 Ø 3 Ø
3 Ø 3 4
4 Ø Ø Ø
11
Key Points

• Deterministic means that at each point in
  processing there is always one unique thing to do
  (no choices).
• D-recognize is a simple table-driven interpreter
• The algorithm is universal for all unambiguous
  languages.
• To change the machine, you change the table.

12
Key Points

• Crudely therefore matching strings with regular
  expressions (ala Perl) is a matter of
• translating the expression into a machine (table)
  and
• passing the table to an interpreter

13
Recognition as Search

• You can view this algorithm as a degenerate kind
  of state-space search.
• States are pairings of tape positions and state
  numbers.
• Operators are compiled into the table
• Goal state is a pairing with the end of tape
  position and a final accept state
• Its degenerate because?

14
Formal Languages

• Formal Languages are sets of strings composed of
  symbols from a finite set of symbols.
• Finite-state automate define formal languages
  (without having to enumerate all the strings in
  the language)
• Given a machine m (such as a particular FSA) L(m)
  means the formal language characterized by m.
• L(Sheeptalk FSA) baa!, baaa!, baaaa!, (an
  infinite set)

15
Generative Formalisms

• The term Generative is based on the view that you
  can run the machine as a generator to get strings
  from the language.
• FSAs can be viewed from two perspectives
• Acceptors that can tell you if a string is in the
  language
• Generators to produce all and only the strings in
  the language

16
Three Views

• Three equivalent formal ways to look at what
  were up to (not including tables and well
  find more)

Regular Expressions
Finite State Automata
Regular Languages
17
Determinism

• Lets take another look at what is going on with
  d-recognize.
• In particular, lets look at what it means to be
  deterministic here and see if we can relax that
  notion.
• How would our recognition algorithm change?
• What would it mean for the accepted language?

18
Determinism and Non-Determinism

• Deterministic There is at most one transition
  that can be taken given a current state and input
  symbol.
• Non-deterministic There is a choice of several
  transitions that can be taken given a current
  state and input symbol. (The machine doesnt
  specify how to make the choice.)

19
Non-Deterministic FSAs for SheepTalk
a
b
a
a
!
q0
q4
q1
q2
q3
b
a
a
!
q0
q4
q1
q2
q3
?
20
FSAs as Grammars for Natural Language
dr
the
rev
mr
pat
l.
robinson
q2
q4
q5
q0
q3
q1
q6
ms
hon
mrs
?
?
Can you use a regexpr to capture this too?
21
Equivalence

• Non-deterministic machines can be converted to
  deterministic ones with a fairly simple
  construction (essentially building set states
  that are reached by following all possible states
  in parallel)
• That means that they have the same power
  non-deterministic machines are not more powerful
  than deterministic ones
• It also means that one way to do recognition with
  a non-deterministic machine is to turn it into a
  deterministic one.
• Problems translating gives us a not very
  intuitive machine, and this machine has LOTS of
  states

22
Non-Deterministic Recognition

• In a ND FSA there exists at least one path
  directed through the machine by a string that is
  in the language defined by the machine that leads
  to an accept condition..
• But not all paths directed through the machine by
  an accept string lead to an accept state. It is
  OK for some paths to lead to a reject condition.
• In a ND FSA no path directed through the machine
  by a string outside the language leads to an
  accept condition.

23
Non-Deterministic Recognition

• So success in a non-deterministic recognition
  occurs when a path is found through the machine
  that ends in an accept.
• However, being driven to a reject condition by an
  input does not imply it should be rejected.
• Failure occurs only when none of the possible
  paths lead to an accept state.
• This means that the problem of non-deterministic
  recognition can be thought of as a standard
  search problem.

24
The Problem of Choice

• Choice in non-deterministic models comes up again
  and again in NLP.
• Several Standard Solutions
• Backup (search, this chapter)
• Save input/state of machine at choice points
• If wrong choice, use this saved state to back up
  and try another choice
• Lookahead
• Look ahead in the input to help make a choice
• Parallelism
• Look at all choices in parallel

25
Backup

• After a wrong choice leads to a dead-end (either
  no input left in a non-accept state, or no legal
  transitions), return to a previous choice point
  to pursue another unexplored choice.
• Thus, at each choice point, the search process
  needs to remember the (unexplored) choices.
• Standard State Space Search.
• State (FSA node or machine state, tape-position)

26
Example
b
a
a
a
!
\
q0
q2
q1
q2
q3
q4
27
ND-Recognize Code
28
Example
Agenda
29
Example
30
Example
Agenda
31
Example
32
Example
Agenda
33
Example
34
Example
35
Example
Agenda
36
Example
Agenda
37
Example
38
Example
Agenda
39
Example
Agenda
40
Example
Agenda
41
Example
Agenda
42
Key Points

• States in the search space are pairings of tape
  positions and states in the machine.
• By keeping track of as yet unexplored states, a
  recognizer can systematically explore all the
  paths through the machine given an input.

43
Infinite Search

• If youre not careful such searches can go into
  an infinite loop.
• How?

44
Why Bother?

• Non-determinism doesnt get us more formal power
  and it causes headaches so why bother?
• More natural solutions
• Machines based on construction are too big

45
Compositional Machines

• Formal languages are just sets of strings
• Therefore, we can talk about various set
  operations (intersection, union, concatenation)
• This turns out to be a useful exercise

46
Union

• Accept a string in either of two languages

47
Concatenation

• Accept a string consisting of a string from
  language L1 followed by a string from language L2.

48
Negation

• Construct a machine M2 to accept all strings not
  accepted by machine M1 and reject all the strings
  accepted by M1
• Invert all the accept and not accept states in M1
• Does that work for non-deterministic machines?

49
Intersection

• Accept a string that is in both of two specified
  languages
• An indirect construction
• AB (A or B)

50
Why Bother?

• FSAs can be useful tools for recognizing and
  generating subsets of natural language
• But they cannot represent all NL phenomena
  (Center Embedding The mouse the cat ... chased
  died.)

51
Summing Up

• Regular expressions and FSAs can represent
  subsets of natural language as well as regular
  languages
• Both representations may be impossible for humans
  to understand for any real subset of a language
• But they are very easy to use for smaller subsets
• Next time Read Ch 3
• For fun
• Think of ways you might characterize features of
  your email using only regular expressions
