Title: Preparations for Producion Data Processing Calibration Status

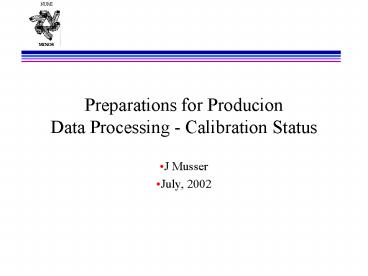

1
Preparations for ProducionData Processing -
Calibration Status
  • J Musser
  • July, 2002

2
Summary
  • Components in Place
  • Calibration Stability
  • Calibration Constant Makers
  • Calibration Chain Components Not Now in Place

3
Calibration Components
  • Offline Framework ?
  • Timing Calibration ?
  • T0
  • Timewalk
  • Charge Calibration
  • Drift Point
  • Non-Linearity
  • Inter-Strip Calibration/Response Flattening ?
  • Inter-Detector (Stopping muons)
  • CalDet Energy Calibration

4
T0 Stability
1 week of data adequate for T0
calibration Calibrations stable at better than 1
ns level over months Timewalk stable over much
longer time scale.
5
Inter-Strip Cal Stability
Calibration stable at 1 level over months. Some
evidence for short term variations _at_ 2 level.
(Drift Point) Appropriate recalibration
periodicity is monthly
6
Calibration Makers
  • Timing, Pulse Height calibrations currently
    carried using ROOT scripts running from
    CandTrackSR ntuples.
  • Output is a text file, which is loaded into the
    dB as a separate step.
  • Check plots generated (cal constant deltas, etc)
  • Running these by hand monthly would take of
    order 1 man-day per month.
  • In short term, running in this mode is probably
    OK, but need to move to a more automated
    system, with mechanism in place for validating
    quality.

7
Missing Components
  • 1 Drift Point Cal/Non-linearity
  • Drift Point working at CalDet, transfer of
    software operations to far detector should be
    trivial.
  • Hardware not yet in place.
  • Linearity calibration not currently understood at
    the level necessary to impliment.

8
Missing Components
  • Inter-Detector Calibration
  • Stopping Muons. Doing this at percent level
    requires months of data.
  • Many subtle issues - lots of work to do to do
    this right!
  • Energy calibration from CalDet analyses should be
    available, but again there are many issues
    (reconstruction efficiencies, etc) that must be
    looked at carefully.
