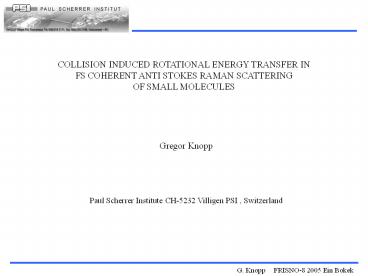

COLLISION INDUCED ROTATIONAL ENERGY TRANSFER IN

1
COLLISION INDUCED ROTATIONAL ENERGY TRANSFER IN
FS COHERENT ANTI STOKES RAMAN SCATTERING OF
SMALL MOLECULES
Gregor Knopp Paul Scherrer Institute CH-5232
Villigen PSI , Switzerland
2
Paul Scherrer Institute ? General Energy
Department? Combustion Research ? Reaction
Analysis T. Gerber, P. Radi, P. Beaud, M. Tulej,
T. Dreier, M. Johnson, A. Walser, M. Meisinger,
D. Cannavo.
Frequency-resolved spectroscopyFemtosecond
spectroscopy Femtosceond X-rays
TC FWM Fs FWM slicing
Intra and inter molecular dynamics of combustion
relevant species SLS synchrotron project
? ? ?
3
Motivation

• For many years the IOS/ECS approximation has
  been used together with energy gap scaling
  laws to predict probabilities for vibrational
  and rotational relaxation
• Experimental techniques to determine RET
  parameters
• - experimental collision-induced state-to-state
  rates (difficult large error bars)
• linewidth measurements (limited to low
  pressures) ? only diagonal elements of G
• Time-resolved CARS shows high sensitivity to
  RET due to line mixing at higher pressure
• ? improved parameter set for common RET
  models
• ? new RET scaling law angular momentum
  gap scaling

4
Collision-induced line broadening (inverse Raman
spectroscopy)
N2-N2
Measurements of linewidths at low pressure
(typically lt1 amagat for N2)yields only the
diagonal elements of G
L.A. Rahn, R.E. Palmer, J. Opt. Soc. Am. B 3
(1986) 1164.
5
CARS(Coherent anti-Stokes Raman Scattering)
N2 (295K)
M. L. Koszykowski, R.L. Farrow, R. E. Palmer,
Opt. Lett. 10 (1985) 478.

• line-mixing effect (collision line narrowing)
  sensitive to non-diagonal elements of G
• but interference with non-resonant c(3)

fs - CARS
6

Fs-CARS experiment

• 1 mJ, 1kHz TiS laser OPA
• temporal resolution 100 fs
• forward BOXCAR configuration
• cell pressure up to 5 bar
• room temperature
• only isotropic signal (magic angle)

7
Time-resolved CARS
rotations ?

vibrations ?
rotations vibrations ?
Incoherent processes are Radiative decay
Collisions
8
Signal simulation
N2
To observe coherent effects the observation time
for a cw field or the pulse duration for a
pulsed field must be shorter than the time
constant of any decay mechanism
exp(-t/tcol)
9

Temperature dependence (N2-CARS)
Flame 1350 K
Simulation (no collisions)
P. Beaud, H.-M.Frey, T. Lang, M. Motzkus, Chem.
Phys. Lett. 344 (2001) 407.T. Lang, M. Motzkus,
H.-M. Frey, P. Beaud, J. Chem. Phys. 115 (2001)
5418.
10
collisions

• Reorientation
• Velocity Change (Doppler)
• Interrupt phase of m(t)
• ? no longer in step with E
• no longer in step with surrounding molecules
• Removes molecule from interaction

11
c(t) may factorize into two parts
cJ(t) molecular dynamics including relaxation
processes
cD(t) inhomogenous Doppler broadening and
velocity changing collisions
Fs - CARS offers no single state resolution ?
Model for relaxation
D.S. Kuznetsov et. al. ,Chemical Physics, 257,
117 (2000)
12
Isolated lines

• Typically high J numbers survive longer
• g ? g (J)
• (Cars transient reflects a higher temperature
  for long delays)

S Lorentzians (w) S Exponential decays (t)

• Initial decay overemphasized

N2-N2
13
mixing lines
Interferences in time domain CARS are produced by
different pathways i ? f, which cannot be
resolved in the frequency domain.
Interference effect of low j numbers in the
Q-branch

• Increases the influence
• of low J numbers to
• early decay

• Frequency shift

14
Modeling line mixing
G
Mixing lines
Def.
Diag.
M.L. Koszykowski, R.L. Farrow, and R.E. Palmer,
Opt. Lett. 10, 478 (1985).
Parameter from J.V. Buldyreva, L Bonamy, Phys.
Rev. A 60, 370, (1999)
G ?
G is described through the collision induced
rates between specific rotational states. ?
RET
15
Energy Corrected Sudden (ECS)-Model
Full relaxation matrix for isotropic Raman N2
Q-branch bands
Important
From a subset of rates Q(l?0) the complete
collision matrix can be constructed
Collision is not sudden ? finite collision
duration ? Include adiabatic correction (F)
16
Requirements for the Model
RET matrix must correctly describe the observed
frequency dependence of the spectral lineshapes
as function of pressure and temperature.
A long standing thread through the literature is
the search for simple heuristics with which to
predict probabilities for vibrational and
rotational relaxation.
17
ECS based models
A0, tav, a and/or b, N, n1,2
A0, b, g, w0, N, c
A0, tc, Lc
AECS
Parameters are strongly correlated!
Mark Horner, Thesis, University of Cape Town
18
Model ?? fs CARS experiment (N2-N2)
19
(No Transcript)
20
Results

• Fit results are better than
• using values from literature
• main differences appear in
• the adiabatic correction

AECS
Accuracy of fs CARS measurements encourages
to find expressions with reduced number of
parameters
21
The AECS model
Rotational energy of the collision intermediate
Uncertainty in energy of the intermediate
22
The collision induced rotational energy transfer
is limited by the possible energy fluctuations of
the intermediate during tc .
0 ? l tc const.
Within the experimental Accuracy
23
Transformation to the coordinates of the probed
molecule
Adiabatic correction
Base rates
A0 and tc
Two fit parameters only
24

Fitting constant A0
25
Comparison to state to state rates
Experimental data from G. O. Sitz and L. Farrow,
J. Chem. Phys., 93, 7883,(1990).
26
Collision duration (?) tc 200fs
V(t) 12-6 Lennard-Jones potential (s 4Å
eLJ 80 cm-1)
27
Temperature dependence
! No additional ! fit parameter needed
Experimental data from Rahn and Palmer, J. Opti.
Soc. Am. B 3,1164 (1986). ECS-E Values Bonamy
and Buldyreva, Phys. Rev. A 63, 12715, (2000).
28
Collisions with higher mass partners
Modification needed
Partial pressure N2 500 mb, X 4.5 bar
Lt is defined by
Still AECS has only two free fit parameters A0
and tc
29
What is the meaning of the AECS modification ?
During tc the energy exchange has to be
sufficient DE ? wL0 tc lt 1 to allow the angular
momentum transfer.
30
Molecule with higher polarity (CO-CO)
31
C2H2 C2H2 collision system
VET
Including VET
32
C2H2 C2H2
33
Thanks for your attention

• Fs- CARS excellent method for RET investigations
• The new AECS scaling law was introduced and
  proved on
• - N2-N2
• - CO-CO
• - N2-Rare gas
• - C2H2-C2H2 collisions systems
• Two free fit parameters only for all investigated
  pressures
• and temperatures.
• Without significant loss of accuracy the angular
  momentum scaling parameter lc can be set to 2?.
  Just a coincidence ?

34
END
