The Palo Alto Fiber to the Home Trial

1

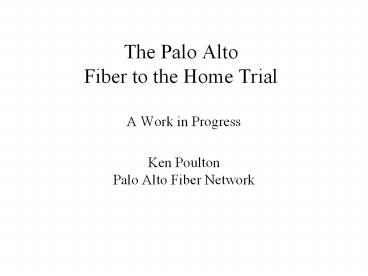

The Palo Alto Fiber to the Home Trial

• A Work in Progress
• Ken PoultonPalo Alto Fiber Network

2
Topics

• Background
• The Palo Alto Fiber to the Home (FTTH) Trial
• Network Plan
• Finance
• Marketing
• Lessons Learned
• Challenges and Opportunities
• Inexpensive Fiber to the Home
• Open Networks

3
The Setting Palo Alto

• Mostly affluent
• Adjacent to Stanford University
• Long-standing emphasis on education
• City-owned utilities (electricity, gas, water)
• High proportion of engineers and other Silicon
  Valley types
• Palo Alto Internet Exchange (PAIX)
• City-owned dark-fiber ring (completed in 1997)

4
  Existing Palo Alto Fiber Ring Route Map
Underground
Overhead
5
The Setting - Problems

• City-owned dark-fiber ring
• Fell short of (unrealistic) cost recovery goals
• Subscriber-owned local cable TV company
• Long history of financial problems
• Being sold to ATT
• City government
• Very cautious staff and city council
• Process-Rich (i.e., slow)

6
Origins of the Palo Alto FTTH Project

• The Naïve QuestionWhy cant I just hook up
  that fiber to my house? -- Residents
• The Visionary StatementFiber to the Home is
  not a question of if, but when. -- Brian
  Reid

7
Palo Alto Fiber Network

• Volunteer organization of FTTH enthusiasts
• 200 members
• 20 members working actively on FTTH
• Functions
• Education of city staff, city council, the public
• Providing networking expertise to staff
• Organizing the political effort
• Assisting with marketing effort

8
Palo Alto Fiber Network Goals

• True high-speed network access for everyone
• Scalable (user choices and future expansion)
• Affordable
• Open Network
• Promote competition
• Support a variety of services
• Encourage local content providers and services
• A fiber connection to every building in the city
• Homes, schools, businesses

9
A Simple Plan

• Build a small trial first
• Focus on a data-only network
• Use inexpensive, proven, off-the-shelf
  technologies
• 10/100 Mb/s Ethernet
• multimode fiber
• City to build and own the network
• Hire an existing ISP for operations
• Cable TV, phone, other services in the long run
• may be added sooner if they help the economics

10
Why Fiber to the Home?

• The biggest Internet bottleneck is the Last Mile
  to the home.
• Use is growing More users, more uses, more
  frequent use.
• Richer content graphics, sound, video,
  bloat-mail.

Fiber can deliver an unbeatable price/performance
ratio.
11
Consumer-Level Internet Access Technologies vs.
Year
Per-user limit with existing wires
Any technology will need considerable new
infrastructure investment to go much beyond 2
Mb/s per user.But only FTTH allows inexpensive
further upgrades.
12
Cost of Construction vs. Year of Construction
The construction cost factors favor doing it
right now.
13
Why Now?

• FTTH construction cost no longer dropping rapidly
• Electronics now only 5 of system cost for 10
  Mb/s
• The market is ready
• Telephone modems have reached the 56 Kb/s limit
• Users starting to move to medium-speed (1 Mb/s)
  services
• There is a window of opportunity
• Most attention focused on squeezing out the last
  dregs from existing copper infrastructure
• FTTH is a natural monopoly - it will be
  uneconomic to duplicate this infrastructure.
• The first provider to build an open Last-Mile
  fiber infrastructure in a given area will be the
  last for decades

14
Palo Alto FTTH Trial Topology
15
Typical Pole to Home Wiring
Home installation is similar to cable modem but
uses fiber.
16
FTTH Trial Costs10 Mb/s Service to 100 Homes
Construction Cost Estimate 630 per home
passed 830 per home connected (380 for 100
Mb/s)
Total 350K
Operations Cost Estimate 7/month for physical
maintenance 25-50/month for Internet Access,
support, ISP services
17
Per-User Capital Cost vs. Participation Rate
Target for Trial 24
18
What are the Building Blocks of a Network?

• Customers
• Residential, Commercial, Academic, Civic, Special
  Interest

• Services
• e-Mail, Content, Web Hosting, e-Commerce,
  Education

Competition Possible

• Internet Access
• Internet Access and Transport

• Network Operations
• Routing, Traffic Control, Security, Billing,
  Customer Support

Natural Monopoly

• Physical Infrastructure
• Wiring, Poles, Easements, Splices, Switching
  Equipment

19
Who Does What?
Trial
City-Wide

• Customers
• Residential, Commercial, Academic,etc

5,000-26,000 homes
100 homes

• Services
• e-Mail, Content, Web Hosting, e-Commerce

Any ISP
Any ISP

• Internet Access
• Internet Access and Transport

Single IAP/ Network Operator
Qualified IAPs

• Network Operations
• Routing, Security, Billing, Traffic, Support

Network Operator

• Physical Infrastructure
• Cables, Poles, Easements, Switch Sites

City
City/Private
For the trial, use a single IAP/Network Operator
to be cost-effective.
City-wide system will be an open network.
20
Financial Model For the Trial

• Ownership
• City builds and owns the physical network
• City chooses an ISP to provide operations and
  services
• City Councils Financial Choices
• Recover construction costs within 5 years
• Subscribers commit to repay 2/3 of the cost
  before construction
• Resulting Offer to Residents
• 1200 installation fee
• 45/month to city 25-50/month to ISP
• 2.5-year commitment to the service

21
Marketing Results

• August 98 Survey
• A single utility-bill insert and a few ads
• Yield a 4 city-wide signup rate in just 4 weeks
  (compared to 4 use of cable modems in 4 years).
• 19 in two areas with neighbor-to-neighbor
  campaigns
• September 99 Trial-Area Signup
• 2 letters from the city (with ISP rates still not
  certain)
• Yield 9-15 signup rate
• December 99 Trial-Area Signup
• Will have ISP rates defined and neighborhood
  campaign
• Goal 24 participation

22
Timeline for FTTH in Palo Alto

• Fiber Ring built 1997 2M
• Begin Trial construction Q1 00 0.4M
• Begin Trial operations Q3 00
• First evaluations Q1 01
• Decide on a city-wide system 2001
• Is FTTH worth doing?
• Should the city be involved?
• Should private partners be involved?
• Can sufficient political will be mustered?
• Deploy city-wide system 2002 25M

23
Hurdles (and how we passed them)

• Right-of-way ownership
• Have the city be the builder and owner of the
  network
• Need for fairness among neighborhoods
• Expand the focus from one neighborhood to
  citywide survey
• Negative, incorrect, initial staff report
• Wrote a technical and budgetary plan using staff
  numbers
• Council desire for zero financial risk to the
  city
• Small trial, users commit up front to pay for
  the system
• Not enough subscribers without firm ISP cost
  numbers
• Going back to finish signups after ISP signed up

24
Lessons Learned

• We found huge grass-roots enthusiasm for FTTH
• High speed
• Open network
• New services
• City ownership is very attractive to residents
• City ownership is scary to city staff and council
• Educate citizens, city staff and representatives.
• Advocates must remain engaged with city staff.
• Cities do not run on Internet time

25
Fiber Choice Current Costs vs. Long Term
Flexibility

• Lowest cost today
• neighborhood switch sites serving 1000 homes,
  distances up to 2000 meters
• multimode fiber (cheaper splices and converters)
• data only (10 Mb/s Ethernet, 100 Mb/s in a few
  years)
• But we may need single-mode fiber for CATV and
  1000 Mb/s over gt500 meters
• Single-mode splices and media converters add
  1000 per subscriber to the current costs
• CATV electronics add another 1000

26
Technical OpportunitiesTaking FTTH From
Attractive to Irresistible

• Cheap (50) single-mode fiber media converters
  for Ethernet and CATV
• Cheap wave-division multiplexing components
• Pole-mountable, non-air-conditioned switches and
  media converters
• could be within 500m of homes, so multimode is
  enough

27
Open-Network Challenges

• Technical Implementation
• No clean solution to multiple-ISP network yet
• Network Business Model
• So far Ownership Control No competition
• Opening monopoly networks via regulation
  ineffective

28
Open-Network Paths

• Public Ownership
• Most direct way to ensure an open network
• Risk to public funds
• Political battles to get started
• Private Ownership
• Can move more swiftly
• Existing networking expertise
• No proven model that benefits from maintaining
  openness
• Public/Private Partnerships
• Could have the best of each
• No proven models yet

29
Summary

• FTTH is coming sooner or later sooner is better.
• Open networks are a major benefit to the public.
• FTTH is a natural fit for open networks
• Public vs. private ownership choices
• Room for innovation to make FTTH more
  competitive.
• We found lots of support for publicly-owned FTTH
  in Palo Alto.
• We hope to demonstrate viability of FTTH in the
  coming year.

30
Thanks to...

• Palo Alto Community Network
• For starting the discussion
• Brian Reid
• For vision and inspiration
• Residents of the Community Center Neighborhood
• For leading the way
• Palo Alto Fiber Network
• For volunteers supporting FTTH throughout the
  city
• Palo Alto City Council
• For funding
• City of Palo Alto Utilities Department
• For doing the work and taking the heat

31
References

• Palo Alto Fiber Network site www.pa-fiber.net
• Major Contributors Mike Eager, Ken Poulton,
  Peter Allen
• City of Palo Alto FTTH site www.cpau.com/fth
• Slide Do U.S. Homes Really Use the Internet?
• See www.cyberdialogue.com/isg/timeline/forecast.ht
  ml for results of a FIND/SVP survey estimates and
  projections. This corresponds to the following
  government survey
• See www.ntia.doc.gov/ntiahome/net2/charts.html
  for details on the The Digital Divide, Net II
  survey released 7/28/98 by the National
  Telecommunications Information Administration.
• Slide Why Fiber?
• Snapshot from 11/99 of each listed service
  providers price structures.
• Slide Palo Alto Fiber Backbone Route
  MapSlide Typical Pole to Home Wiring
• Source City of Palo Alto Utilities
• Slide FTTH Trial CostsSlide Cost of
  Construction vs. Year of Construction
• Source City of Palo Alto Utilities, Fiber To
  The Home Trial Cost Estimates.
• Analysis Ken Poulton, Palo Alto Fiber To The
  Home Trial Technical and Budgetary Report.
  (www.pa-fiber.net)
• Slide What are the Building Blocks of a
  Network?Slide Palo Alto Fiber Network Trial
• Source Peter Allen

32
Palo Alto FTTH Network Phases

• Build the Backbone (1997) 2M
• FTTH Trial (Q3 2000) 0.4M
• Refine cost estimates and design
• Measure user satisfaction, participation rate
• Make recommendations for a city-wide system
• City-wide Rollout 25M
• Market competition
• New services

33
Consumer-Level Internet Access Technologies vs.
Year
with existing wires
Any technology will need considerable new
infrastructure investment to go much beyond 2
Mb/s per user.But only FTTH allows inexpensive
further upgrades.
34
Detail of Costs for Services
35
Expected Results of the Trial

• Demonstrate that FTTH is practical and pays for
  itself.
• Refine the construction and operational cost
  models .
• Work out operational details and user support.
• Measure user satisfaction and willingness to pay.
• Enable new applications that are currently
  bandwidth-starved.
• Increase awareness, demand and financial
  justification for a city-wide FTTH system.
• Reduce uncertainties and risks of a city-wide
  FTTH system.

36
Why Ethernet?

• Its the standard - used in most offices in the
  world
• 10 Mb/s is the least expensive kind of network
  now
• Familiar to all ISPs
• Its easy to upgrade later
• Many companies are creating new Ethernet products
• 100 Mb/s will be cheap in 3 years, 1000 Mb/s in
  8 years
• It meets the whole spectrum of data service needs
  - now and into the future
• 10 Mb/s provides enough speed for gt90 of home
  uses
• 100 Mb/s option can support virtually any use
  today
• Room to grow as demand grows
